1208 3 Axis Mini Assembled CNC Router Wood PCB Milling Engraving Machine DIY Engraver 120x80x16mm

$436.57 AUD

or 6 weekly interest-free payments from $72.76 with Laybuy


Or 7 Fortnightly instalments of $59.74 withInfo

In stock

or 6 weekly interest-free payments from $66.14 with Laybuy what's this?

Estimated delivery between Nov 18, 2019 - Nov 25, 2019
Add to Wishlist
Add to Wishlist
SKU: 18424 Category: Tags: , , , , , , , , , , , , , , , ,

Specification:

General Specification
 Model  Mini CNC1208 (Without Laser Module)
 Frame Material  3D Printed
 Color  Grey
 Worktable Size  150 mm x 90 mm
 Max. Engraving Area (L*W*H)  140 x 80 x 16mm
 Machine Dimension (L*W*H)  220 x 185 x 165 mm
 Packed Weight  3.5kg
 Control Software  GrblControl
 System Requirements  Windows XP SP3, Win7, Win8, Win10.

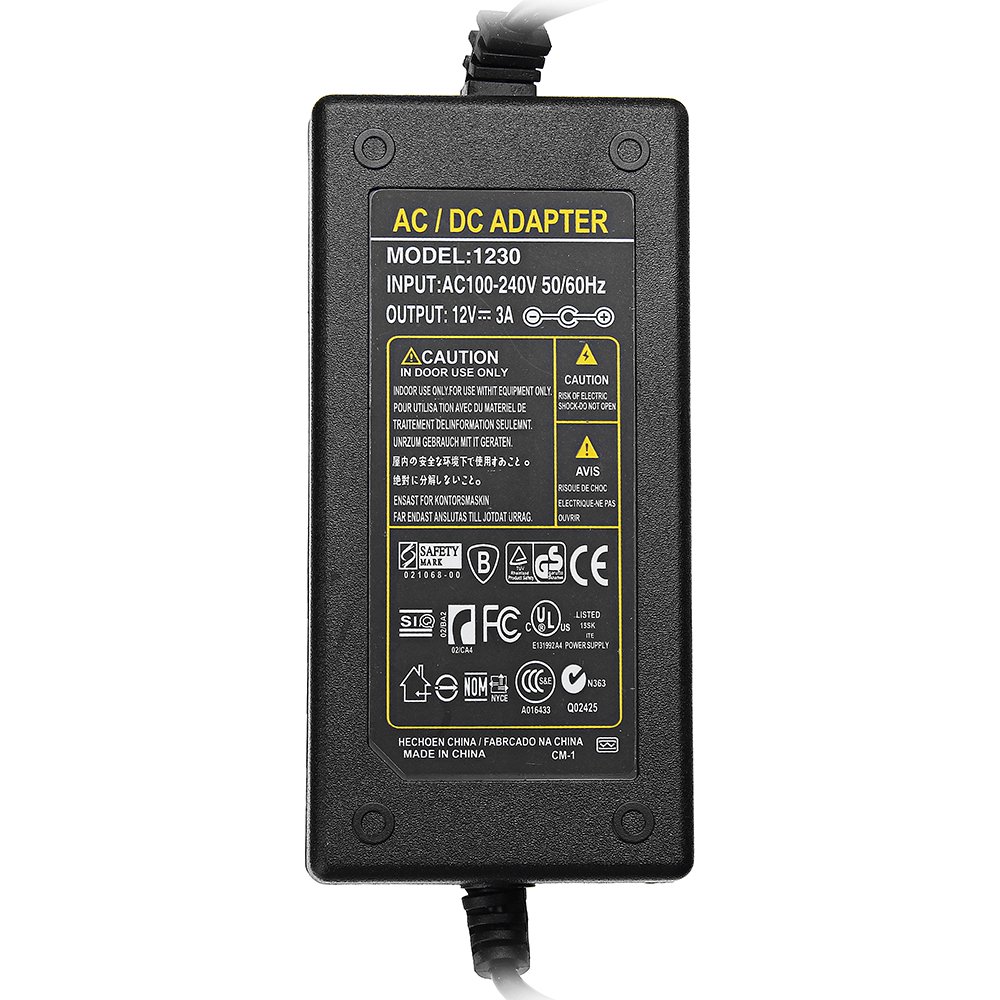

 Adapter Plug  2-Pin US Plug
 Adapter Input Voltage  AC 100-240V 50/60Hz
 Adapter Output Voltage  DC 12V 3A
 Features  1. 3D Printed Frame Construction, More Light in Weight
 2. Assembled Delivery, More Convenient & Portable for Beginner
 3. 3 Axis Movable,  6000 rpm Powerful Spindle Motor
 4. Contains Quickstart Guide of GRBL Software
 5. Mini 120 x 80 x 16mm Working Area for Begining Usages
 6. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material
     Can Not Engrave Metal, Steel, Aluminum.
 Technical Parameters
 Working Voltage  DC 12V
 Working Current  3A
 Shank Diameter  3.175mm
 Interface  USB

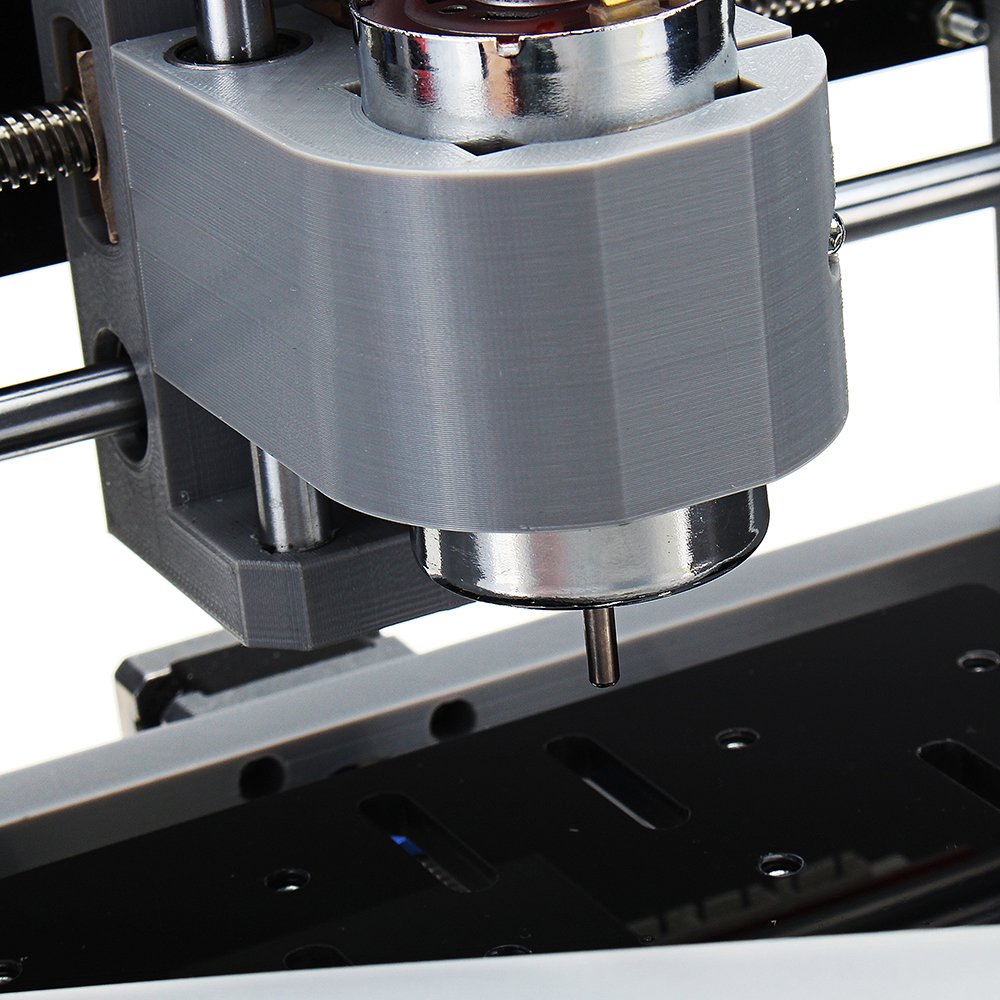

 Spindle Motorm Speed (No-Load)  6000 rpm

Features:

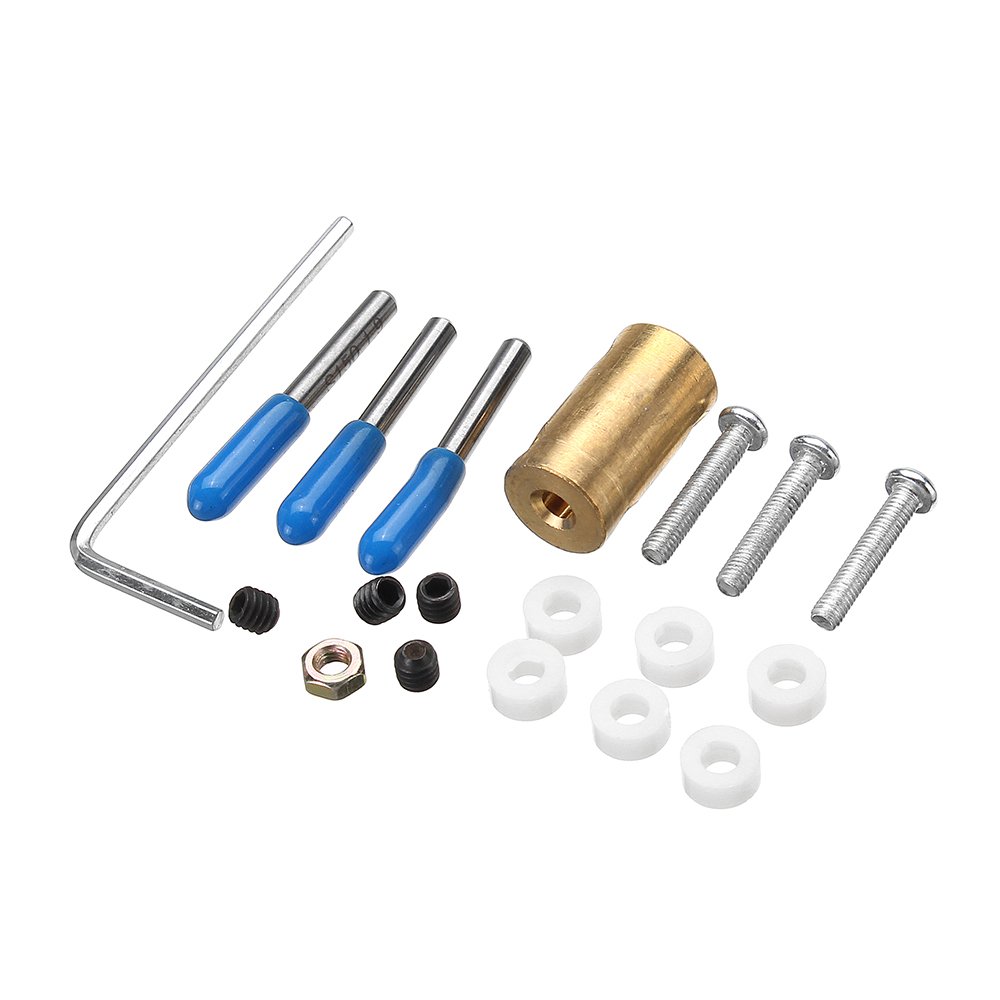

Almost fully assembled delivery! Quick to use. All assembly components are included.

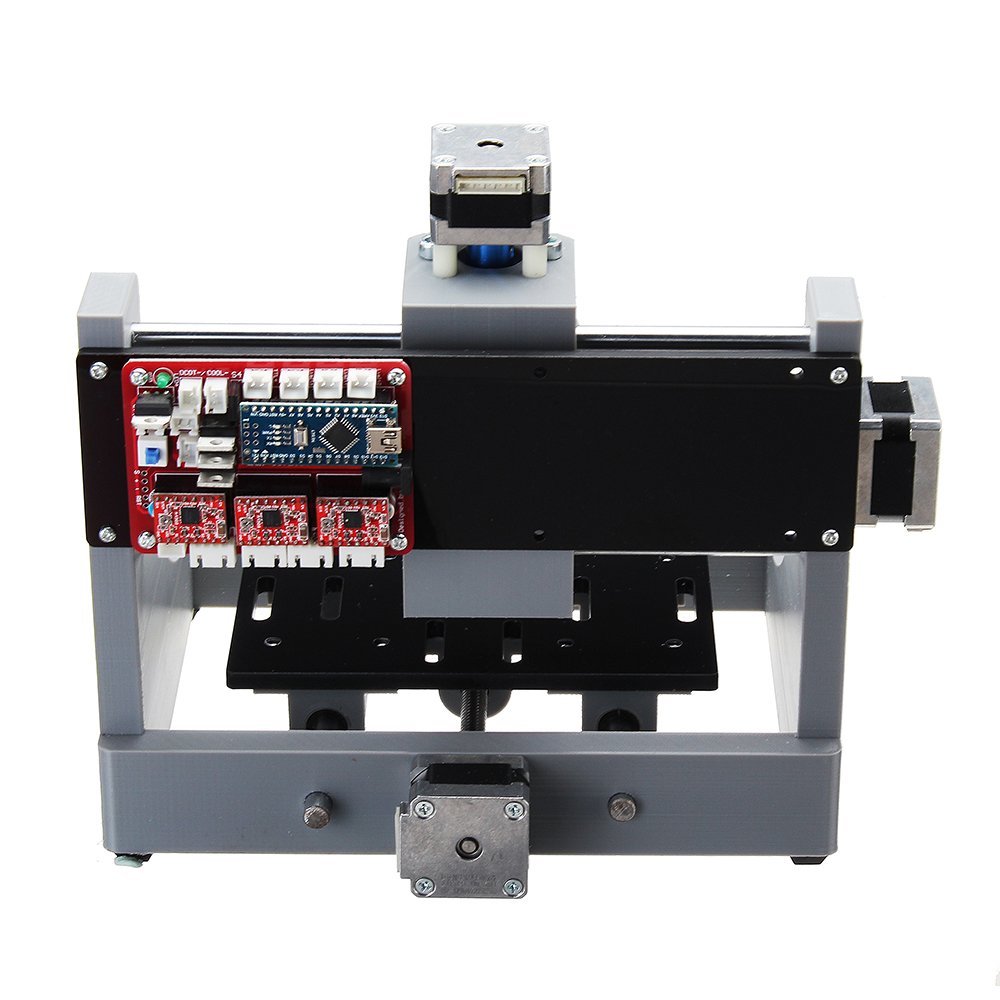

(We have assembled the machine basic construction before packaging for your convenience. When you recieve the item, just install the controller board on the back and finish the wiring connection. Then it’s ready to use.)
– Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
– Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.

Note: GRBL control software & driver, and further information please refer to: CLICK HERE


Package Included:

1 x Mechanical Engraving Machine
(Without Laser Module)
