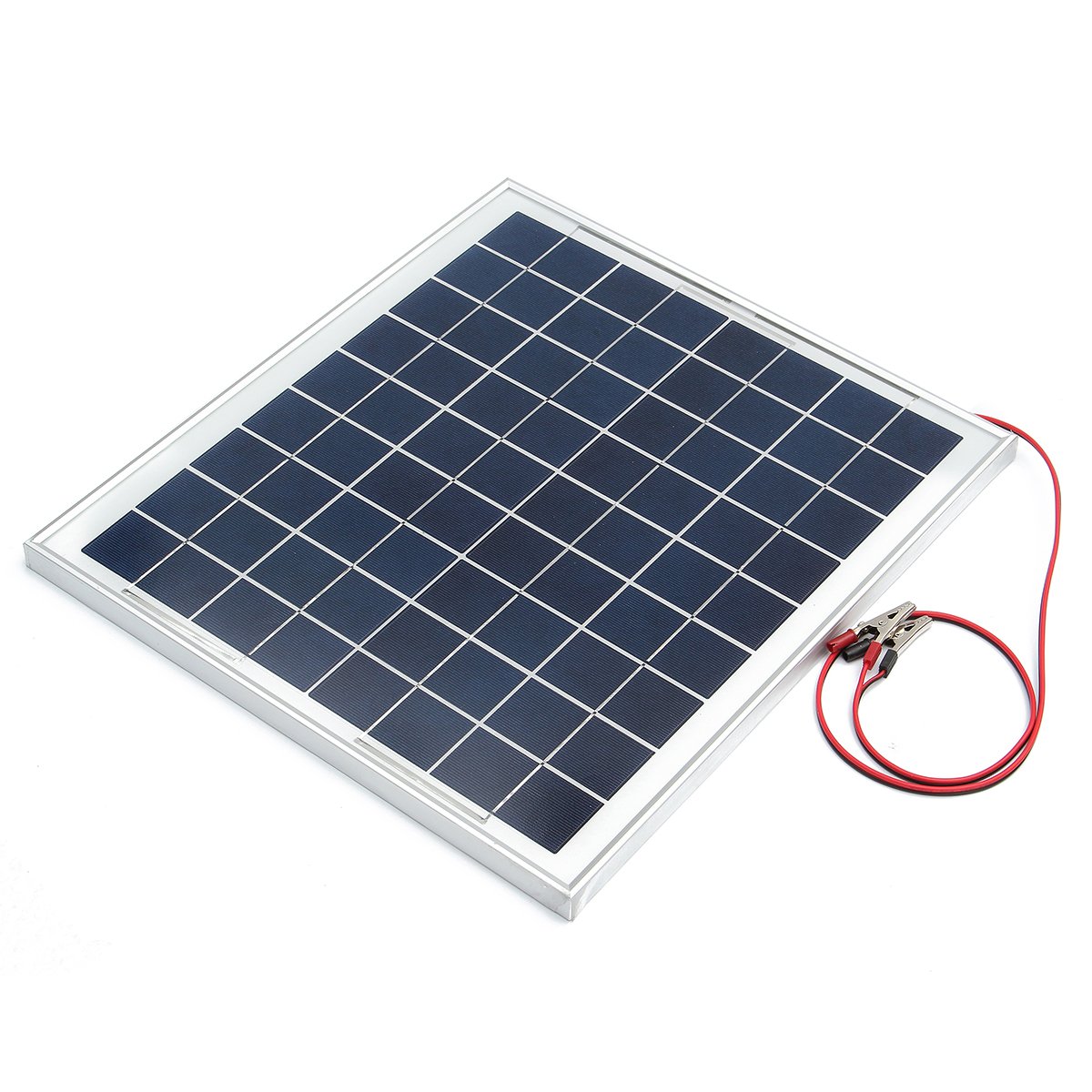

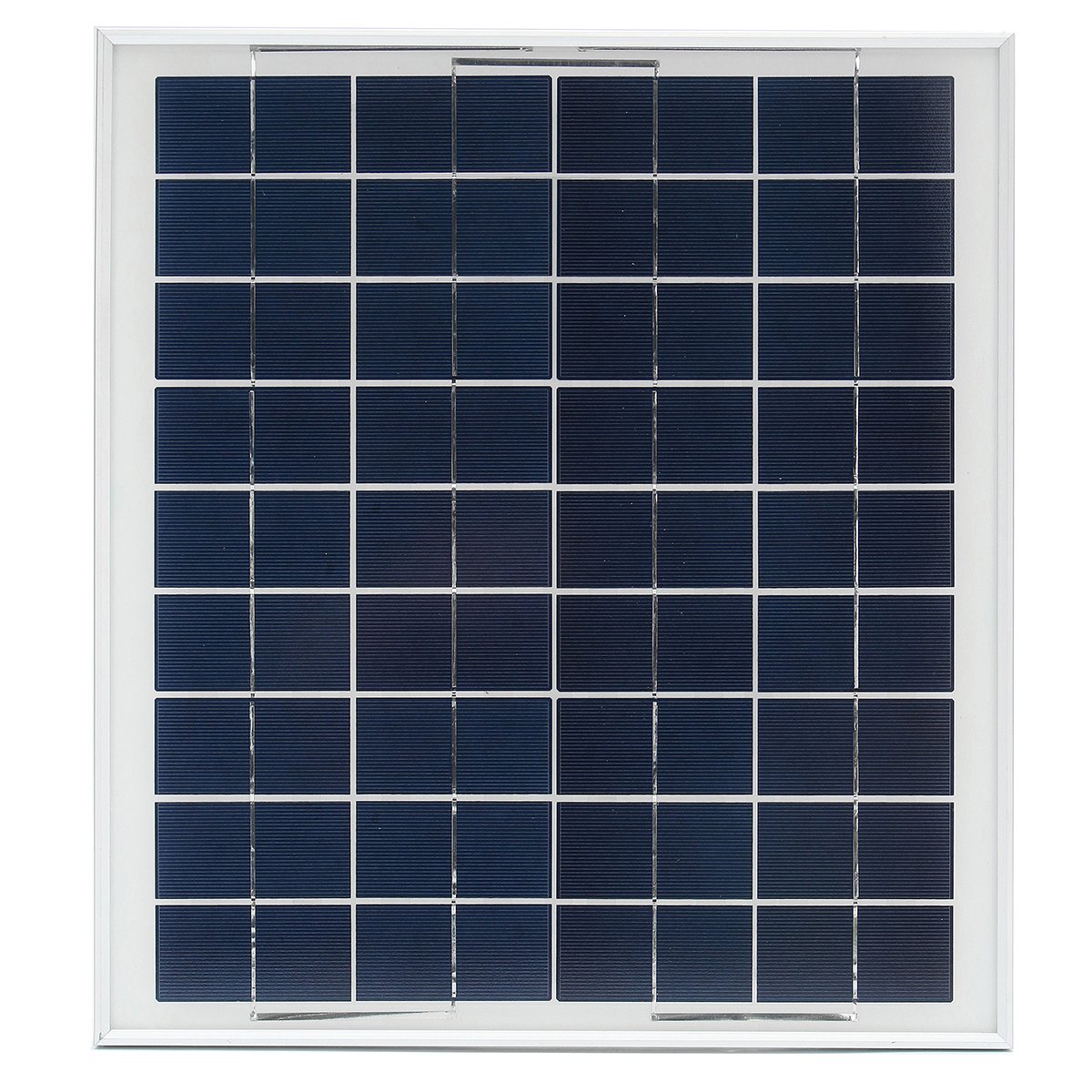

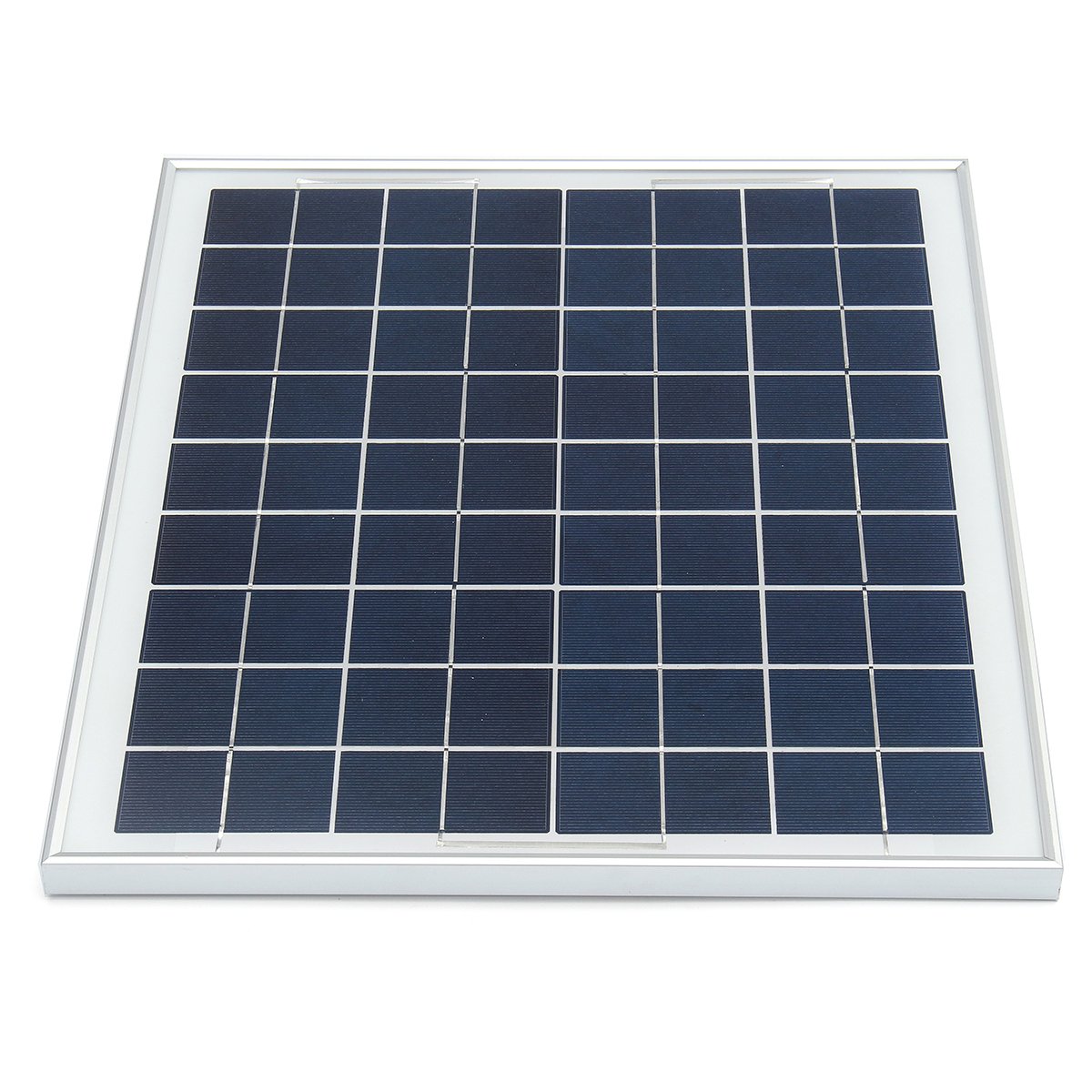

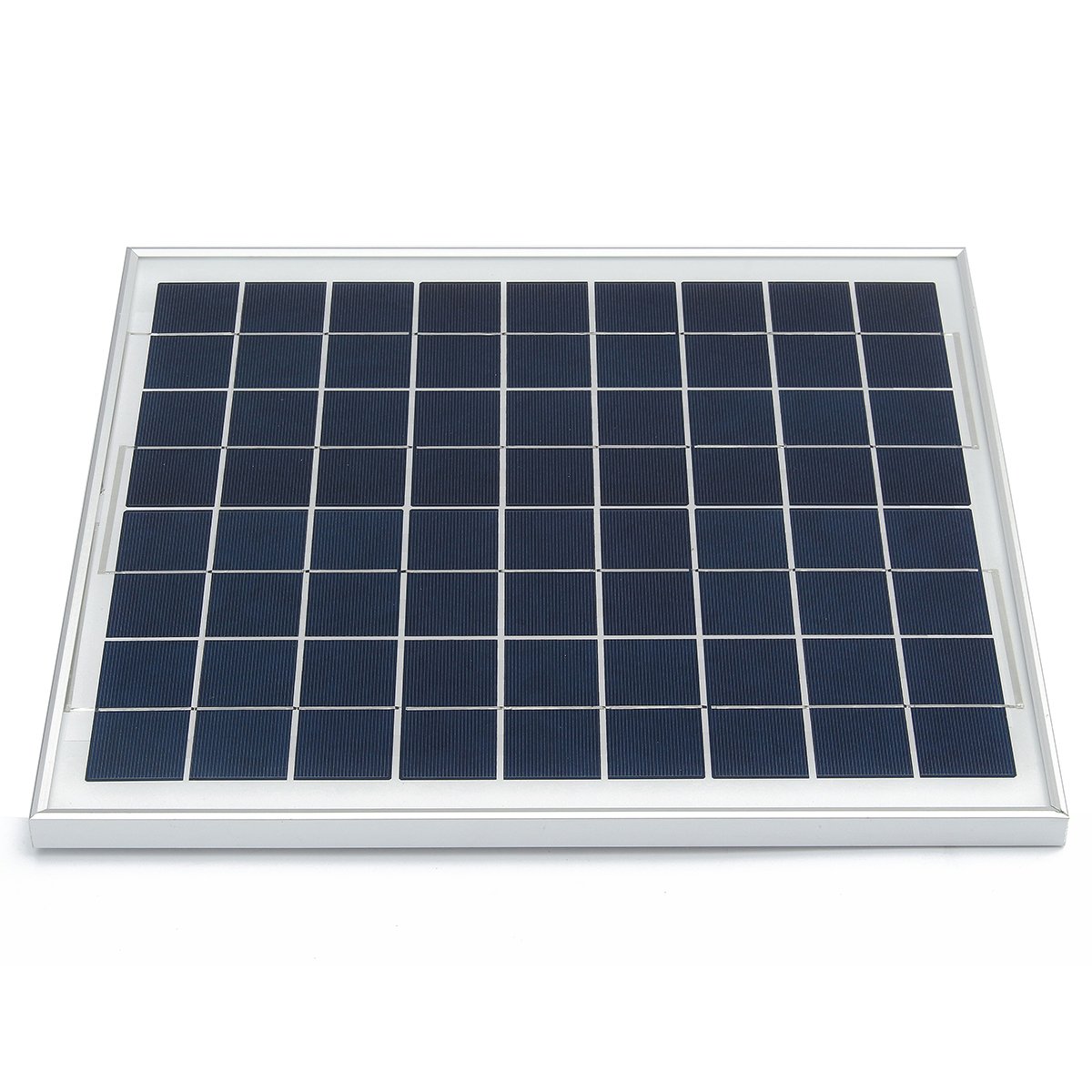

12V 10W Aluminum Alloy Frame Polycrystalline Solar Panel With Junction Box

$93.18 AUD

or 6 weekly interest-free payments from $15.53 with Laybuy what's this?

12V 10W Aluminum Alloy Frame Polycrystalline Solar Panel With Junction Box

Only 2 left in stock

Optional product install assistance
Estimated delivery between 2021/07/29 - 2021/08/05
Add to Wishlist
Add to Wishlist
SKU: 16692 Category: Tags: , , , , , , , , , ,

Descriptions:

A solar cell is a device that converts light energy directly into electrical energy by photoelectric effects or photochemical effects.
The application of solar panels: to solar dedicated battery charging, for solar photovoltaic power generation, solar street lights, solar garden lights, solar lawn, solar traffic lights, solar insecticidal lamps and so on.

Specifications:

Name: solar panel
Main Material: Polysilicon
Color: Deep blue
Solar panel Sizes: 40.96X36.51cmx18mm
Pmax: 10W
Toleance: ±5%
Vmp: 18V
Imp: 0.55A
Voc: 21.4V
ISC:0.58A
Maximum system voltage: 750V
Test condition: 1000W/m²,AM1.5,25℃

Package included:

1x Solar panel

Precautions:

1. When using, to the solar panel is facing the sun, and let the panel and the ground was 45 degrees angle, should not put the board on the ground or on the indoor sun can not direct place.
2. The power of the panel is DC and the AC load needs to be connected to the inverter to convert DC to AC
3. Please be fixed to the solar panels to prevent the wind was blowing down, affecting the use
4. Do not cover the solar panels above, there are leaves or other debris Please promptly remove, to prevent heat island effect, burn out the battery
