Description

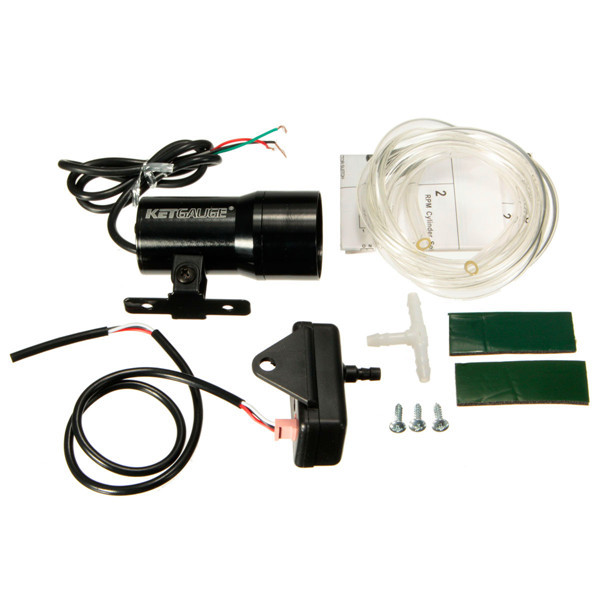

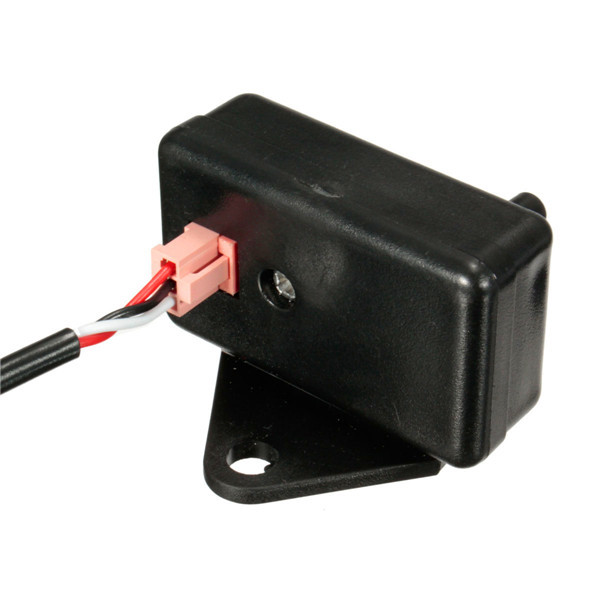

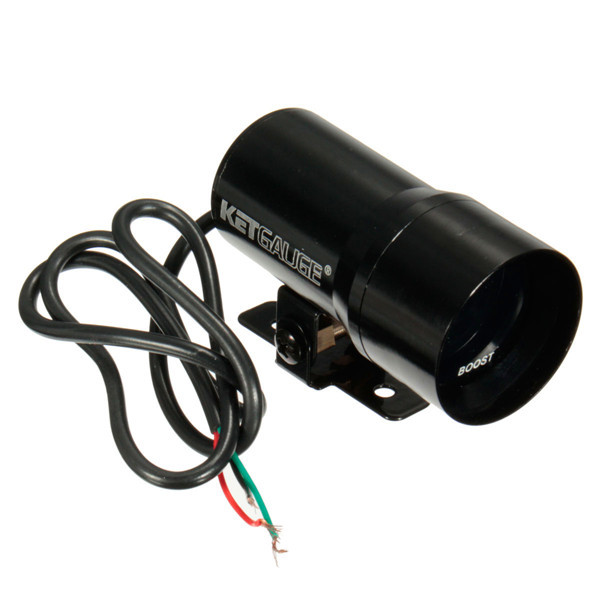

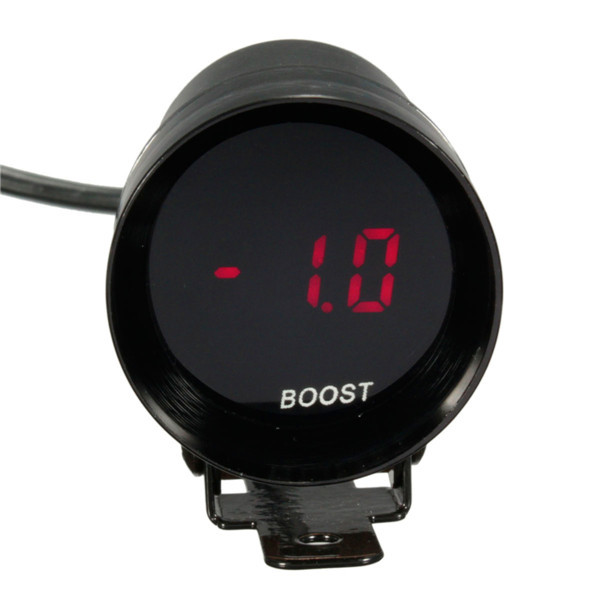

12V 37mm Micro Red Digital LED Bar Turbo Boost Gauge Meter Smoke Len Black ShellFeatures:– Anodised purple metal material, durable- 37mm diameter micro digital gauge- Unique smoke lens design- Red LED digital display, easy viewing at all angles during lighting conditions- Simple installation, user manual included- Universal fit for 4-6-8 CYLINDER ENGINESSpecification:Shell Color: BlackLens Color: SmokeMaterial: AluminumLED Display Color: RedGauge Dimension: about 70mm x37mm x37mmOperating Voltage: 12V DCRange: -1.0~2 BARPVC Hose Length: about 1mGauge Wire Length: about 54cmThe diastance between two mount hole center: about 32mmWiring:1. GaugeRED – to ignition switch 12V(+)BLACK – to battery(-)GREEN – connect to boost sensor white wire2. SensorRED – ignition switch 12V(+)BLACK – battery(-)WHITE – connect to gauge green wirePackage Included:1 x Smoke Lens Turbo Boost Gauge1 x Boost Sensor1 x PVC Hose1 x English User ManualMounting Accessories
