2 DOF Aluminium Robot Arm Clamp Claw Mount Kit With MG996R Servo

$19.39$33.22 AUD

or 6 weekly interest-free payments from $2.93 with Laybuy what's this?

Clear
Optional product install assistance
Estimated delivery between 2021/10/25 - 2021/11/01
Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
SKU: 16270 Category: Tags: , , , , , , , , , , ,

2 DOF Aluminium Robot Arm Clamp Claw Mount Kit With MG996R Servo

There are two kinds you can choose:

A: One arm
B: One arm + Two Servos

Feature:



The Kit comes with hardware, no assembly

Clamp Max open is
55mm

Clamp total length:

108mm

Clamp total width:
98mm (when the Clamp open)

Working voltage:
4.8-6V (when the Clamp open)

The plank kit is very light

Compatible with
HS322, HS422, MG995, SG5010 servo




Specification:



Name: 2 DOF Aluminum Robot Arm Clamp

DOF: 2

Paw material:
aluminum alloy

Paw weight: about 68g (without motor)

Paw maximum opening angle: 55mm (without expansion board when the maximum opening angle spacing of 55mm, the largest expansion board after the installation is 95mm)

Claws overall length:
108mm (overall maximum length when closed paw)

Claws overall width:
98mm (maximum overall width of the paw when open)




Package included:



1 x Aluminum Clamp 2 DOF

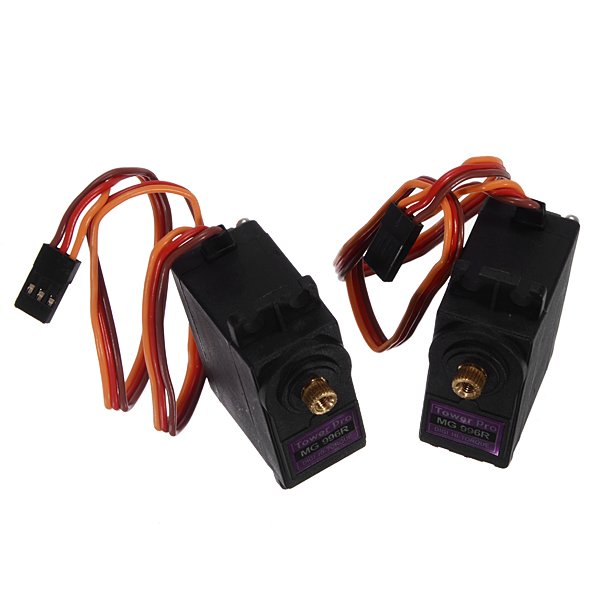

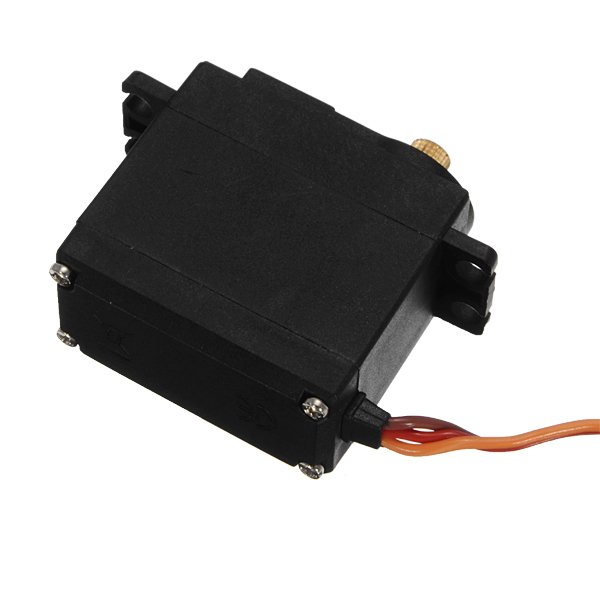

2 x MG996R Servo

2 DOF Aluminium Robot Arm Clamp Claw Mount Kit With MG996R Servo 11

2 DOF Aluminium Robot Arm Clamp Claw Mount Kit With MG996R Servo 12
type

A, B
