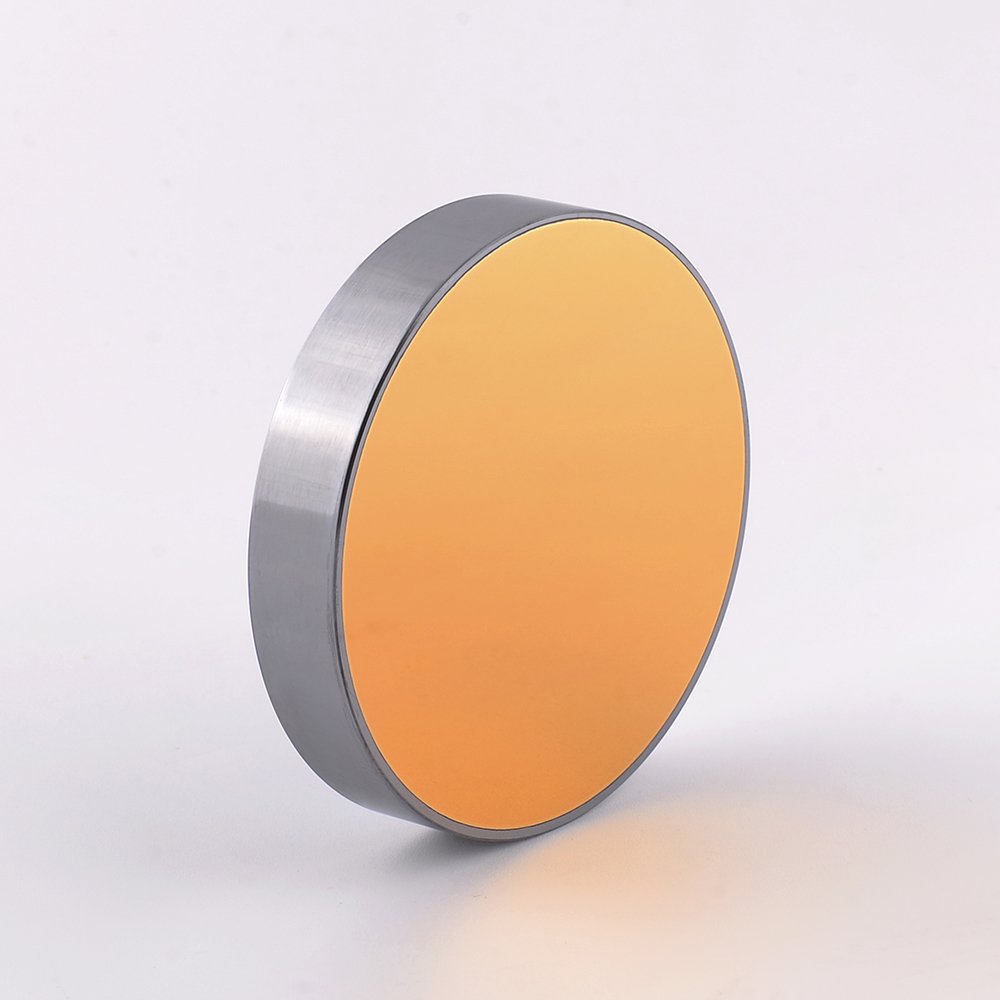

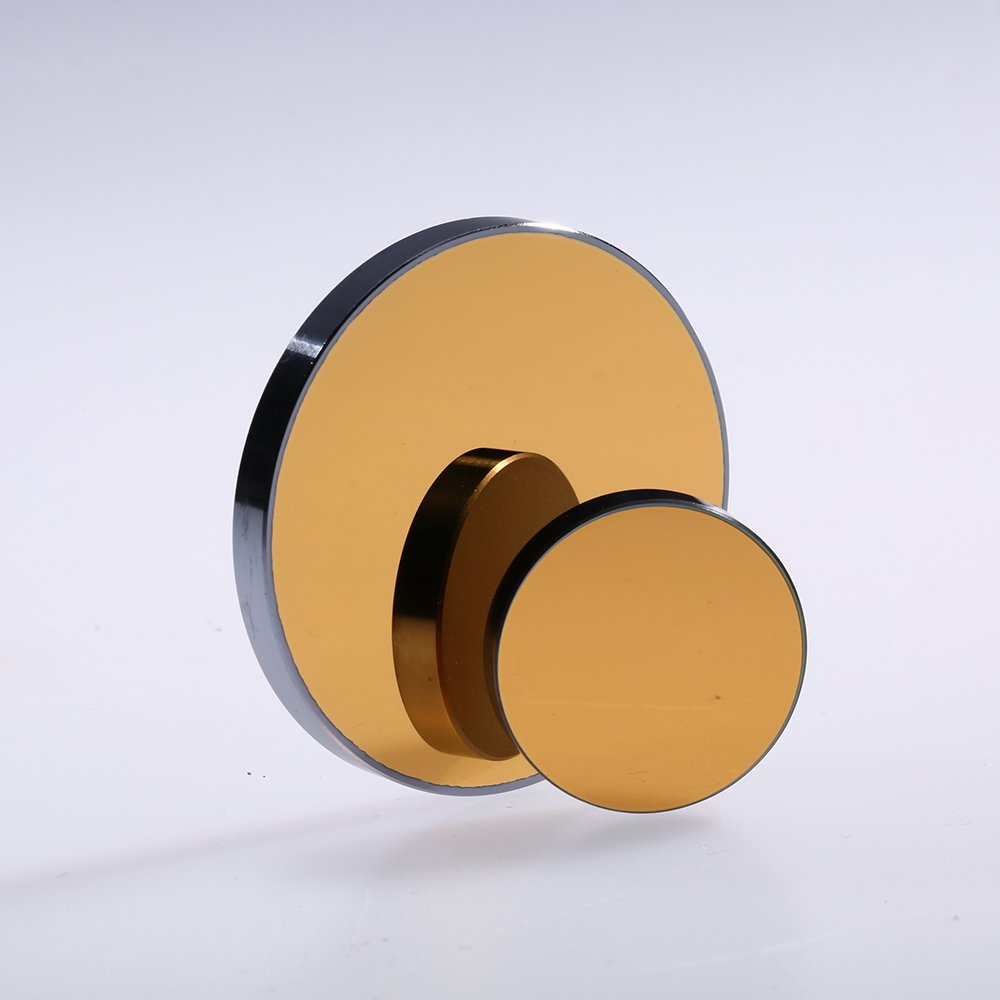

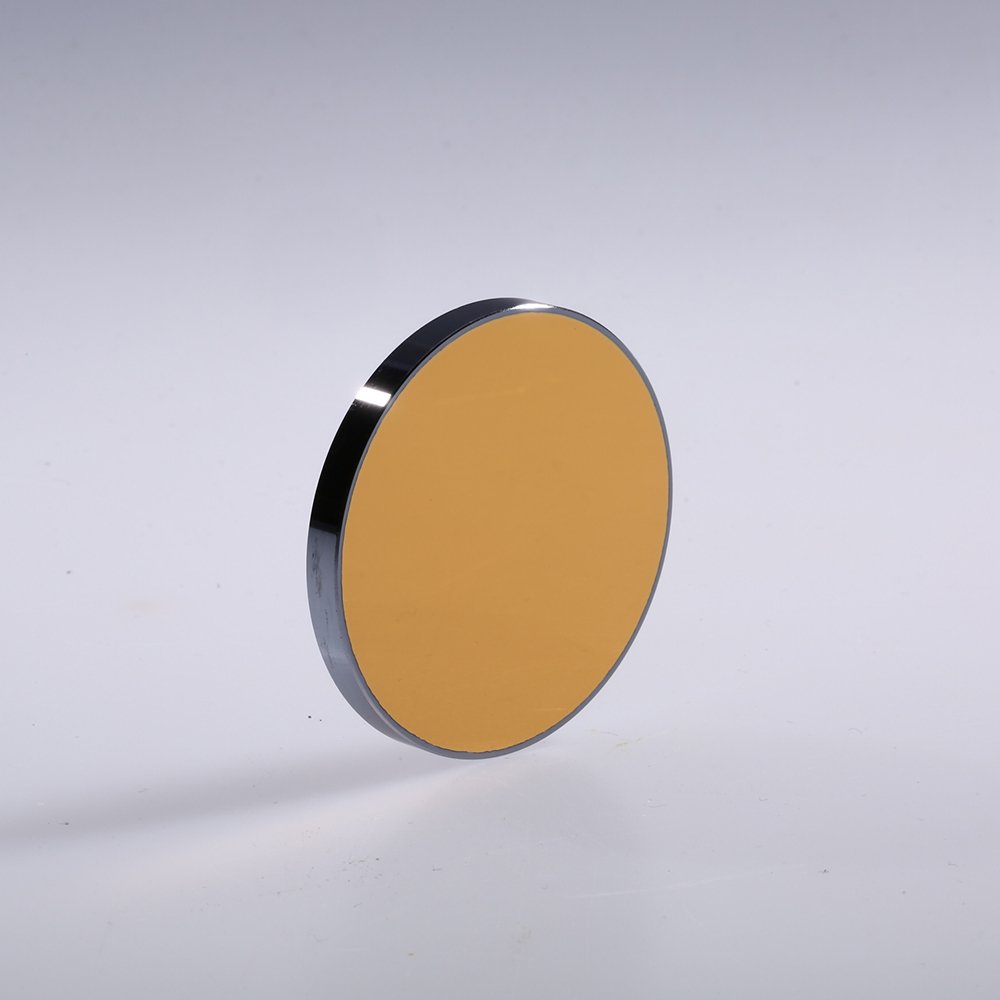

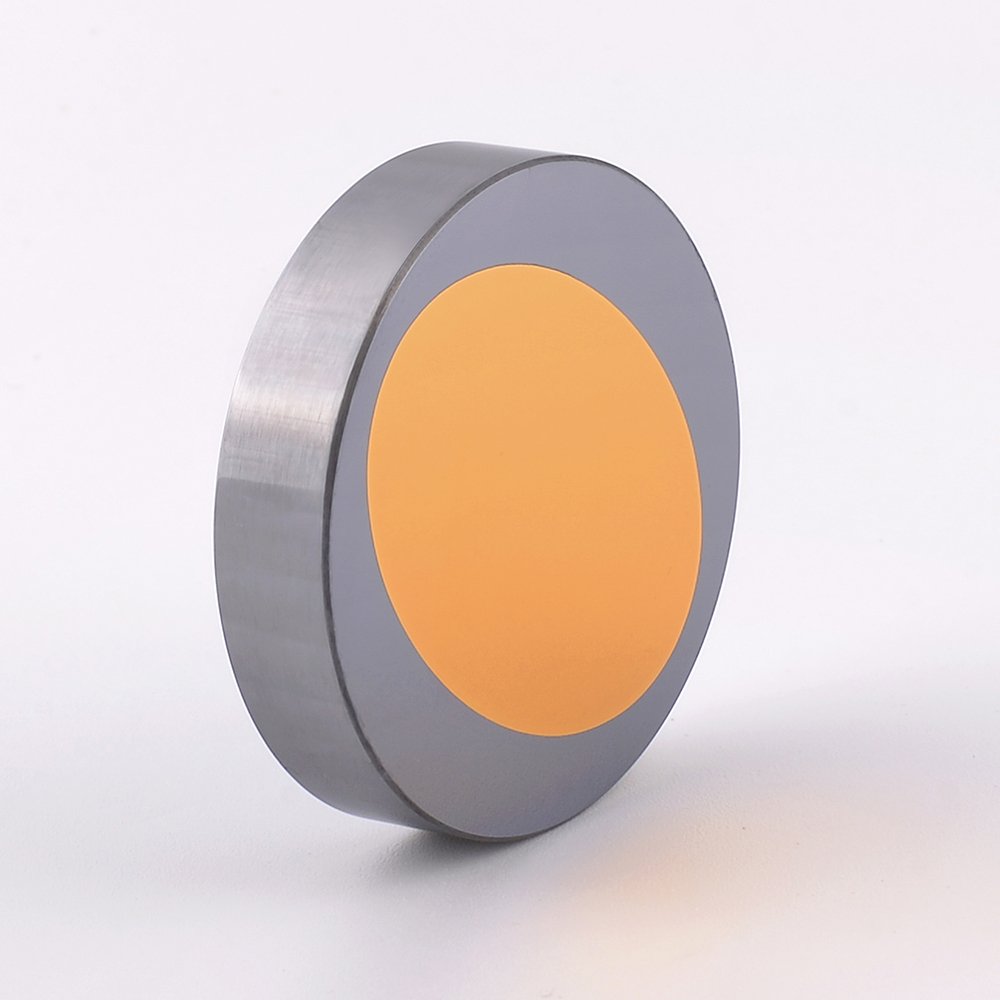

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine

or 6 weekly interest-free payments from $3.08 with Laybuy

$18.50$26.99 AUD

Estimated delivery between 2024/04/01 - 2024/04/08
Add to Wishlist
Add to Wishlist
SKU: 19914 Category:

Description

Description:
Silicon Laser Reflection Len is widely used in laser processing for example, cutting, drilling, sculpture,  engraving and laser system.

Specifications:
Material: Silicon
Color: Gold
Diameter: 20mm / 25mm / 30mm
Thinckness:1.5mm / 3mm
Size Diameter Thinckness
#1 20mm 1.5mm
#2 20mm 3mm
#3 25mm 3mm
#4 30mm 3mm

Features:
1. Withstanding high power density.
2. Compact and wearable film coating.
3. Film is solid, resistant to wipe
4. Double-side film,the filterability can reach 99%.
5. Widely used in laser processing for example, cutting, drilling, sculpture,engraving and laser system.
6. Usually a complete beam path outside the laser tube requires three reflect mirror and a focus lens.
7. Laser will loss when it travels, so the laser machine need a higher reflectivity mirror.
8. Good Reflecive Ability, The Reflection of Cloudray Mirrors can Reach to 99.2%.
9. Gold-Plated Coating Film,More Durable.
10. Silicon and Molybdenum is the main material of reflect mirror. The molybdenum mirror does not need  coating film , they are able to work in harsh environments.
11. Silicon reflect mirror is coated with gold film, to improve the reflectivity of the mirror, then to improve the efficiency of the machine.
12. For Molybdenum mirror, there is no coating on the surface, but the reflection is low, maybe 80%.
13. For silicon mirror, it is coated with dielectric or golden film. Golden mirror is better than Mo mirror, as the reflection is higher

Package included:
1 x Laser Si Reflective Mirror

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 5

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 6

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 7

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 8

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 9

20/25/30mm Dia Reflective Mirror Reflector Si Coated Gold Silicon Laser Reflection Lens for CO2 Laser Cutting Engraving Machine 10

Additional information

Weight 0.00 kg
Size

#1, #2, #3, #4
