Description

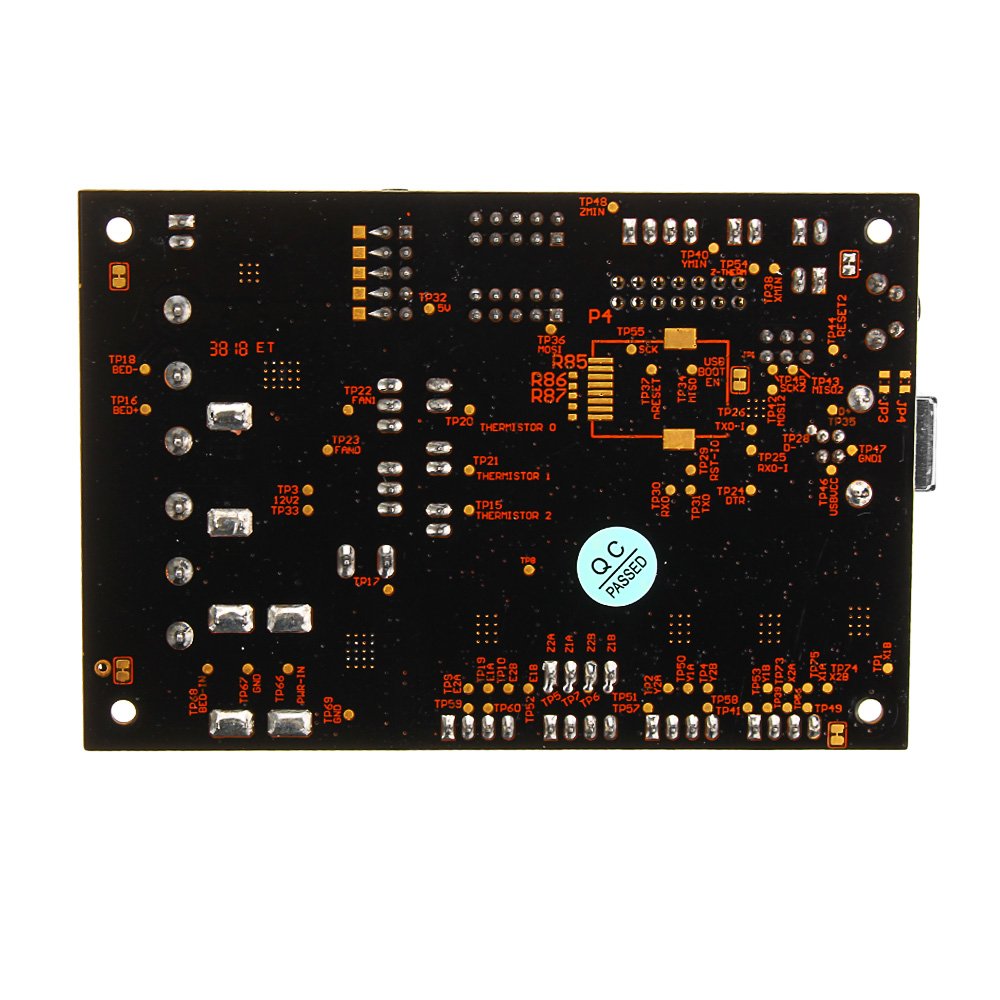

3D Printer Part | Prusa i3 MK3 | Mosfet Switched Outputs
Features:
Logic
For Arduino MEGA compatible Atmega2560 and Atmega32u2 processors are compatible with all RAMPS class firmware
Crystals for both usb and mcu (timing accurate to 10ppm)
3 Thermistor jacks + 4th Thermistor circuit on ZProbe.
Motor Drivers
4 Trinamic TMC2130 1/256th micro-step motor drivers(2 connectors on Z for Prusa i3 MK3 Mendel and other dual Z printer designs)
SPI Control of stepper current instead of PWM.
Microstep mode configured by MCU through firmware (SPI, no jumpers needed)
PWM DC outputs (Extruders, Fans, Etc.)
4 outputs (1 Extruder, 1 BED, 2 low power (fan, etc)
Low resistance mosfets for cool running
Indicator led for each channel
FANS have 3pin fan connector.
FANS have 5V instead of the 12-24V power source.
FAN connectors have tachometer feedback pin to the MCU to measure fan speed in capable firmware.
Power
2 power input rails
Heated Bed, 15A 12-24V (15A dedicated fuse)
Primary Power 10A 12-24V: Motors, Logic & Fans (5A dedicated fuse) + Extruder (5A dedicated fuse)
Built in SMPS for 5V generation from the Motors, Logic & Fans rail
Provides 5V power to FANS
Connectors
4-pin motor,zprobe plug – Molex 5057-9404
3-pin fan plug – Molex 5057-9403
2-pin thermistor, mech. endstop plug – Molex 5057-9402

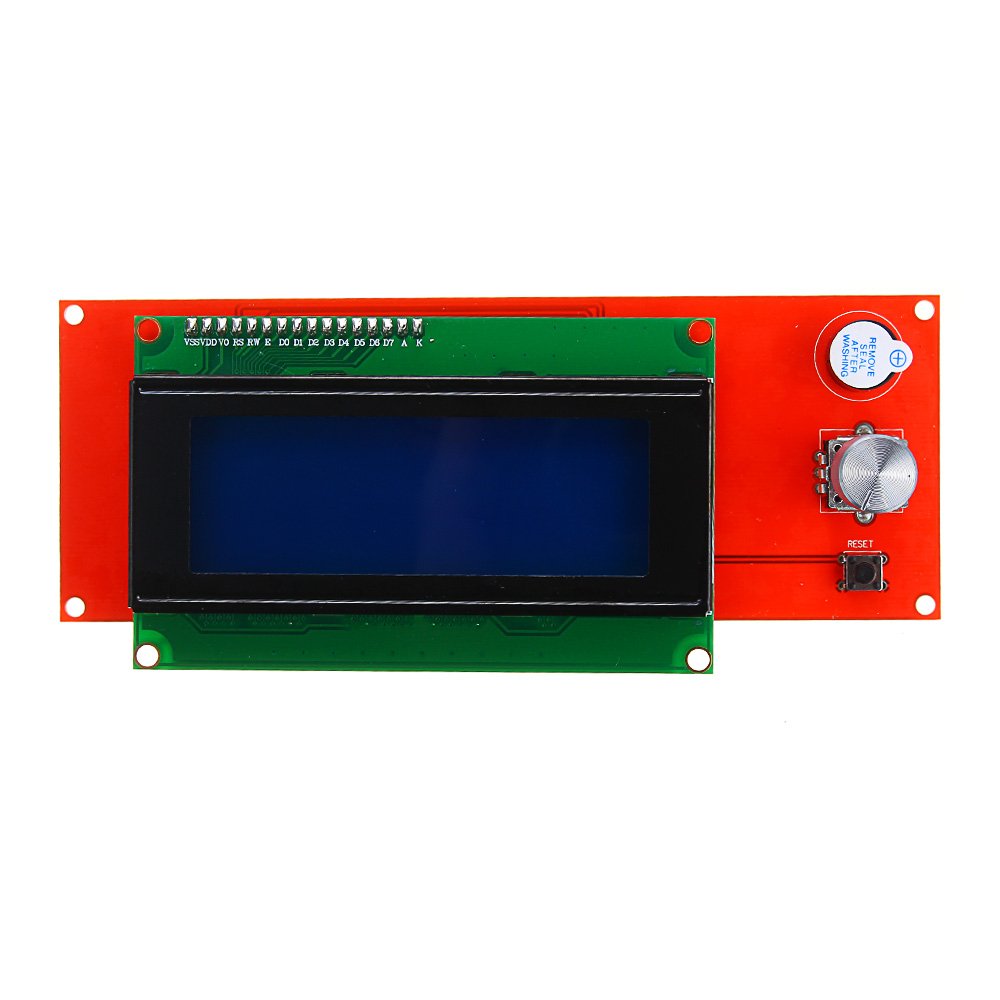

2004LCD Display
Brand new and high quality.

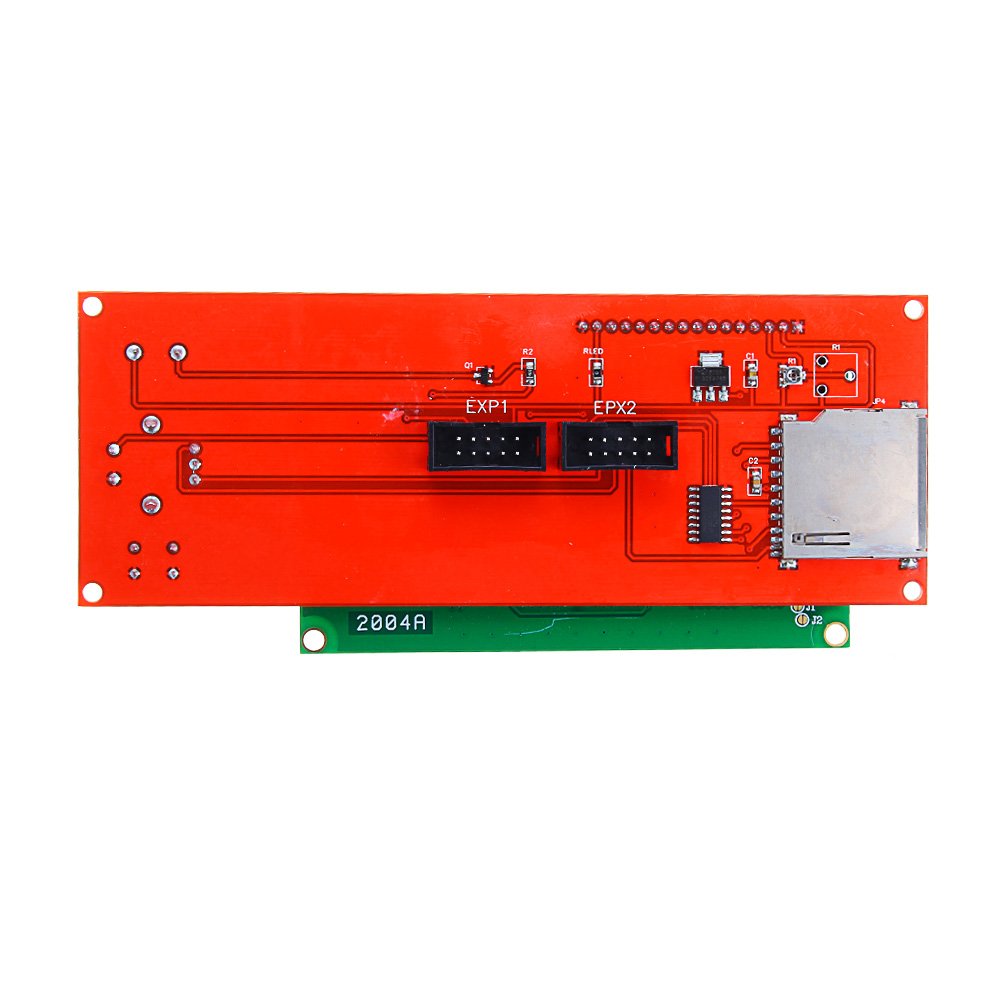

This smart controller contains an SD-Card reader, a rotary encoder and a 20 character x 4 line LCD display. You can easily connect it to your Ramps board using the “smart adapter” included.
After connecting this panel to your Ramps you don’t need your pc any more, the smart controller supplies power for your SD card. Furthermore all actions like calibration, axes movements can be done by just using the rotary encoder on the smart controller
Print your 3D Printer Part designs without PC, just with a g-code design stored on the SD card.
Firmware: You need Marlin firmware v3 or newer. If you are using older firmware, you must re-flash your board.
Size: 15cm x 5.8cm

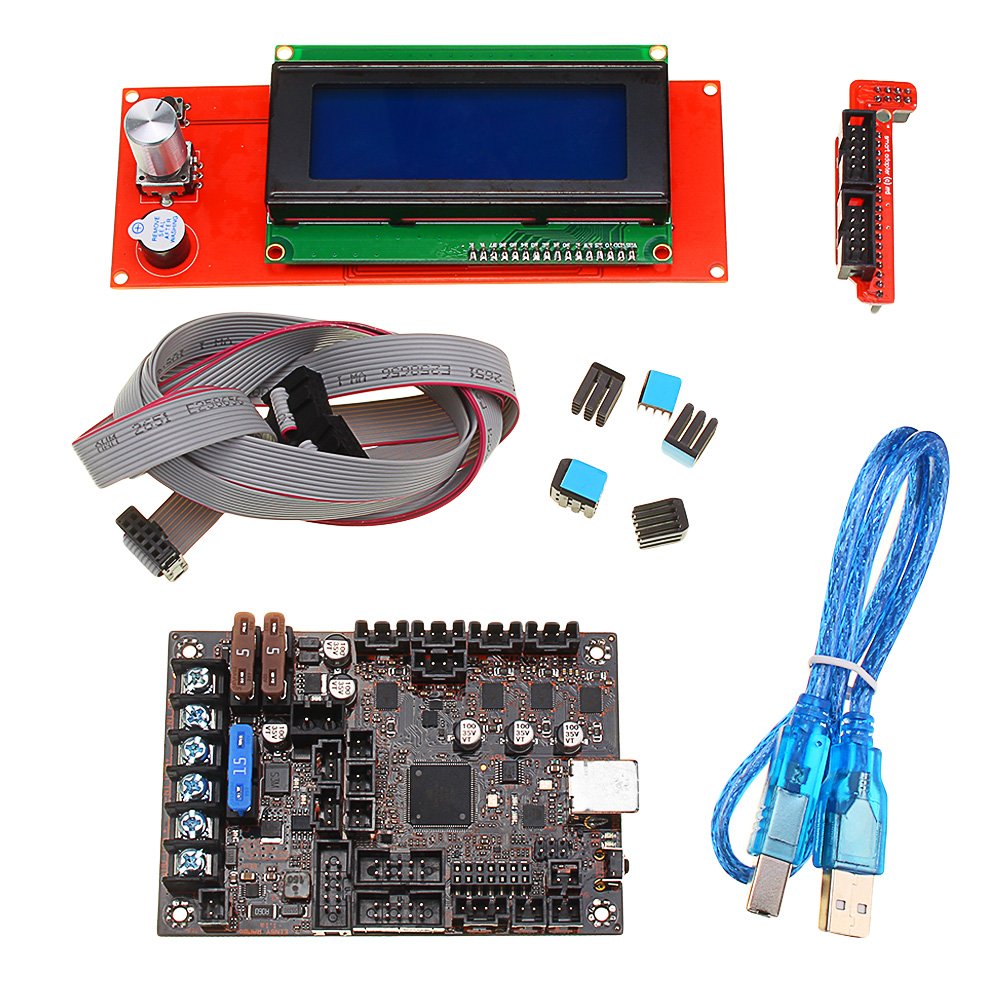

Package Included:

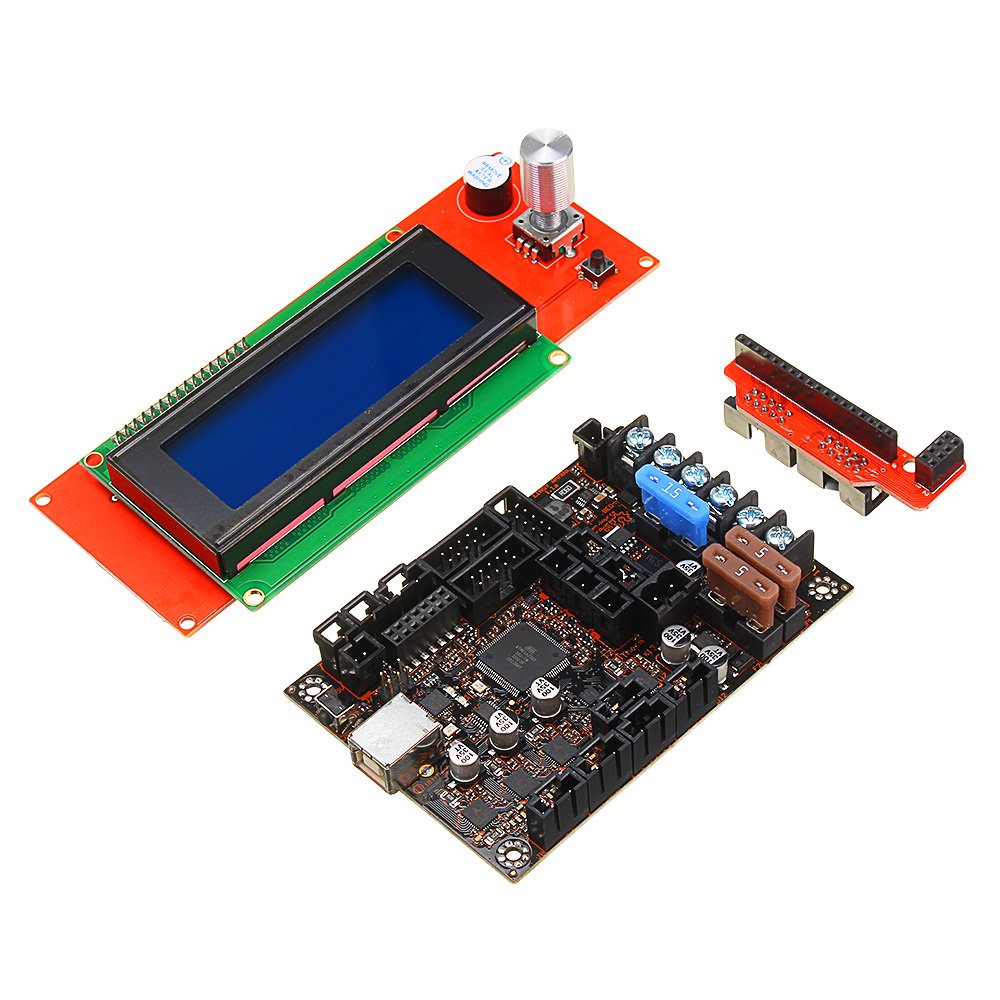

1x EinsyRambo 1.1a Mainboard
1x 2004 LCD Display

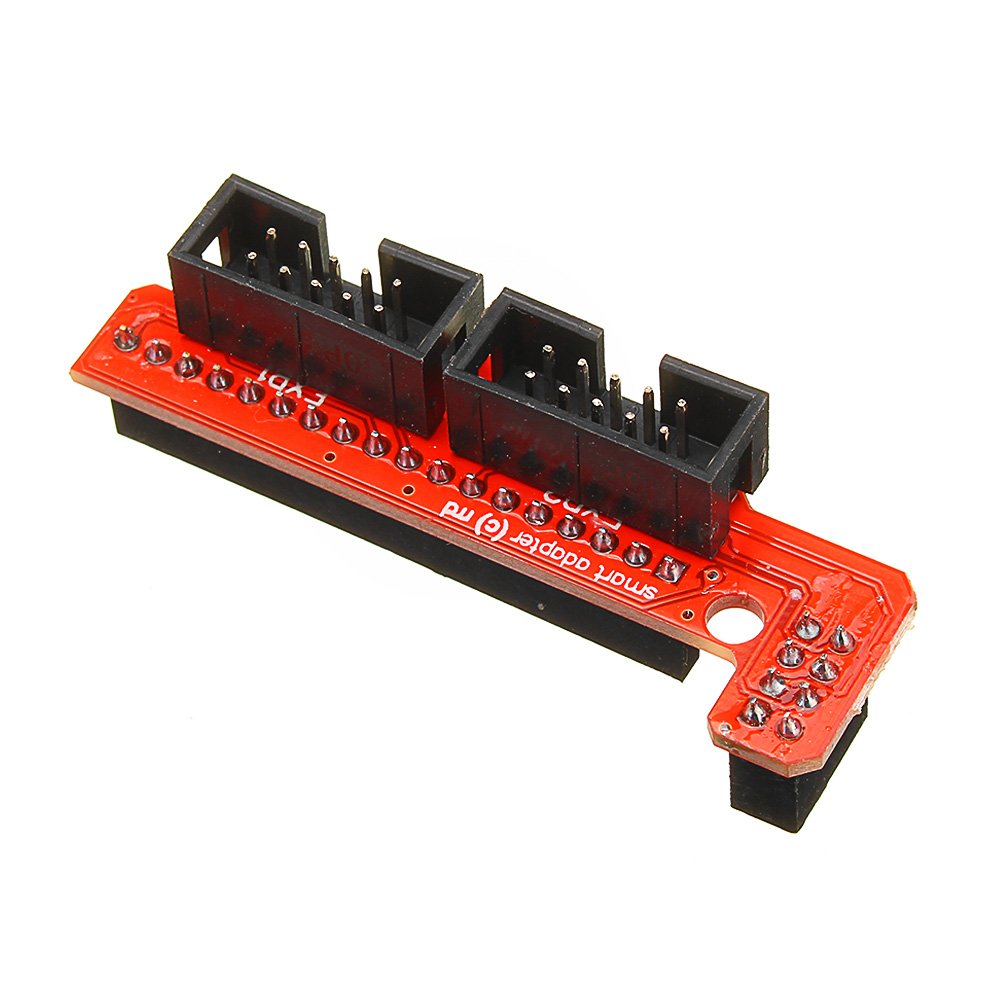

1x Adapter Module
1x 2004 LCD Display
1x Adapter Module
5x black heat sink
1x USB Cable
1x USB Cable
1x Pin Cable with 3D Printer Part
