Description
Specifications:
●
Color: Black or Red
● Wire Thickness: 12 AWG
● Stranding: 7
● Approximate Net Weight : 30 lbs/1M’
● Copper Weight : 20.20 lbs/1M’
● Ampacity 90ºC Wet/Dry: 30A
● Rated voltage: 1000V DC
● Rated current: 30A
● Cable specification: 4 mm2
● Number of shares of the cable: 56/0.3TS
●Outside diameter of cable: 6.10mm
● Waterproof and dustproof rating: IP67
● Insulation Thickness: 0.045 inches
● Nominal Outer Diameter: 0.188 inches
●Conductors: Fully annealed stranded bare copper per ASTM B3. Class B Stranding
●Insulation Jacket: Chemically crosslinked polyethylene
● Ambient temperature: -40°C to +85°C
Package Included:

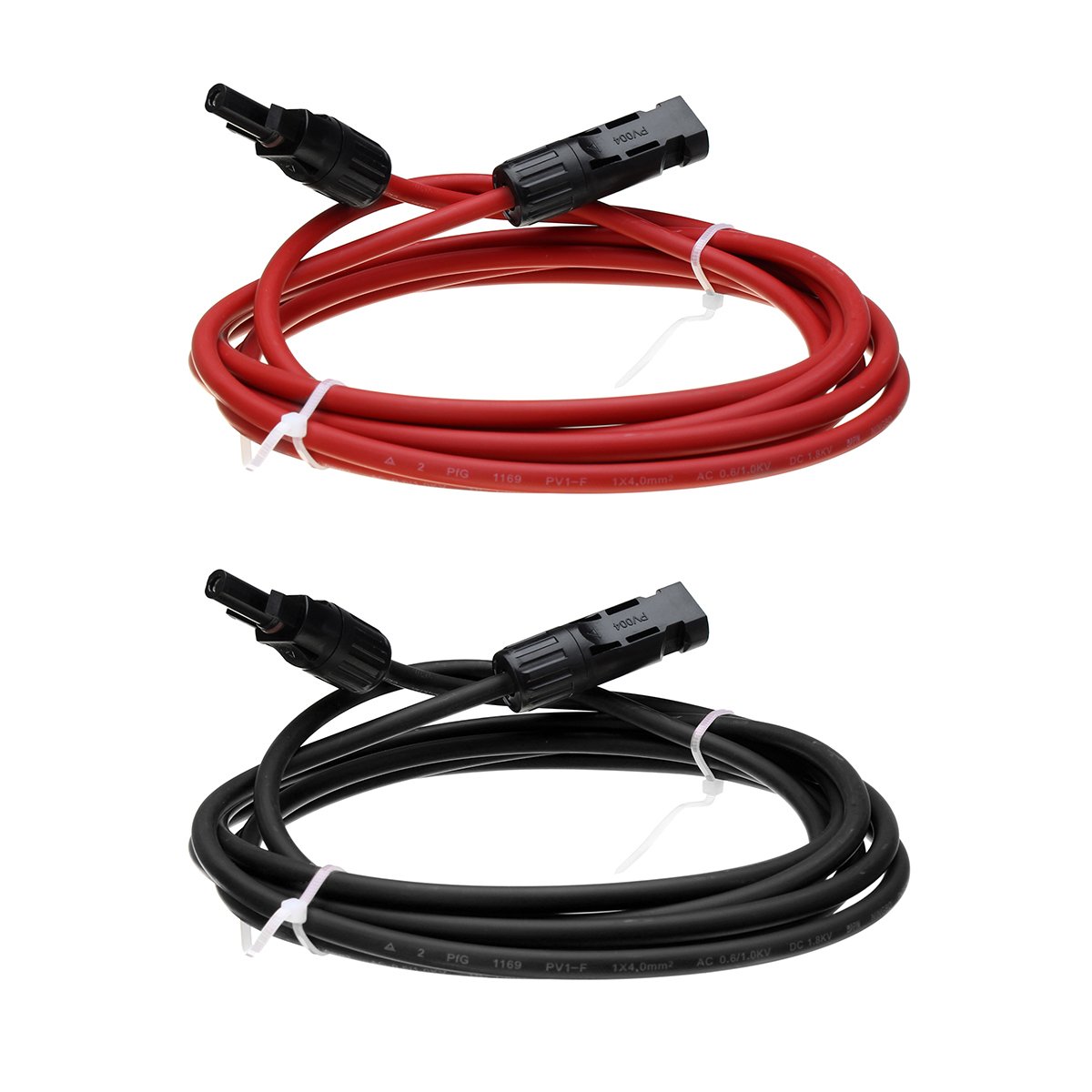

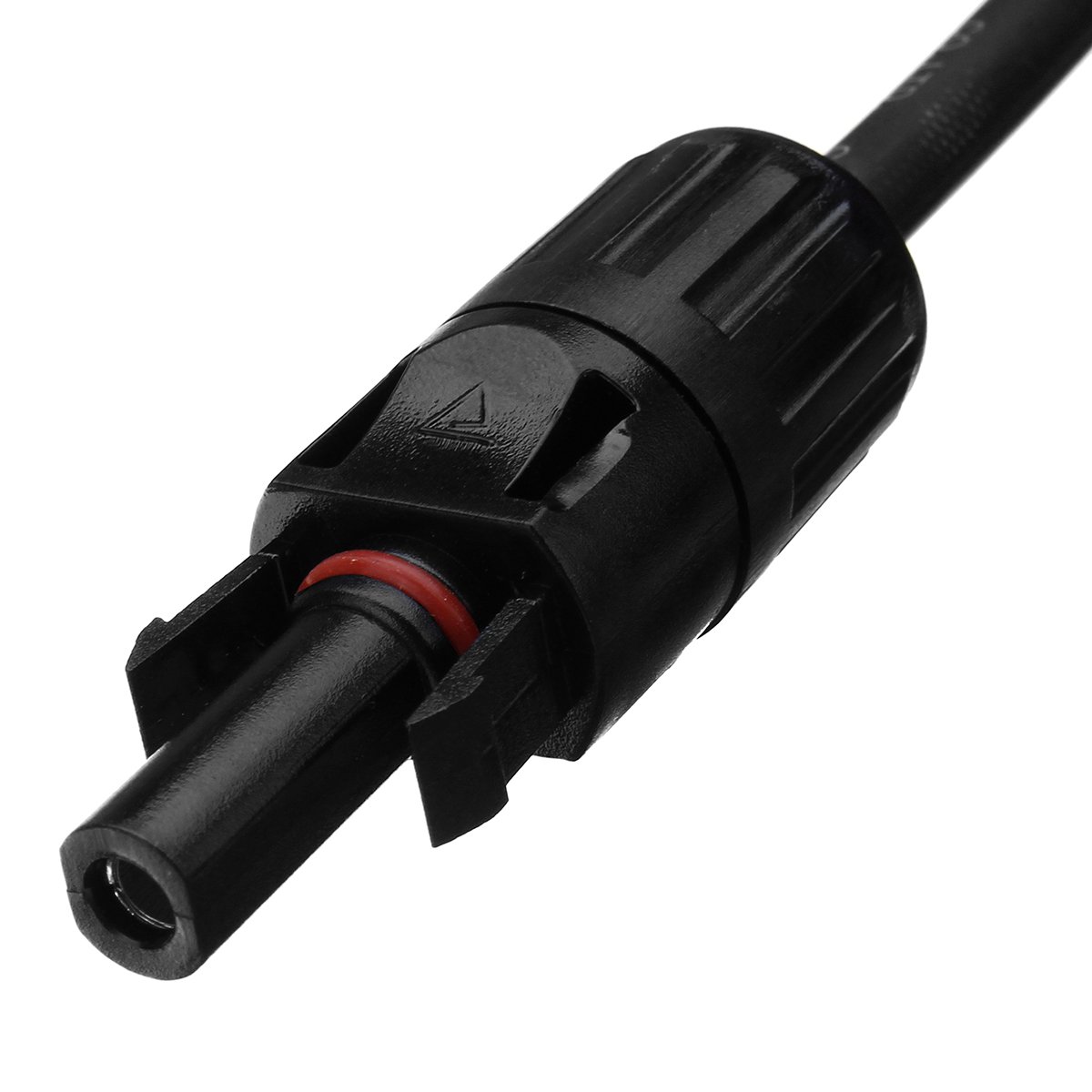

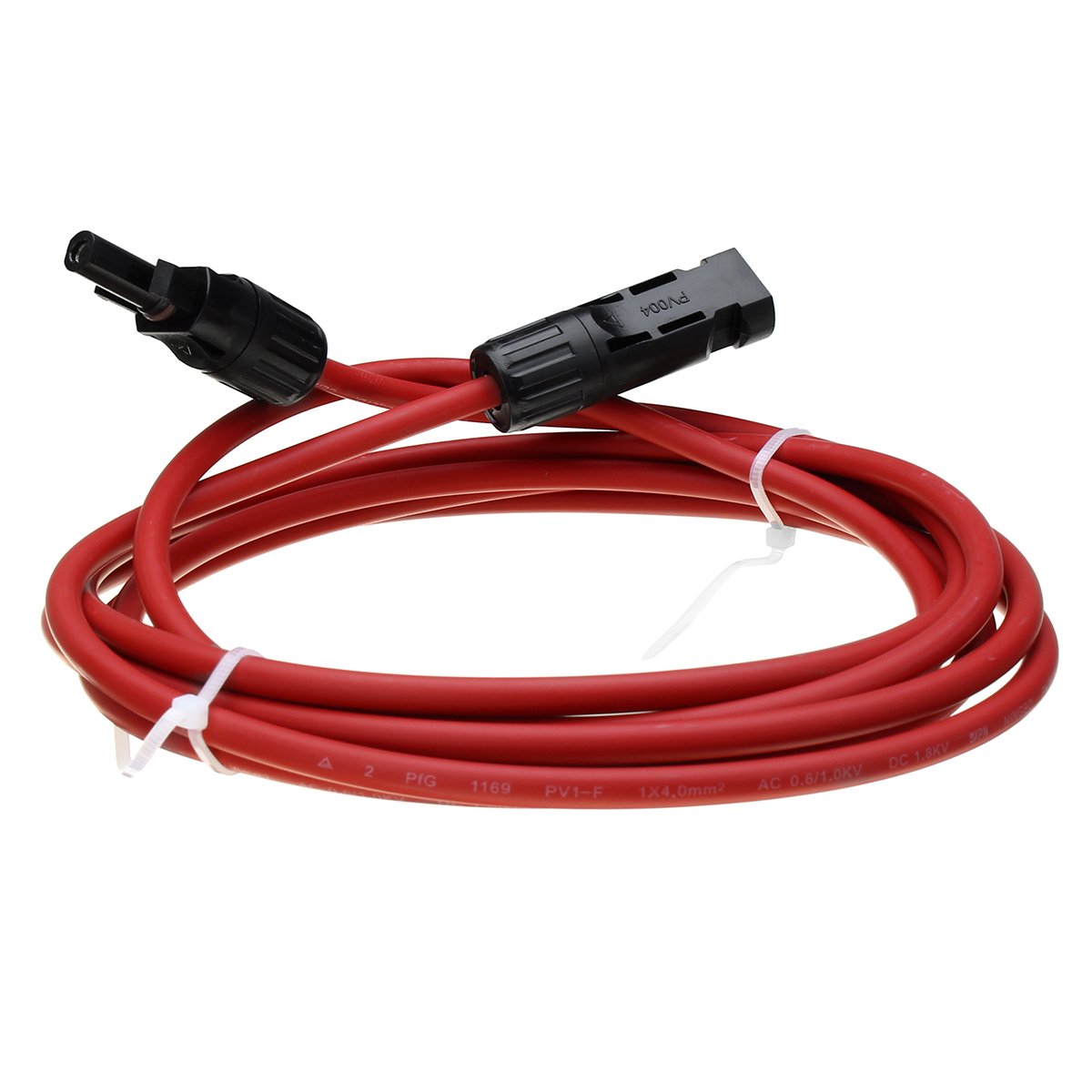

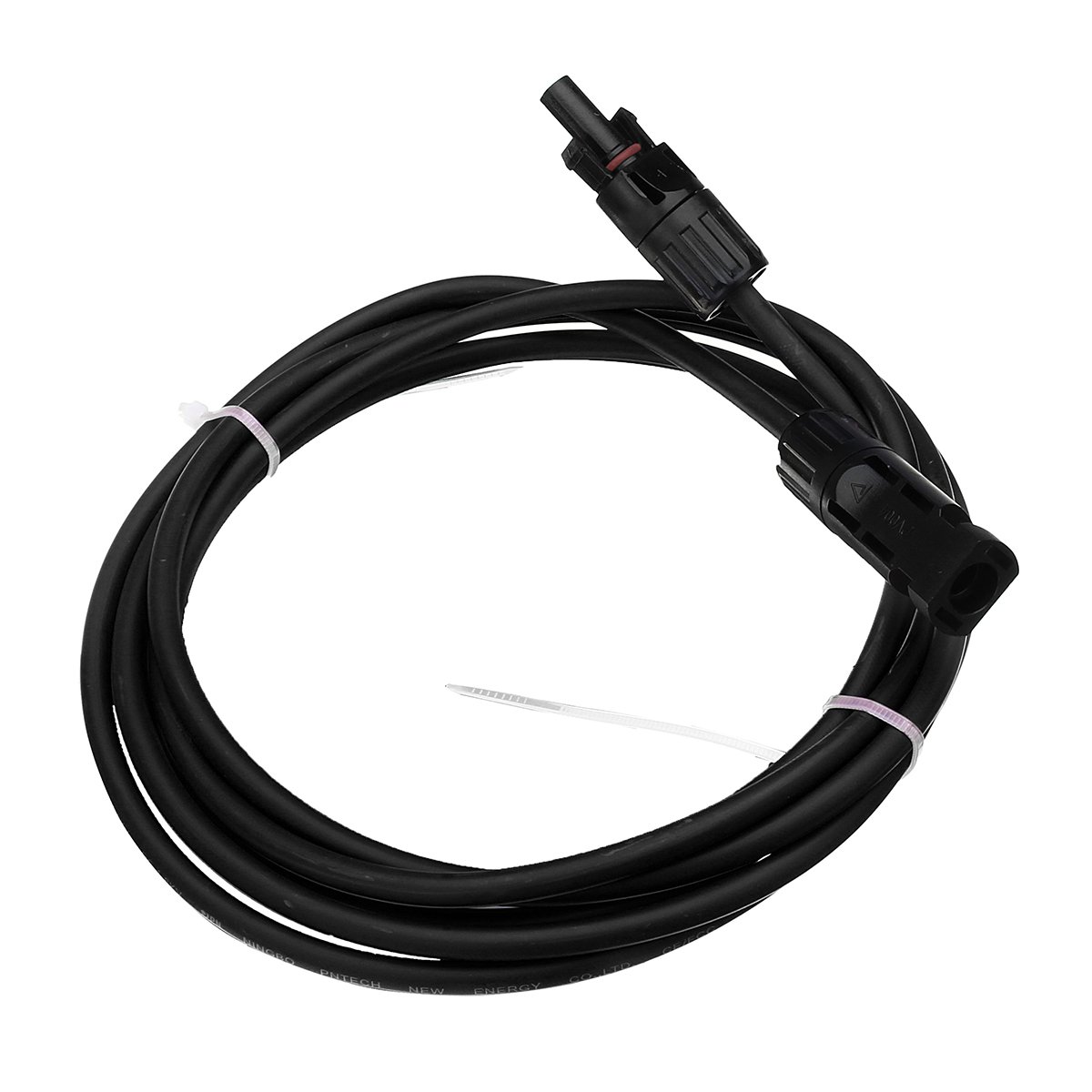

1 x 3M Black or Red MC4 Connector Solar Panel Extension Cable Wire
