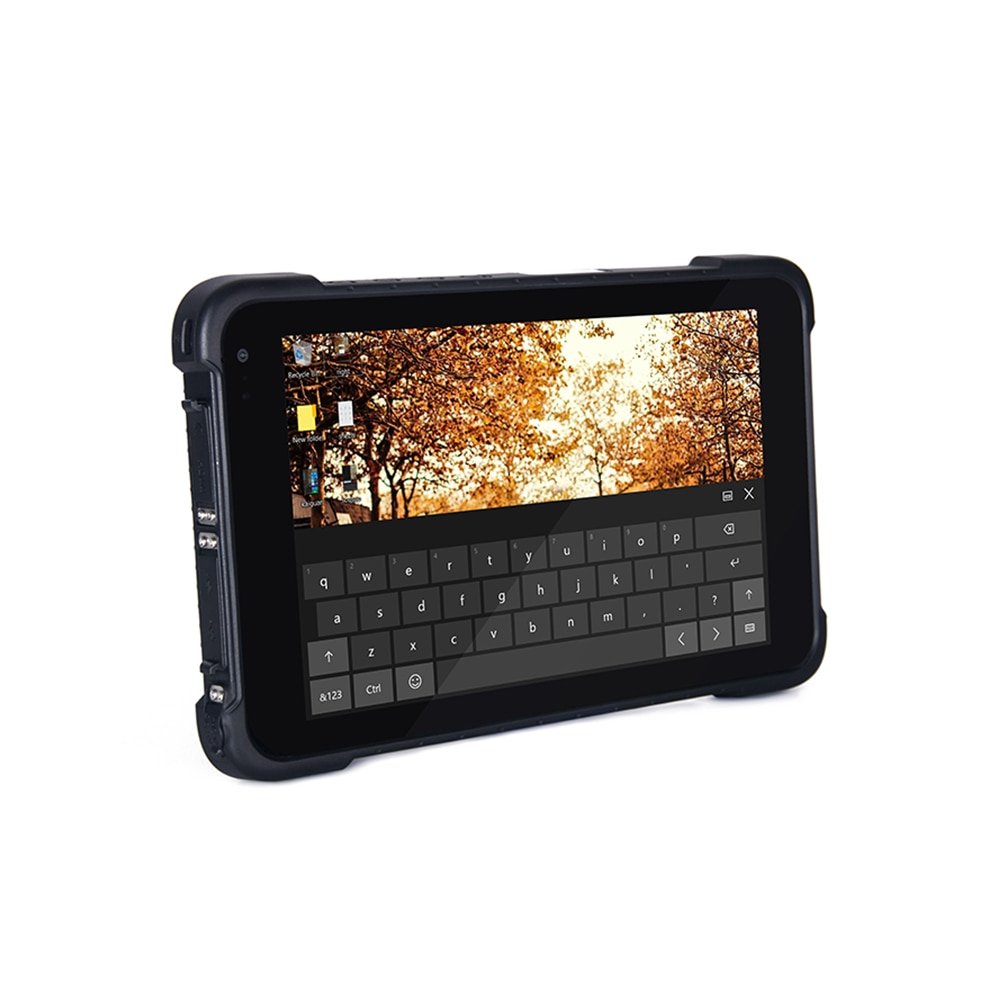

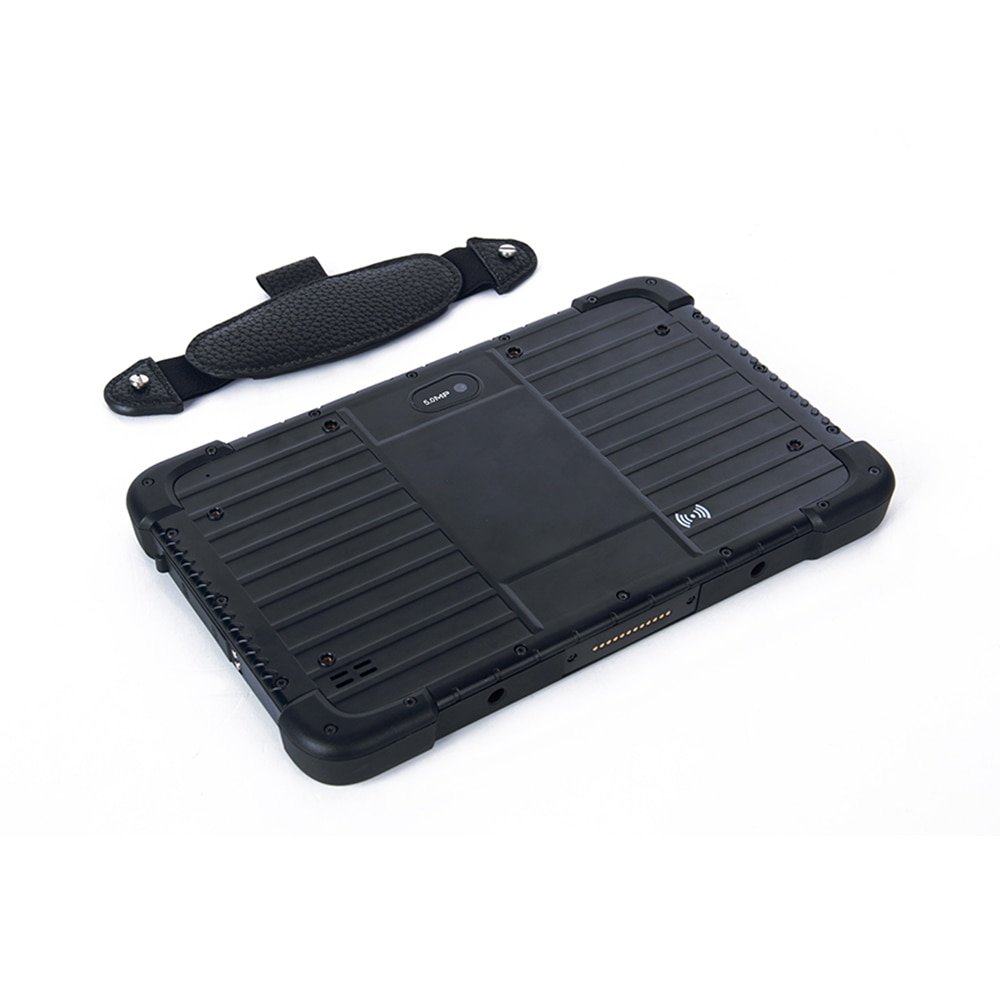

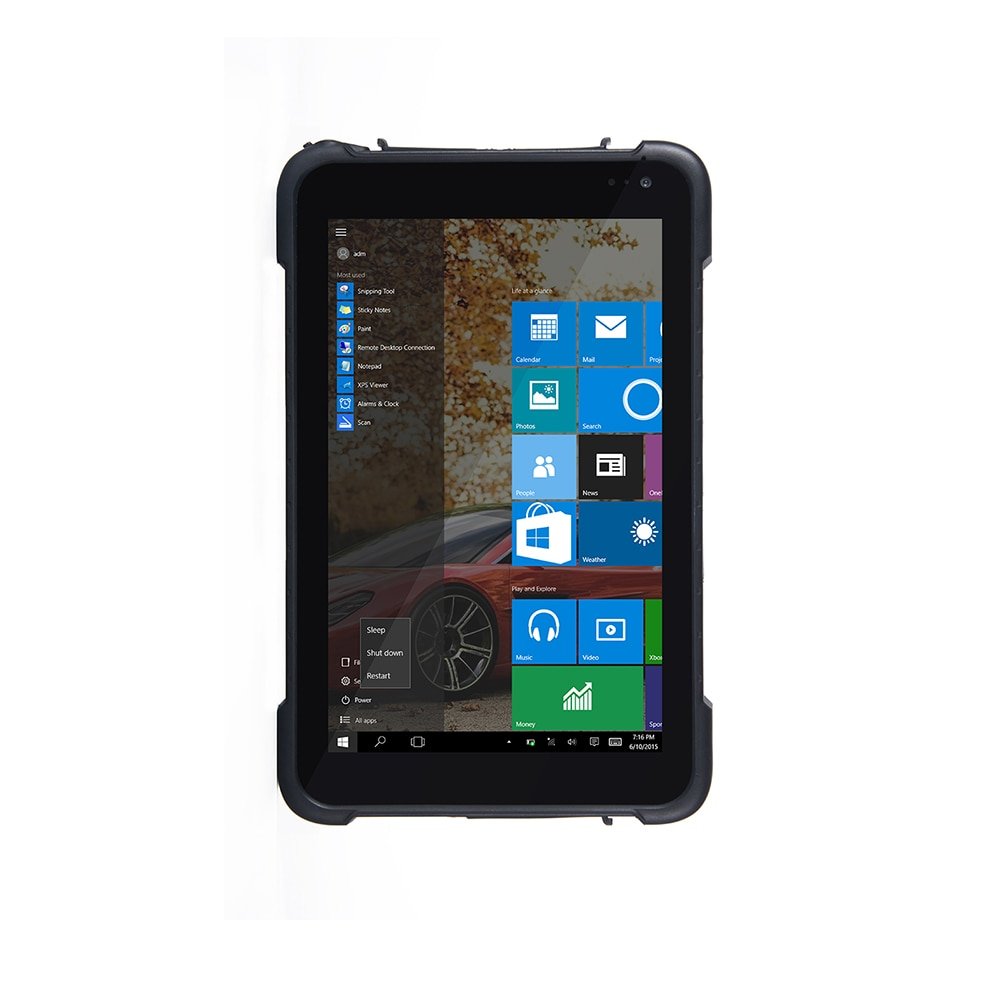

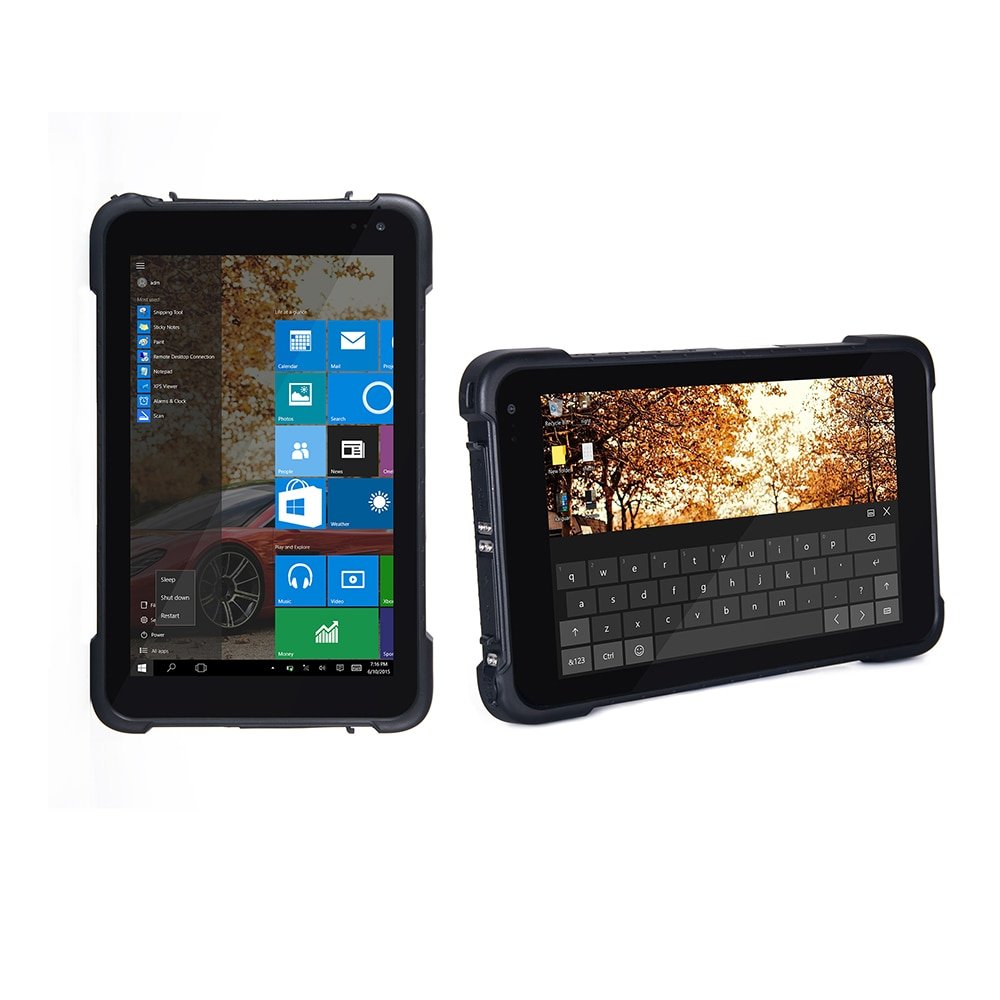

8″ Rugged Windows 10 Android Tablet with 1D 2D Bar code Scanner Reader

This product is currently out of stock and unavailable.

Add to Wishlist
Add to Wishlist
SKU: 20896 Category:

Description


8″ Rugged Windows 10 Android Tablet with 1D 2D Bar code Scanner Reader Handheld Industrial Computer PDA Scanner NFC RFID Tablet

1.Quick Details.

– IP 67 Standard ,  dustproof, waterproof, shockproof,CE
– BT4.1,NXP NFC(13.56M)
– double frequency WIFI 802.11(a/b/g/n),1D/ 2D Scan
– Windows 10 home/Android 4.4
– 8500mAh Polymer lithium battery
– 8 ” high bright screen
– Support High strength glass touch screen
– Support Docking charging extension
— Offer SDK/Demo Software/Source Code for secondary development.


NFC Reader:

NXP NFC 13.56MHz  support SO/IEC 下14443A/14443B/15693/18092/mifare protocol，Card reading distance：4cm



1D barcode scanner:

MOTO  SE655E100R

optical resolution: 5mil

SCAN Speed: 50 times/s

support code system :UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11



2D barcode scanner:

MOTO  SE4710   Hardware decoder

optical resolution:5mil

scan speed:50次/s

“support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse”

MOTO 2707module optional

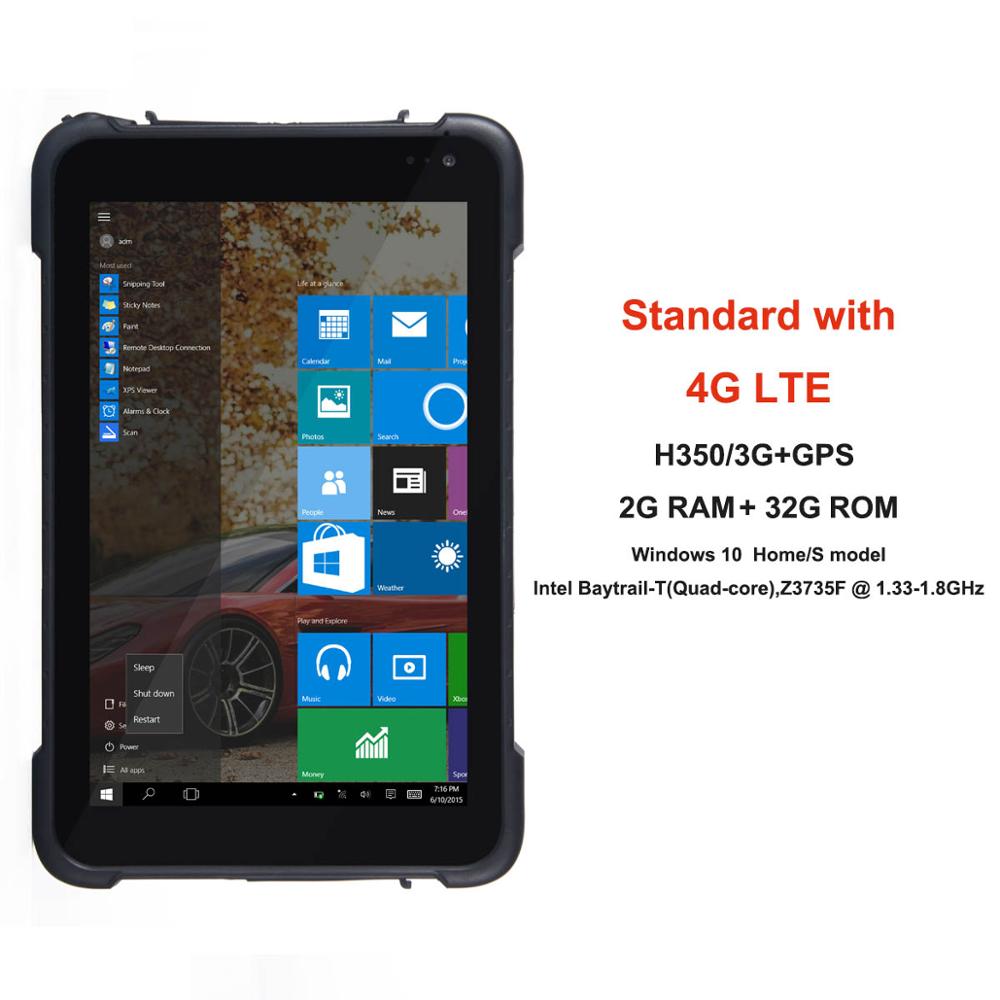

RI86 Specification

CPU

Intel Baytrail-T(Quad-core),Z3735F @ 1.33-1.8GHz

OS

Windows 10/Android 4.4

LCD

8″ 5point touch screen ( 10:16   800*1280 IPS)

RAM

2G DDR3L

Flash

32GB

Wi-Fi

 802.11b/g/n/ac frequency 2.4G+5.8G model:ap6255

Camera

Front 2.0MP+Back 5.0 MP

BT

BT4.1

Battery

3.7V/8500mAH

Speaker

Built-in8Ω/0.8W speaker x 1

Sensor

G-sensor

3G

Support frequency band and speed:WCDMA(900/2100MHz)  GSM(900/1800MHz),HSDPA 7.2Mbps,HSUPA 5.7Mbps,LGA interface

straps

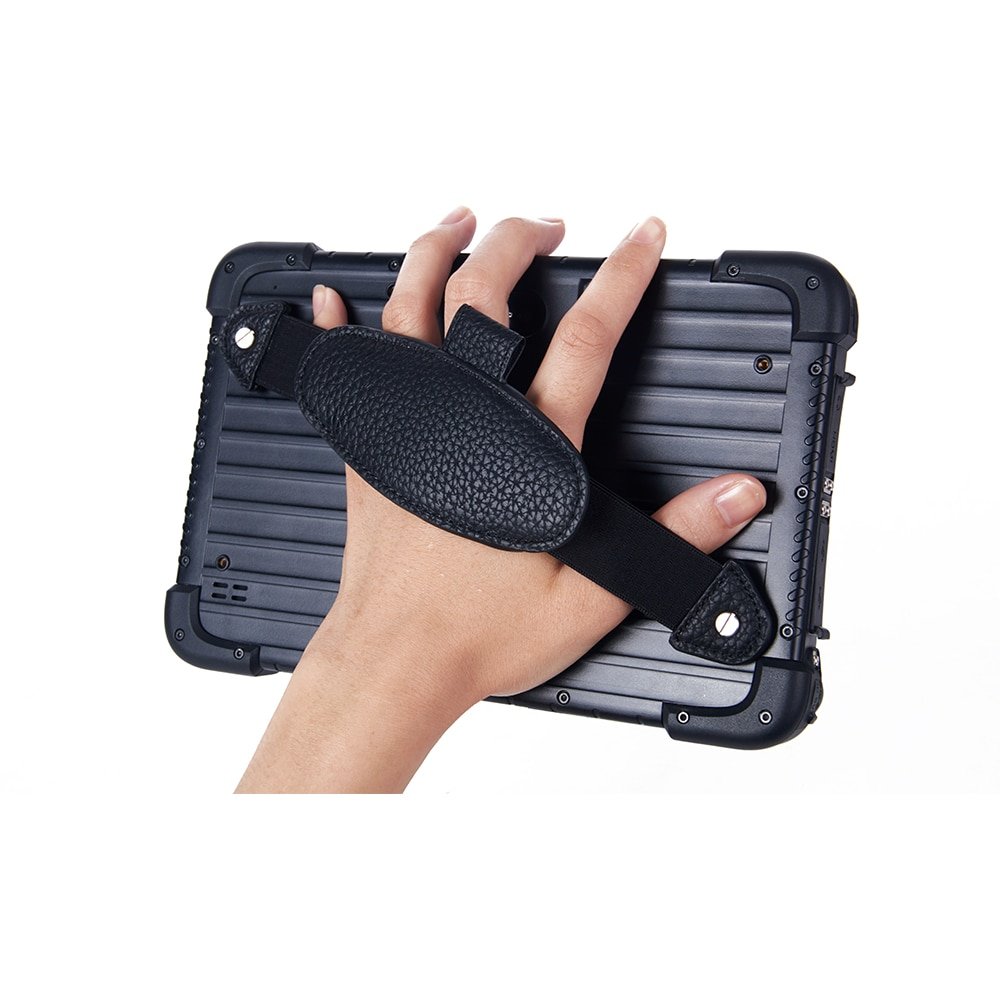

Extensible belt on the back case, convenient to hold

GPS

U-blox NEO-7

TF Card

Support SDHC/SDXC

USB connector

USB 2.0*1 (Host)for windows   Android   OTG  x1

Earphone Jack

3.5mm standard heaphone  port

HDMI connector

Micro HDMI 1.4a

Optional



DDR

2G DDR update to 4G DDR

OS

Windows 10  Pro   OS

NFC

Support 13.56 mhz

64G EMMC

32G to 64G

128G EMMC

32G to 128G

4G LTE module

3G module change to 4G module ,battery will be to 7800mAh;
5 mode 11 frequency (LTE FDD/LTE TDD/WCDMA/TD-SCDMA/GSM)
LTE FDD: Band 1, 3, 5, 7, 8, 20;
LTE TDD: Band 38, 39, 40, 41
WCDMA HSPA+: Band 1, 8
TD-SCDMA: Band 34, 39
GSM/GPRS/EDGE: 900/1800MHz

AR FILM

AR FILM

1D barcode

MOTO module

2D barcode

MOTO 4710module

MOTO 2707module

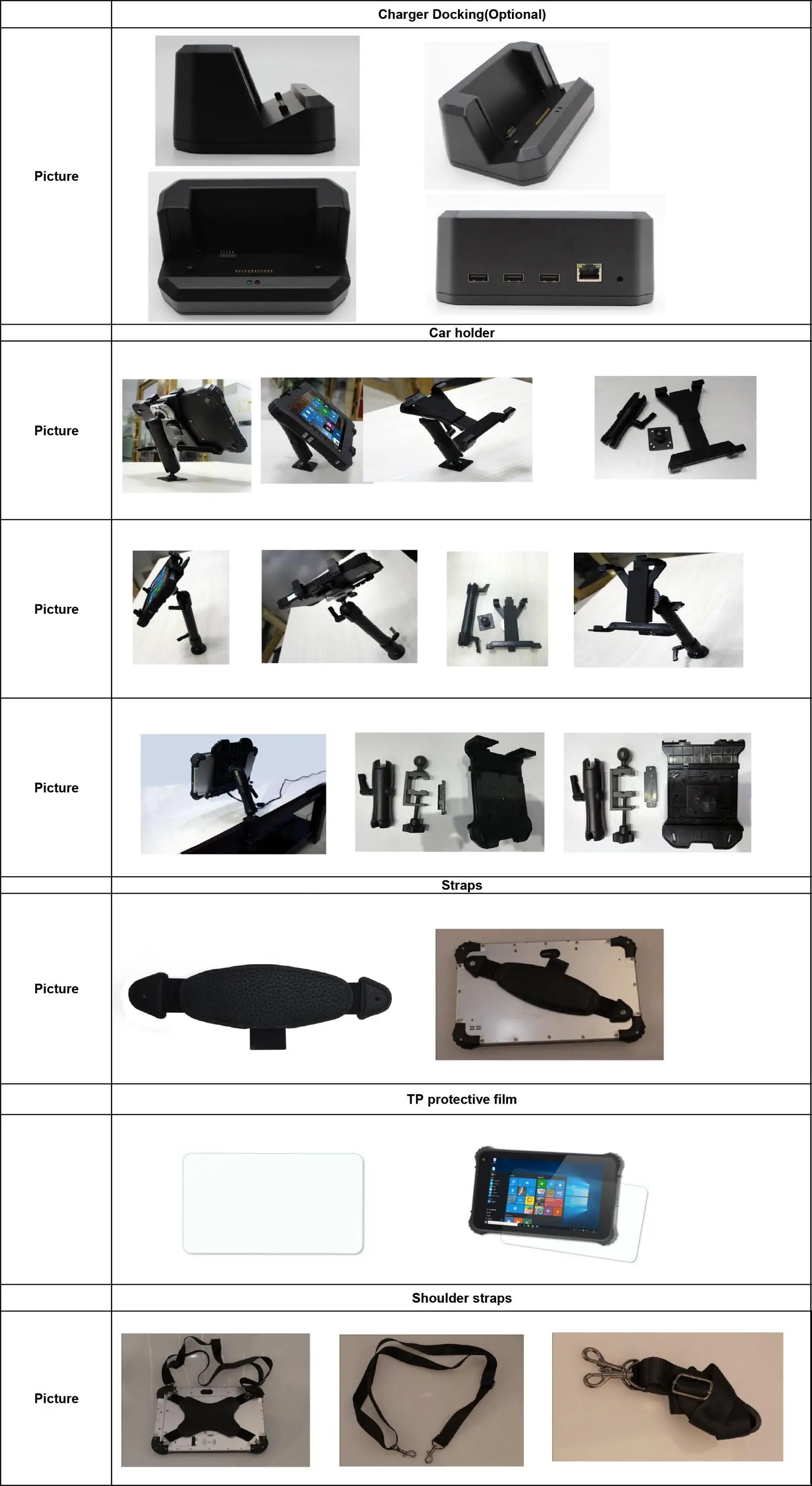

Accsessory

Optional

straps

material: Lichee Pattern PU;Size:6.2cm(W)*17.5cm(L);weight:23g

TP protective film

material: Tempered glass protective film;12.7cm(W)*20.8cm(L)*0.04cm(T);weight:27g

hand writing pen

pen body: aluminium alloy material;Size:0.94cm(W)*13.9cm(L);Weight:10g

Shoulder girdle

material: dacron;Size:2.5cm(W)*143cm(L);Weight:40g

car charger

input voltage range direct current 12V-24V ,5V3A output;Size:wire length:1.2m,DC:3.5*1.35*10;Weight:76g

car holder(Aluminum – short)

Material:Aluminum alloy;Aluminum alloy Tube Size:138mm,Aluminum alloy Tube weight:3KG

car holder(Aluminum – long)

Material:Aluminum alloy;Aluminum alloy Tube Size:170mm,Aluminum alloy Tube weight:3KG

car holder EM-VH Rechargeable

(Aluminum)

Material:Aluminum alloy;Aluminum alloy Tube Size:300mm,Aluminum alloy Tube weight:0.6KG

US standard Adaptor

AC100V ~ 240V,50Hz/60Hz output DC 5V/3A ;USA standard : CE approved;Plug:7cm(W)*4.2cm(L)*5.4(H),length of cable:1.2m;weight:141g

Europe standard Adaptor

AC100V ~ 240V,50Hz/60Hz output DC 5V/3A ;USA standard : CE approved;Plug:7cm(W)*4.2cm(L)*6.8(H),length of cable:1.2m;weight:146g

three-in-one Adaptor

AC100V ~ 240V,50Hz/60Hz output DC 5V/3A ;USA standard : CE approved;Plug:6.4cm(W)*5cm(L)*2.6(H),length of cable:1.6m;weight:170g

Docking

Extended base, support Ethernet,3*USB Extend docking,support Ethernet;Weight:292g





rugged tablet.jpg


rugged tablet 2.png
rugged windows tablet (13) rugged windows tablet (5) rugged windows tablet (11) rugged windows tablet (10) rugged windows tablet (9) rugged windows tablet (6) DC86 (5-1).jpg

Additional information

Weight 1.00 kg
Dimensions 27.00 × 20.00 × 9.00 cm
Options

Standard, with 1D Scanner, with 2D MOTO 2707, with 2D MOTO 4710, with 4G LTE, with NFC
OS

Windows10/Andriod4.4
Memory

2GBDDR3RAM+32GBFrashROMStorage
Communications

Wifi/3G/BT
CPU

IntelBaytrail-T(Quad-core),Z3735F@1.33-1.8GHz.
GPS

SupportBDS/GPSdualmodel
Interfaces

TFslotX1;USB2.0interfacex1;EarphoneJackx1;DCJackx1;HDMIinterfacex
Type

BarcodeScanner
Battery

3.7V/8500mAh
Camera

Front2MP,Rear5MPCamera
Novelty

New
Display

8''
