Description
Feature:
1.ABS+PC Engineer Plastic Housing(passed 6-meter free fall test.)
Patent No.:200830010963.5.
2.Harmless fade-resistant paint.
3.Rubber oil sprayed housing; slide, dirty, and vibration proof.
4.Passed EMI/EMC test.

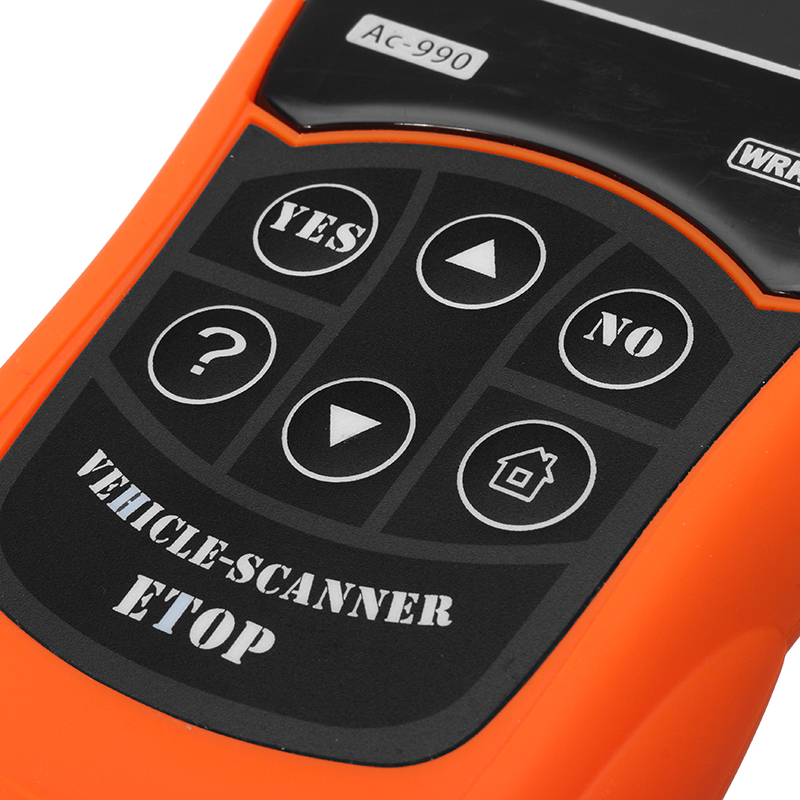

5.High quality PET 6-key film keypad.(3M harmless glue)
6.CE,FCC,RoHs Certified
7.Support manually input DTC Look-up
8.Read DTCs
9.Clear DTCs
10.Data stream
11.Freeze Frame
12.I/M Readiness
13.O2 Monitor Test
14.On-Board Mon. Test
15.Component Test
16.Vehicle Info.
17.Modules Present
18.Unit of Measure
19.State Emission
20.Read All DTCs
21.Read Stored DTCs
22.Read Pending DTCs
23.Detailed help information
24.Capable of showing probable cause of a DTCs.
25.Up to 161 data items,each of them is with online help information.
26.Reset engine MIL
27.This operation will erase all DTCs,freeze frame Data,oxygen
sensor data,and reset IM Monitors and MIL.28. Support English Dutch French Spanish German Hebrew Finnish Portuguese Italian Danish Japanese Korean Simplified Chinese.
Specificaiton:
| Main Unit | 190mm×93mm×30mm |
| LCD | 128×64 Black Mask LCD |
| Visible view | 67mm×40mm |
| Cable | J1962 120cm |
| Package | Paper board box |
| Size | 295mm×152mm×65mm |
| Unit Weight | 198g |
| Cable Weight | 116g |
| Package Weight | 160g |
| Gross Weight | 490g |
Support Protocol:SAE J1850 PWM
SAE J1850 VPW
ISO9141
KWP FAST INIT
KWP 5BAUD INIT
CAN 11BIT 500K
CAN 29BIT 500K
CAN 11BIT 250K
CAN 29BIT 250K CAN_USER1 11B 125K
CAN_USER1 29B 125K
CAN_USER2 11B 50K
CAN_USER2 29B 50K
Package Included:
| 1 X Scantool | 1 X Cable |
| 1 X Digital Cable | 1 X User Manual |
,,,,,,,
