DIY 3DD15 Adjustable Regulated Power Supply Module Kit Output Short Circuit Protection Series

DIY 3DD15 Adjustable Regulated Power Supply Module Kit Output Short Circuit Protection Series

$36.58 AUD

Out of stock

Add to Wishlist
Add to Wishlist

Description

Description:

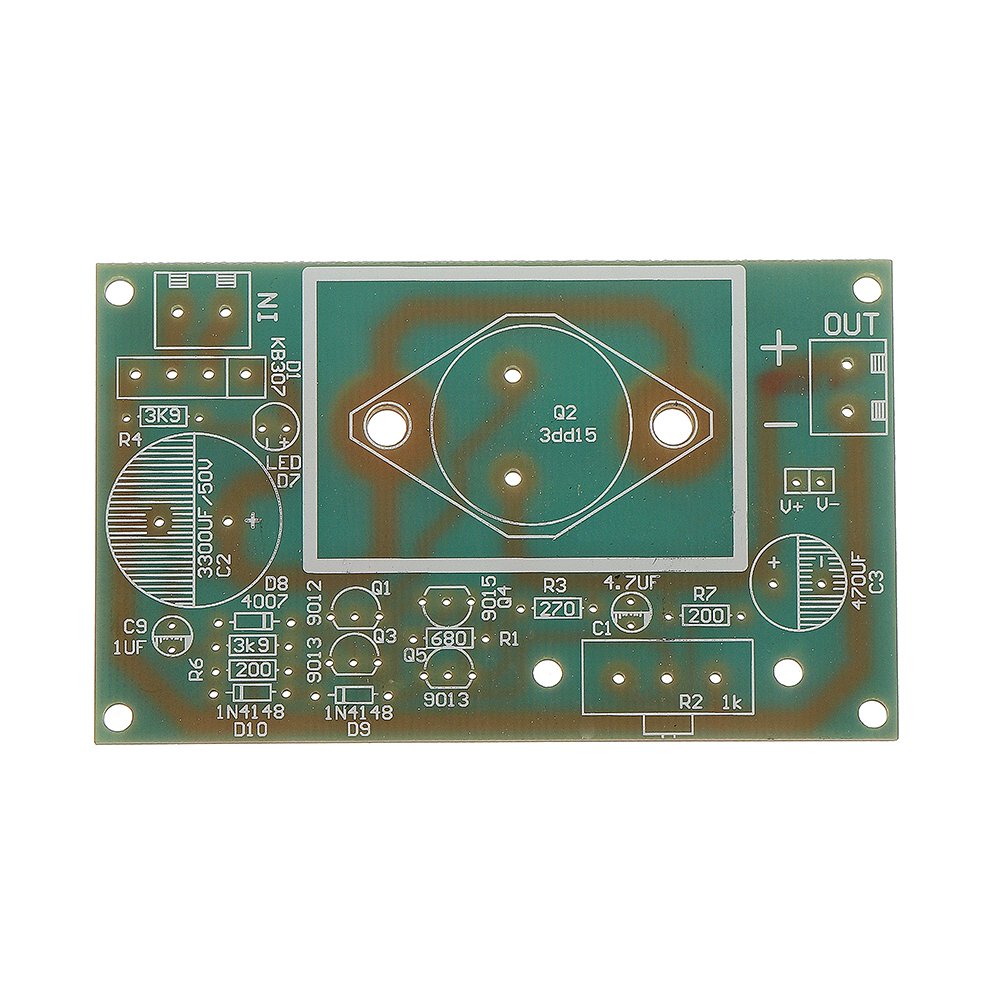

Circuit board size: 8.45 x 5.05 cm
Fixed hole size: 7.9 cm x 4.48 cm

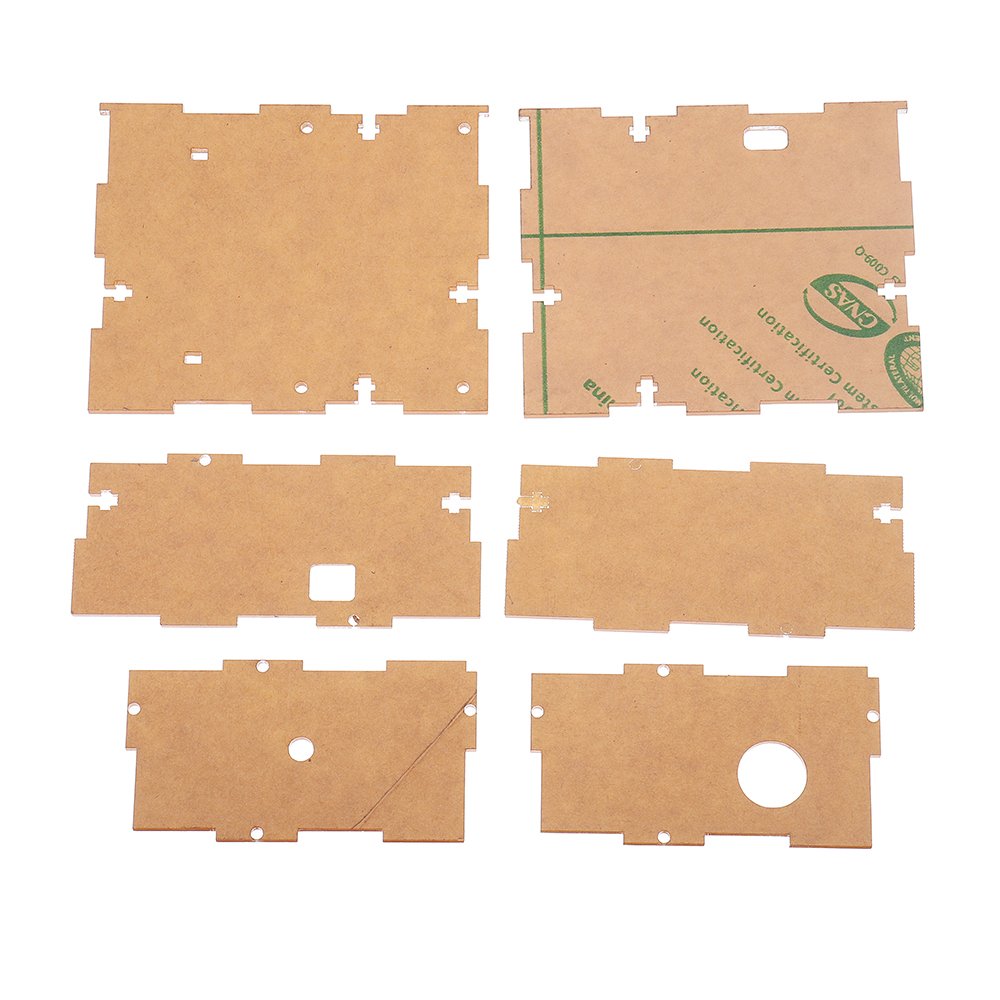

Shell size: long 94MM width 111MM high 50MM
DC input voltage: 6-21 volts
AC input voltage: 6-15 volts
Output DC voltage: 3-30 volts
Maximum load current: 2A
Minimum input-output voltage difference: 3V (that is, the maximum output voltage can be adjusted for the input voltage minus 3 V).

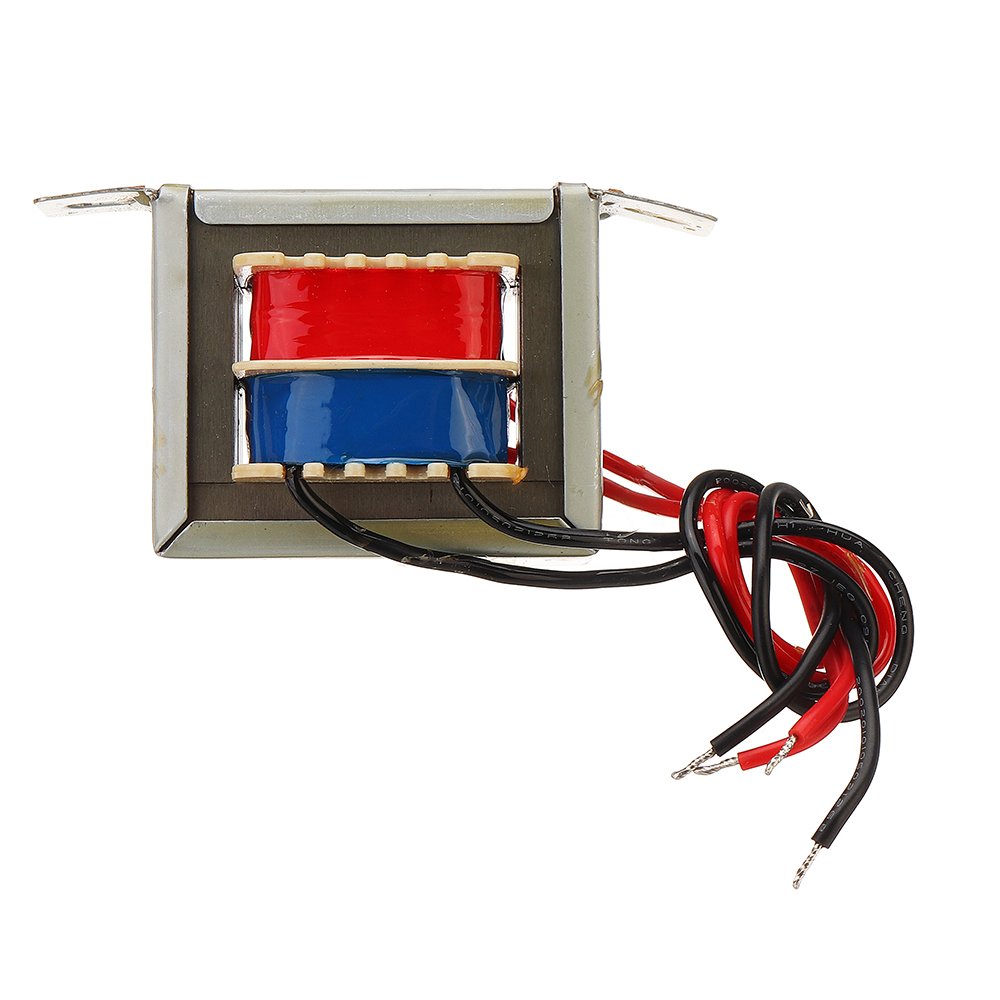

Because the transformer used in the combination package is AC 12V, the output voltage regulation range of the combination package is about DC 3V – 14V.
The biggest advantage of this product is the output short-circuit protection function, when the output is short-circuited, the module will automatically stop output. After protection, the input will be switched off after a short time, and the output will be resumed.

Package Included:

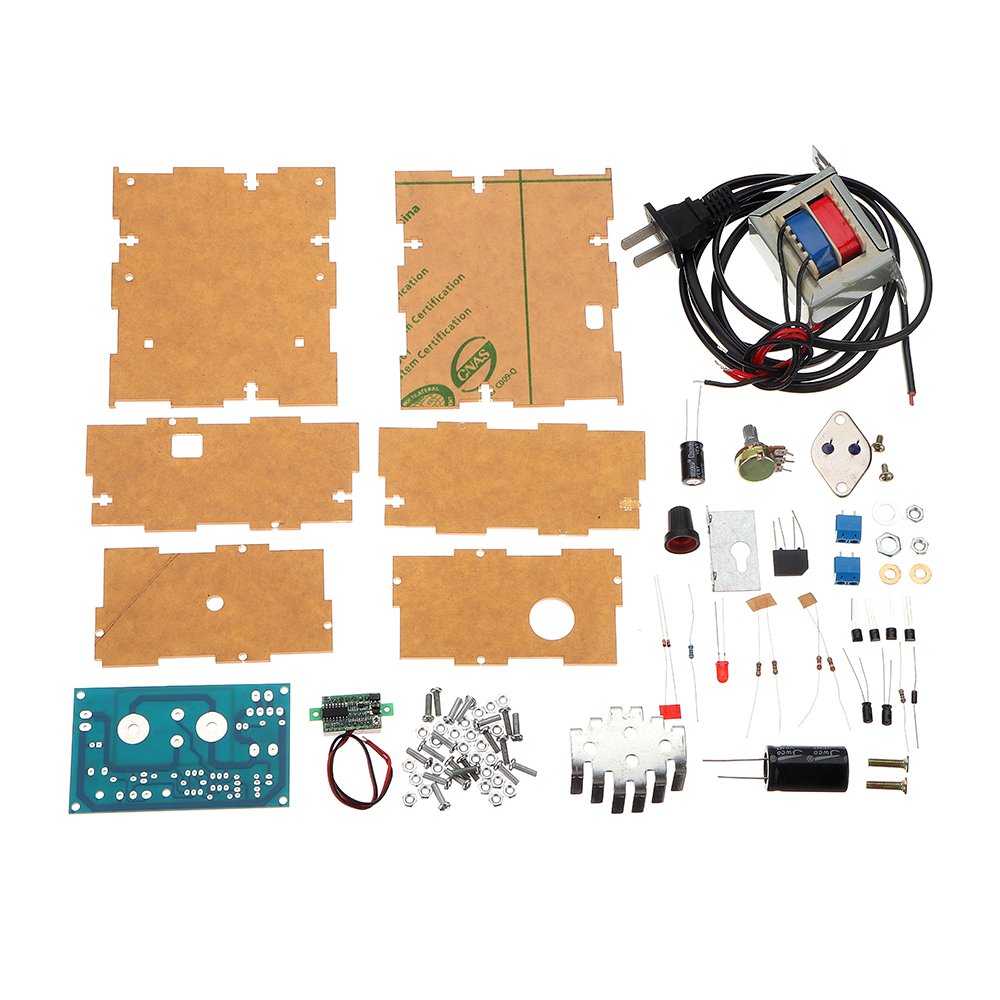

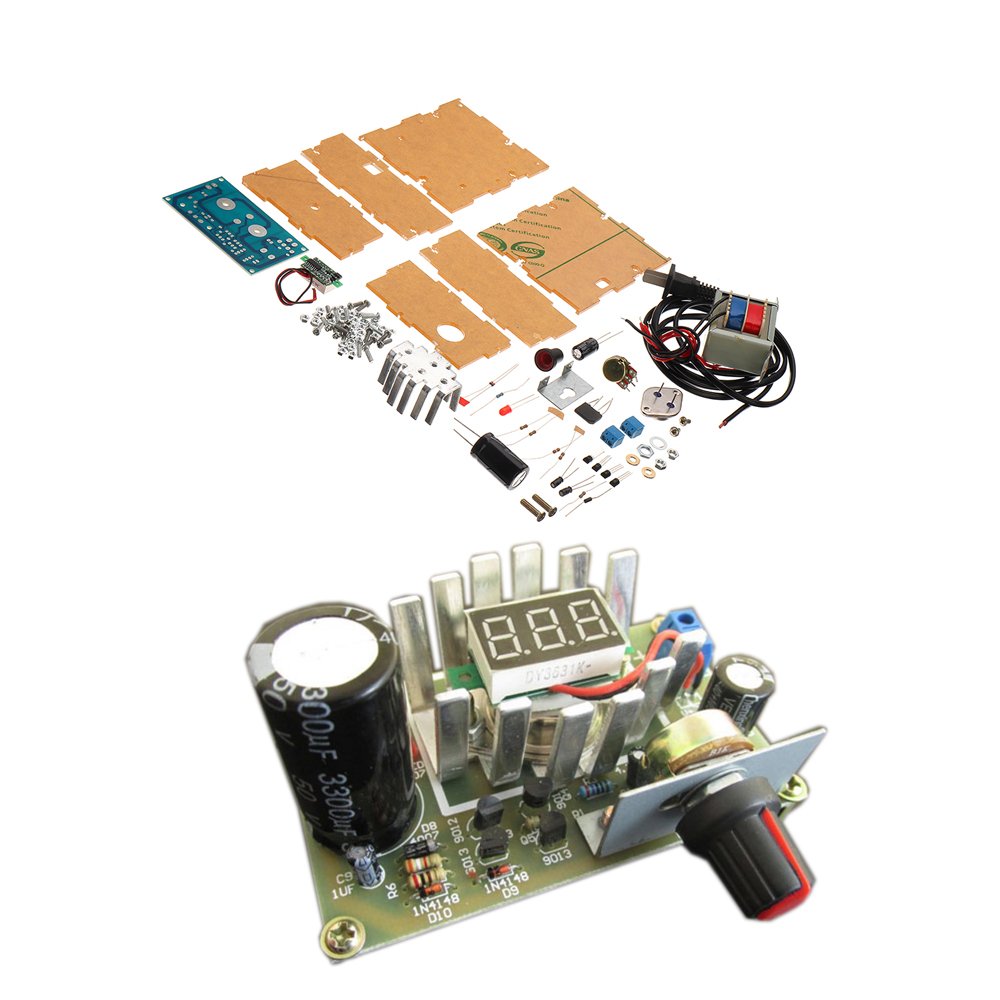

1 x DIY 3DD15 Adjustable Regulated Power Supply Module Kit
