EQKIT?® Arc Ignition Lighter DC3-5V 3A DIY High Pressure Electronic Lighter Module Kit

$15.42 AUD

or 6 weekly interest-free payments from $2.57 with Laybuy what's this?

In stock

Optional product install assistance
Estimated delivery between 2021/10/20 - 2021/10/27
Add to Wishlist
Add to Wishlist
SKU: C122-1236039 Category:
How it light:Feature:

Name: HV-1 high-pressure igniter (DIY kit, you need to assemble it)
Input voltage: DC3-5V
Input current: 3A
Operating current: no less than 2.5A
Working mode: self-excited oscillation boost
Working frequency: about 20KHz
Continuous working time: 10 seconds
Arc length: about 5 mm
Size: 71 x 18 x 12mm (L x W x H)
Ignition switch: yes
Weight: 15 gList:

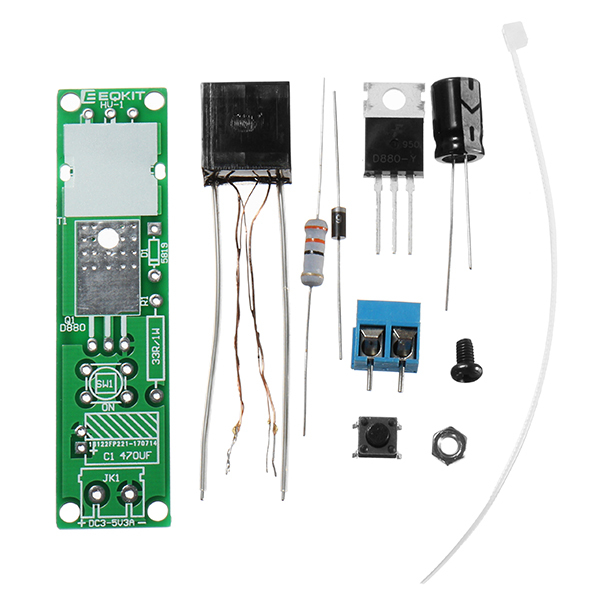

NO.Component NamePCB MarkerParameterQTY
1Carbon film resistorsR133R/1W1
2Electrolytic capacitorC1470UF1
3DiodeD11N58191
4ButtonSW16*6*5mm1
5TransistorQ1D8801
6Battery terminalJK1KF301-2P1
7TransformerT114*15*81
8PCB18*71mm1
9ScrewQ1M3*51
10NutQ1M31
11TieT13*100mm1

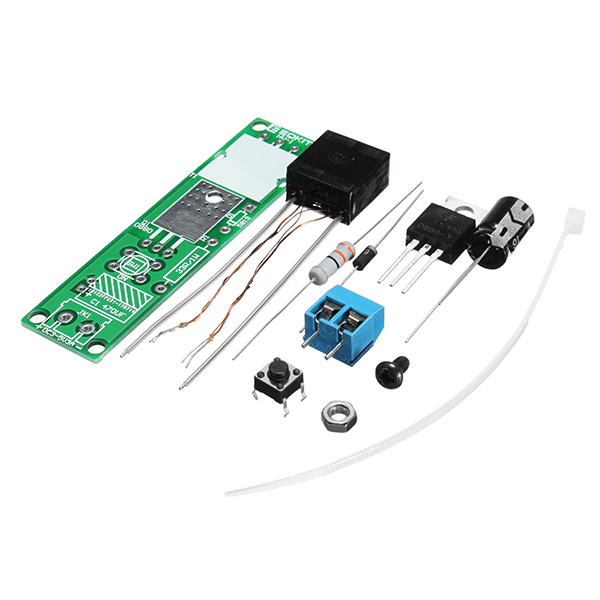

Package includes:

1 x Arc Ignition Lighter KitAfter assemble, for reference only
,,,,,
Weight0.01 kg
MPN

1236039
