Description
Note: the HT-175 which shipped after 2019-01-08 will be black color.
An affordable thermal imager for you!
With the lowest price and best quality
Description:

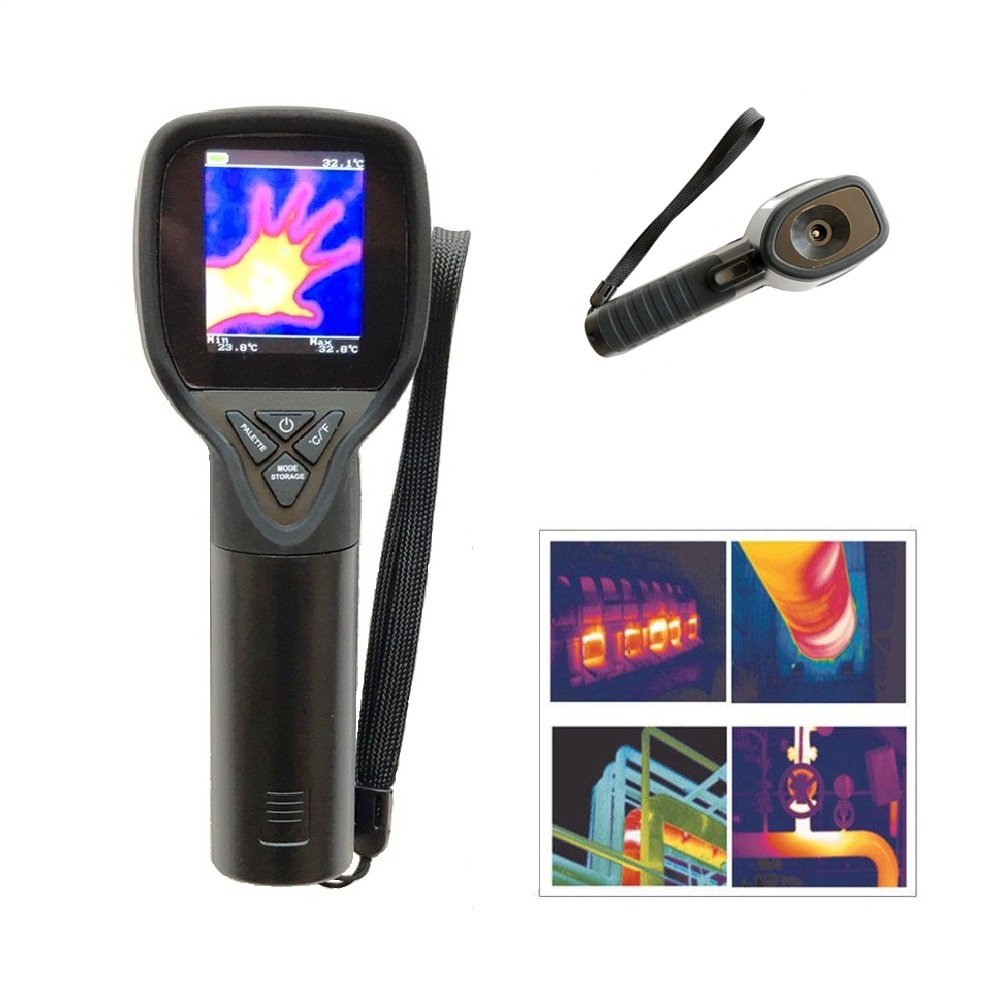

The industrial thermal camera features portable design and simple operation and is widely used in many fields such as fire fighting, archaeology, traffic, agriculture, geology, energy, smelting, electronic manufacture, etc. It is the ideal selection for electrician and maintenance personnel and technicians and can be used to find the problem area quickly.
Specification:
Display screen: 2.0 color screen
Infrared image resolution: 32 × 32
Pixel: 1024
Measurement mode: Infrared focal plane temperature measurement
Measurement range: -20~300℃
Measurement precision: ±2%/±2℃
Wavelength coverage: 8-11.5um
Focusing mode: fixed
Color palette: iron oxide red and white glow

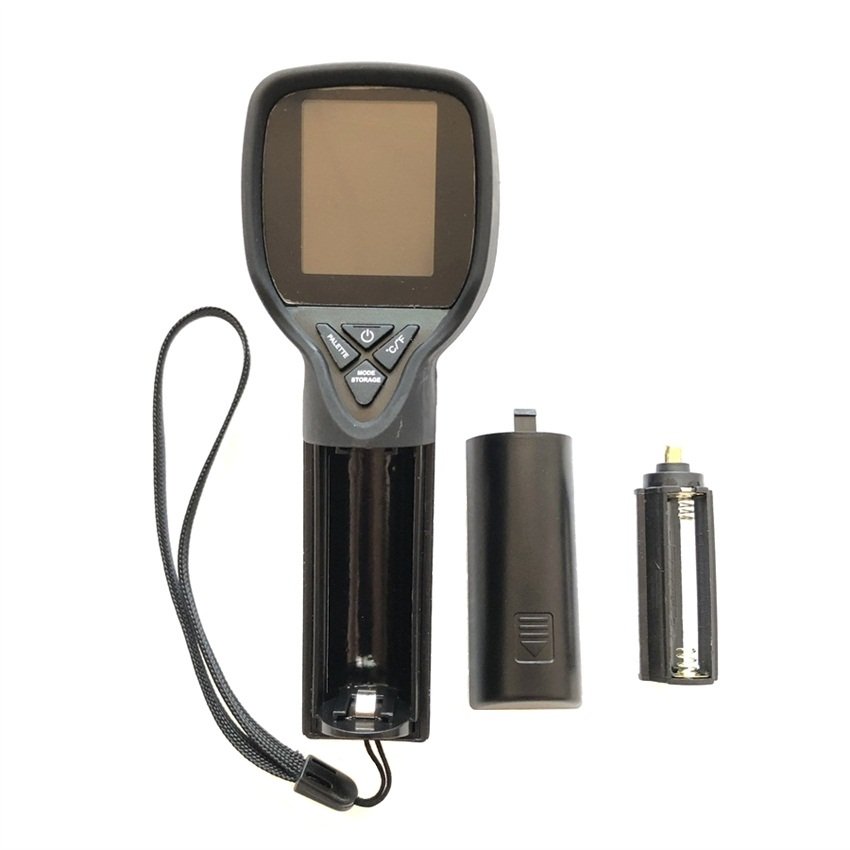

Power supply: 1 x 18500 rechargeable lithium battery(not included)
Working temperature: 0-50℃
Storage temperature: -20℃~50℃
Weight: 135g (battery not included in shipping )
Size: 165mm × 69mm × 60mm
Color Palette Descriptions:

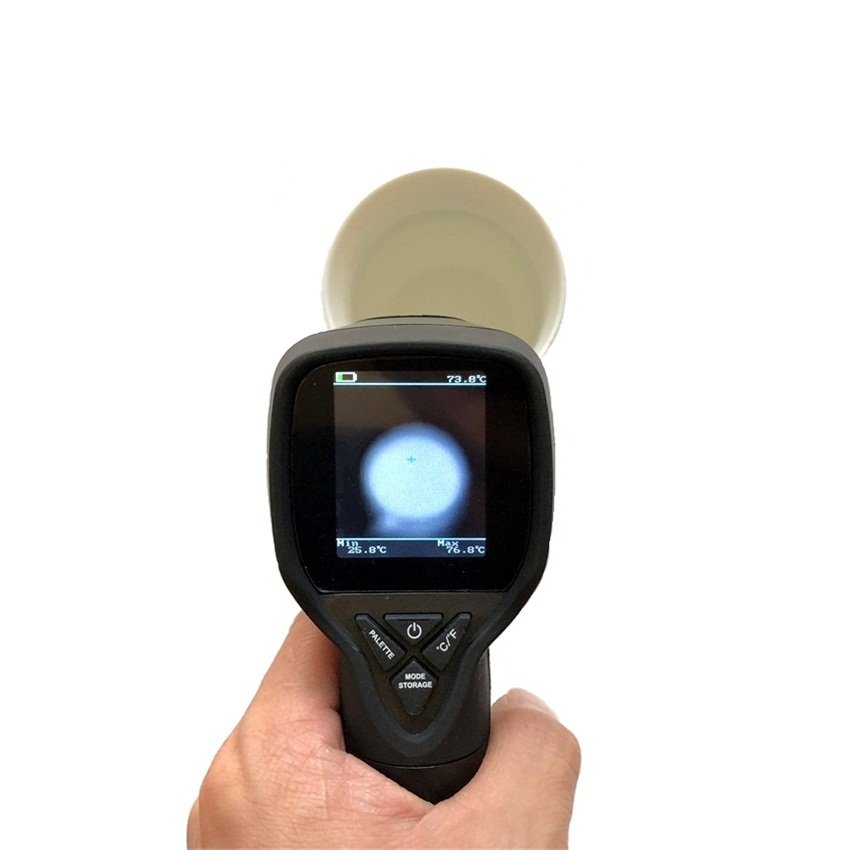

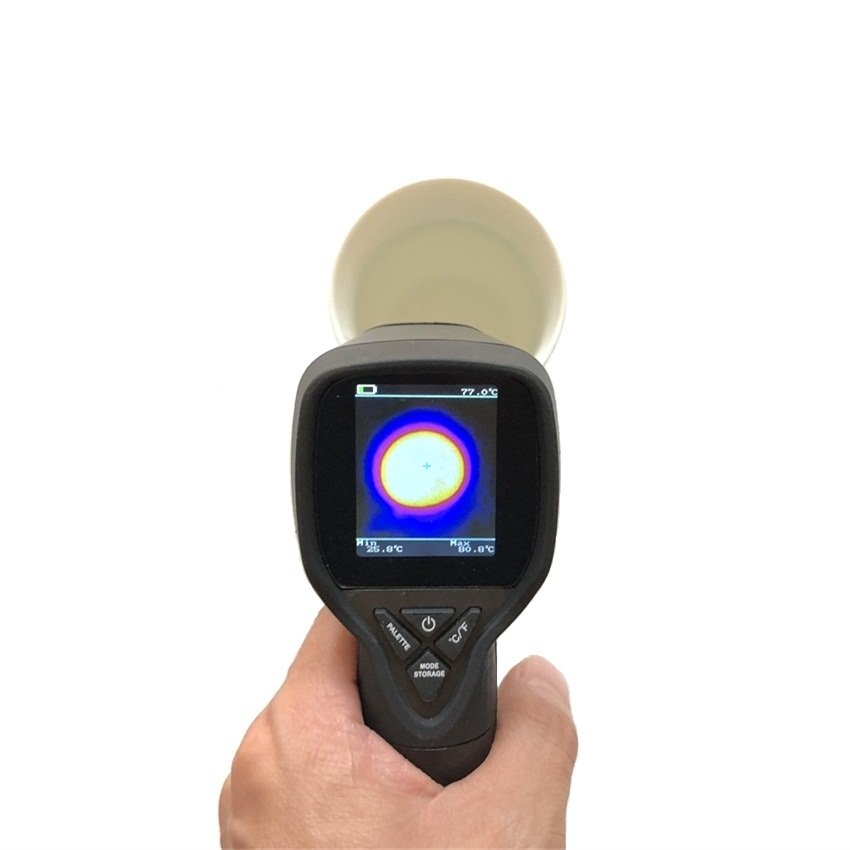

Suitable selection of color palette displays the details of the target objective better. Iron oxide red color palettes focus on display of color. Such color palettes are very suitable for high heat contrast and are used to improve the color contrast between high temperature and low temperature. But the white glow color palettes provide even linear color.
Power button: Hold down to power on/off.
Unit switching key: Press to switch temperature unit ℃/℉.
Color palette switching key: Press to switch between iron oxide red / white glow color palette.
Image capture key: Press the key to lock the image and press again to cancel.
Saving setting button: After the users complete setting of color palette or temperature unit, press the key to make the instrument remember the setting. It will not lose after powering on again.
Measurement Principle:
In the nature, when temperature of the object is higher than absolute Zer’o (-273℃), it will radiate electromagnetic wave to surrounding environment constantly due to internal thermal motion, in which infrared ray is included. The optical elements of infrared temperature instrument can convert the infrared energy emitted, reflected and transmitted by the object to temperature reading.
The instrument measures the infrared ray difference between the object itself and the background and obtains different images and converts it into standard video format and display.

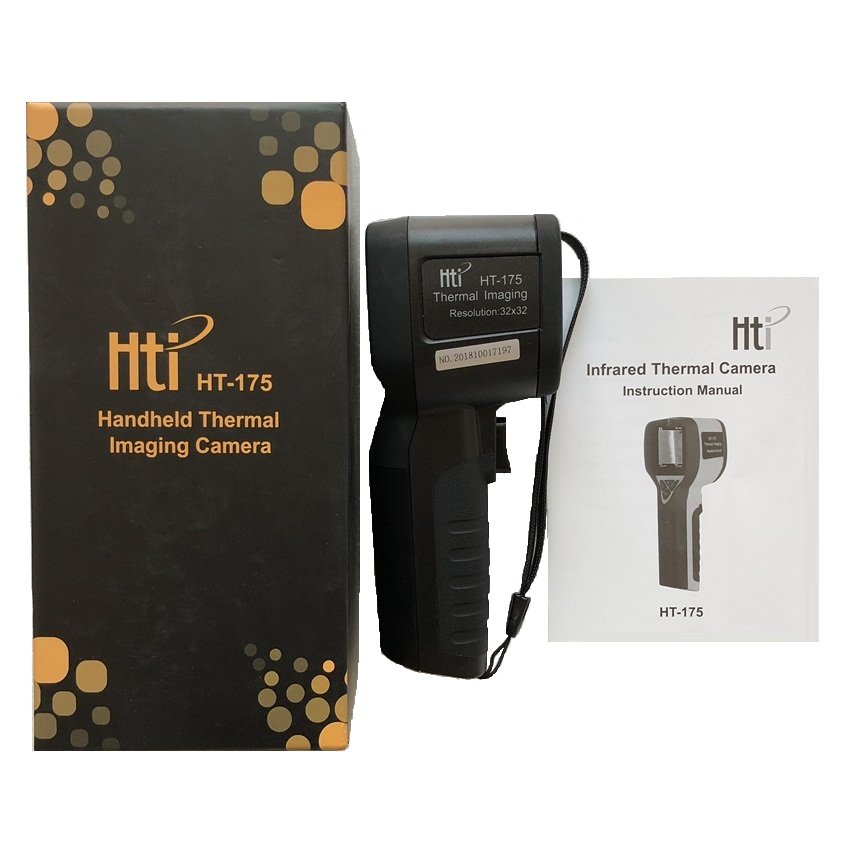

Package Included:

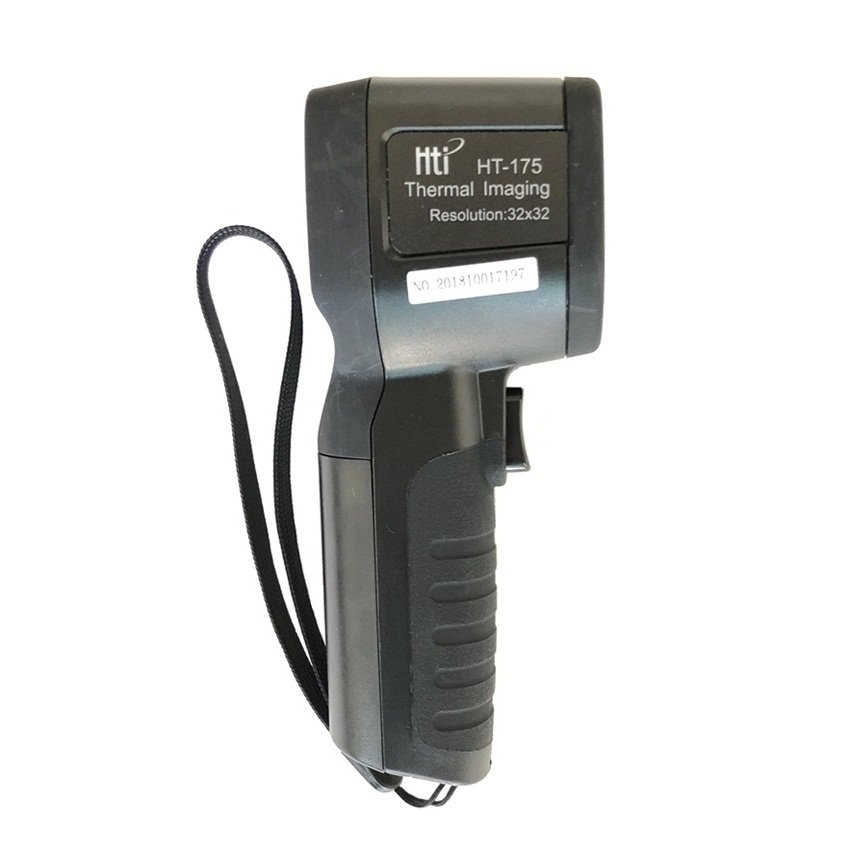

1 x HT-175 Infrared Thermal Camera
1 x Instruction Manual
Detail Pictures:
,
,
,
,,
,
,,,
