PRODUCT DESCRIPTION

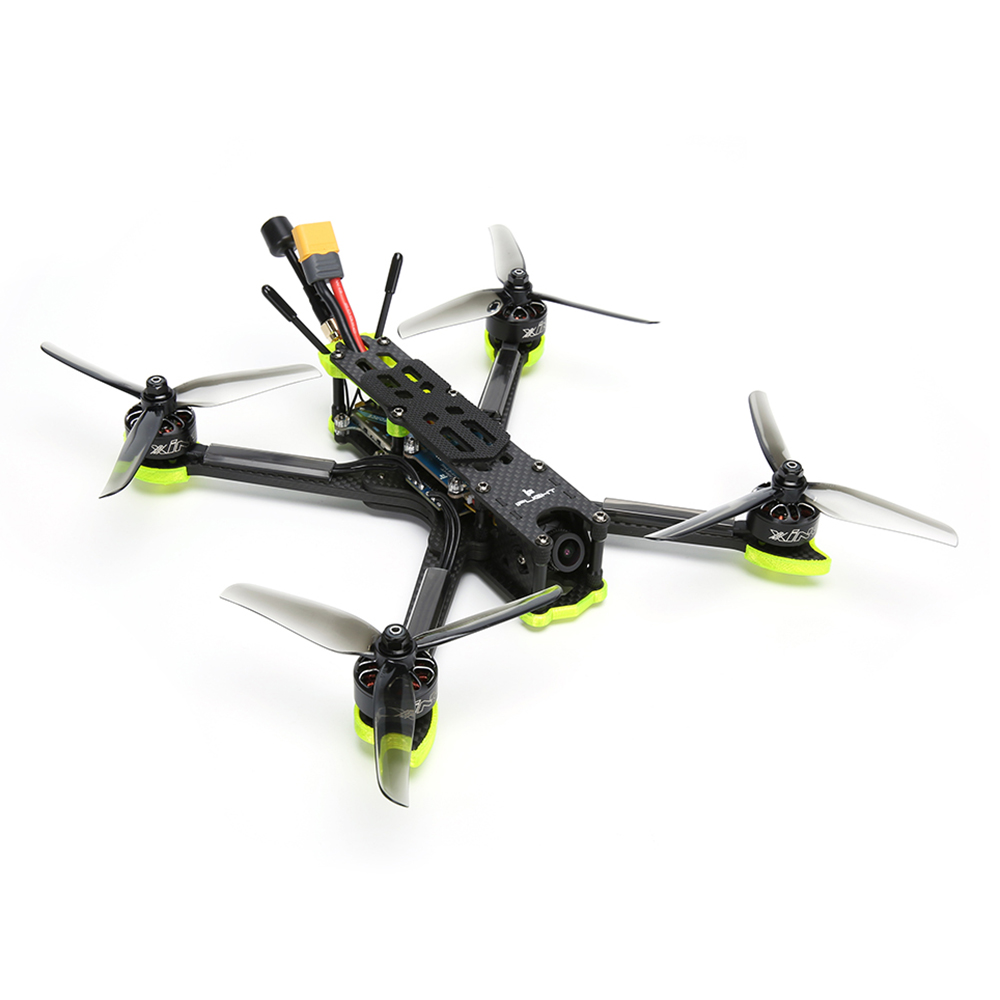

Nazgul5 V2 is a 5″ size BNF (Bind-and-Fly) quadcopter. it is updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don’t worry, get some spares with your order and easy-swap out in field. Wanna strap your for GoPro on that beast as well? Checkout our collection of high quality TPU prints for your cam!
Specification:
- SucceX-E F4 45A flight stack
- XING-E 2207 FPV Motor （6S 1800KV )
- Wheelbase: 240mm*240mm
- Body size: 170*170mm
- Propeller size: 5 inch /5.1 inch
- FC pattern: 30.5*30.5/20*20 mm
- FPV cam spacing: 19mm
- Weight: 393.4g (without battery)
|
SucceX-E F4 Flight controller |
– MCU：STM32F405 – Gyro：MPU6000 – Betaflight OSD：YES – Blackbox：8MB – 4X Uarts（1 2 3 6 ) – 8 x Dshot/Proshot/Oneshot output – 8 x individual ESC power/ signal pads – 1 x Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX – VTX telemetry: YES – WS2812 led Strip：YES – Baro：No – Beeper：YES – Input：2-6S（Max 8S） – BEC：5V/2.5A cont – Firmware target : BETAFLIGHTF4 – Mounting：30.5*30.5mm，φ4mm with Grommets φ3mm – Dimensions：36*36mm – Weight：7.6g |
|
|
SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC |
– Dimension: 40*43mm – Mounting Holes: 30.5*30.5mm/Φ3mm – Weight: 14.4g – Supports 2-6S Lipo input – STM32F051 MCU, 48Mhz Runs BLHELI 16.X Firmware – Current sensor: YES – BEC: NO – Supports: DShot150/300/600/1200/MultiShot/OneShot etc.
– Target: G-H-30 BLS 16.7 |
|
|
SucceX Force 5.8g 800mW VTX Adjustable |
– Item: SucceX-Force 800mW adjustable VTX – Input voltage: – Output voltage/ Max current: 5V 1A – 12V input current: 40mA@PIT MODE, 95mA@25mW, 185mA@200mW，250mA@500mW, 380mA@800mW – Output 48 frequency points, – PIT/25mW/200mW/400mW/800mW |
|
Feature:
– 5mm arm design for more durability
– Easy-Swap arms
– LED illuminated Logo
– XING-E 2207 motors and NAZGUL 5140 props
– 5″ version also fits 5.1″ style propellers
– Popular True-X configuration
– TPU crash-guards
– Fits both 30.5x and 20x stacks
Package Included:
- 1x Nazgul5 V2 240mm 5 Inch 6S FPV Racing Drone
- 1x Caddx Ratel, 2.1mm lens camera
- 1x Albatross RHCP SMA 5.8g antenna
- 2sets x Nazgul 5 inch 3-blades (Set of 4 – Color may vary)
- 1x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
- 1x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
Additional Suggested Parts (Not Included)
- Battery 6S 1300mAh
- Camera mount for GoPro
No need to worry! All Factory Dumps and Wiring Diagrams can be found on our Google Drive: LINK
