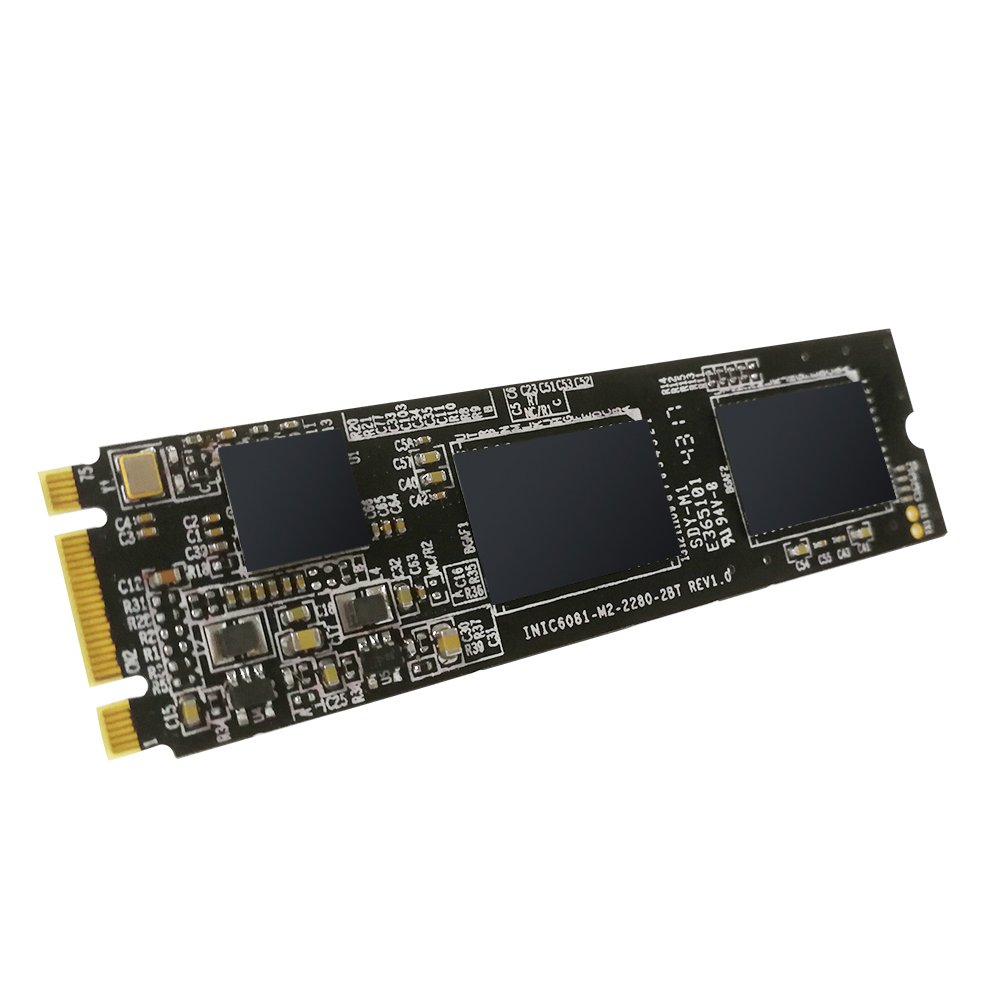

1. Brand: Kingspec

2. Type: M.2 NGFF 2280 sata ssd

3. External Interface: M.2 2280
4. Nand Flash Type:  TLC
5. Controller: MK8115/MAS0902/INIC6081
6. Read/Write Speed: 490~540/190~390MB/s
7. Size: 2280 (22mm*80mm)



General	Form factor	80mm(L) X 22mm(W)X3.2mm(H)
	Interface	NGFF
Performance	Capacity	64GB/ 128GB / 256GB / 512GB
	Sustained Read (for reference only)	290~520MB/s|390~540MB/s|490~540MB/s
	Sustained Write (for reference only)	150~210MB/s|170~350MB/s|190~390MB/s
	Random IOPS
	4KB Random Read IOPS	69000
	4KB Random Write IOPS	40000
	Average Access time	0.05ms
Power Consumption	input Voltage	3.3V±5%
	Idle	0.3W
	Active	1.6W
Reliability& Endurance	MTBF	1,000,000hours
	ECC	Supports BCH 8/16/24/40 bits ECC
Environment	Operating Temperature	0~70°C
	Non-operating Temperature	–40~85°C
	Ambient Humidity	5-95%
Available unit	Available	NO EOL
Testing Platform	CPU:Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset:Intel® Z68 Express Chipset Memory:Kingston KHX1600C9D3C1K2/4GX OS:Microsoft Windows 7 Professional 64-bit AHCI Driver:Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode
Physical Dimensions & Weight	Height(mm)	80mm
	Width(mm)	22mm
	Length(mm)	3.2mm

Package included:

1* Kingspec M.2 NGFF 2280 SATA SSD
