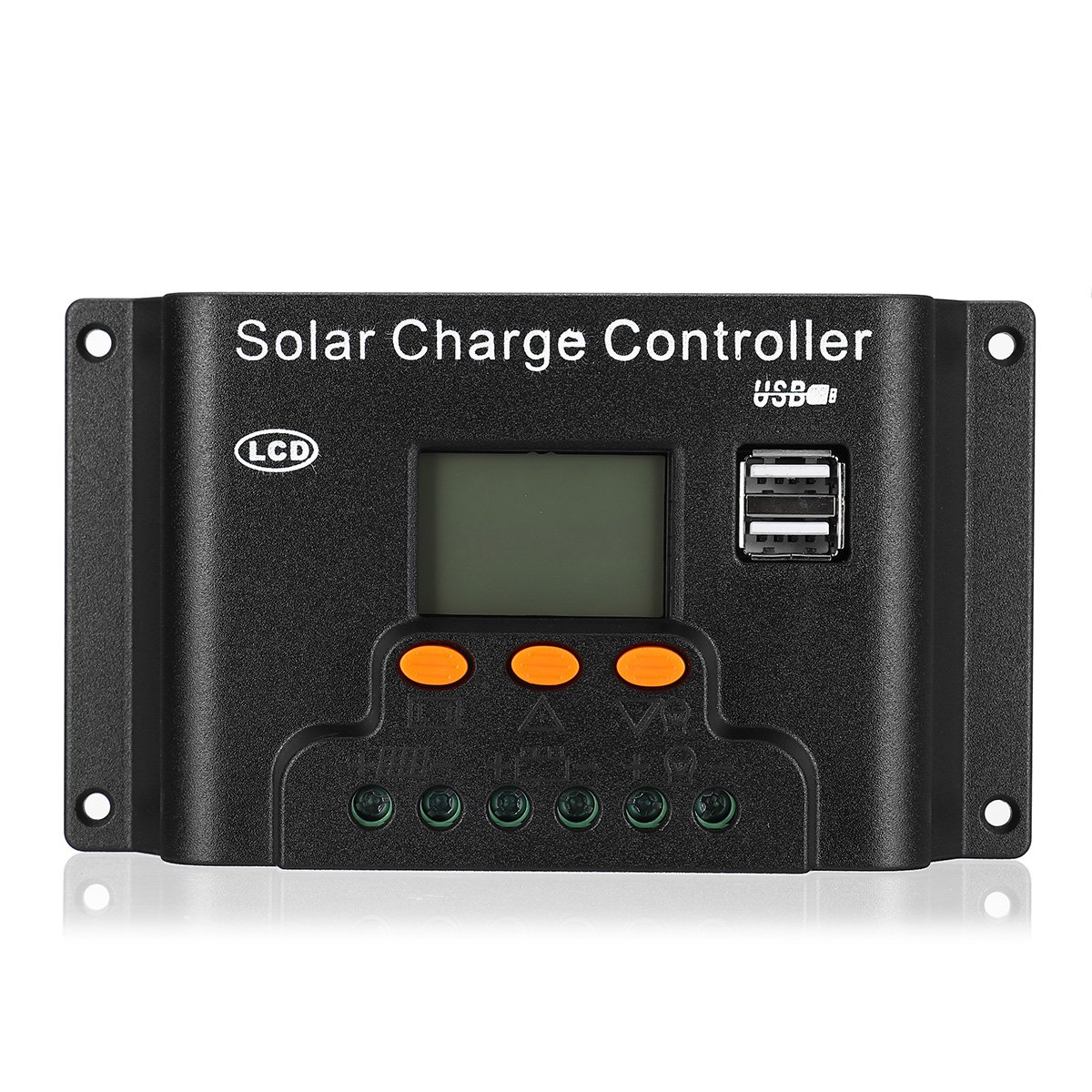

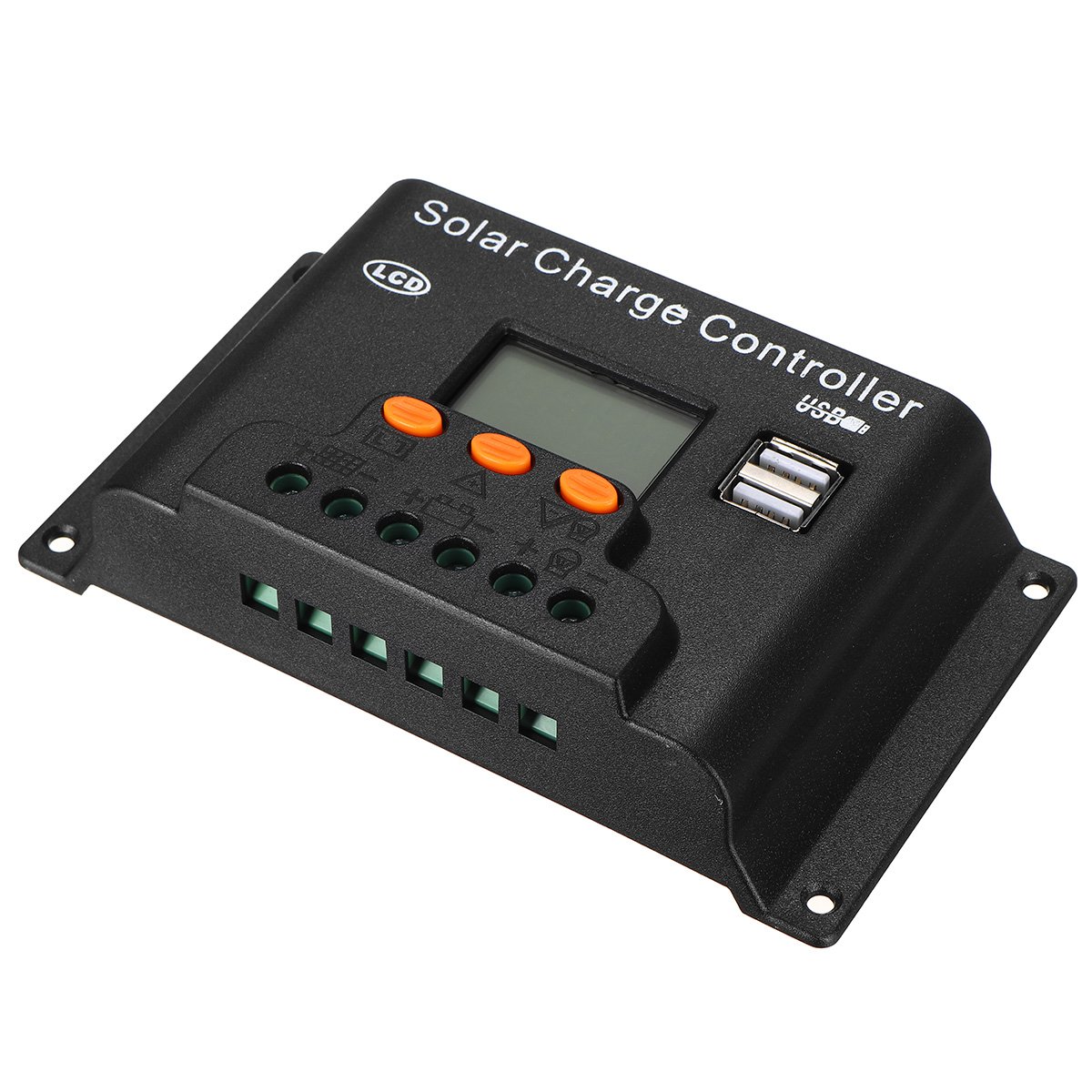

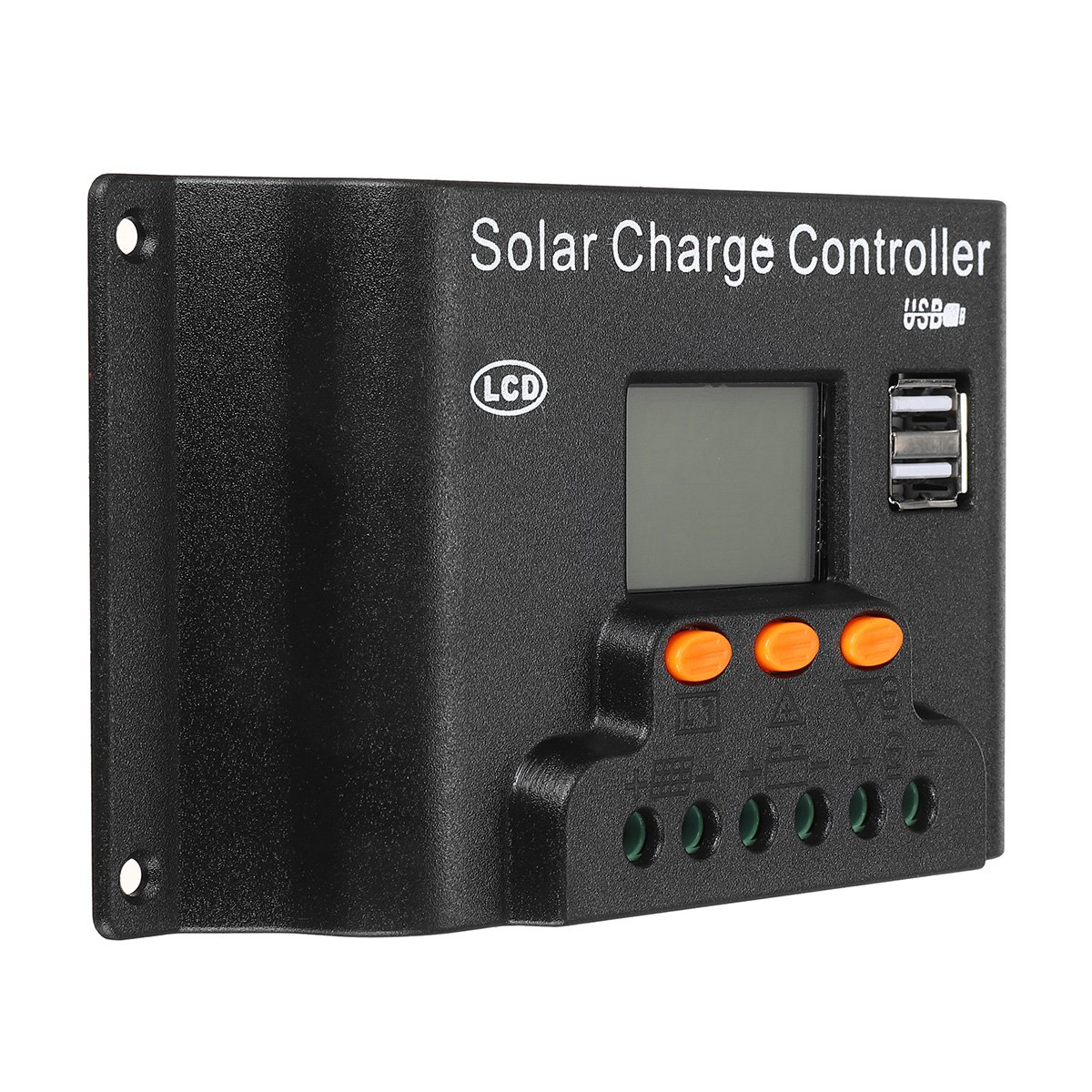

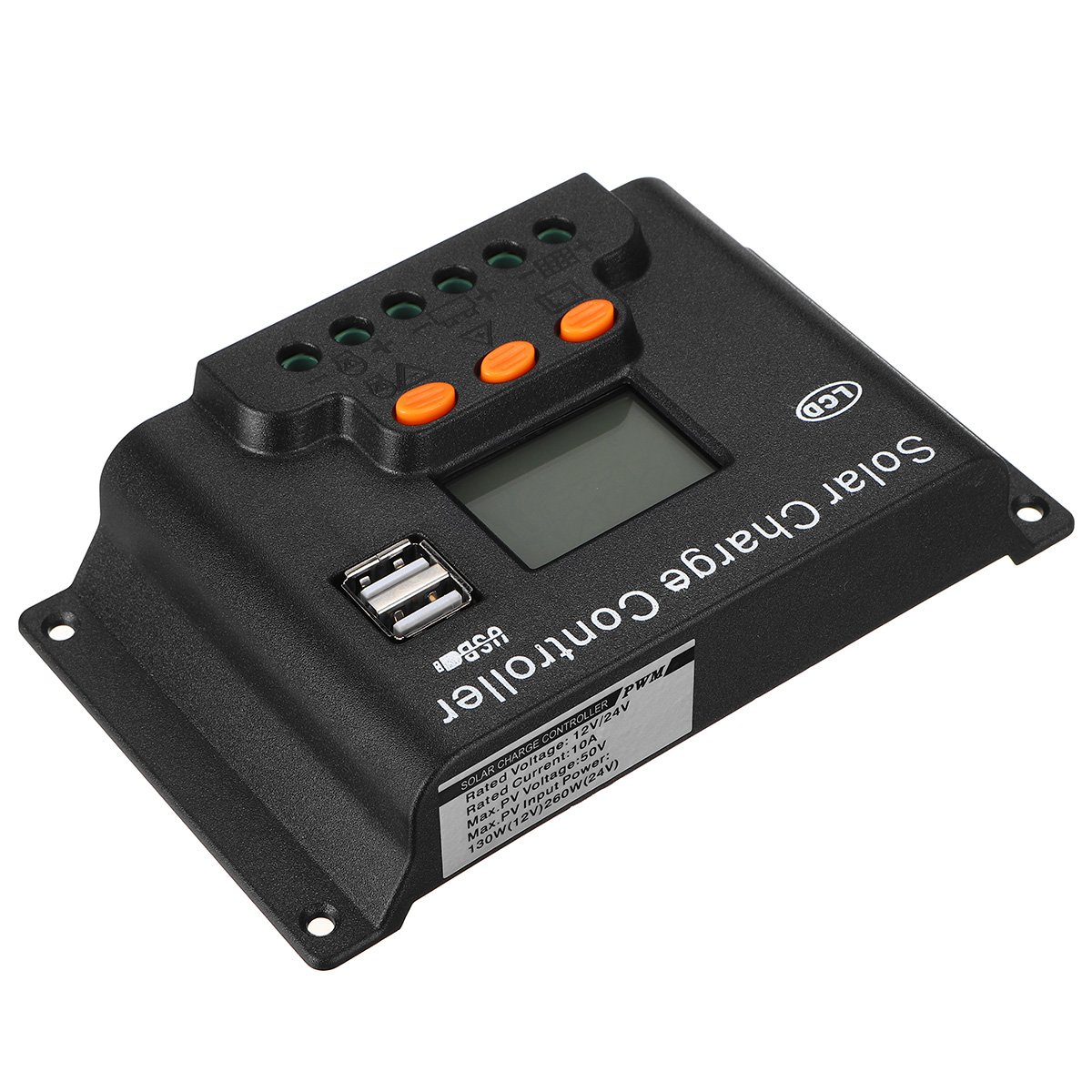

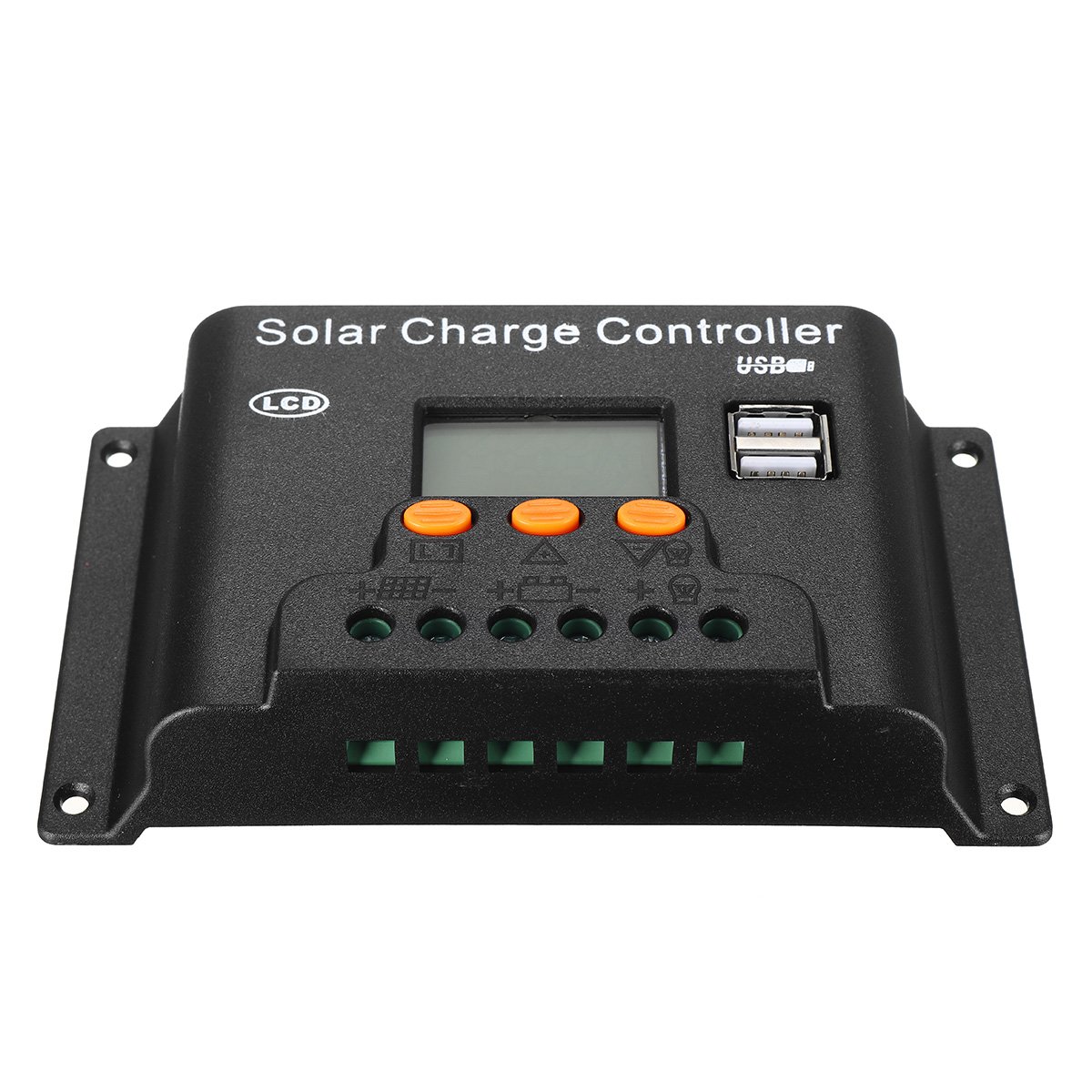

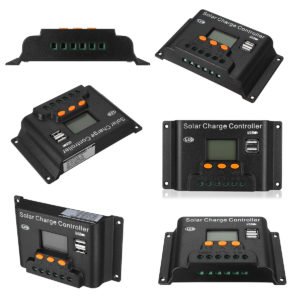

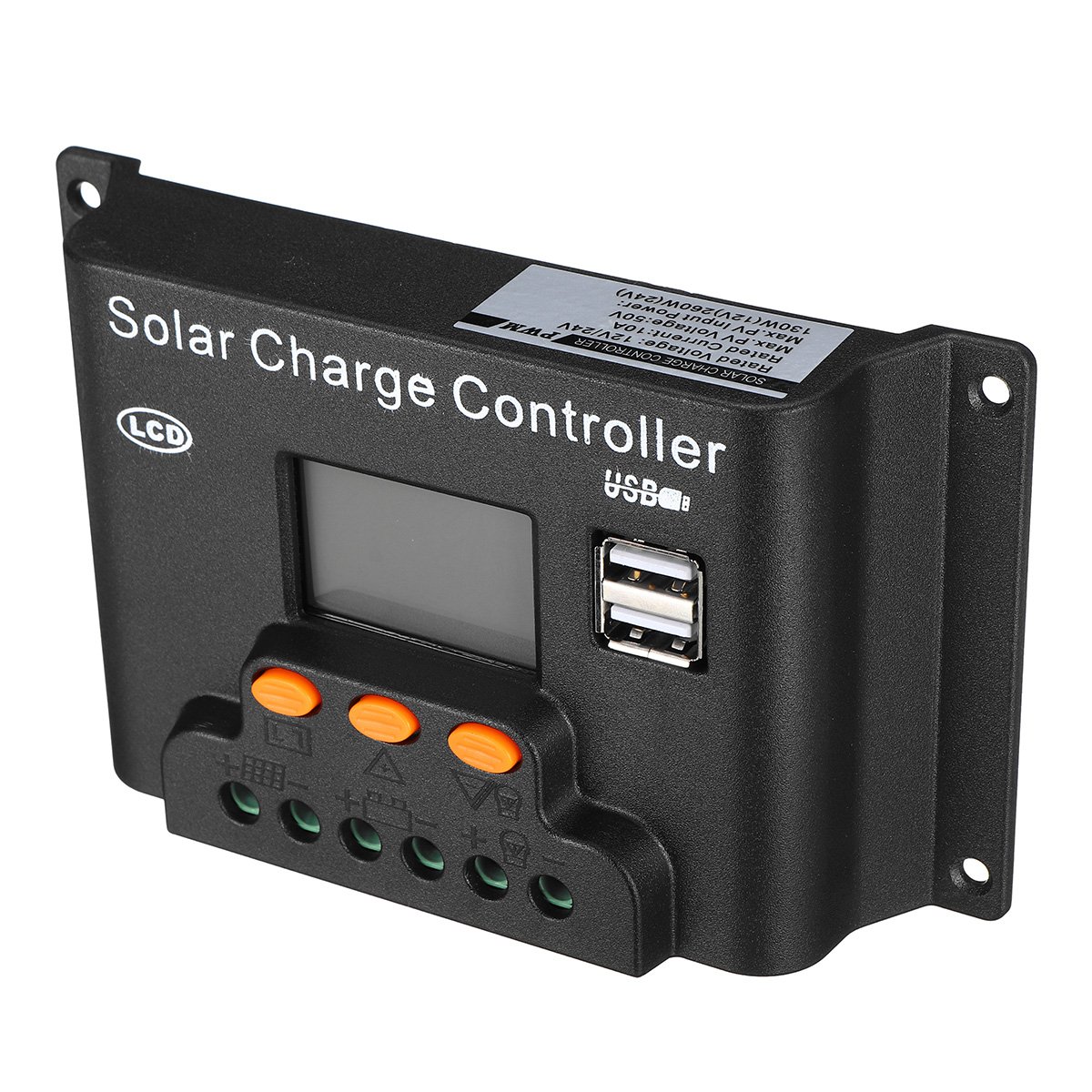

Solar Charge Controller | Large LCD Display | Dual USB Output

or 6 weekly interest-free payments from $3.47 with Laybuy what's this?

10/20/30/40/50/60A 12v/24v Adjust PWN Solar Battery Charge Controller for Solar Panel Support Dual USB Output/Large LCD Display

$22.96$31.44 AUD

Estimated delivery between 2022/08/16 - 2022/08/23
Add to Wishlist
Add to Wishlist

Description

Solar Charge Controller | Large LCD Display | Dual USB Output

Features:
1. Build-in industrial micro controller.
2. Large screen LCD display, charge and discharge parameters can be adjusted, with power off memory function.
3. Screen with backlight, even more high-grade. (Note: some models have no backlight, backlight in no operation after 5S or so automatically shut down)
4. Dual USB output, the maximum current of 2. 5A, to support Apple’s mobile phone charging.
5. Fully 4-stage PWM charge management.
6. Build-in short-circuits protection, open-circuit protection, reverse protection, over-load protection.
7. Reverse current protection, the low heat production.

Specifications:

1. Rated voltage: 12/24V
2. Rated current: 10/20/30/40/50/60A
3. Max. PV Voltage: 50V
4. Max. PV input power: 750W(12V) / 1500W(24V)

Function:

1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Charge Controller
7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of the battery is back to normal and the load will restart working.
8. Thunder protection.
9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is a default under 25℃ condition, locked by the CPU procedure, cannot adjust.)
10. The controller will automatically compensate for the temperature of the charging voltage according to the changes in ambient temperature.
Package Include:

1 x Solar Charge Controller
1 x User Manual



Large LCD Display
Dual USB Output

Solar Battery Charge Controller

Large LCD Display

Dual USB Output

Solar Battery Charge Controller
Large LCD Display
Dual USB Output

Solar Battery Charge Controller

Large LCD Display

Additional information

Current

10A, 20A, 30A, 40A, 50A, 60A
