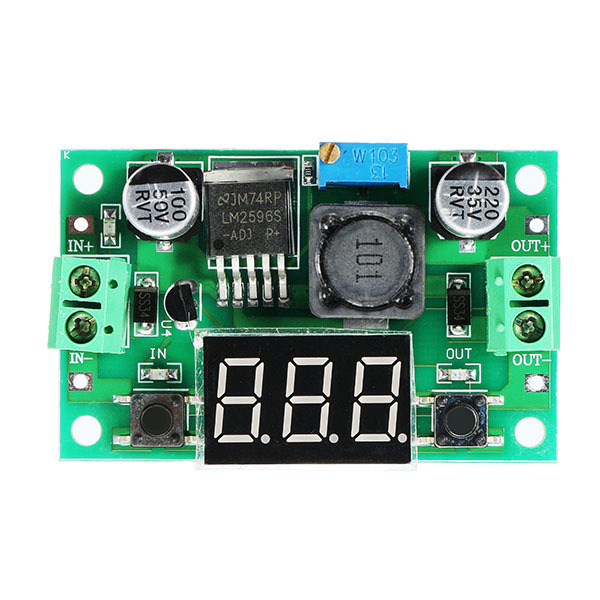

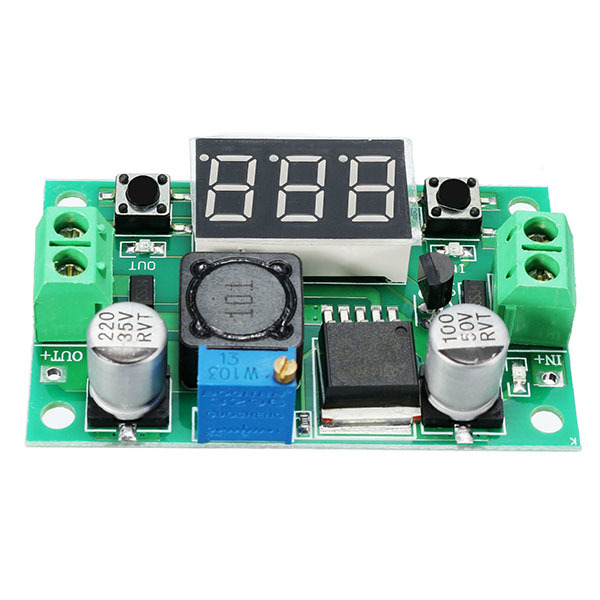

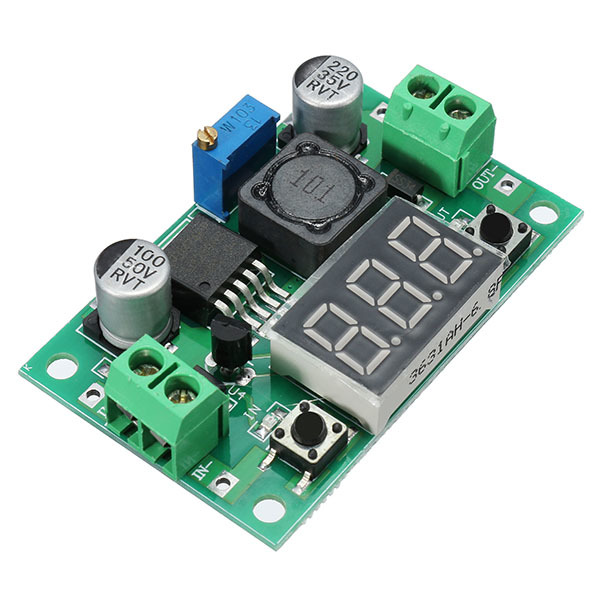

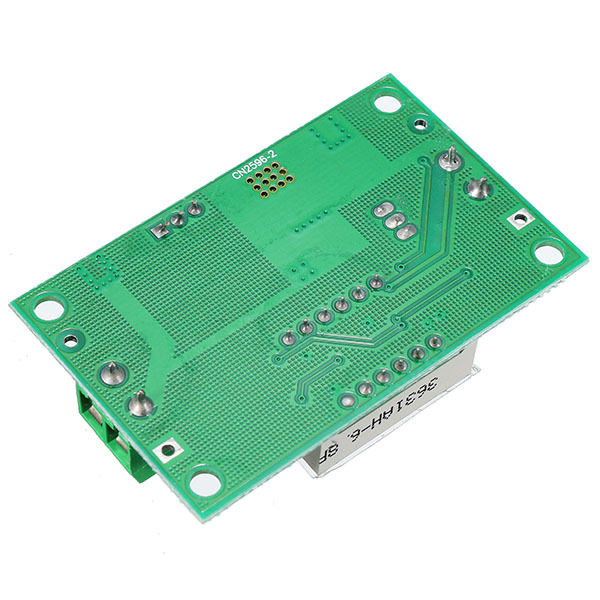

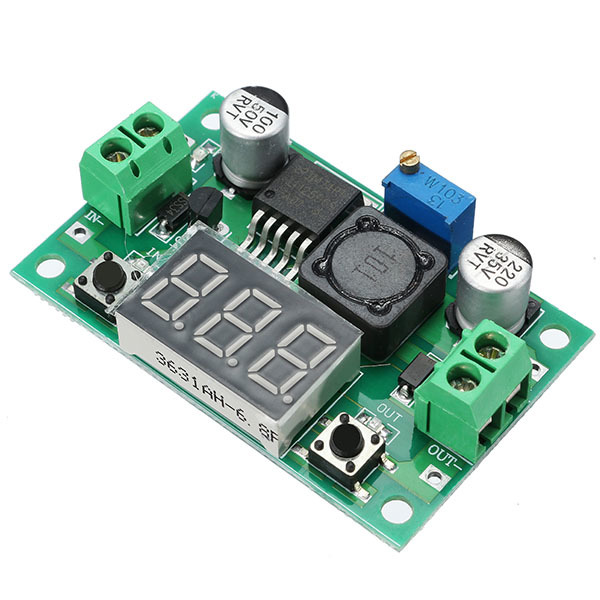

LM2596 DC-DC 1.3V – 37V 3A Adjustable Buck Step Down Power Module 150KHz Internal Oscillation Frequency With Digital Display Over-Heat And Short Circu

or 6 weekly interest-free payments from $2.89 with Laybuy

$15.79 AUD

Only 2 left in stock

Estimated delivery between 2024/04/01 - 2024/04/08
Add to Wishlist
Add to Wishlist
SKU: C122-1179968 Category:

Description

Features:The voltmeter resolution: ±0.1VThe voltmeter digital display range: 0V – 45VThe voltmeter input voltage range: DC 4V – 40VOutput voltage: continuous adjustable (1.3V -37V)Output current: 2A ( Max 3A)Size :65 x 35mmDescription:With terminal blockOver-heat protection and short circuit protection functionLED digital voltmeter tube, it can adjustable accurate aimed at your multimeter.Press the key “S1” to let the display show the input or output voltage. when the green led light, it shows output, the red show input.Touch the button to switch the measurement input or output voltage, and indicator light shows which voltage is being measured, it can save the settings, even if the power off and restart.Using 150KHz internal oscillation frequency, belonging to the second generation switching voltage regulator, low power consumption and high efficiency.Note:To guarantee the accuracy of the voltmeter, make sure the input voltage above 4V.The input voltage must be 1.5V higher than the output voltage or 1.5V above.Package included:1 x LM2596 DC-DC 1.3V -37V 3A adjustable buck power module

,,,

Additional information

Weight 0.02 kg
MPN

1179968
