Description
Specification:
Motor Speed: 12000rpm/min(optional choice 20000rpm/min)
Input voltage/current/power: 12V DC/5A/60W
Axis X travel: 32mm
Axis Z travel: 145mm
Process accuracy: 0.05mm
Working material length: 135mm
Maximum working material diameter: 100mm
Motor power: 60W
Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc.
Features:
1.Motor case and headstock are jointed. Maximum motor power is 60W by using more powerful motor. Axis Z slider can spin 180°.
2.Center height-75mm, distance between centers-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.
3.Main parts: headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover etc. All of the parts are made of metal except drive belt cover.
4. Lathe tool is made of high speed steel quality material and it can process on soft metal, nonferrous metal and precious metal. By using central block, diameter can be expanded to 50mm.
5.With 0.02mm scale line ,the hand wheel increases the precision when processing.

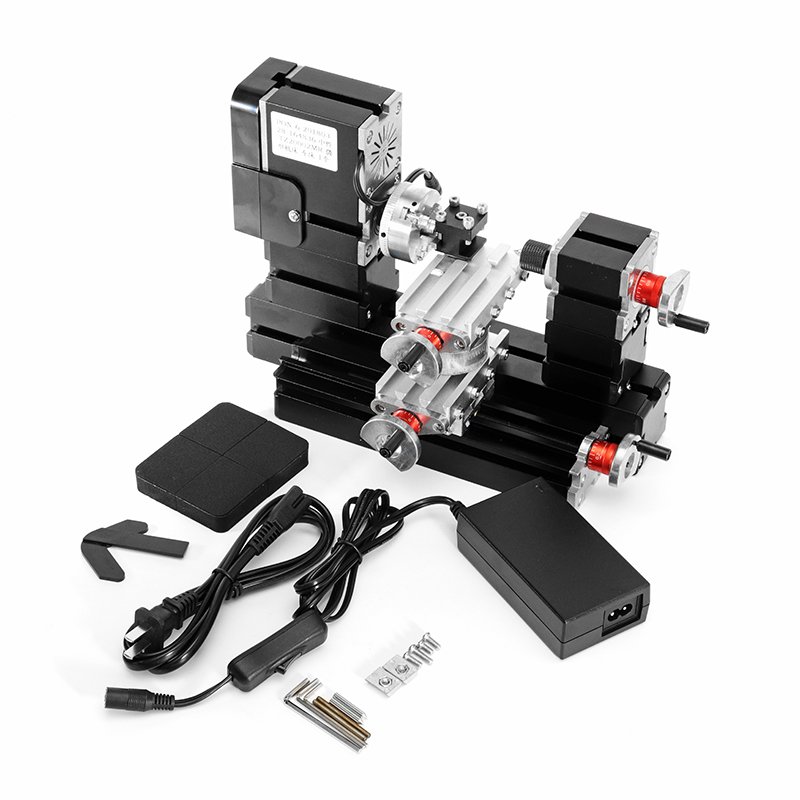

Package Included:
1 x Rotating Lathe
