Description:

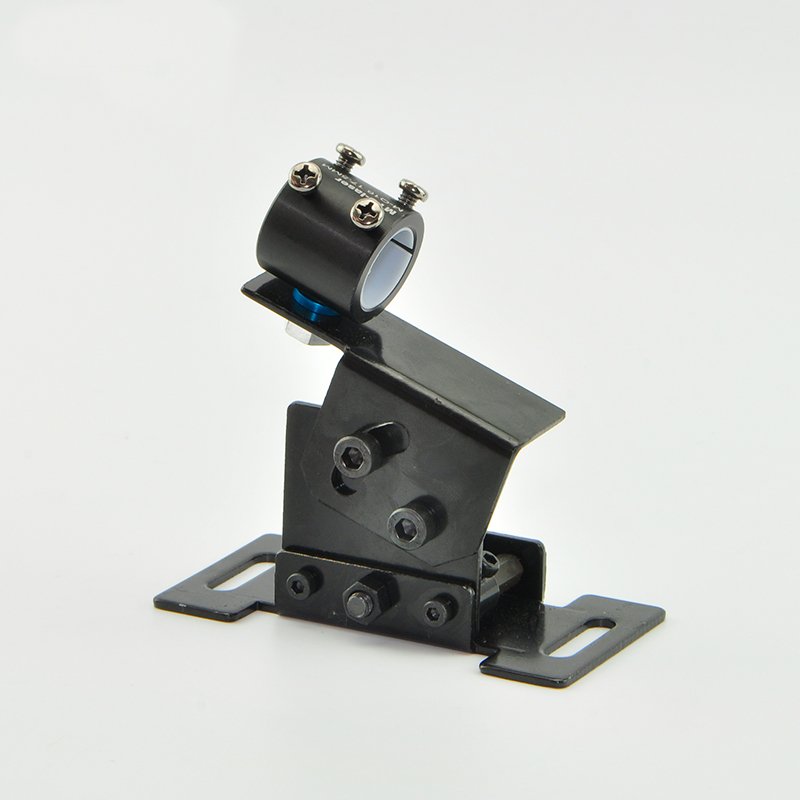

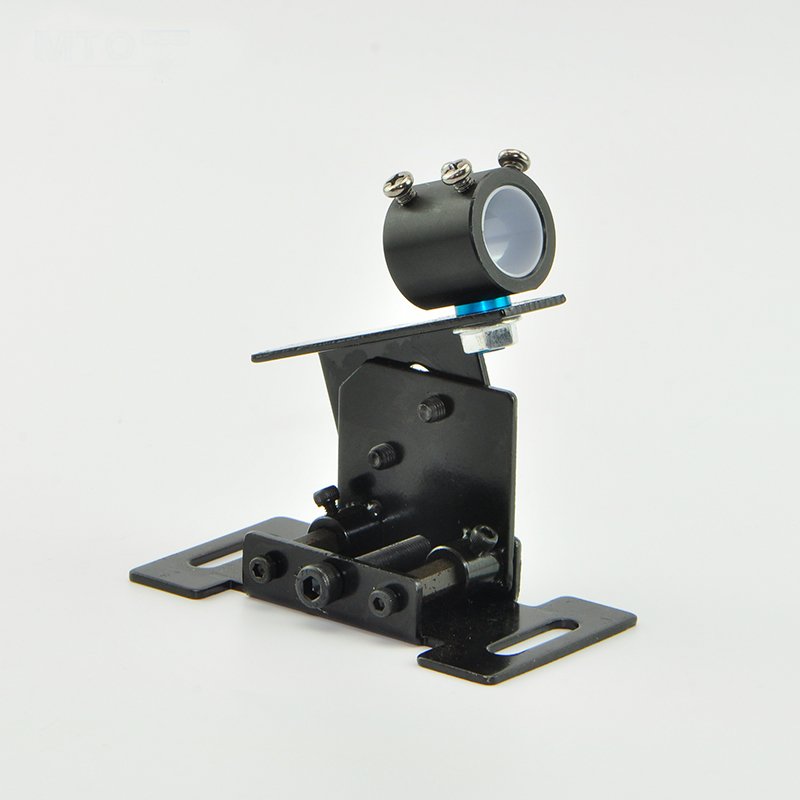

Laser module professional horizontal bracket for supporting laser device.
Specifications:
Material: Iron
Mobile Mechanism: Manual screw type
Direction Of Movement: Adjustable (small angle)
Load Resistance: 4KG
Size(L*W*H): 90*43*78mm
Fits for 13.5mm, 16.0mm, 17.5mm, 19.5mm, 21.5mm, 23.5mm diameter of laser module
Fits for 13.5mm, 16.0mm, 17.5mm, 19.5mm, 21.5mm, 23.5mm diameter of laser module
| Inner Dia.(Original) | Inner Dia.(After casing) | External Dia. |
| 13.5mm | 12.5mm | 19.5mm |
| 16mm | 15.5mm | 21.5mm |
| 17.5mm | 16.5mm | 23.5mm |
| 19.5mm | 18.5mm | 25.5mm |
| 21.5mm | 20.5mm | 27.5mm |
| 23.5mm | 22.5mm | 29.5mm |
Feature:
– Up&Down Adjustment Of The Bracket Horizontally: Fixed base for heat dissipation, good thermal conductivity and flexibility, allowing the laser to be mounted on any vertical or horizontal surface and arbitrarily fine-tuned in three dimensions for optimum results;
– Multi-angle Installation: Small size, can be installed in any vertical or horizontal plane;
– Fixed Type: Four screws hold the laser to prevent the laser from slipping off;
– Adjustable Height: This bracket can only adjust the height and can not adjust the direction;
– Fixed Base: The I-beam laser mount has good heat resistance and stability.
Package Include:
1 Pcs x Laser Module Professional Bracket
