MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance

$29.92 AUD

or 6 weekly interest-free payments from $4.99 with Laybuy


Or 7 Fortnightly instalments of $12.21 withInfo

In stock

or 6 weekly interest-free payments from $4.53 with Laybuy what's this?

Estimated delivery between Nov 18, 2019 - Nov 25, 2019
Add to Wishlist
Add to Wishlist
MUSTOOL 108 Series
2018 Newest Multimeter
Simple and Solid Black Shape, Full High-tech Feeling

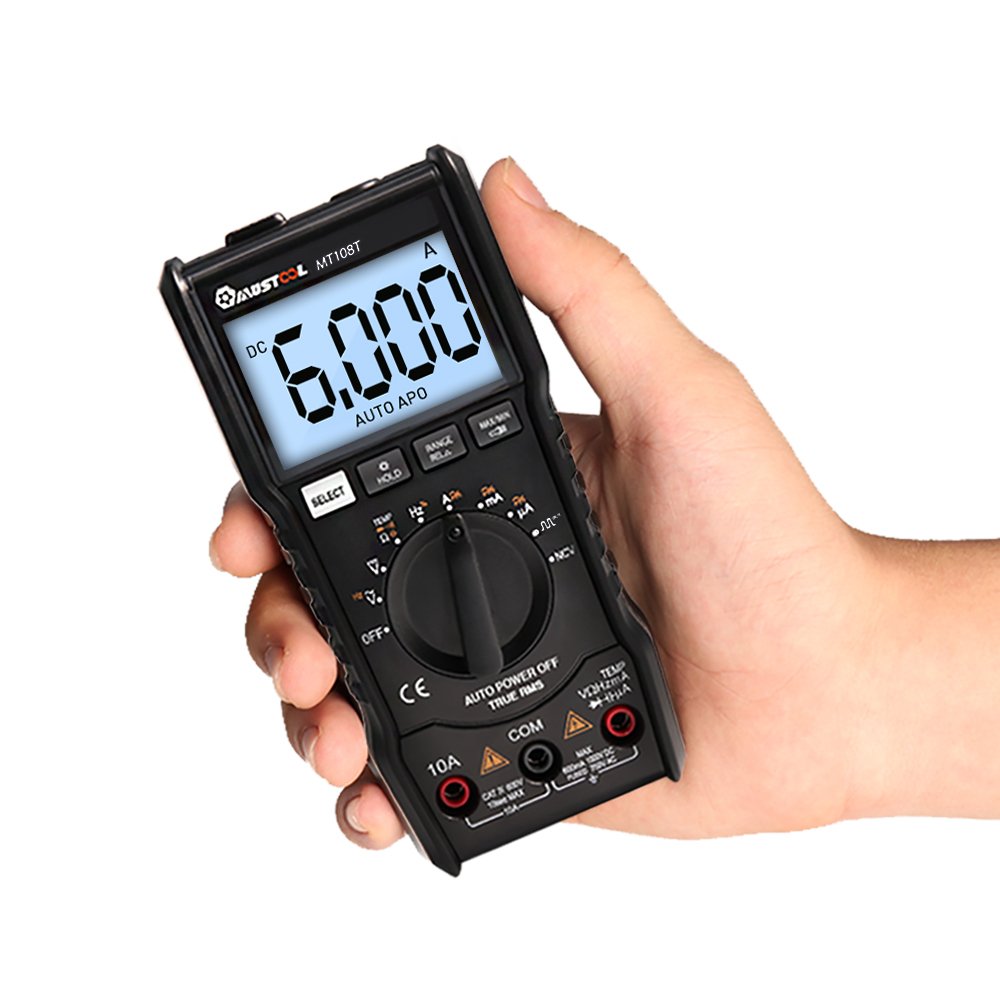

Pocket Size, but Fully Functional, Meet All Your Needs.
Description :

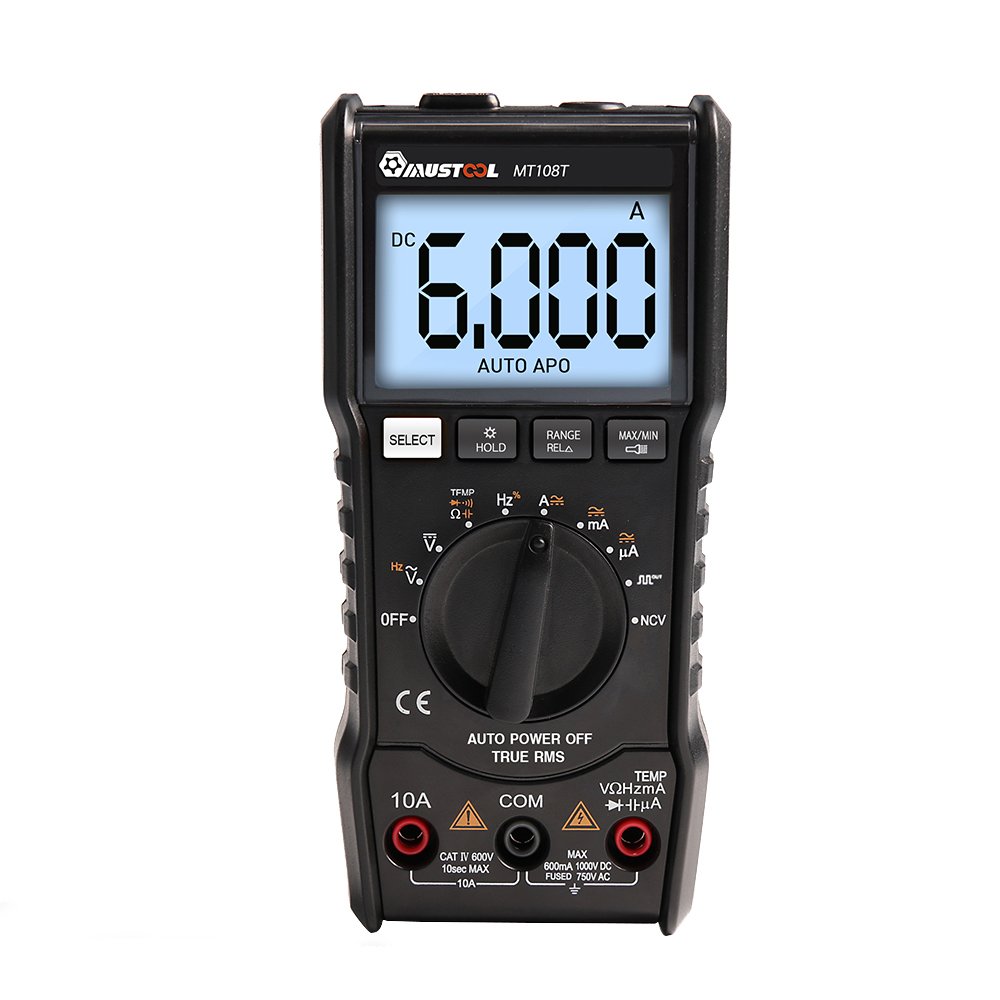

The MUSTOOL MT108T is a pocket-sized 6000 counts automatic digital instrument.
It’s a stable performance, high precision, high reliability clear readings, and overload protection.
With a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned off after 15 seconds.It’s an ideal tool for the laboratory, factory, radio enthusiasts and families.

Features :

50Hz-5000Hz  Square Wave output.
Auto Power-off.
Auto Range (User can choose manual operation)
HD LCD screen display with backlight .
(Tips: Press and hold the backlight key for 2 seconds to turn on the 15S auto off function; press for 3 seconds, the backlight remains on.)
Diode 4.2V high voltage output, easy to light the LCD.
10A large current measurement, UA level small current measurement
Main measurement:  AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer

SPECIAL FUNCTIONS:  [ Square wave output,  NCV(Non contact voltage), temperature measurement, flashlight, True RMS measurement.  ]

Specification :

Symbol functions
DC voltage  DCV ▲Yes
AC voltage ACV ▲Yes
DC current DCA ▲Yes
AC current ACA ▲Yes
ResistanceDiode On-off ▲Yes
Frequency F ▲Yes
Capacitance C ▲Yes
NCV ▲Yes
Wave Output ▲Yes
Full unit symbol ▲Yes
Backlight manual/auto off ▲Yes
True RMS measurement ▲Yes
DC voltage (DCV)

Range Accuracy Resolution
6V   ± (0.5%+3) 0.001V
60V 0.01V
600V 0.1V
1000V   ± (0.8%+10) 1V

AC voltage(DCV)

Range Accuracy   Resolution
6V   ± (0.8%+3) 0.001V
60V 0.01V
600V 0.1V
750V   ± (1.2%+10) 1V

DC Current (DC mA)

Range Accuracy Resolution
60mA   ± (1.2%+10) 10uA
600mA 100uA

DC Current (DC uA)

Range Accuracy Resolution
600uA   ± (1.2%+10) 0.1uA
6000uA 1uA

AC Current (AC mA)

Range Accuracy Resolution
60mA   ± (1.2%+10) 10uA
600mA 100uA

AC Current (AC uA)

Range  Accuracy Resolution
600uA   ± (1.2%+10) 0.1uA
6000uA 1uA

DC/AC 10A Current (DC/ACA)

Range Accuracy Resolution
  6A   ± (2.0%+30) 0.01A
  10A 0.01A

Resistance (Ω)

Range Accuracy Resolution
 600Ω ± (0.8%+5) 0.1Ω
6kΩ ± (0.8%+3)
60kΩ 10Ω
600kΩ 100Ω
6MΩ 1kΩ
40MΩ ± (2.5%+3) 10kΩ

Capacitance(C)

Range Accuracy Resolution
60nF ± (3.5%+20) 10pF
600nF 100pF
6uF 1nF
60uF 10nF
600uF 100nF
6mF ± (5%+3) 11uF
30mF 10uF

Frequency measurement:

Range Accuracy   Resolution
10Hz ± (0.1%+3) 0.01Hz
100Hz 0.1Hz
1kHz 1Hz
10kHZ 10Hz
100kHz 100Hz
1MHz 1kHz
20MHz 10kHz

Temperature measurement (°C/°F)

Range Accuracy Resolution
(-20-1000 )℃ ± (1.0%+5) <400℃
± (1.5%+15)≥400℃
1℃
(0-1832 )℉ ± (0.75%+5) <750℉
± (1.5%+15)≥750℉
1℉

Square Wave Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000HZ/4000HZ/5000HZ

Duty Cycle:  range: 1%~99%;resolution: 0.1%; accuracy: ±(0.1%+2)
Diode: √(DC forward current is 5mA, voltage is 3V)
Continuity: √(no more than 50Ω)
Maximum display: 6000 (3 5/6) bits automatic polarity display
Measurement: double integral A / D conversion
Sampling rate: about 3 times per second
Overrange display: the most significant bit was “0L”
Low voltage display: symbol appears
Working environment: (0 to 40)℃, relative humidity <80%
Power supply: AAA 1.5V battery (Not included)
Volume (size): 142×70×32mm(L×W×H)

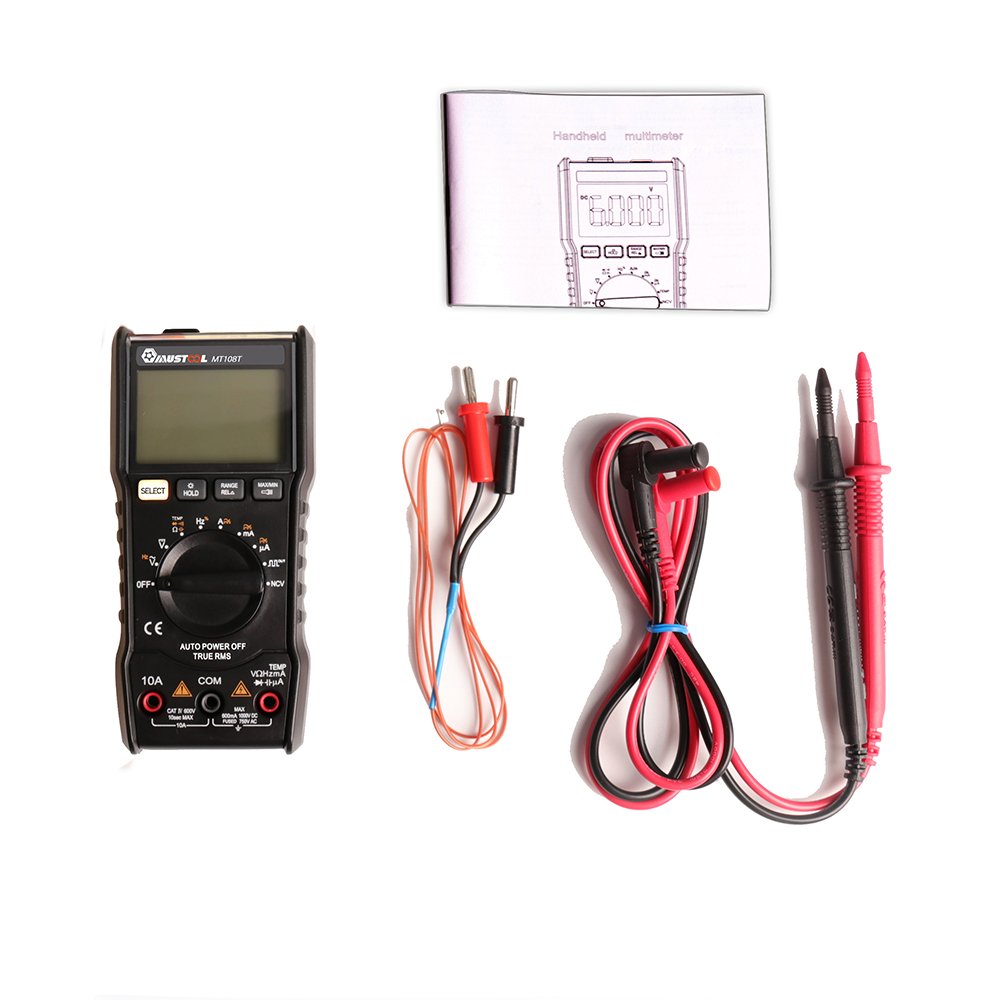

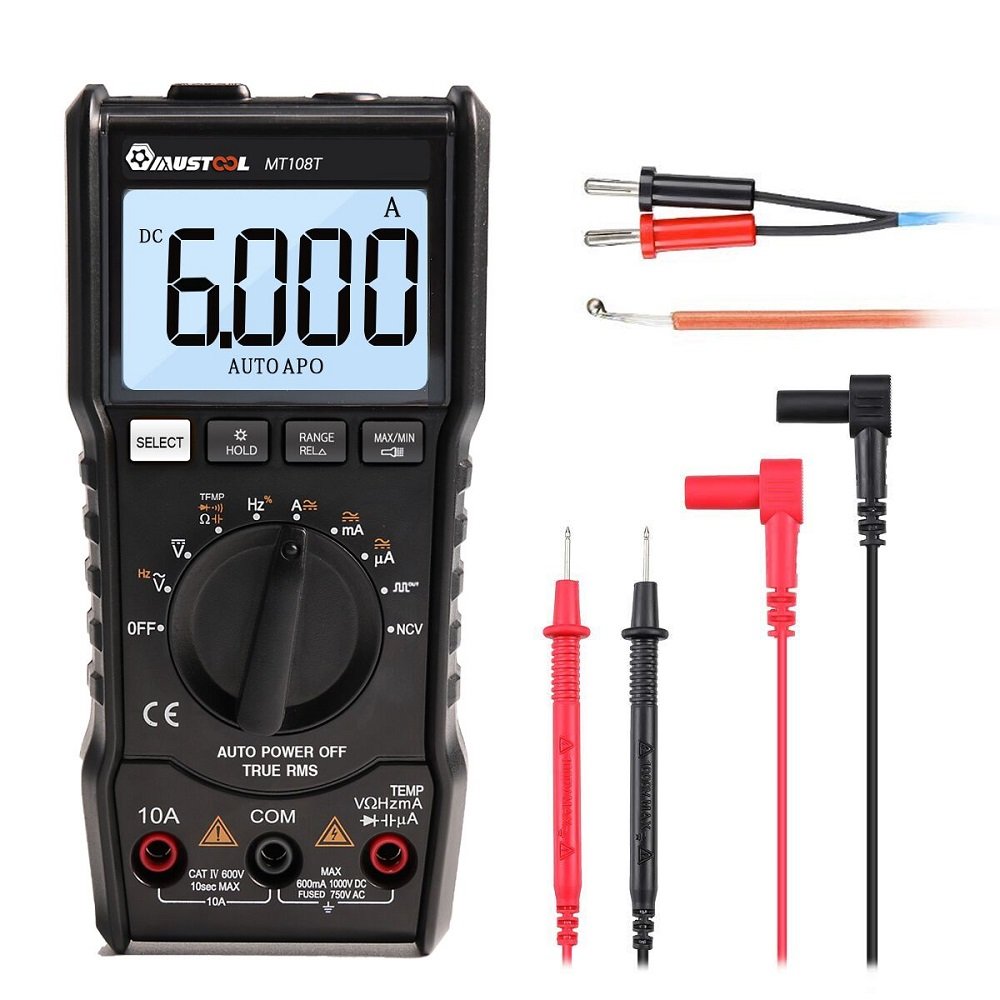

Package includeds :



1 x MUSTOOL MT108T True RMS Multimeter

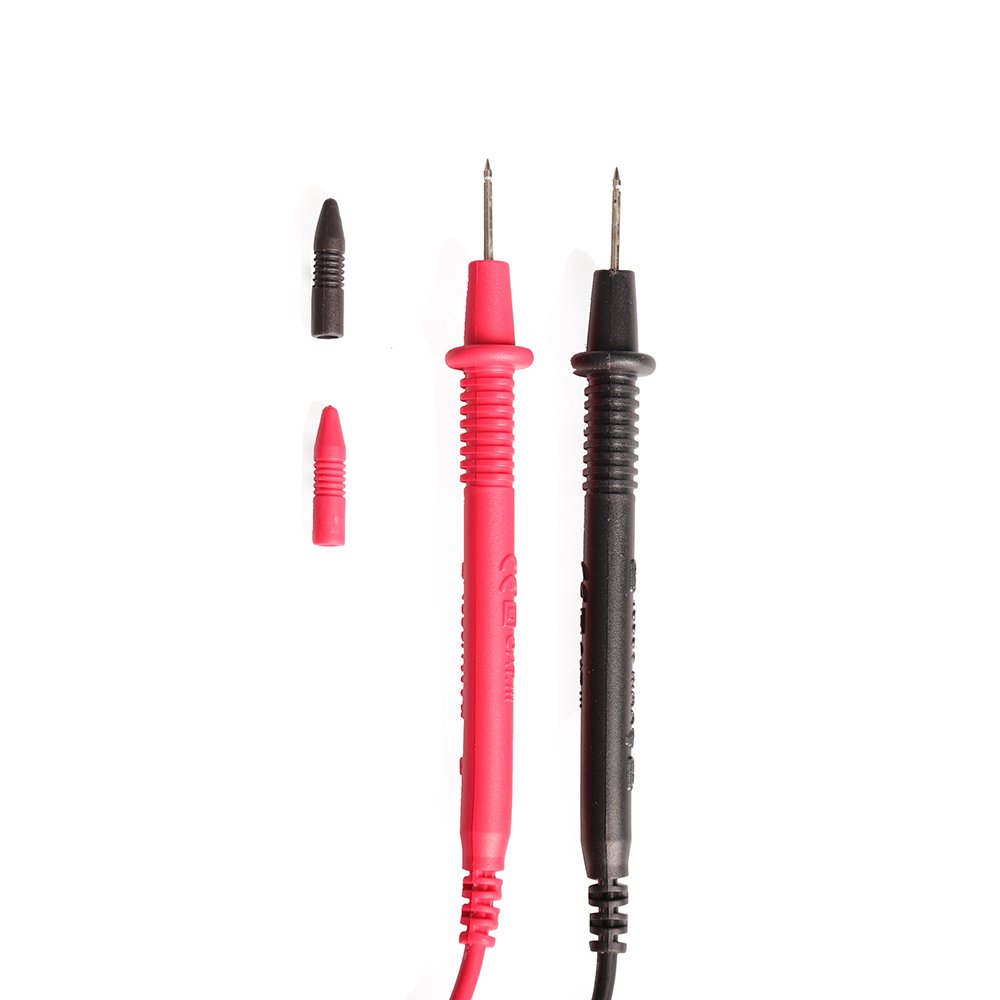

2 x Test Lead Set
1 x Temperature Sensing Cable
1 x English User Manual

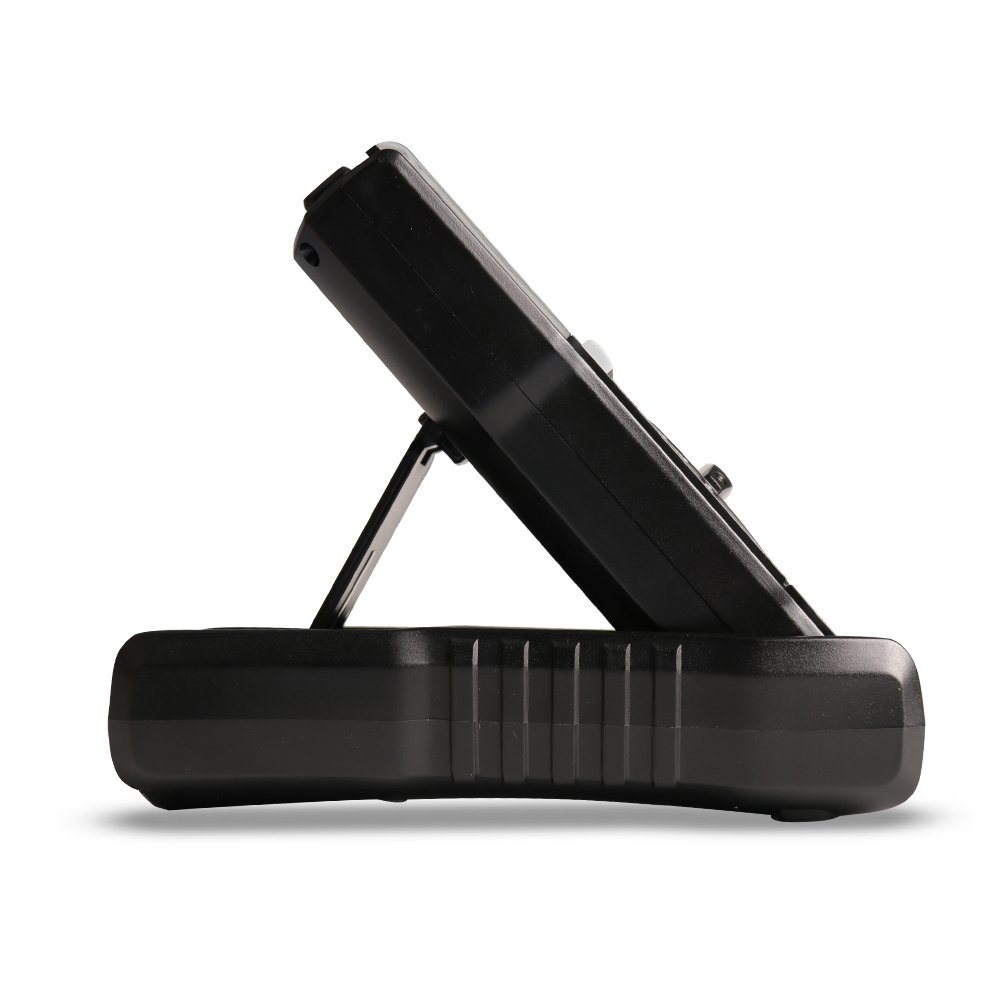

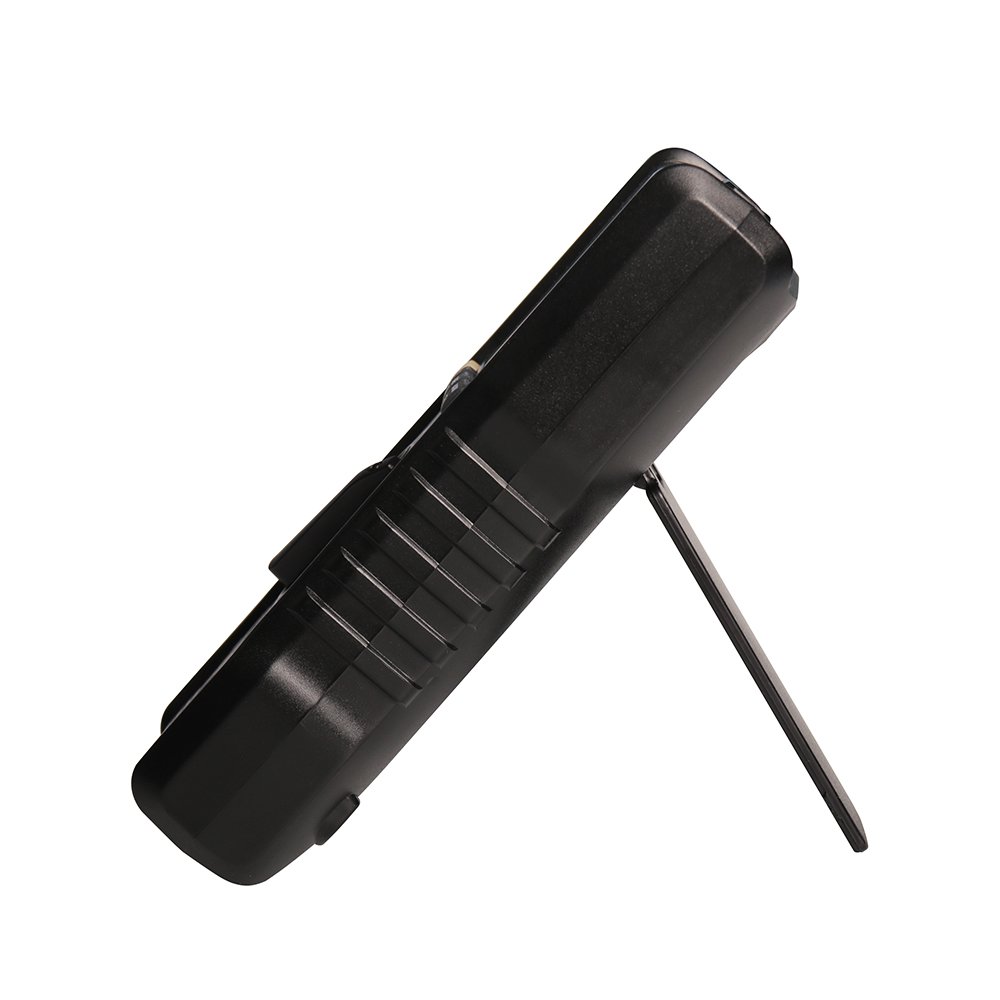

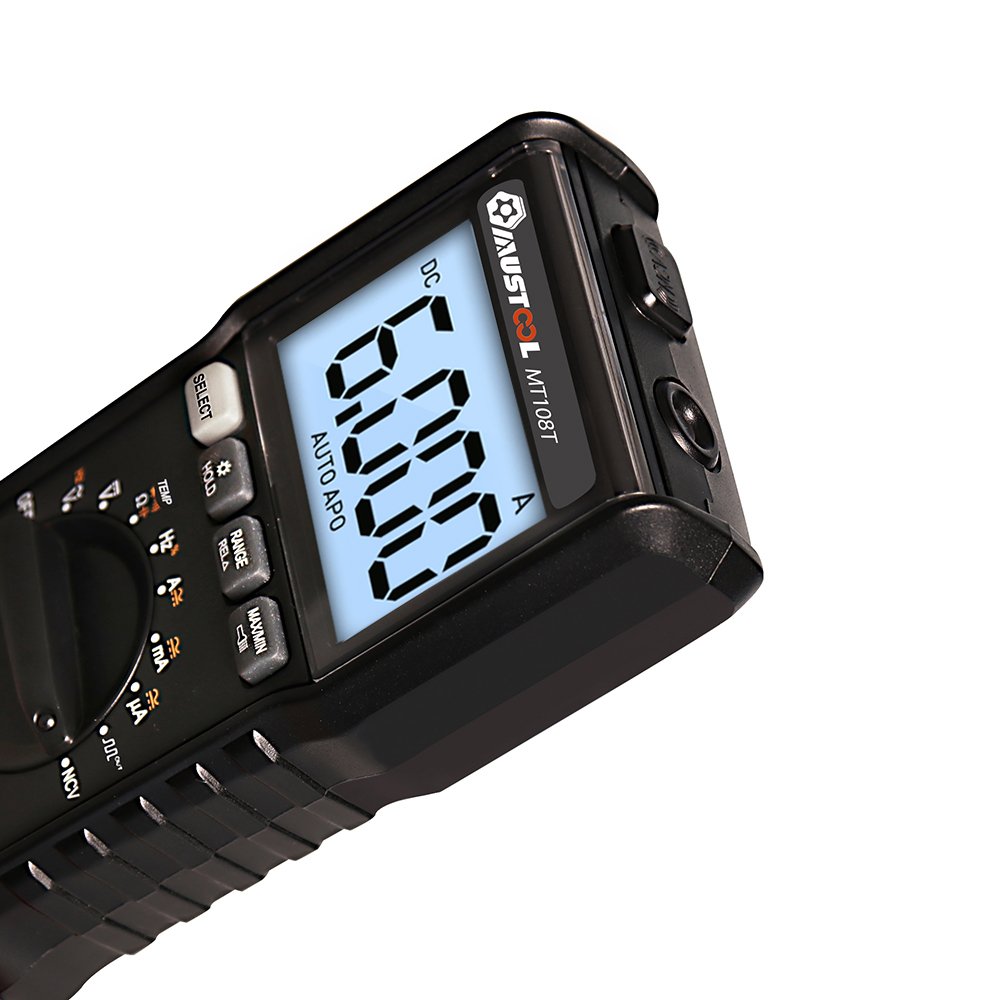

Details pictures :

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 33

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 34

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 35
MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 36
MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 37
MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 38

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 39
MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 40
MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 41

MUSTOOL MT108T Square Wave Output True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance 42
