4.0 inch touch screen android mobile scanner device with 1D Laser scanner module NFC/RFID reader rugged tablet PDAs



Basic Specifications

-Based on android5.1 device -4 inch touch screen-Support NFC card reader-One year warranty

-Support 2G/3G/WIFI/Bluetooth4.0

2G:GSM 900/1800

3G:WCDMA Band1 Band  TD-SCDMA Band34 Band39

4G: LTE-FDD B1 B3 B8    LTE-TDD B38 B39 B40

WIFI:IEEE802.11b/IEEE802.11g





Please note there have three configurations for PDA3503

1.8MP camera scanning,support 1D/2D barcode scanning

2.1D laser barcode scanner,support 1D barcode scanning

3.2D CMOS barcode scanner,support 1D/2D barcode scanning



Parameter list



Performance	CPU	Qualcomm 8909  Cortex-A7
		Quad-core  1.5GHZ
	OS	Android 5.1 OS
	Memory	RAM: 1G
		NAND Flash: 8G
		Supports up to 32GB Micro SD card
Physical Characteristics	Color	Black
	Display	Size: 4”
		IPS HD Color Touch Screen
		Resolution 800*480
	Keyboard	Vitual qwerty keyboard and actual figure button
	interface	Mirco USB2.0 (supports OTG output)
		TF Card
		SIM card slot
		PSAM slot
	Battery	capacity 3000mA 3.7V lithium battery
	Dimension	170*75*41mm
	Accessories	1*power adaptor, 1*USB cable, 1*OTG cable, 1*battery, 1*belt
Communication	4G/3G/2G	LTE-FDD B1 B3 B8    LTE-TDD B38 B39 B40 B41                                    WCDMA Band1 Band8    TD-SCDMA Band34 Band39                                     CDMA BC0     DCS1800                                                                  EGSM900    GSM 900/1800
	Bluetooth	Bluetooth 4.0
	WIFI	IEEE802.11b/IEEE802.11g
Basic Functions	NFC	13.56MHz, ISO14443A/B,ISO15693 protocol
Optional	laser 1D barcode scanner	EAN-13,UPC-A,UPC-E,EAN-8,Code 128,Code39,interleavd 2 of 5 etc
	2D CMOS barcode scanner	PDF417,EAN-13,UPC-A,UPC-E,EAN-8, Code 128,Code 39,interleavd 2 of 5 etc.







 Details

Mobile application for different industry

Android 5.1 operation system with SDK provided for further software development



Support 1D and 2D code scanning







Qualcomm snapdragon 210 ARM Cortex-A7 Quad-core 1.5GHz

Built in frequency of 1.5GHz 4-core Cortex-A7 processor adopting 4G+4 core frequency,highly integrated Wifi, GPS and Bluetooth capabilities,achieve perfect balance of performance and power consumption, significantly enhance the user experience.

4G · Wi-Fi · Bluetooth4.0

Different ways of wireless communication

Lower consumption,faster connection,more stable data transmission,support massive amounts of business information data transfer by real-time and remote.

Strong ability of data collection

This device would be widely used in retail,supermarket, chain store, library, express, transportation,clothing inventory, goods ordering,warehouse inventory,pharmaceutical management,item supply,livestock management,food tracing,water and electricity meter reading etc.

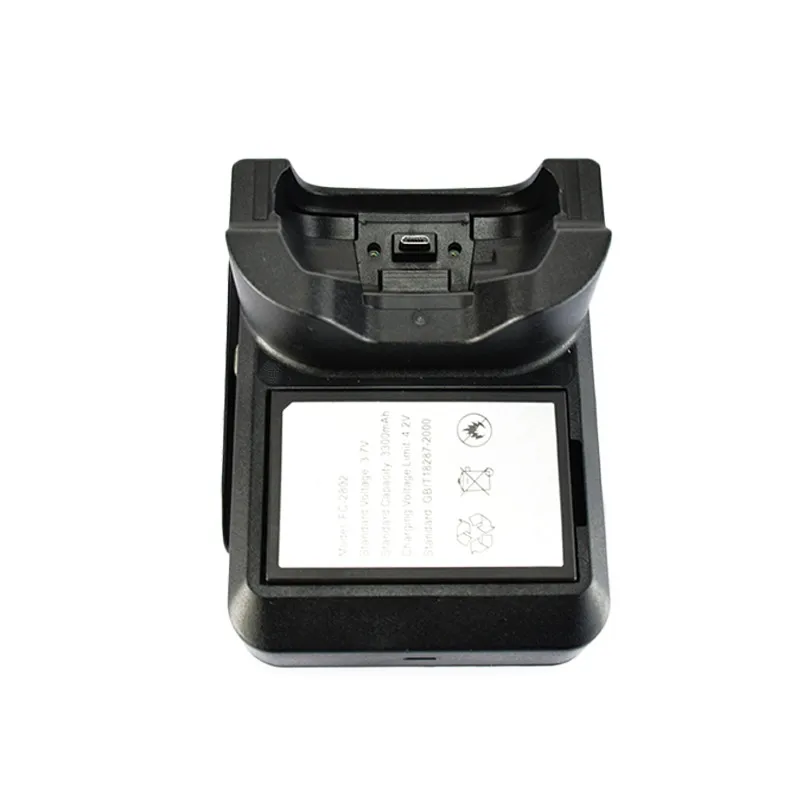

Charge cradle



 Packing
