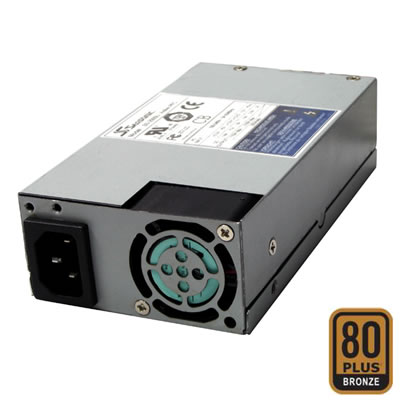

SeaSonic 250W Active PFC F0 Mini 1U PSU (SS-250SUB)

or 6 weekly interest-free payments from $18.15 with Laybuy what's this?

$108.90 AUD

Estimated delivery between 2021/12/04 - 2021/12/11
Add to Wishlist
Add to Wishlist

Description

Features:
– Specification compliance: Flex ATX v1.0
– Forward converter circuit
– High efficiency and reliability
– Zero minimum load on 3.3V rail
– Low ripple & noise
– Super low noise fan control
– Short circuit protection on all outputs
– Over voltage protection
– Over power protection
– 100% hi-pot test
– 100% burn in, high temperature cycled on/off
– PFC harmonics compliance: EN61000-3-2 +A1 +A2

Dimension:
L150 x W81.5 x H40.5mm
(5.9 x 3.2 x 1.6)
Connectors:
Main Power (24/20P) x 1
ATX12V (4+4P) x 1
Peripherals: SATA X3 MOLEX X1, FDDX1

Electrical Specifications:
– Input frequency: 50/60 Hz
– Inrush current, cold start: 80A max.
– Efficiency, at normal input voltage: > 80% (250SUB Only)
– Dielectric withstand, input to frame/ground: 1800VAC, 1sec
– Dielectric withstand, input to : 1800VAC, 1sec
– Line regulation: +/-1% typical
– Load regulation: +/-5% typical
– Cross regulation: +/-5% typical
– Ripple / noise: 1%
– MTBF, full load@25℃ amb. : >100K hours
(Excluding the DC fan)
– Power Factor Correction: Active PFC 99% typical
Safety: CUL, TUV, CB, CCC, BSMI, GOST-R
EMC: CE, FCC

Additional information

Weight1.0000 kg
