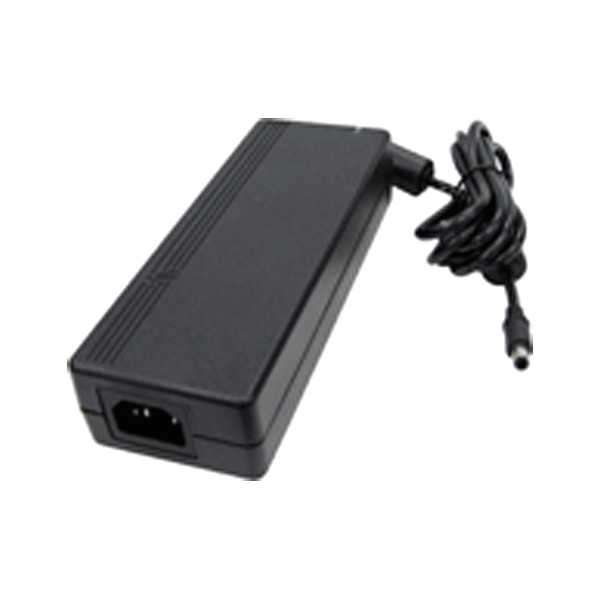

Seasonic Wall Mount Switching Adapter (SSA-1201-24)

or 6 weekly interest-free payments from $13.75 with Laybuy

$75.00 AUD

Estimated delivery between 2024/04/01 - 2024/04/08
Add to Wishlist
Add to Wishlist

Description

Features:

  • Universal input
  • Japanese Capacitor
  • High efficiency 87%
  • Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
  • Over voltage protection
  • Over current protection
  • Short circuit protection
  • Over Thermal protection
  • No load consumption≦0.5W

Output Specifications:

Model

Output power

Min. Load

Max. Load

Total power

Efficiency

SSA-1201-24

24V

0A

5

120W

87%

Dimension:

  • L174 × W65 × H37 mm (L6.85 × W2.56 × H1.46 inch)
  • General Specifications:

    • Input voltage range: 90~264 Vac
    • Input frequency: 47~63 Hz
    • Input current: 2A (rms)
    • Efficiency: ≧87% Average
    • Leakage current: 3.5mAa max.

    Safety:

    Safety

    EMI/EMC

    CEC

    CB

    CUL

    UL

    CCC

    DEMKO

    FIMKO

    NEMKO

    SEMKO

    TUV

    cTUVus

    VDE

    PSE

    BSMI

    C-tick

    CE

    FCC

    V

    V

    V



    V









    V





    V

    V

    V

    V

    V

    • (V = certificate ready ; P = certificate pending; V * = not apply to all models )

    Additional information

    Weight 2.0000 kg
