Description
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60)
HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| Input Voltage | DC13~18V |
| Power Consumption | ≤45W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 731L×410H×39D (mm) (W/O Suitcase) / 840L×430H×270D (mm) (W/ Suitcase) |
| Unit Weight | 18.8kg (with Suitcase) |
| * Quad Slip Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * Overscan |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue) |
| * Image Freeze |
| * Zoom |
| * Aspect Ratio (Full Screen, 16:9, 4:3, 1:1) |
| * Center Marker |
| * Screen Marker (80%, 85%, 90%, 93%, 96%) |
| * Line Color (Red, Green, Blue, White) |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |
Dimensions (Unit: mm)

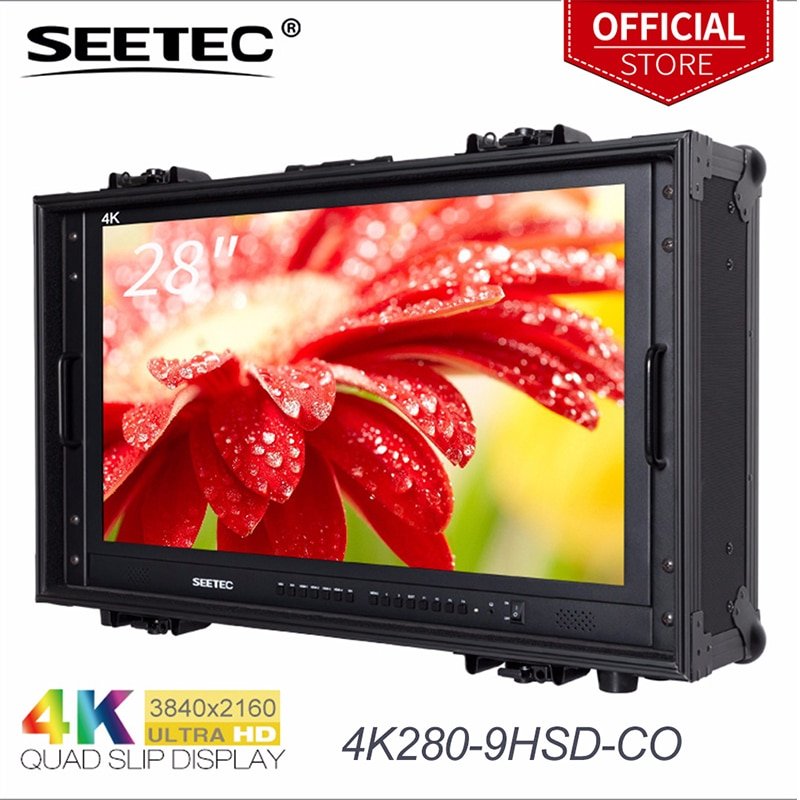

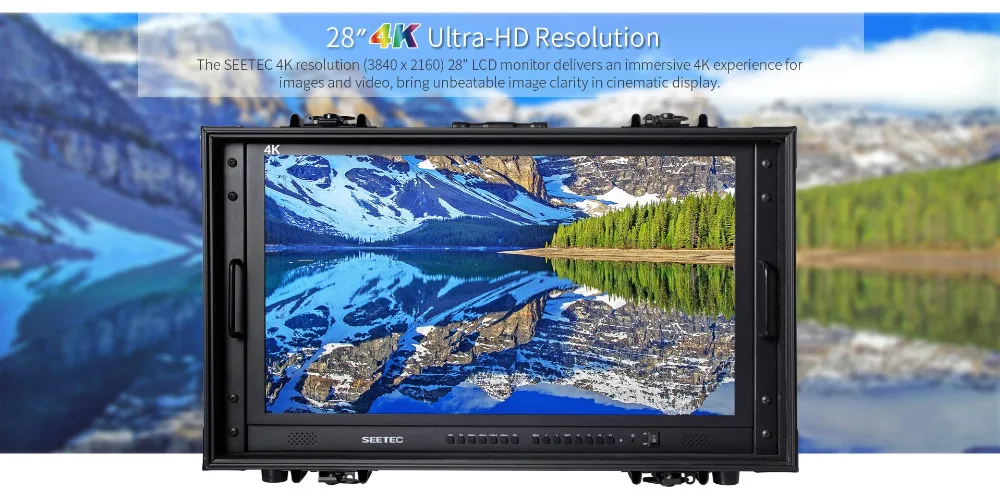

28″ 4K Ultra-HD Resolution
The SEETEC 4K resolution (3840 x 2160) 28″ LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.

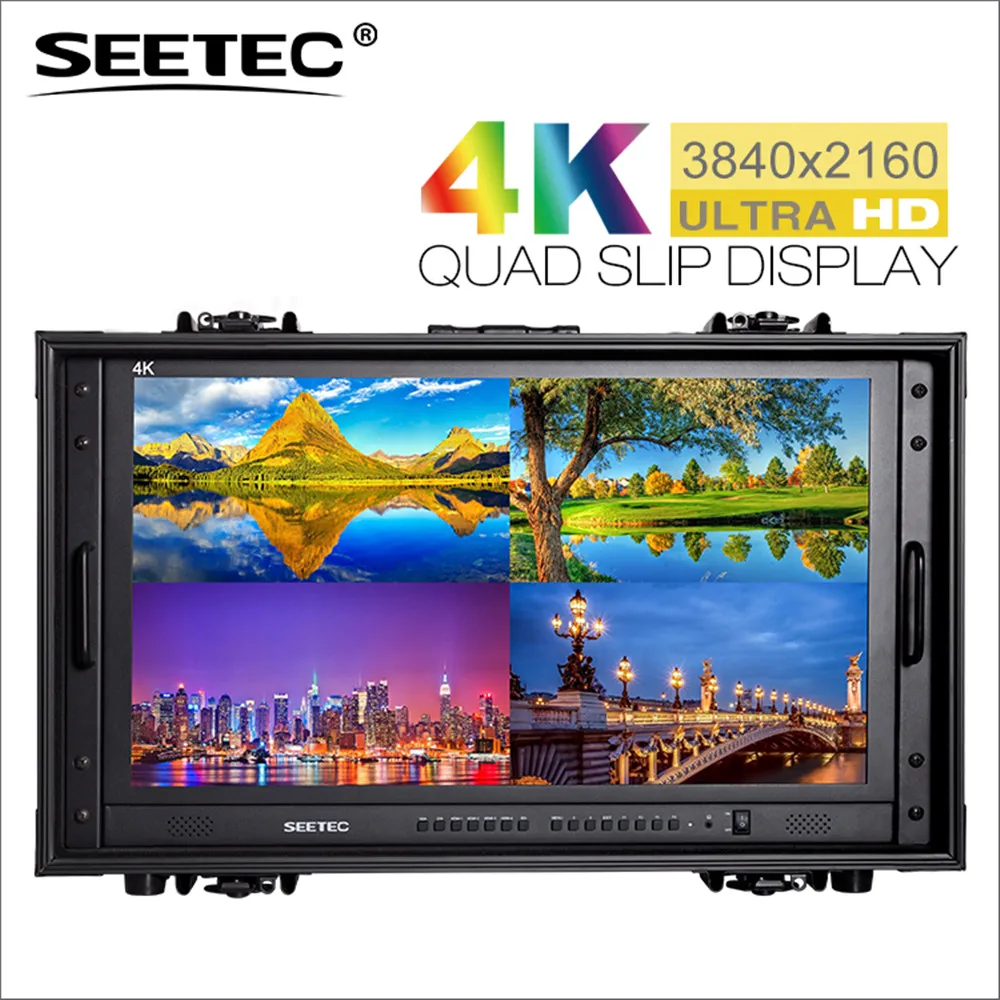

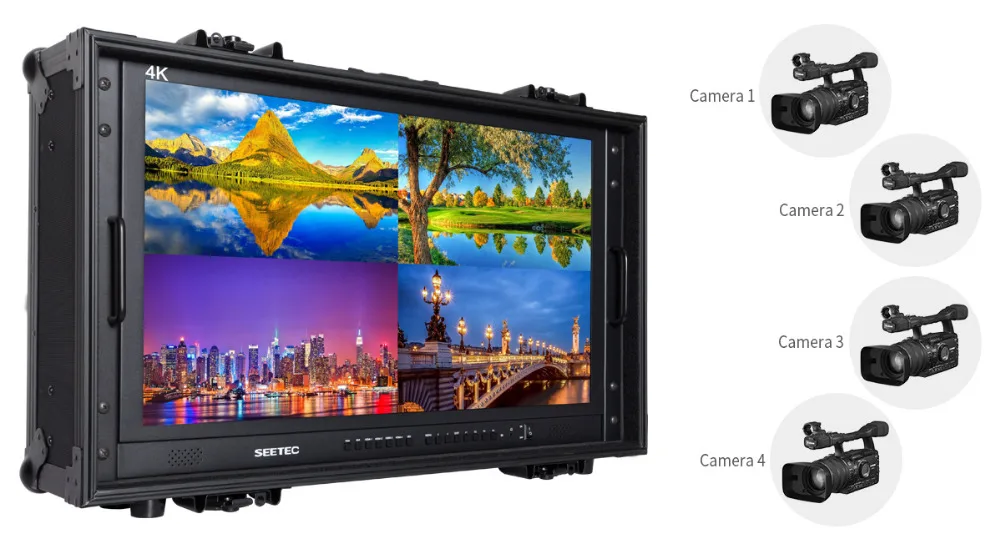

Quad Slip LCD Display
SEETEC new 4K280-9HSD-CO is the professional cost-effective Quad-slip LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.
High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.
Multiple Inputs and Outputs

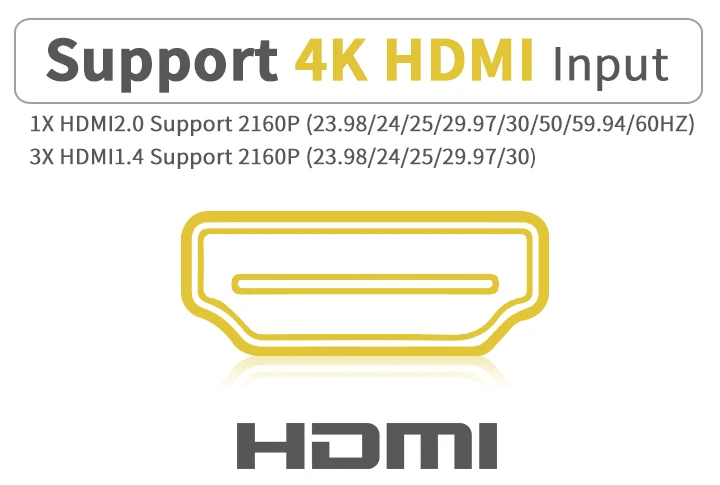

Input:4 X HDMI (HDMI2.0 X 1, HDMI1.4 X 3),1 X DVI,1 X VGA,2 X Audio(L/R),1 X SDI,1 X Tally
Output:1 X SDI
Audio:Stereo Headphone,Speaker

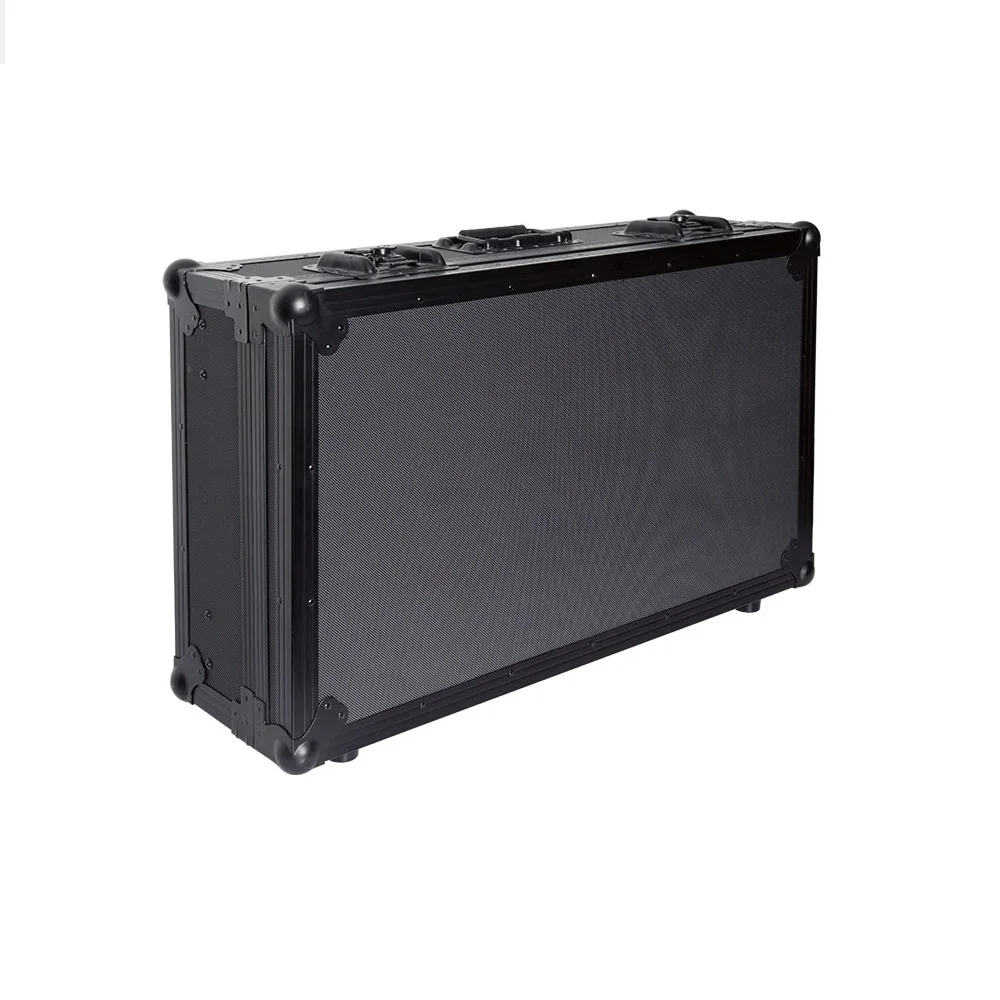

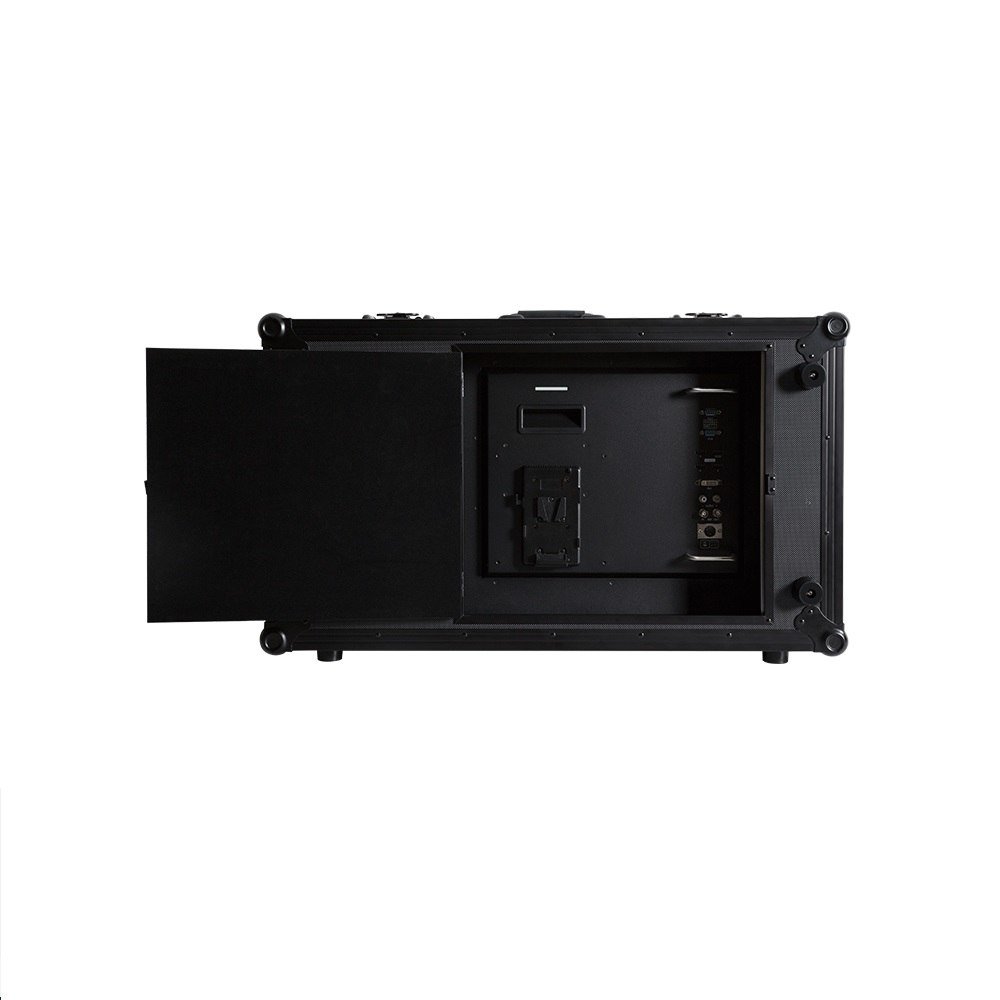

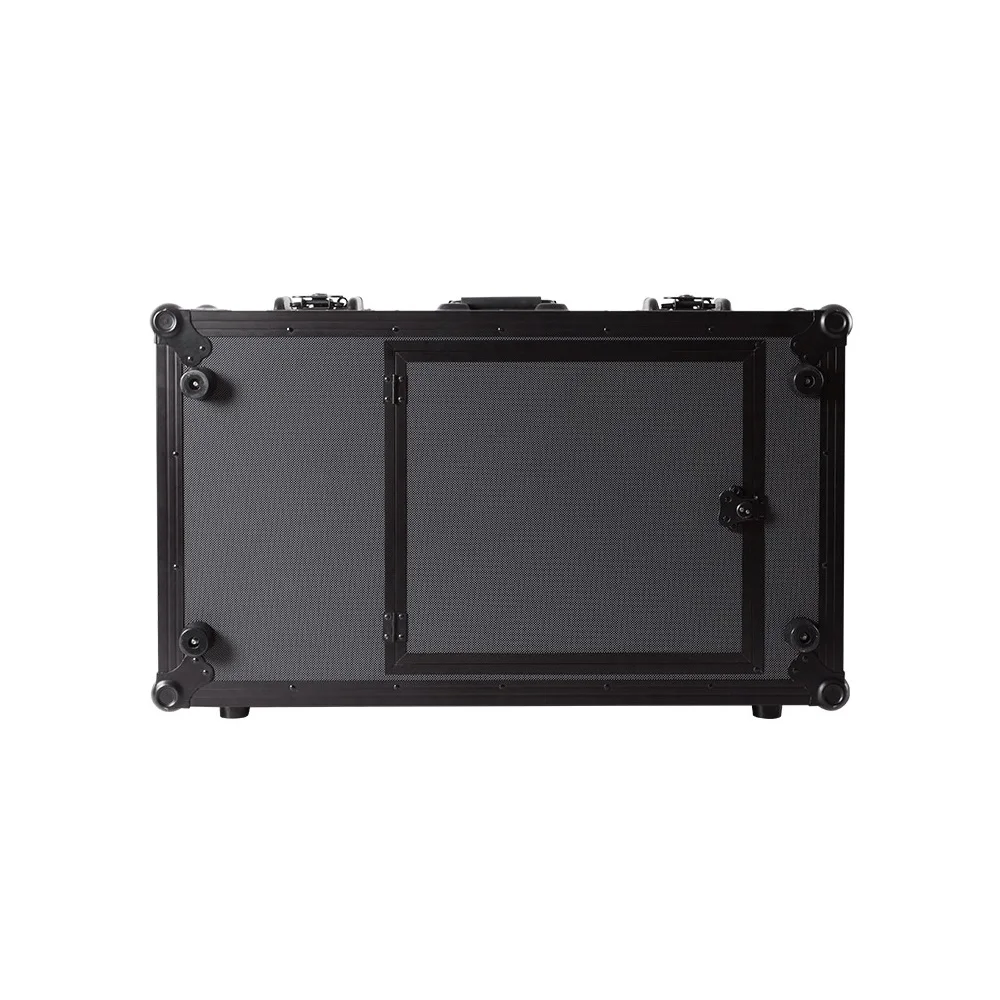

Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field Production
Unique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K280-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.

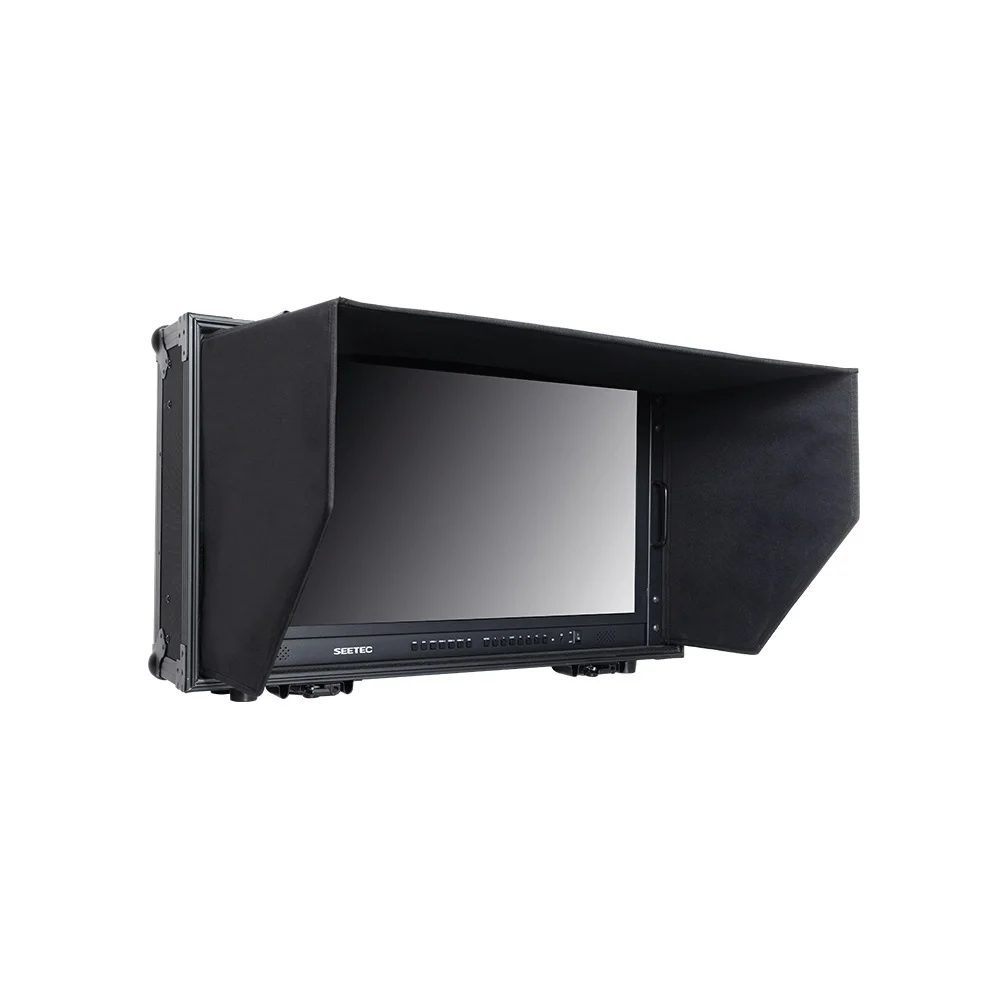

Collapsable Sunshade
Design for easier viewing in bright environments.

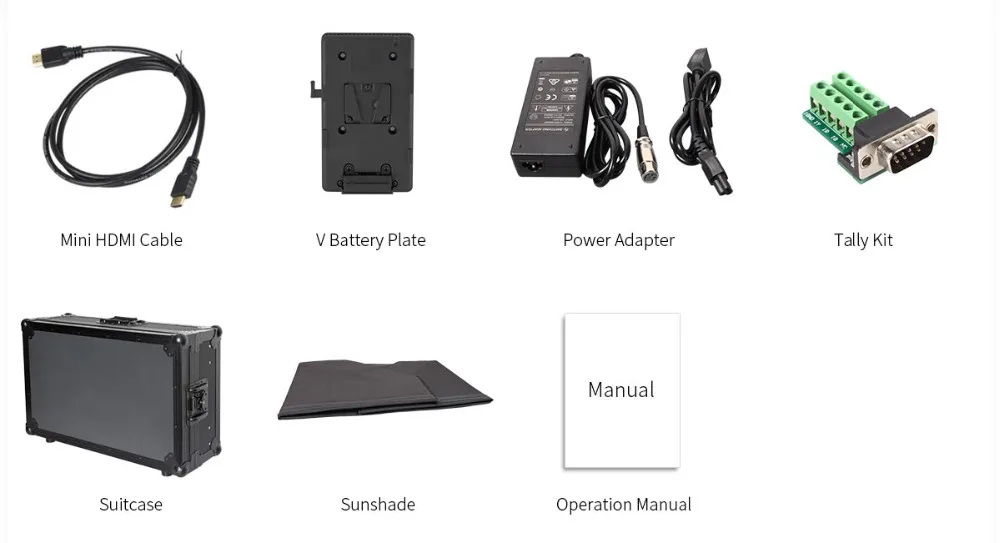

Standard Package Includes:
1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
