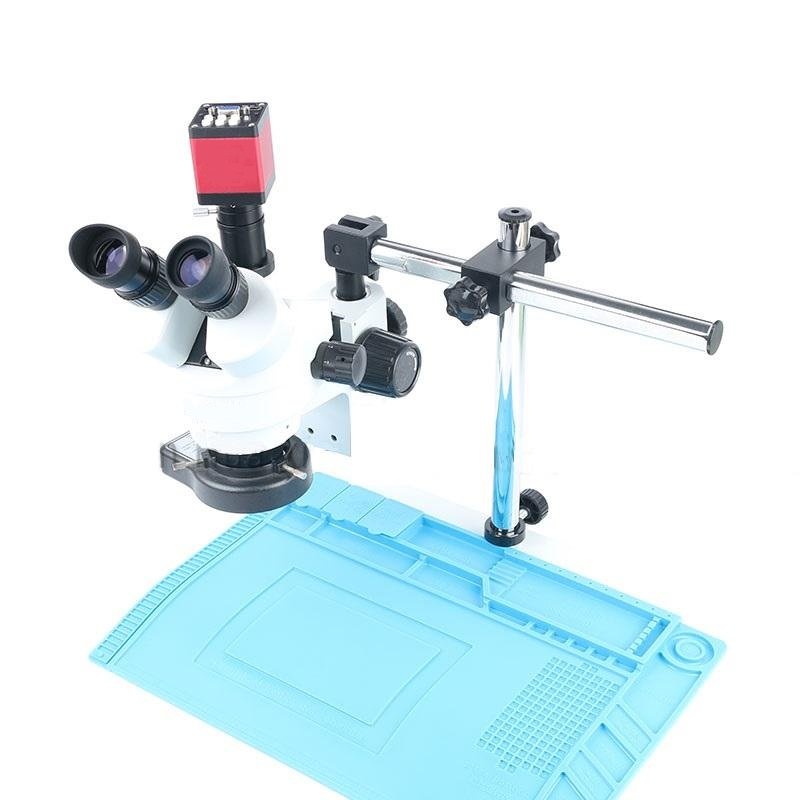

Description
Features:
7X~45X zoom magnification power with crisp sharp images
Super widefield high-eyepoint optics
widefield of view
4″ (100mm) working distance
Sturdy all-metal pillar stand
Powerful 56-LED ring light with dimmer
This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
7x-45x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specifications:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4″ (100mm)
Diopter Adjustment: +/- 5dp
Interpupillary Distance: 2-3/16″ – 2-15/16″(55-75mm)
Round Plate: 3-3/4″ (95mm) in diameter
Stand: 10″ x 7-7/8″ x 10.75″ (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Microscope Camera:
High Quality, High Resolution, Clear Images
1/3” CMOS
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative,Compare function
Supply VGA,HDMI ,Two output ports
Specifications:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 13MP
Image format: jpg
Image resolution: 1280* 1024 (for HDMI), 1280 *720 (for VGA)
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,8 horizontal line , 8 vertical line,any positions

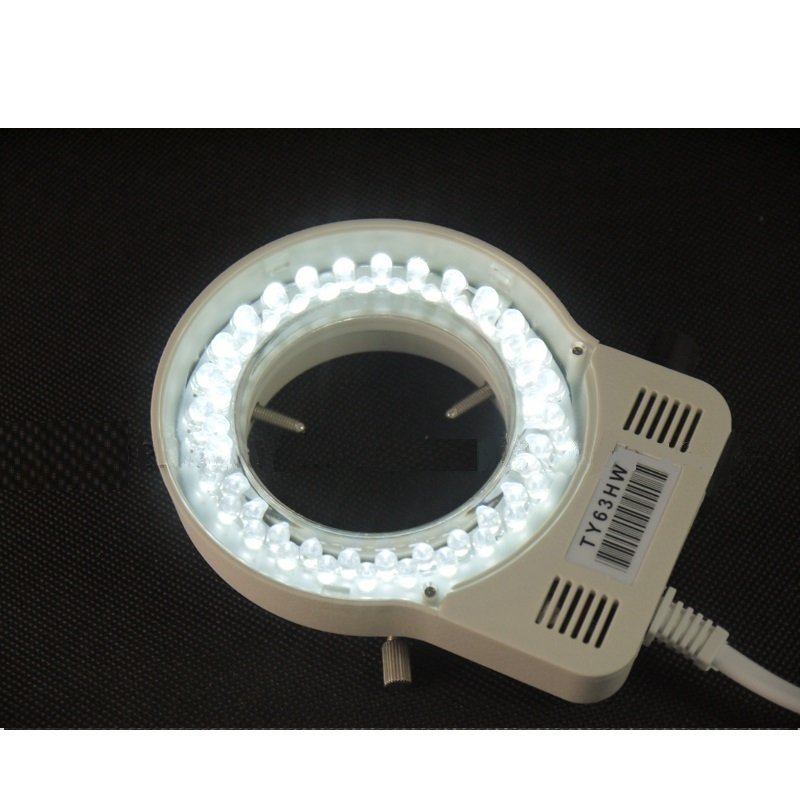

56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
56Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0″ (27mm)
Overall outside diameter: 1.77″ (45mm)
Package incluede:
1 x Trinocular microscope Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x 56-LED Ring Light with Adapter
1 x Big size Pillar Table Stand
1 x Focusing Rack
1 x Pair of Eye-Guards
1 x Dust Cover
1 x microscope camera
1 x Insulation Working Mat

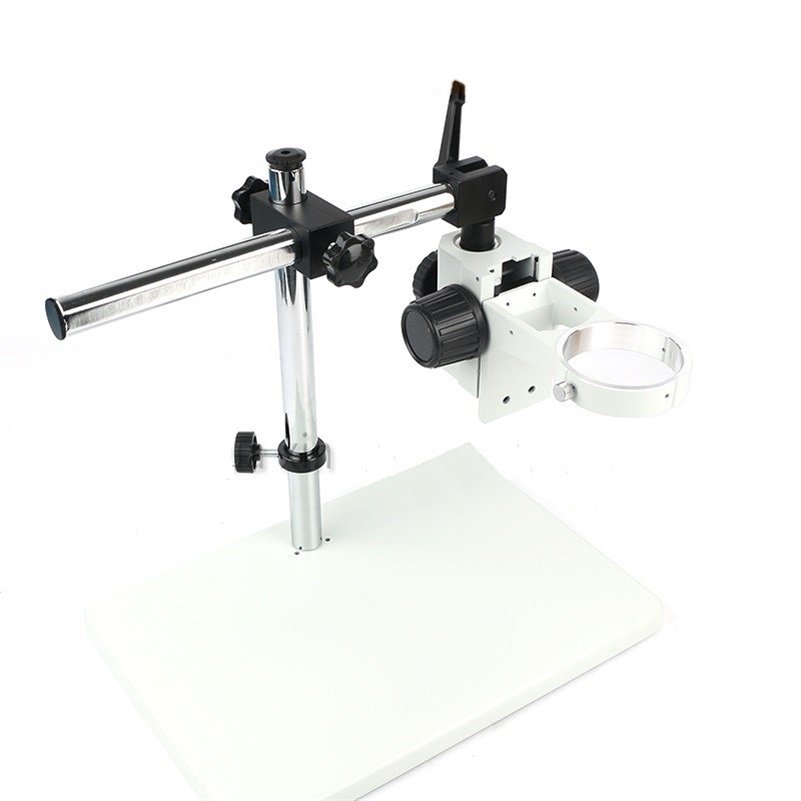

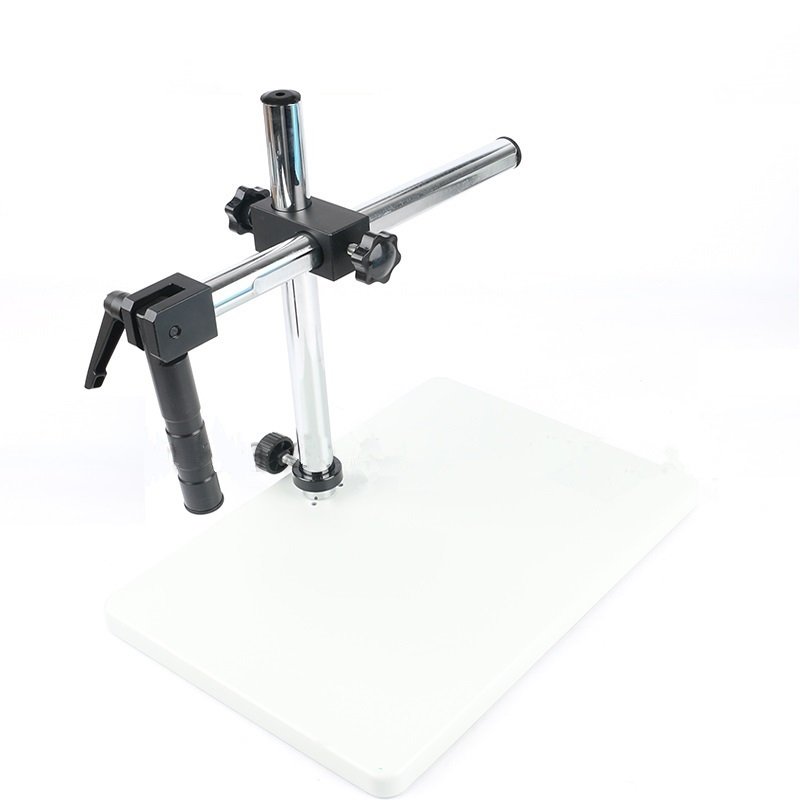

1 x Universal bracket
Detail Pictures:
