Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer

$15.00 AUD

or 6 weekly interest-free payments from $2.50 with Laybuy what's this?

Only 1 left in stock

Optional product install assistance
Estimated delivery between 2021/10/01 - 2021/10/08
Add to Wishlist
Add to Wishlist
SKU: 19682 Category:

Description:

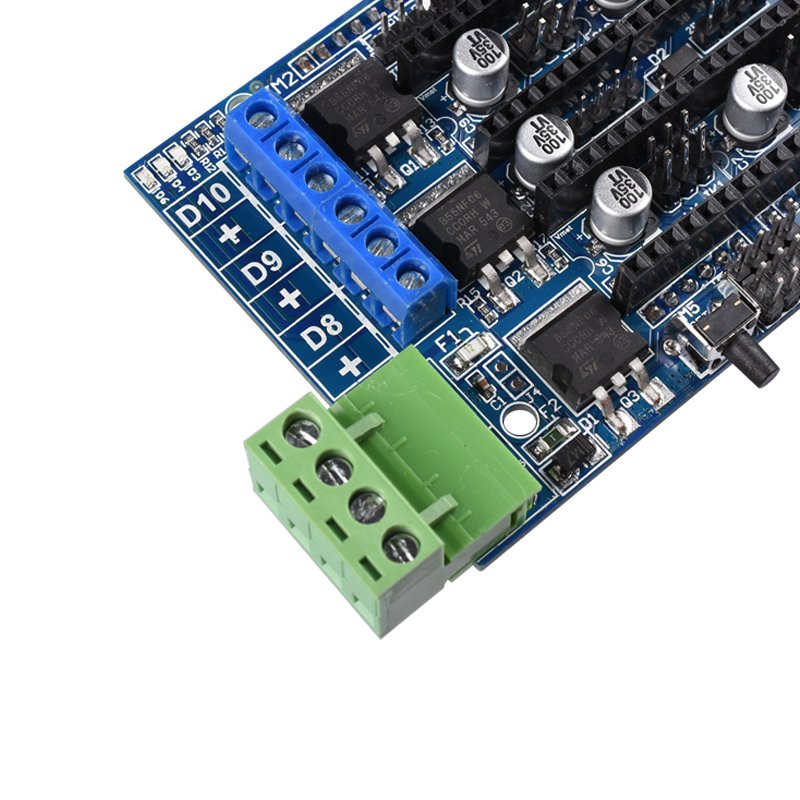

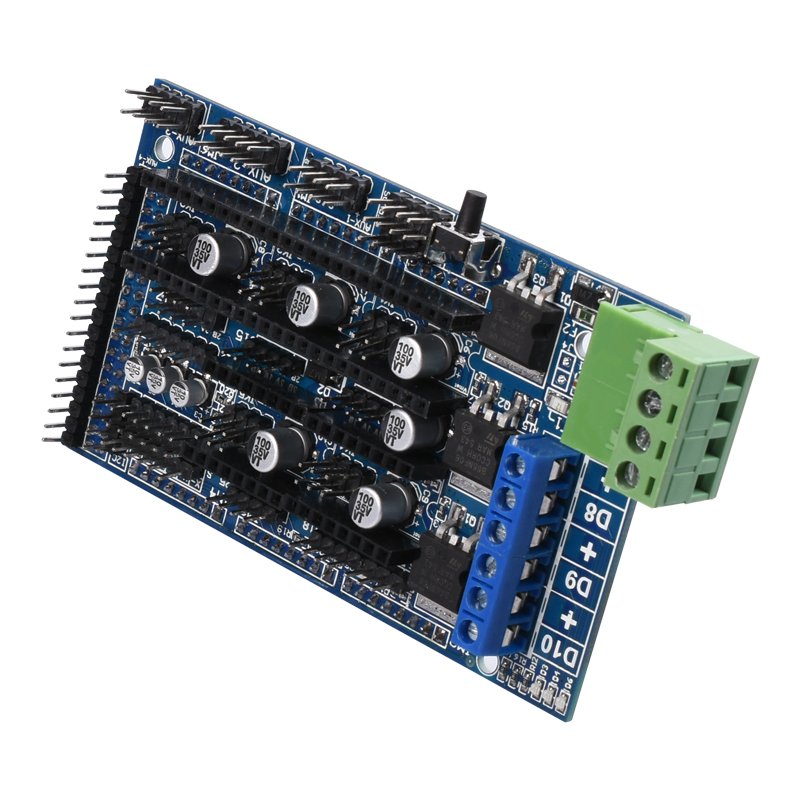

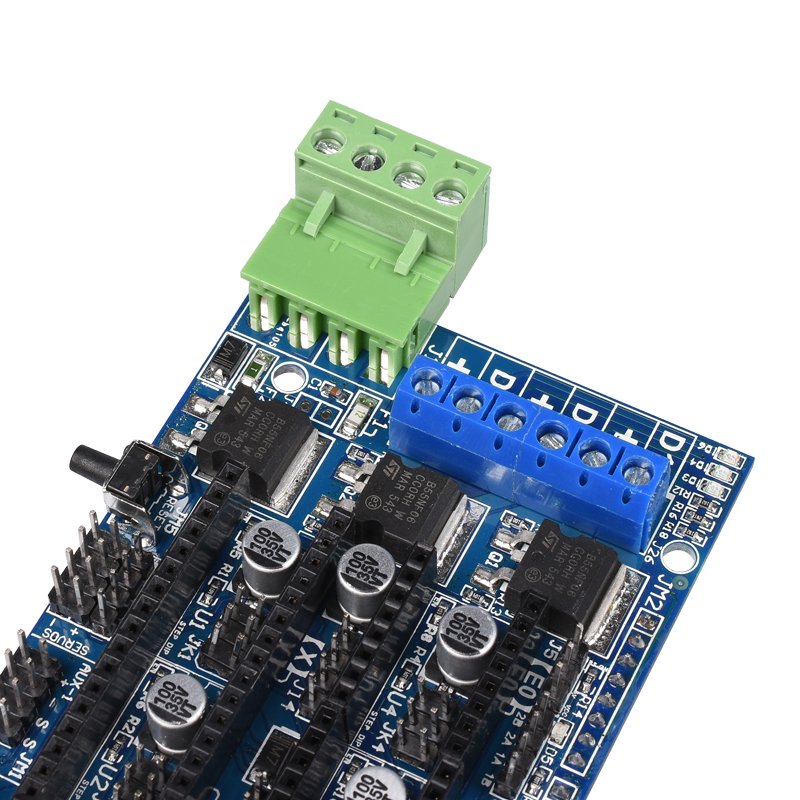

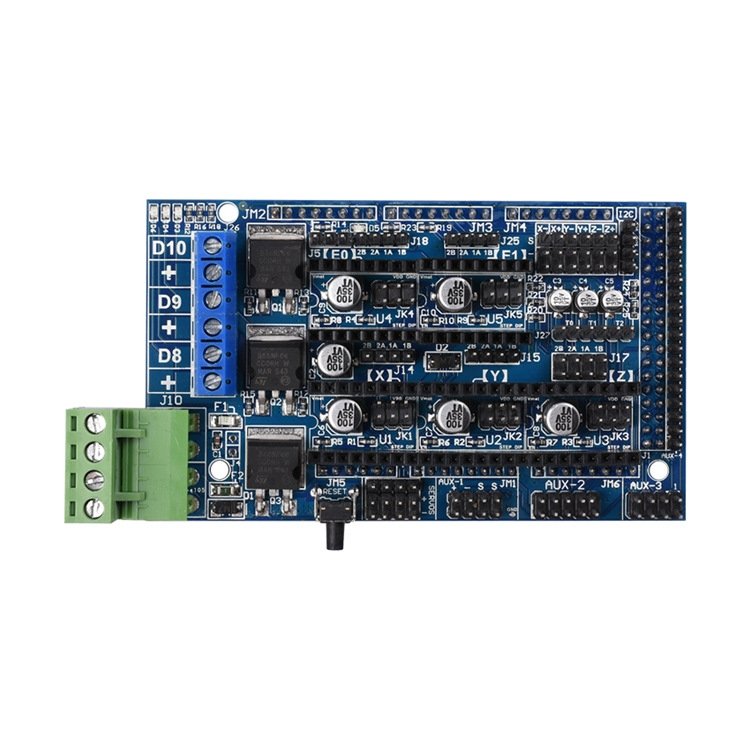

For Ramps 1.5 control board, They change the original plug-in MOS tube to patch-type MOS tube in order to solve the problem of plug-in MOS tube easy to break, take up a large area, poor heat dissipation , which can improve the stability and aesthetics of the board.

The features of multiple extended interface and replaceable parts make RAMPS1.5 become a control board with powerful upgrade capability and scalable modularity.

The controller board can be used when the pins on the back of the board are connected to the Arduino Mega and the front is connected to stepper motor drives.

Features:

1. It can be connected to LCD and other parts.
2. There are heater and fan MOSFET outputs and 3 thermistor interfaces
3. 5A additional security and component protection fusion
4. Heated bed controls additional 11A fuses
5. Applied to 5 Pololu stepper drive board
6. Design of Pololu plate pin socket can be easily replaced or removed for future design
7. I2C and SPI pins are available for future expansion
8. Servo connectors are used for connecting limit stops, motors and light-emitting diodes.
   These connectors are gold-plated and have a rated current of 3A, which is very compact.
9. The LED will light when the heater has output
10.  Support 2 motors to connect to Z Prusa Mendel

Package Included:

1x Ramps 1.5 Control Board
Some Jumper caps

Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 25
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 26
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 27
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 28
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 29
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 30
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 31
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 32
Upgrade Ramps 1.5 Base on Ramps 1.4 Control Panel Board Expansion Board For 3D Printer 33

Weight0.07 kg
