Description
Upgrade Functions for KG-UV9D Plus
1. UHF/VHF or VHF/UHF Cross-Band Repeater .
2. Completely turn off display screen background light .
3. Completely trun off flickering indicator light .
Same Functions as KG-UV9D.
1. Duplex Work Mode.
2. Duplex Work on A&B Areas (TX on one area while RX on the other area simultaneously).
3. Dual Receiving.
4. RX on the same/different bands of A&B areas simultaneously.
5. Large Colorful Screen.
6. Simultaneously Scanning on Twin Band, Scanning on Limiting Frequency (Frequency Mode, Self-definition Scanned Frequency Range), Channel Groups Scanning.
7. Memory Channels 999.
8. Output Power VHF H: 5W, M: 2W, L: 1W; UHF H: 4W, M: 2W, L: 1W
9. QT/DQT Encoding/Decoding, QT/DQT Scan.
10. Non-Standard CTCSS can be set arbitrarily.
11. VOX.
12. Multi Definition for Sidekeys.
13. Amplitude-frequency PTT settings.
14. Incoming Message Display Caller ID display.
15. DTMF Encoding&Decoding.
16. Channel groups scanning.
17. All Calls,Group Calls And Selective Calls.
18. SOS Function.
19. Priority Scan Function.
20. Remote Alarm.
21. Wide/Narrow Bandwidth Selection (25KHZ/12.5KHz).
22. Voice Guide: Chinese/English
23. Chinese/English Screen Display.
24. English Channel Name Edit.
25. Bright Flashlight illumination.
26. Single-Tone Pulse Frequency: 2100Hz/ 1750Hz/1000Hz/1450Hz (Signalling for activating repeater)
27. Reverse Frequency.
28. Stopwatch.
| Model | KG-UV9D(Plus) | |
| Colour | Black | |
| Li-ion Battery capacity | 2000mAh | |
| Mic/Speaker/Programming port | 2 pin Kenwood plug type | |
| Antenna type | SMA-F | |
| Frequency Range | Suitable for different countries or areas 1 TX: 136-174MHZ(FM) 400-512MHZ(FM) 2 RX: 76-108MHZ(FM) 108-136MHZ(Air ground) 136-180MHZ(FM) 230-250MHZ(FM) 350-400MHZ(FM) 400-512MHZ(FM) 700-985MHZ(FM) |
|
| Step | 2.5KHz/5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz | |
| Channel Number | 999 | |
| Work Mode | F2D/F3E | |
| Operating Temperature | -20°C-40°C | |
| Antenna Resistance | 50ohm | |
| Voltage | 7.4VDC | |
| Weight of two way radio (Include battery and antenna) | 9.23oz(261g) | |
| Size of two way radio (Not include antenna) | 4.9 x 2.4 x 1.33inch (12.45×6.1×3.39cm) | |
| Receiving | Wide bandwidth | Narrow bandwith |
| Adjacent Channel | ≤70dB | ≤60dB |
| Inter Modulation | ≤65dB | ≤60dB |
| Spurious Response | ≤70dB | ≤70dB |
| Audio Response | +1-3dB (0.3-3KHz) |
+1-0.3dB (0.3-2.55KHz) |
| Signal Noise Ratio | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio power | Transceiver≤500mW | |
| Sensitivity | 108-136MHz(AM)-106dbM SINAD 13dB 136-180MHz(AM)-119dbM SINAD 13dB 230-250MHz(AM)-116dbM SINAD 13dB 350-400MHz(AM)-119dbM SINAD 13dB 400-512MHz(AM)-119dbM SINAD 13dB 700-985MHz(AM)-96dbM SINAD 13dB |
|
| Transmitter | Wide bandwidth | Narrow bandwidth |
| Type of Modulation | 16K F3E | 11K F3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Spurious | ≥60dB | ≥60dB |
| Audio Response | +1-3dB (0.3-3KHz) |
+1-3dB 0.3-2.55KHz) |
| Max Frequency Deviation | ±5KHz | ±2.5KHz |
| Frequency Stability | ±2.5ppm | |
| Audio Distortion | ≤5% | |
| Output Power | UHF H: 4W, M: 2W, L: 1W | |
| VHF H: 5W, M: 2W, L: 1W | ||
| PC software programmable | Yes | |

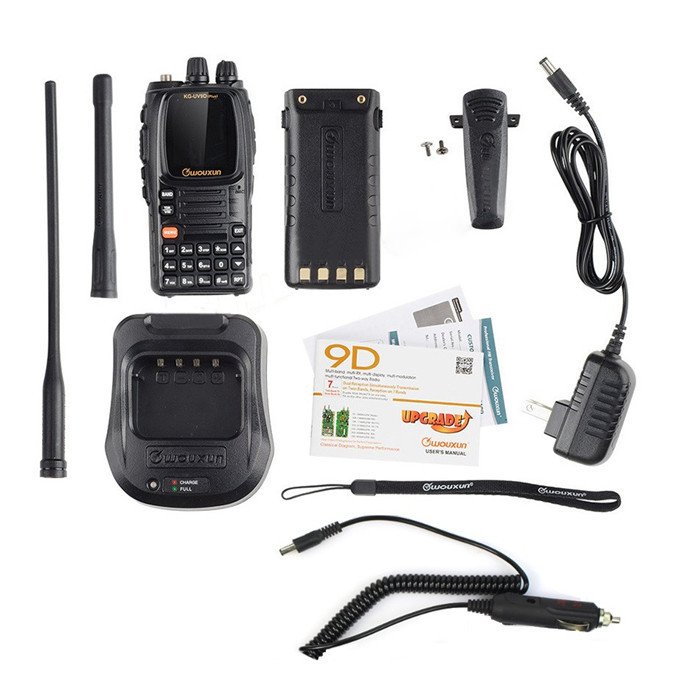

1 x KG-UV9D Plus Two-way Radio
1 x 2000mAh Li-ion Battery Pack
1 x High Gain Antanna for All Band
1 x Dual Band Stubby Antenna
1 x AC Adapter (EU / US Plug for Optional~) (Also come with an adapter according to your country~)
1 x Car Charger Cable
1 x Belt Clip
1 x Wrist Strap
1 x English User Manual

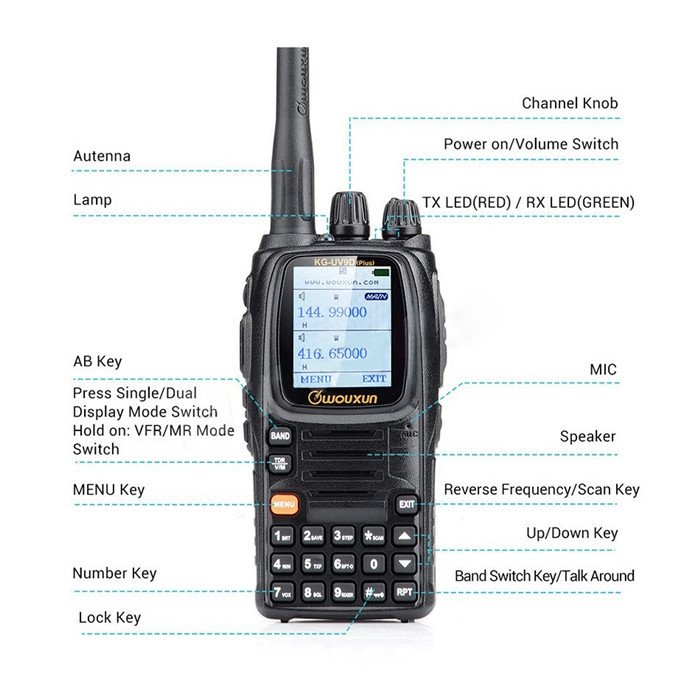

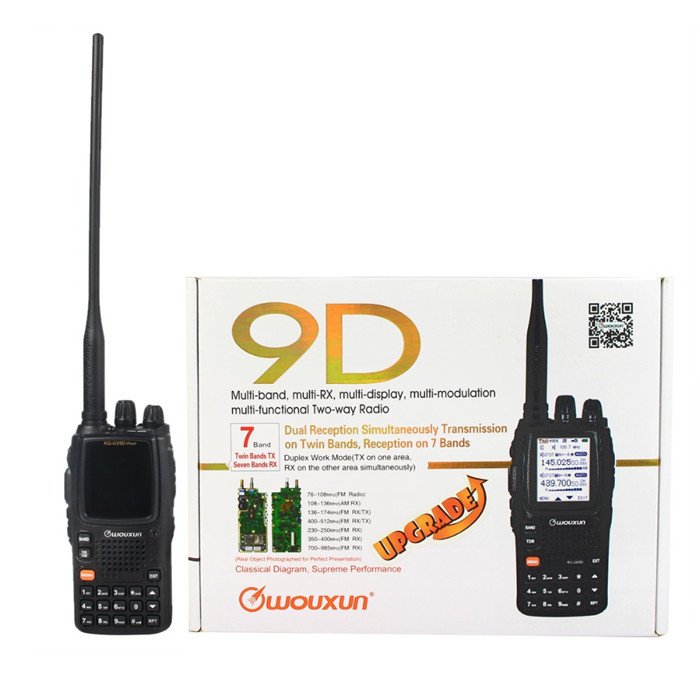

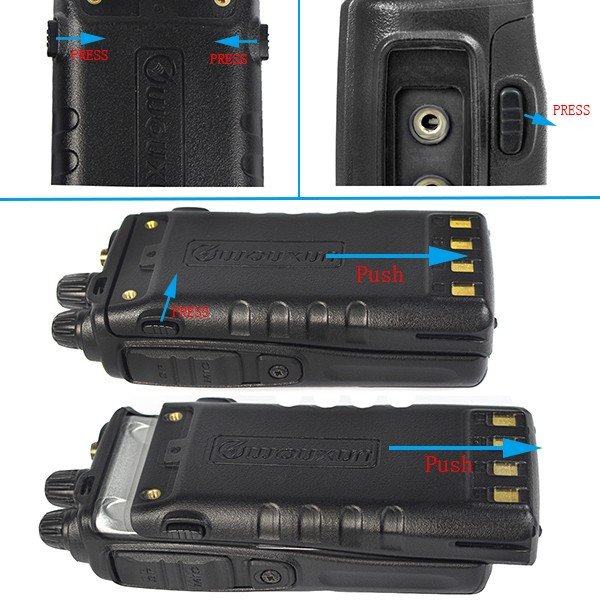

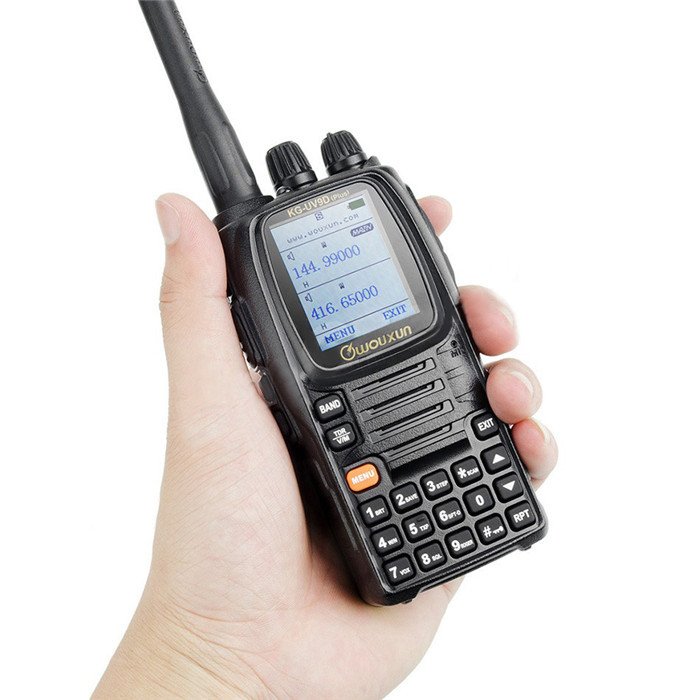

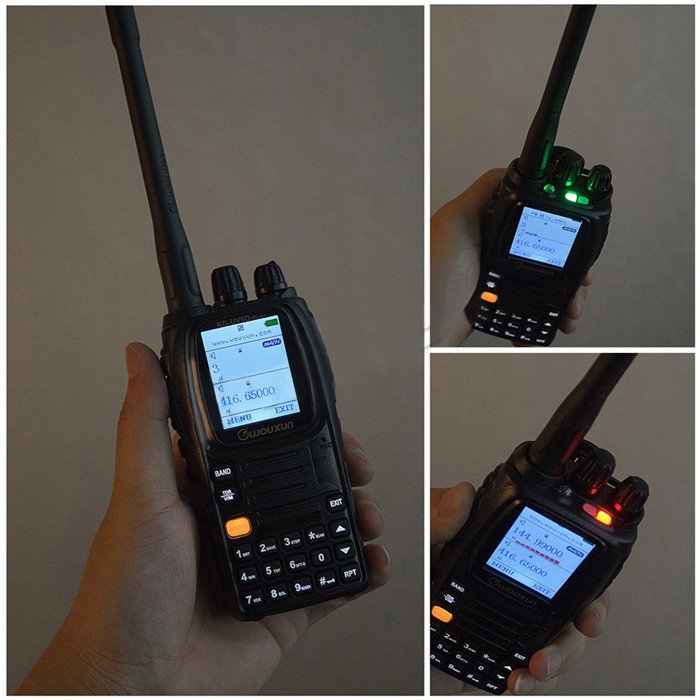

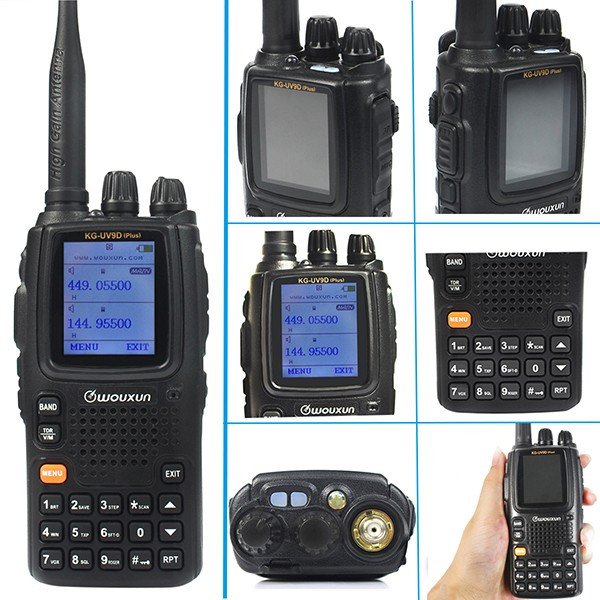

Details pictures :
