Description

In September 2021, we launched the first FG-VT9 V2 engine, which was warmly received and highly praised by engine model lovers once released. Subsequently, sincere suggestions and strong expectations for the second V2 engine we have received from many model fans. So we decided to launch the new FG-VT157 V2 engine in November 2022. Add the FG-VT157 to the V2 series to make them an era mark that reappears in the history of motorcycle engines. Continuing the style of the FG-VT9, the FG-VT157 V2 engine is designed with the basically same dimensions and some parts available for common use. However, we also put in some new design elements to make it unique, such as the classic&simulated appearance, larger piston and cylinder liner, spherical combustion chamber, V-shaped angle valve, improved carburetor and so on.

Features

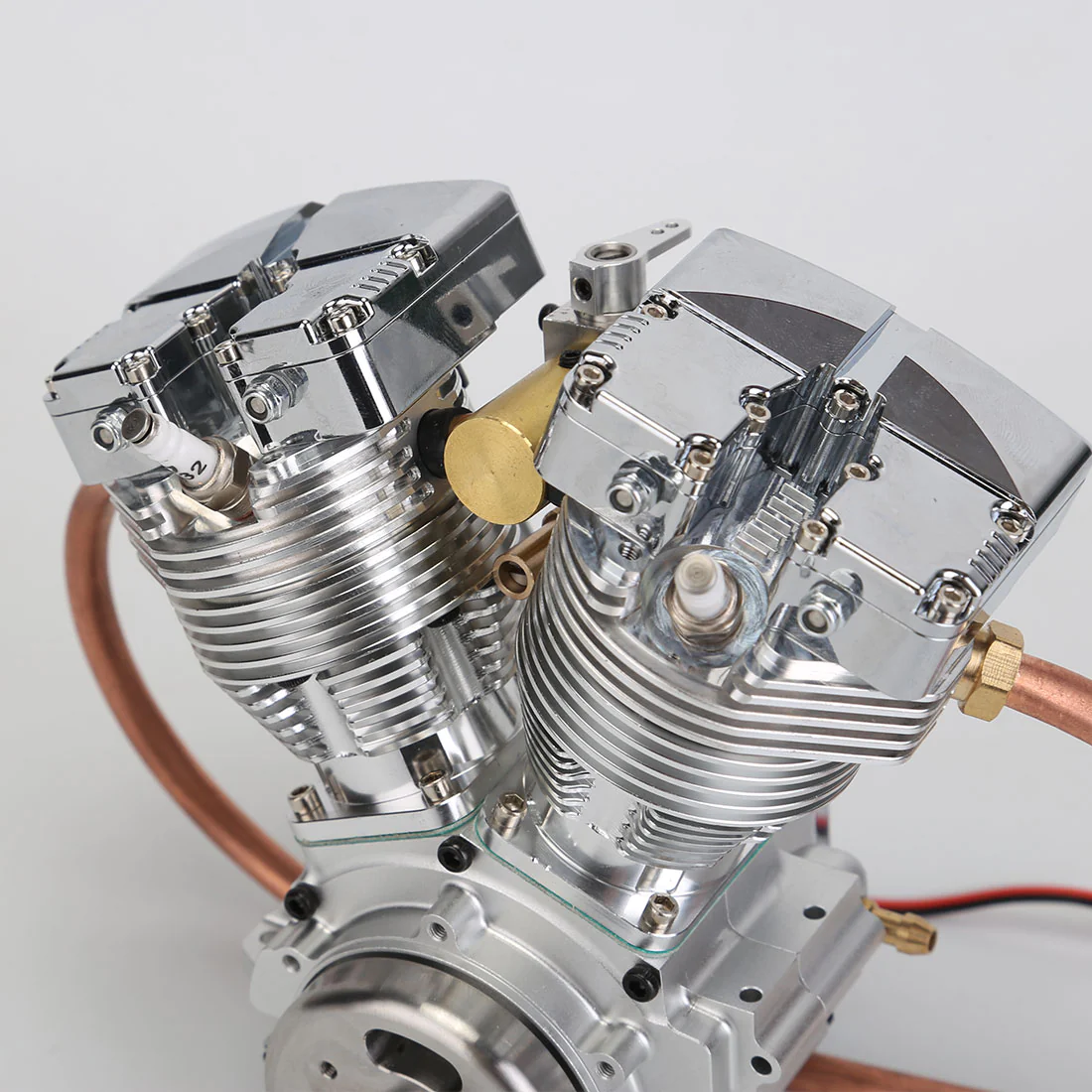

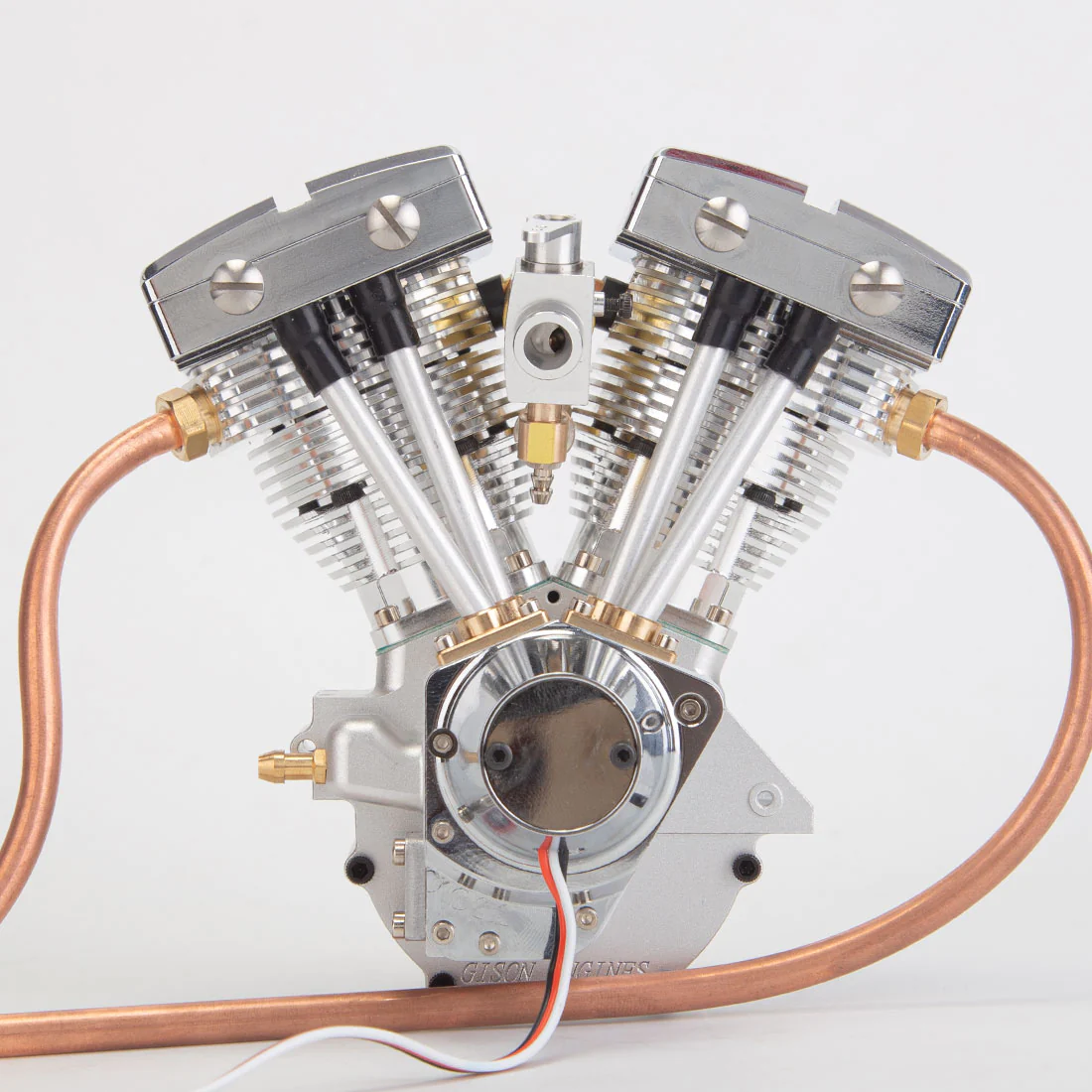

Impressive Simulation: The authentic rocker cover on the classic cylinder head and gearbox cover allow the model to restore the original charm and get closer to the motorcycle engine in real life, representing the most remarkable characteristics of a motorcycle in an era.

Compatible with RC Vehicles: Features larger cylinder diameter and longer stroke for superior displacement, along with stronger connecting rods to provide superb torque protection when installed on the vehicles.

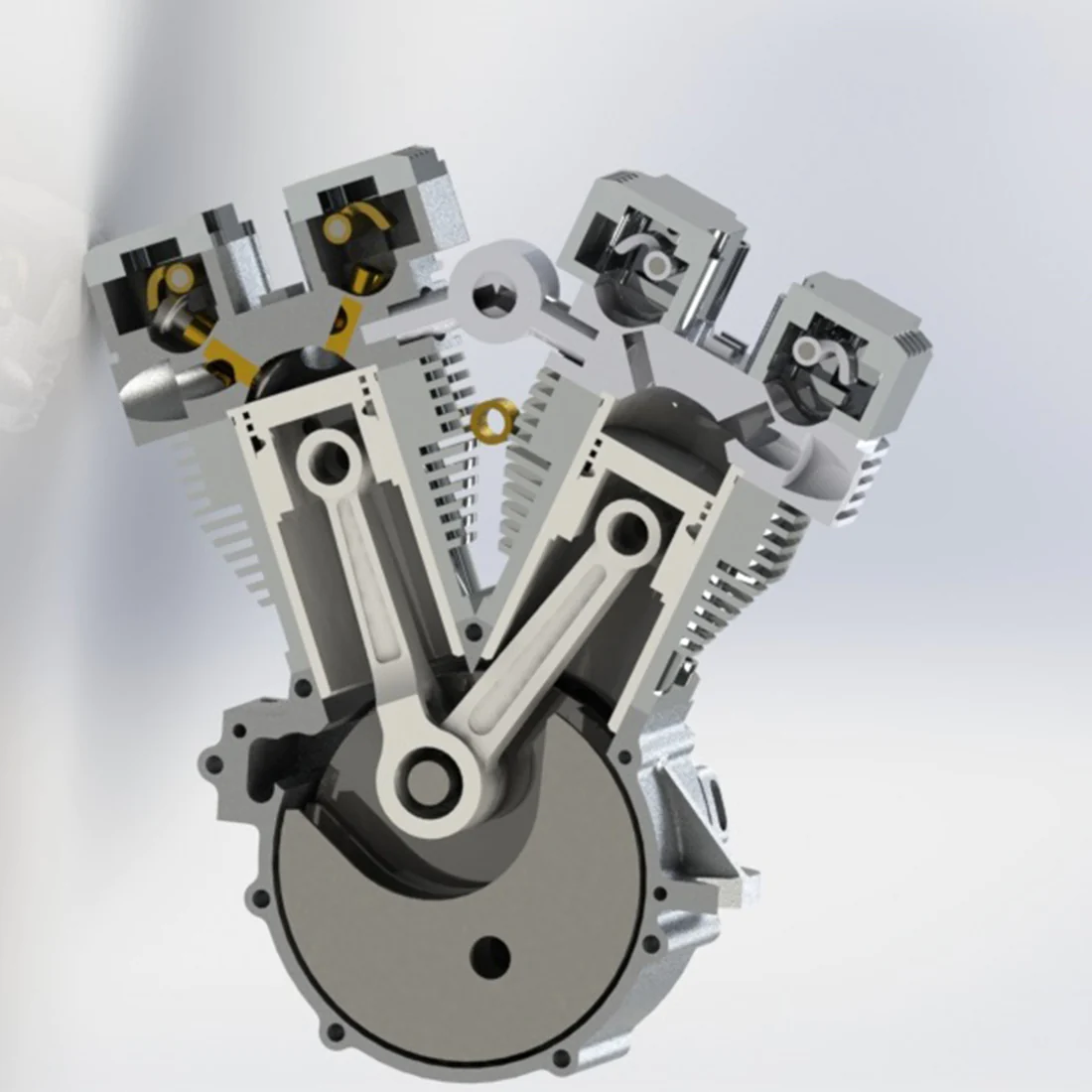

Reliable Structure: Adopts an OHV valve mechanism, a 45° angle between two cylinders, a realistic hemispherical combustion chamber, an inlet rocker arm with a V-shaped angle as well as a separable rocker arm cover chamber for easier to observe and adjust the engine.

Sophisticated Manufacture: Treated with aluminum CNC precision processing on the body, along with anodic oxidation and sand blast on the surface for a pleasing mechanical artwork with texture and aesthetics.

Stable Performance: Equipped with a large-area heat sink for incredible air cooling effects, the engine is able to operate stably keeping low speed and supports the use of different fuels for more balanced burning due to the optimized carburetor.

Best Gift: Whether used as an excellent desktop collection or applied to an RC model car, the model makes one of the best engines for collectors, which is not inferior at all.

Notes: The assembled engine with a spark plug and CDI igniter is ready to run, but the fixed engine base and batteries are not included. Please operate the engine according to the instructions to avoid damage because of improper operation. If you have any questions about the product, please feel free to contact us.

Specifications

Material: Metal
Brand: CISON
Item No: FG-VT157
Form: Ready to Run
Type: Gasoline Engine
Valve Mechanism: OHV
Displacement: 15.7cc
Cylinder: V-Twin
Stroke: Four Strokes
Cylinder Diameter: 20mm
Stroke: 25mm
Angle: 45°
Speed: 1500-8000 rpm
Power: 0.8 ps
Cooling Mode: Air Cooling
Lubrication Method: Mix Lubrication (Gasoline/Engine Oil =30/1)
Starting Mode: Electronic Drill Starting
Ignition Method: CDI Igniter (Included)
Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Including 2)
Starting Power: 6-7.4V Battery (Not Included)
Fuel Type: 92# Gasoline and Above
Engine Oil Type: 2T Engine Oil
Product Dimensions: 10.5 x 6.5 x 12.1cm
Product Weight: 1500g
Package Dimensions: 20 x 20 x 20cm
Package Weight: 1700g
Packing: Graphic Carton
Ages: 14+

Parcel List

• 1*V2 Engine Body

• 2*Spark Plug

• 2*Exhaust Pipe

• 1*CDI Igniter

• 1*Drill Starting Rod

• 1*English Instructions
