Description
System Type: Off Grid
Solar Power (W): 3KW
PRODUCT DETAILS
| Products | Spec | Description | Qty | Unit |

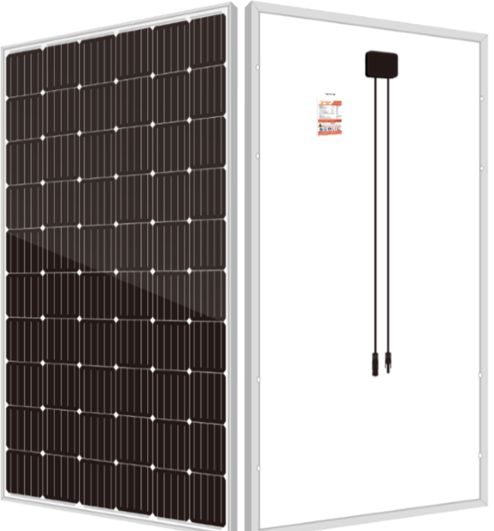

| Solar panels | 410Wp | 1. Model#ZM-410M10 2. Power(Pmax): 410 Wp Mono 3. Dimension: 1722x1134x30 mm 4. Working Voltage(Voc): 31.45V 5. Working Current(Imp):13.04A 6. Weight: 20.5kg |
8 | pcs |

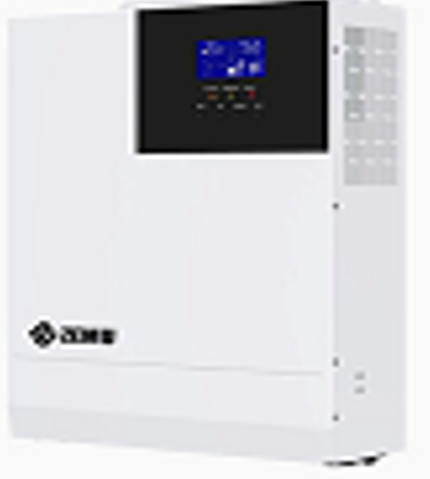

| PV inverte with controller MPPT | 5KW | 1.Model#ZM4850S80-H. 2.Output: 220V pure sine wave 50/60Hz 3. The switchover time is less than 10ms 4.Battery overvoltage protection, low voltage protection, overload protection, short circuit protection, high temperature protection 5. Input voltage 120-500VDC 6. Size: 426*322*126MM 7. Weight: 10.5 kg |
1 | pcs |

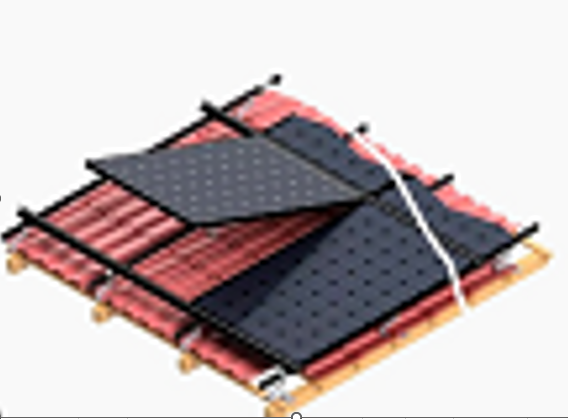

| Bracket | 3KW | Hot-dip galvanized bracket | 1 | set |
| Power wall battery | 48V 100AH | 1. Norminal voltage: 48V 2. Norminal capacity :100Ah |
1 | set |

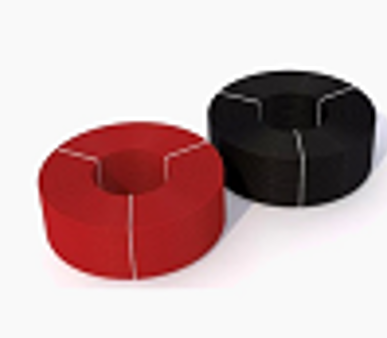

| DC cable | 4mm2 | 100meters | 1 | set |
| MC4 connector | Normal | 10 | pairs | |

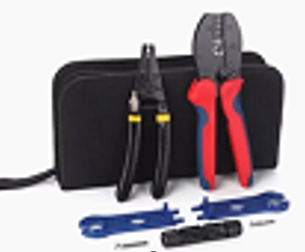

| PV tools | Normal | 1 | set |
