Description:

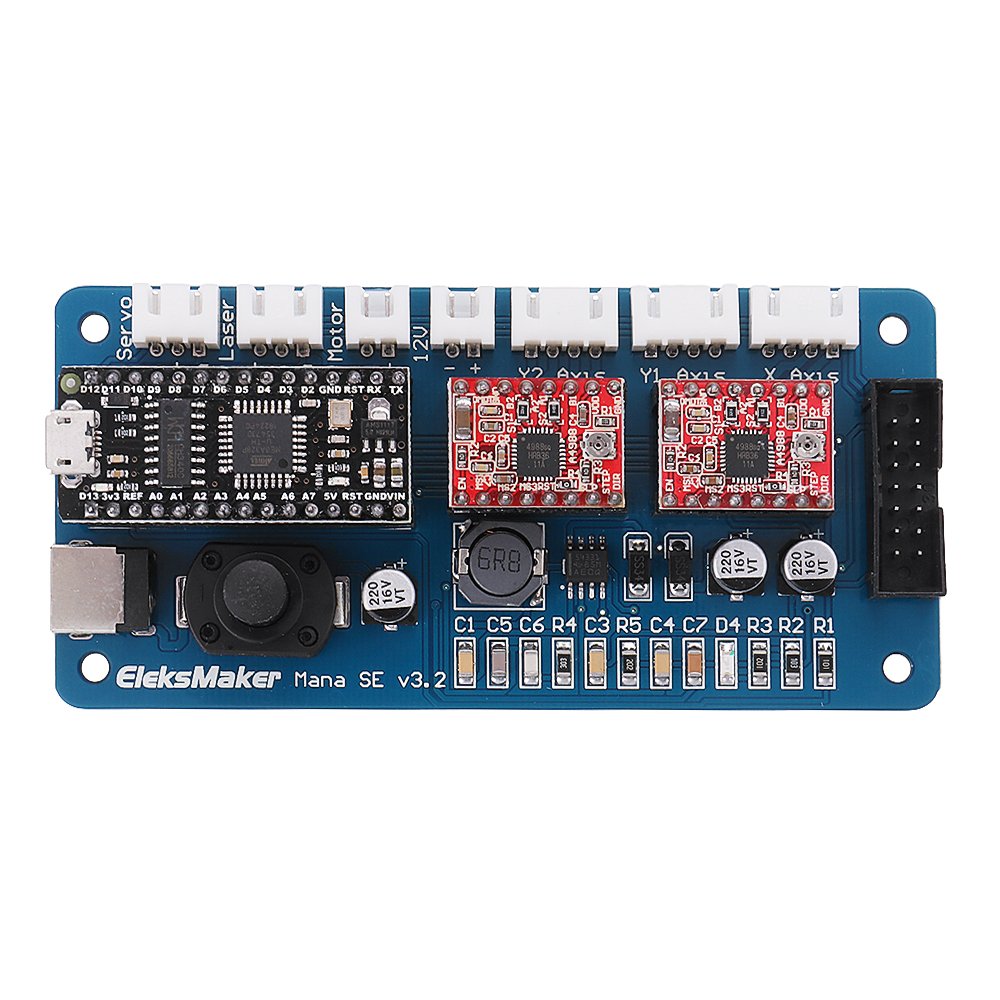

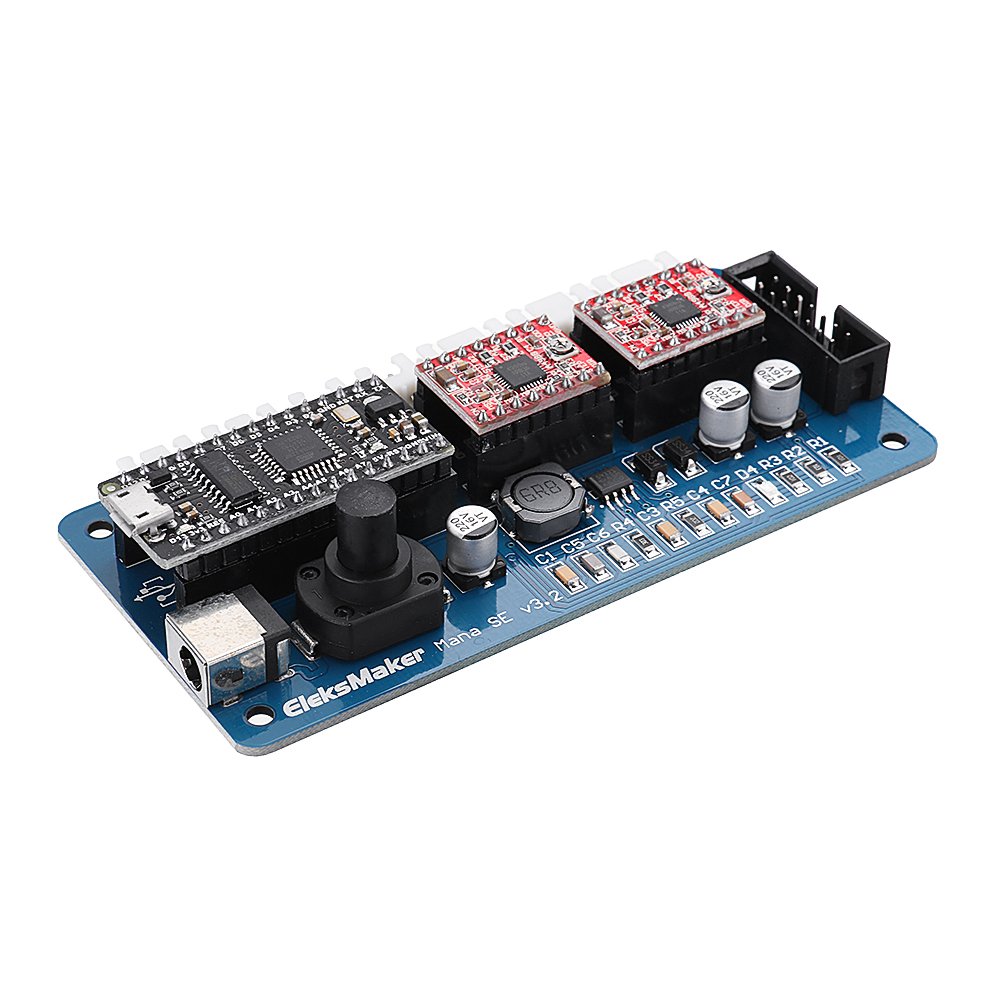

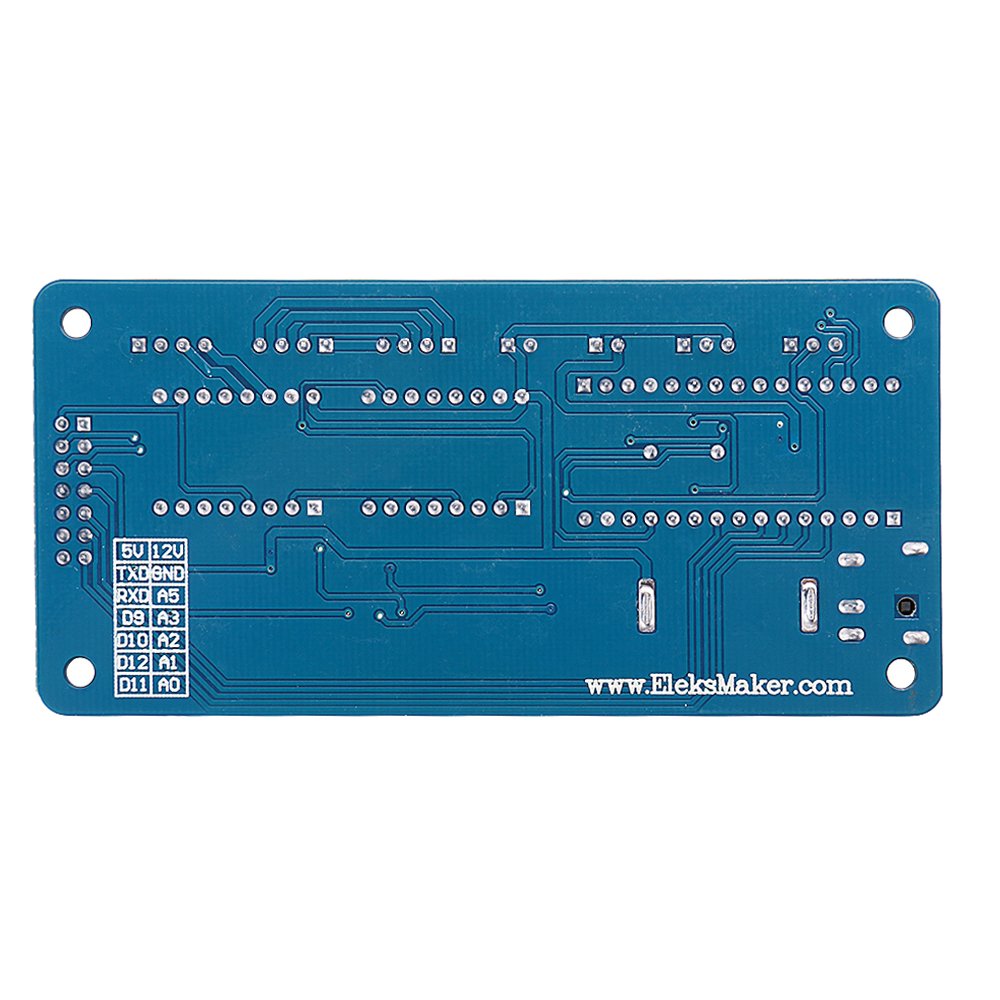

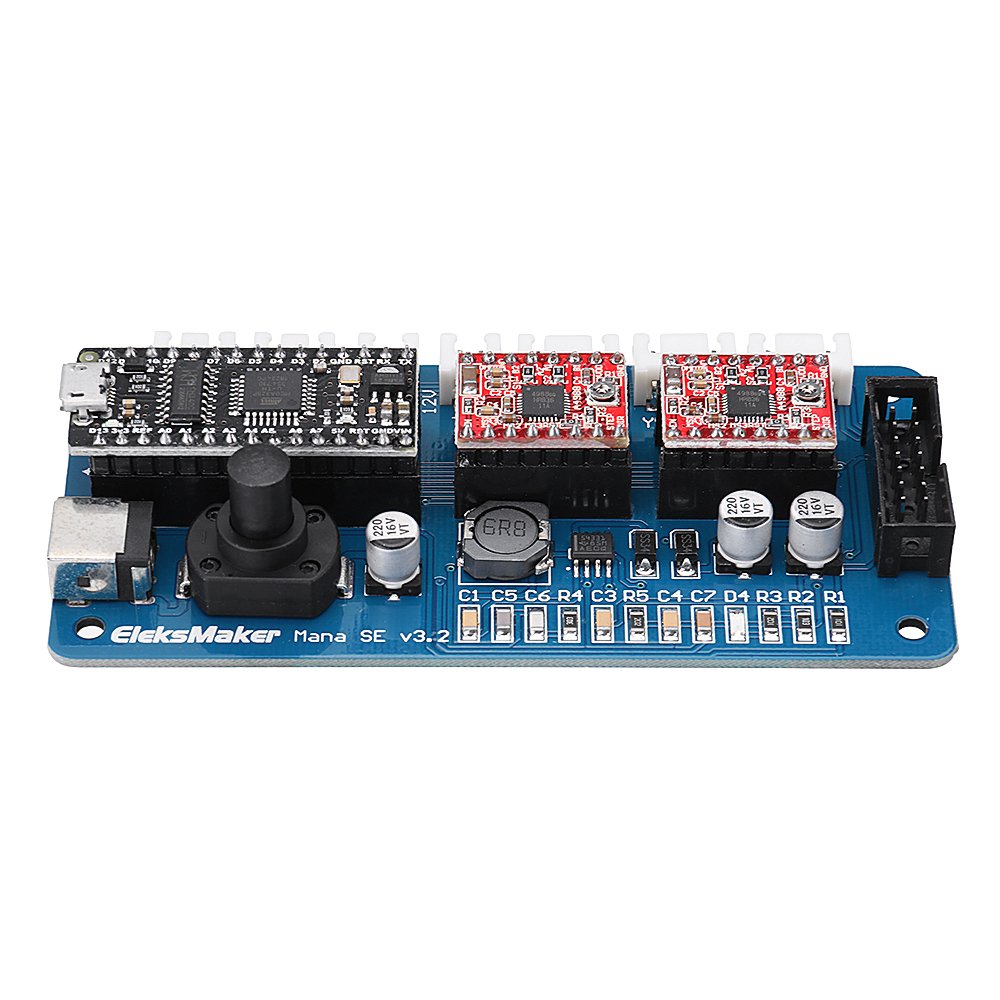

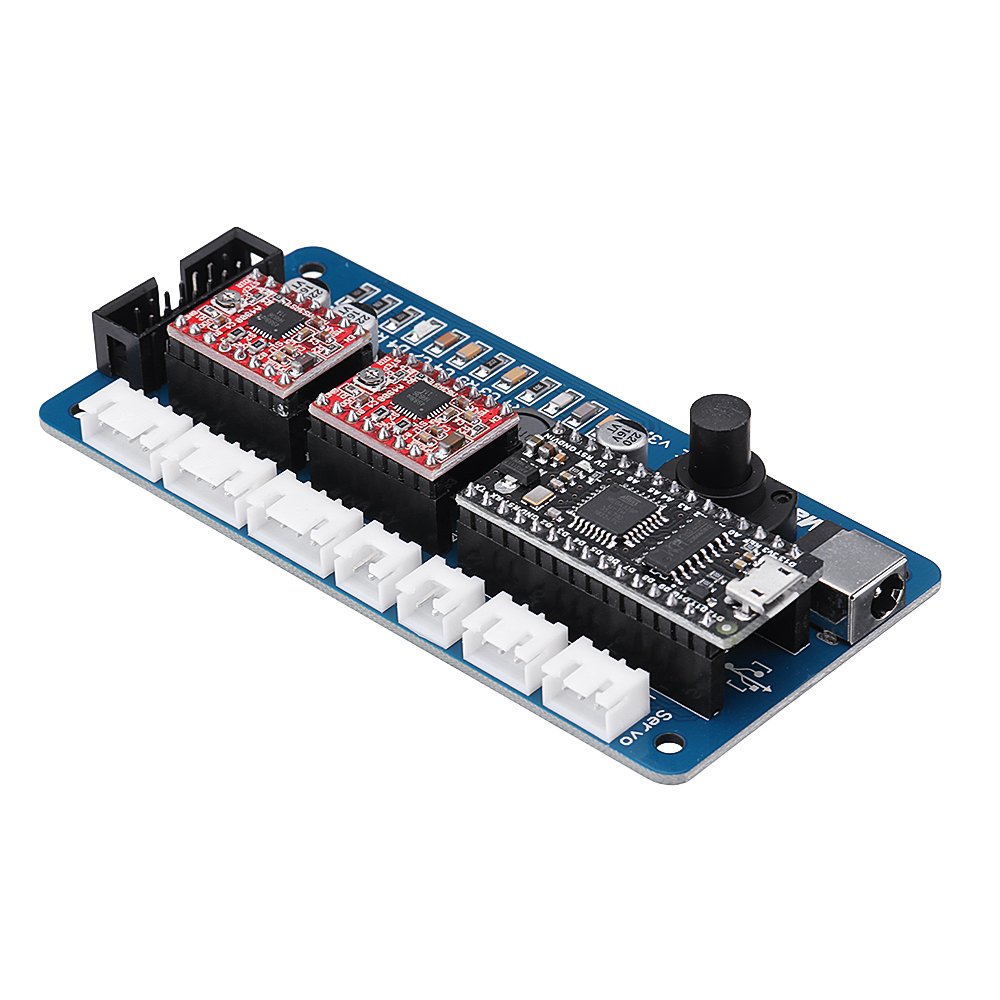

EleksMaker® ManaSE 2 Axis w/ Holder Stepper Motor Driver Laser Controller Board DIY Engraver DC 12V, Perfect for DIY Your Customized Amateur Engraver.
Specification:
| General Specification | |
| Brand | EleksMaker® |
| Model | ManaSE |
| Product Name | 2 Axis Control Board |
| Product Size | 94mm*36mm |
| Technical Parameters | |
| Interface Port | Micro USB |
| Supply Voltage | DC12V-5A |
| Operating System | Windows 7/8/10 |
| Software Support | EleksCAM (Recommended) / Candle / T2-Laser… |
| Support Axis | XY Axis |
| Support Stepper Motor | Motor within 2A 2-phase 4-wire |
| Power Interface | DC5.5 – 2.1 (Inside is positive electrodes and ouside is negative electrodes) |
Features:
1. Fit for DIY desktop laser engraver, laser engraving machines printer, plotter.
2. Come with Micro USB cable and connector wires.
3. 2-Axis linkage Y-axis dual interface, can drive a stepper motor within 2A 2-phase 4-wire.
4. Large MOS tube,onboard DC buck module, jumper ADJ can adjust manually the laser voltage to control the laser power
Tips:
Official EleksCAM Software Download Link: CLICK HERE; Interface Description: CLICK Here
Note:
There isn’t a Voltage Regulator Module in this Laser board .
The motor can not work higher than 2A, when the motor work for a long time in 1A to 2A , please pay attention to heat
Package Included:
1 x ManSE 2 Axis Controller Board

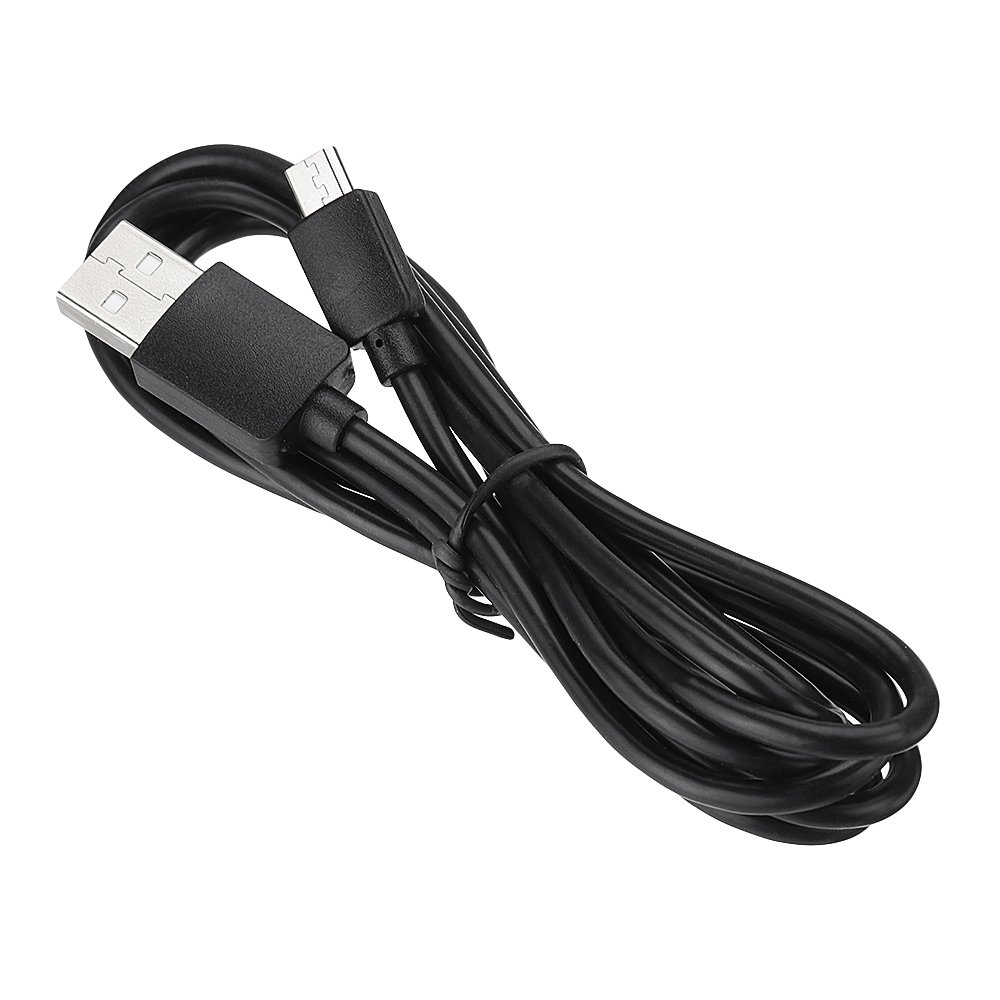

1 x USB Cable

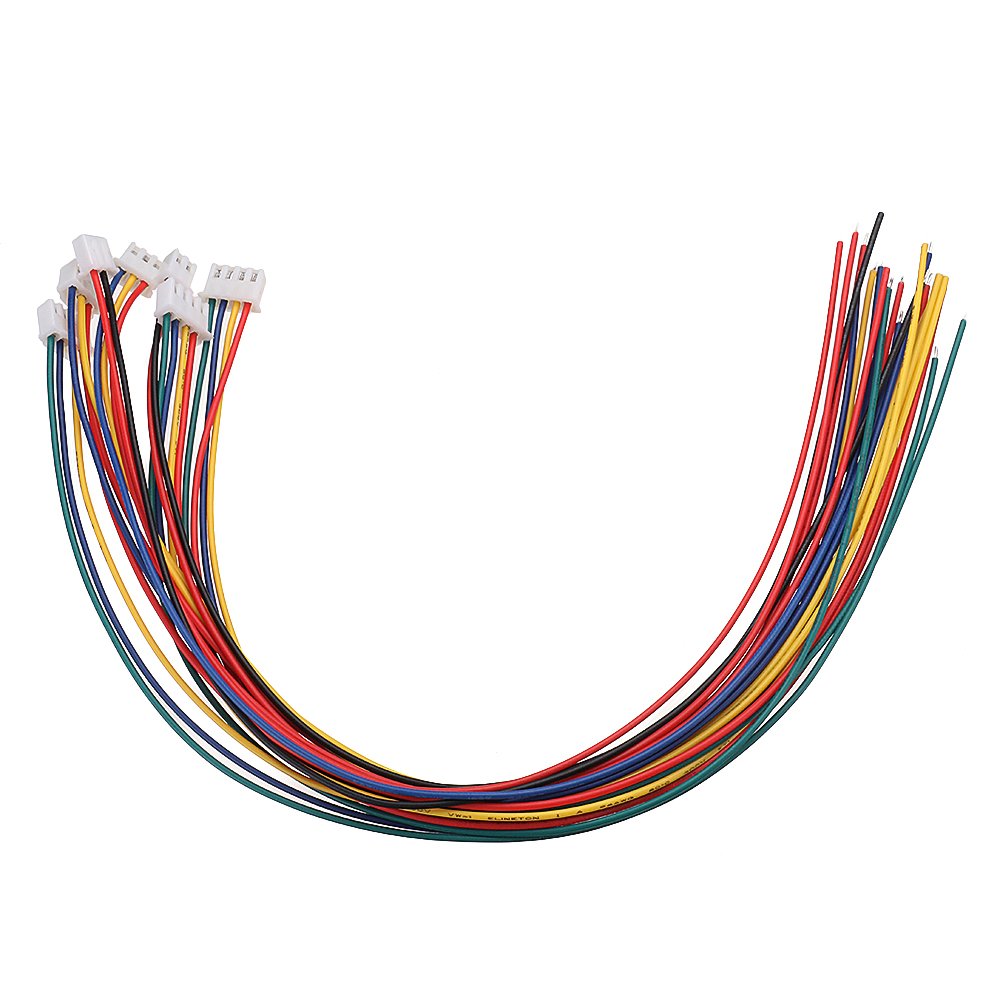

5 x Connector Wires
