H74 5cc 4-Stroke 2-Cylinder Water Cooled Gasoline Internal Combustion Engine Model

Features:

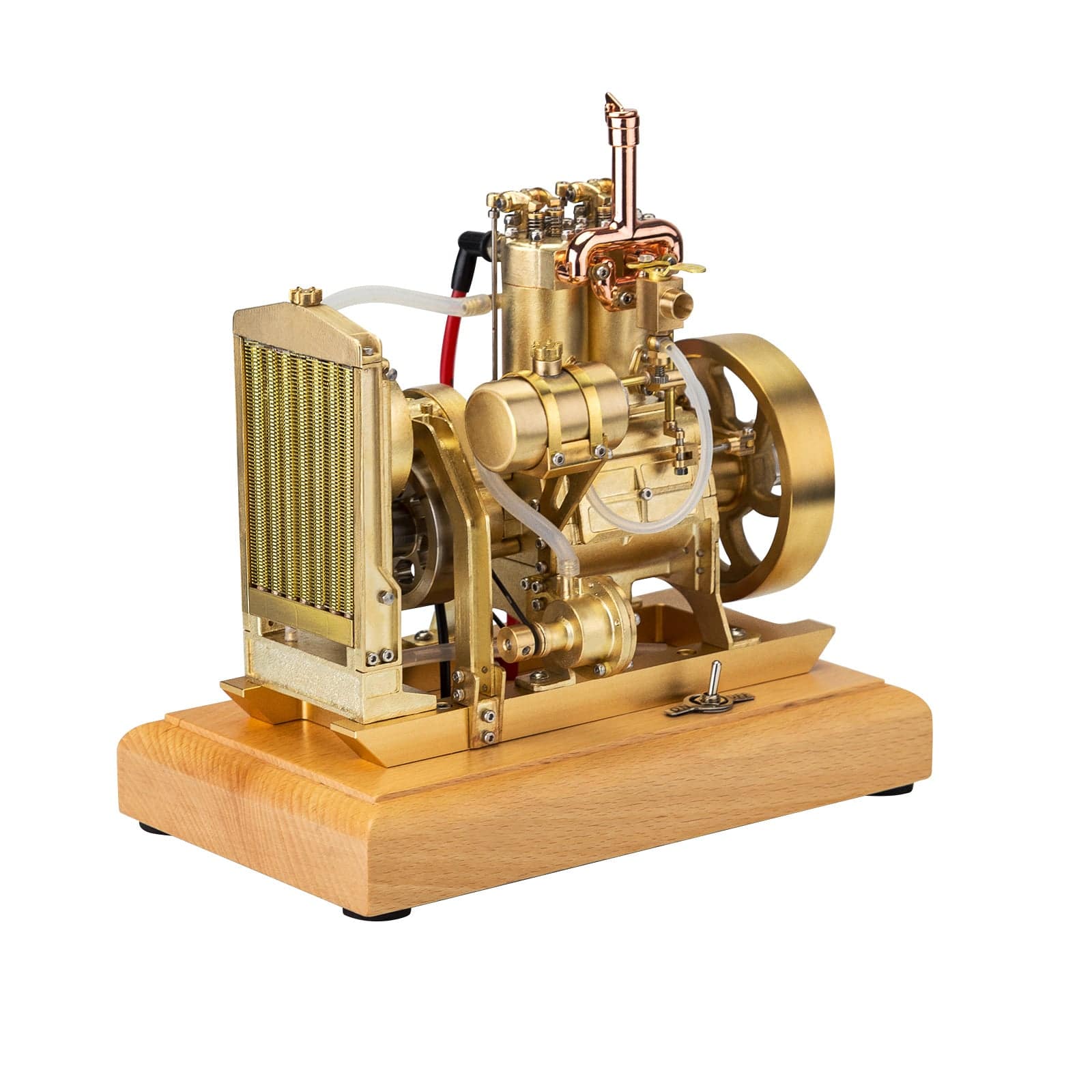

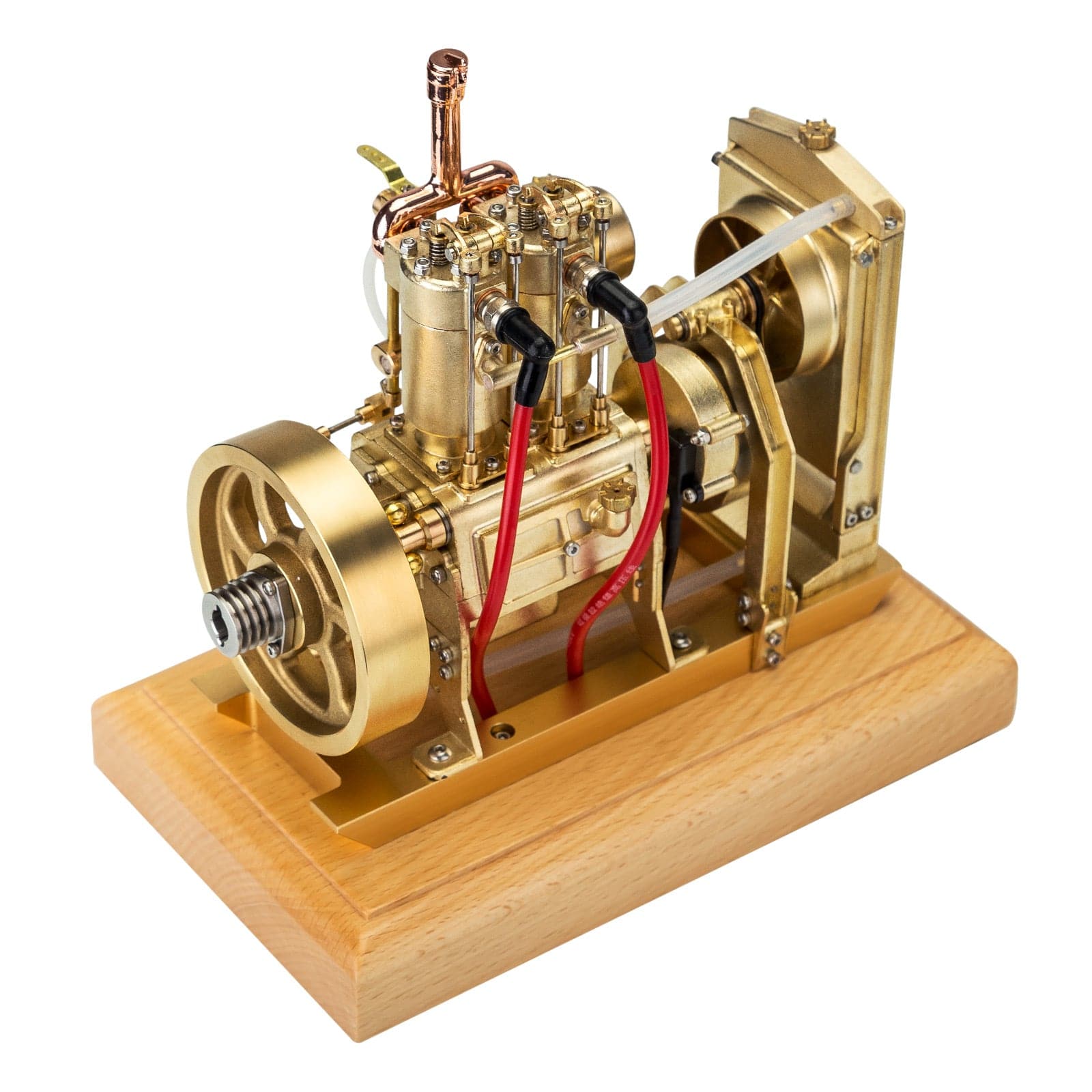

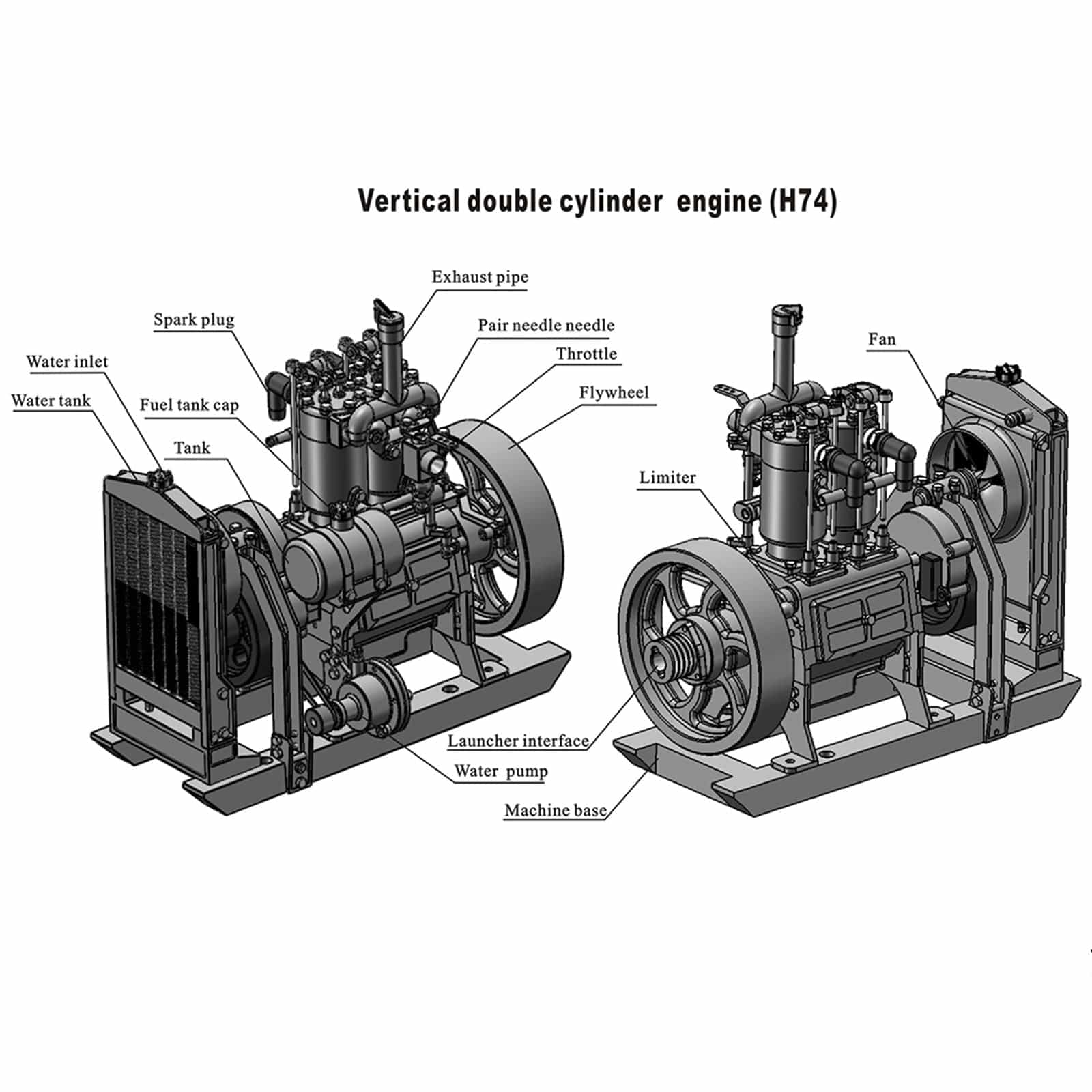

  • Vintage Engine: This is a vertical dual-cylinder gasoline engine with vintage outlook and mechanical speed governor, and it allows engine to stabilized a set of speed.

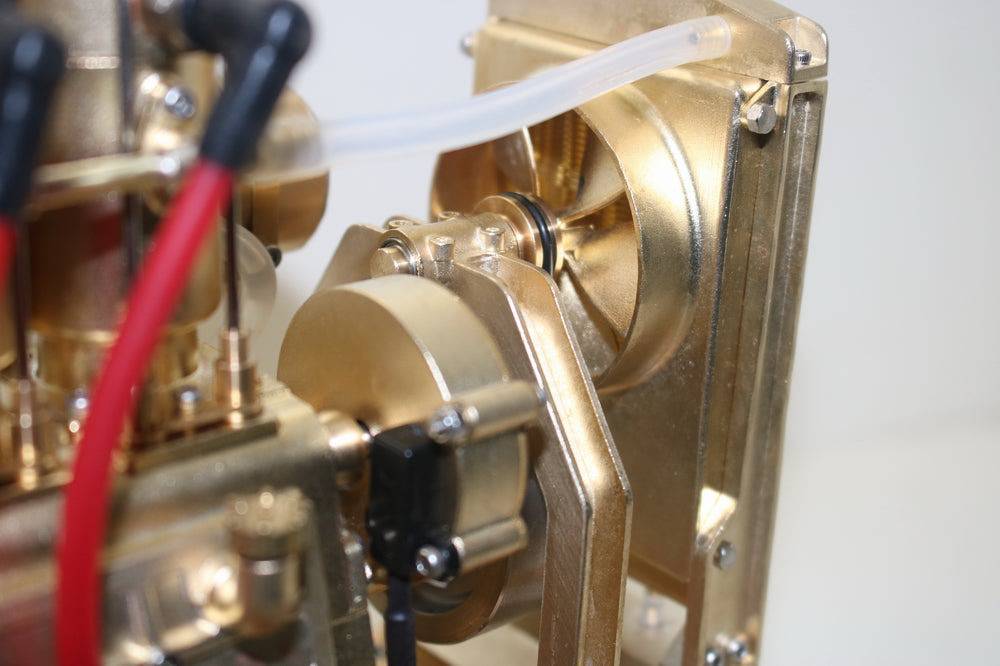

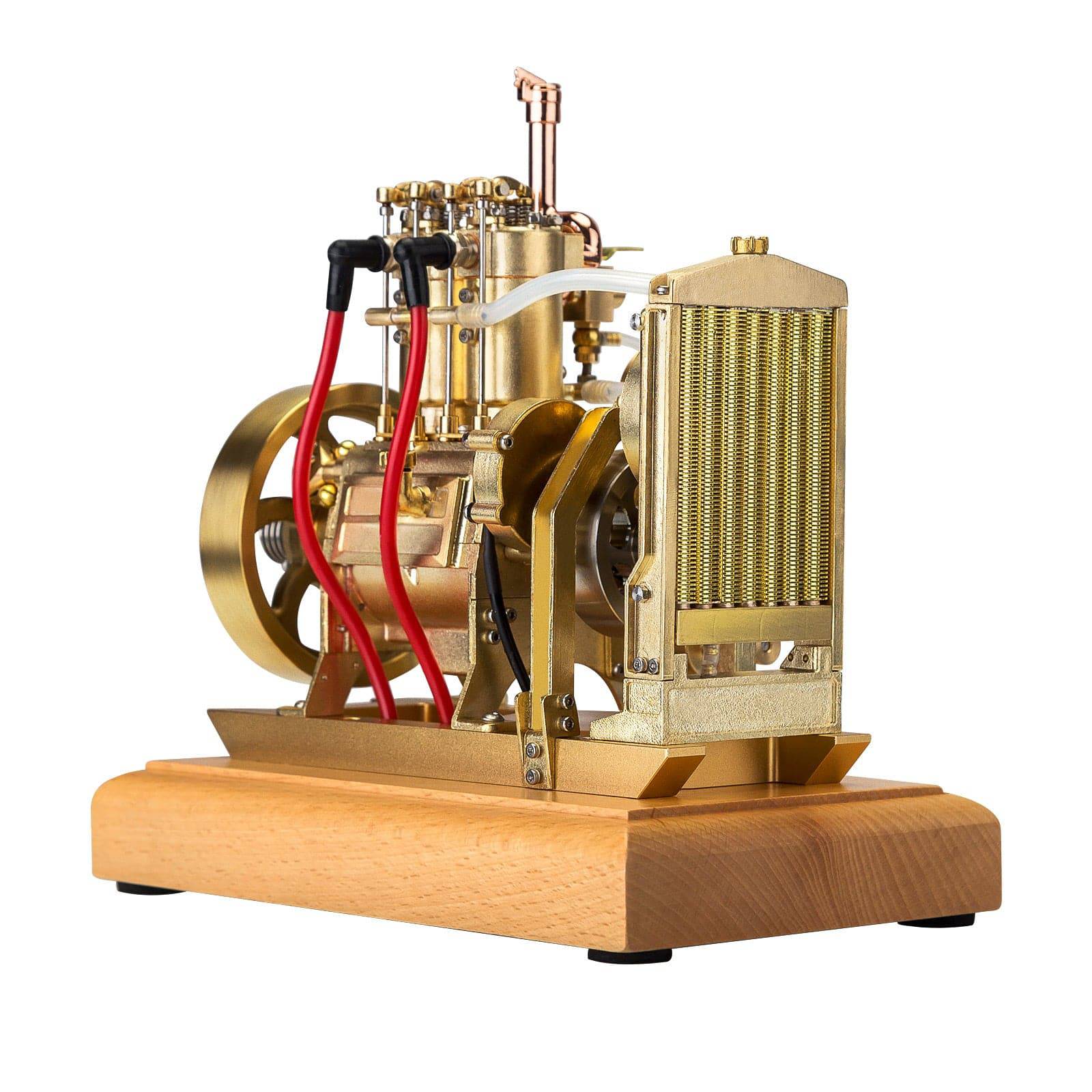

  • The engine adopts water circulation cooled, with radiator tank, water pump and fan. Equipped with ignition system and powered by 4.5V (3 x AA battery).
  • This is a perfect mechanical craft which is made from brass and stainless steel. The product is assembled on the wooden base and ready to run. Adding fuel to work, its good performance will amazed you a lot.

Starting Step:

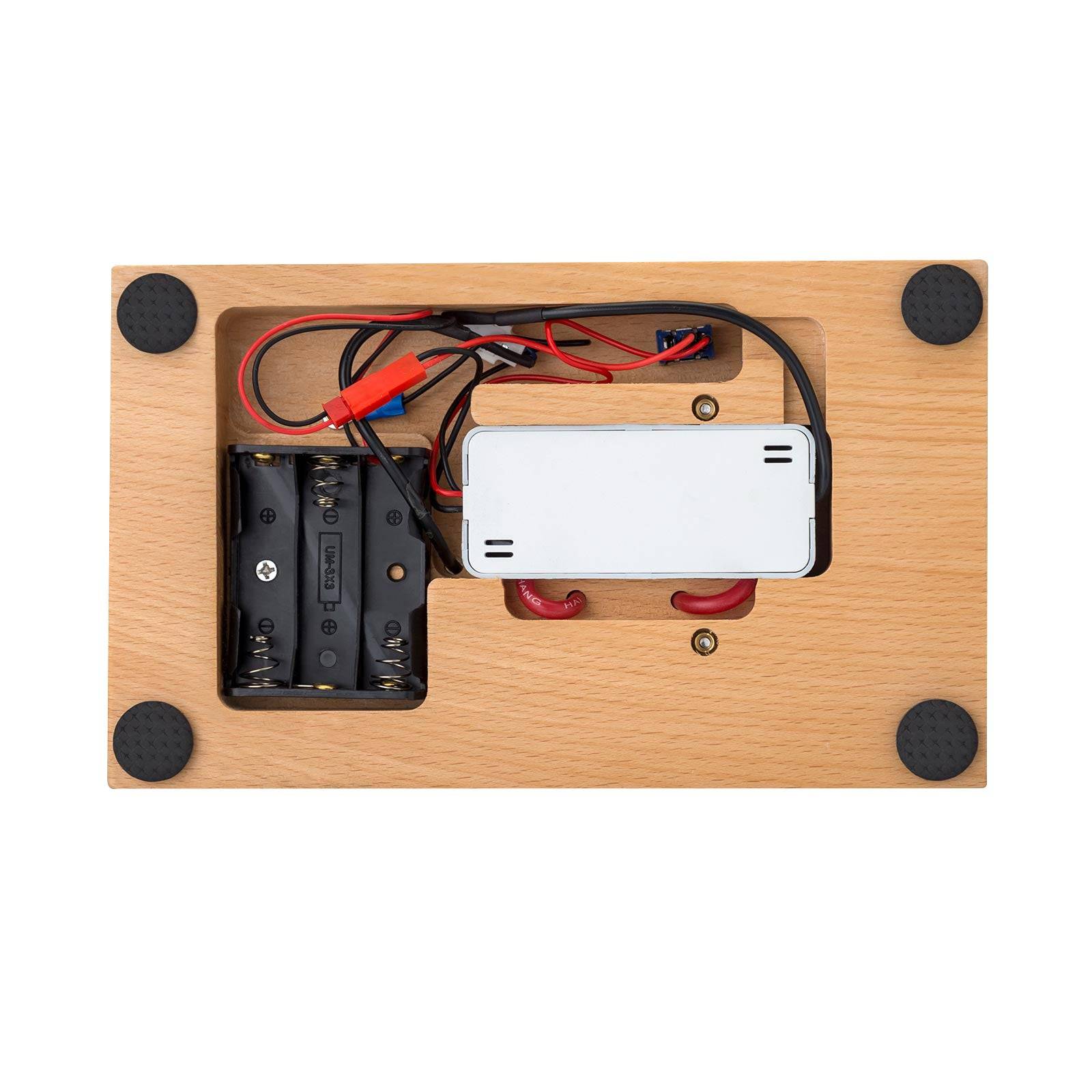

(1)Check the engine wiring under the wooden base, then connect the oil tank and oil tube and install 3 AA battery (4.5V).
(2)Fill the oil tank with 95 gasoline. After filling, rotate the flywheel clockwise on the right side of the engine (power switch surface) for several turns, which can make the mixed fuel fully enter the cylinder and ensure that there is no air in the fuel pipe.
(3)Turn on the power switch then rotate the flywheel clockwise quickly to start the engine on its right.

Note:

(1)You need to add some water to the water tank after the engine works, for the water will enter the cylinder to fill the space after work and the water path in the cylinder will return to the water tank through the pipe.
(2)If the ignition device is normal and the cylinder compression is normal and the machine cannot start normally, it is likely that the carburetor needle needs to be adjusted.
(3)After tighten the needle of carburetor, loosen it for 1/4 turn and start the flywheel to make the mixture ratio of the gasoline and air reach the the normal working mixture ratio.
(4) Turn off the power when the machine stop working.
(5)This is an ideal gift for machinery and model fans and it will spent the spare time with you. It can serve as a collection or a gift for Christmas and birthday.

Specifications:

  • Material: Brass/Stainless Steel/Wood
  • Art. No.: H74
  • Integrated Dimensions: 200 x 120 x 210mm
  • Engine Dimensions: 180 x 180 x 100mm
  • Wooden Base Dimensions: 200 x 120 x 30mm
  • Weight: 2500g
  • Displacement: 5CC
  • Cylinder Diameter: 13mm
  • Stroke: 20mm
  • Ignition Unit Power Voltage: 4.5V
  • Starting Mode: External Force (Electric Drill) or Manual
  • Product Dimensions: 20 x 12 x 21cm
  • Product Weight: 2500g
  • Package Dimensions: 25 x 25 x 25cm
  • Package Weight: 2800g
  • Packing: Box
