Description
- Casting aluminum alloy body, compact, little vibration
- Easy installation, tube or flange connection optional

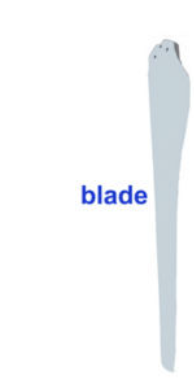

- Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure, enhance wind energy utilization and annual output.

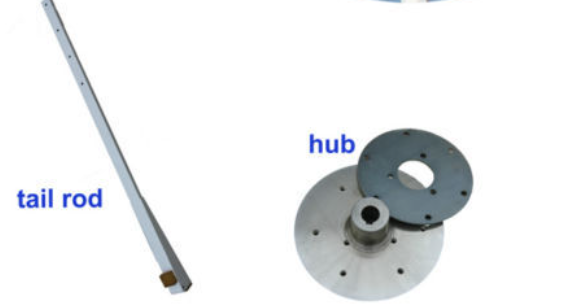

- Tail adopts mechanical yaw technique, making it survive storms and run safely

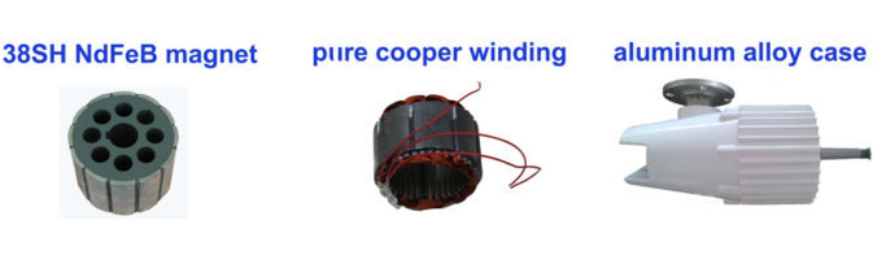

- Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of the whole system.
- Controller, inverter can be matched according to customers’ specific needs
| Model | NE-2000L |
| Rated power | 2000W |
| Maximum power | 2200W |
| Rated voltage | 48/96V |
| Start-up wind speed | 3m/s |
| Rated wind speed | 11m/s |
| Survival wind speed | 55m/s |
| Wheel diameter | 2.88m |
| Guy cable tower height | 6m |
| Brake |
by controller |
| Number of blades | 3 |
| Blades material | Reinforced glass fiber |
| Generator type | 3 phase permanent magnet AC generator |
| Magnet material | NdFeB |
| Generator case | Die-casting aluminum alloy |
| Speed regulation | Automatically adjust windward direction |
| Certificates | CE, ISO14001, ISO 9001, TUV |
| Gross weight | 56kg |
| Packaging | 67*48*25.5cm (generator)
145*27*27cm(blades) |
| Unique features | Quietest Turbine in the Industry
Maintenance free Easy installation |
