Description:

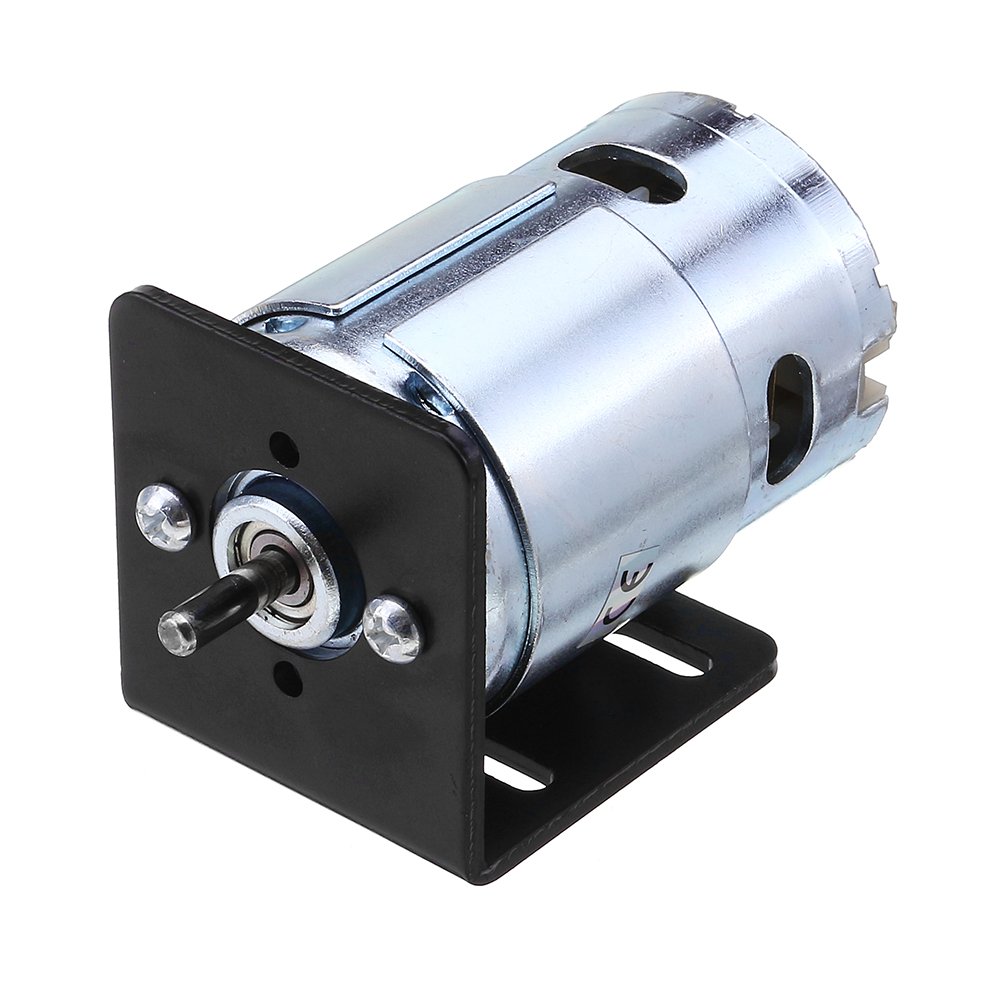

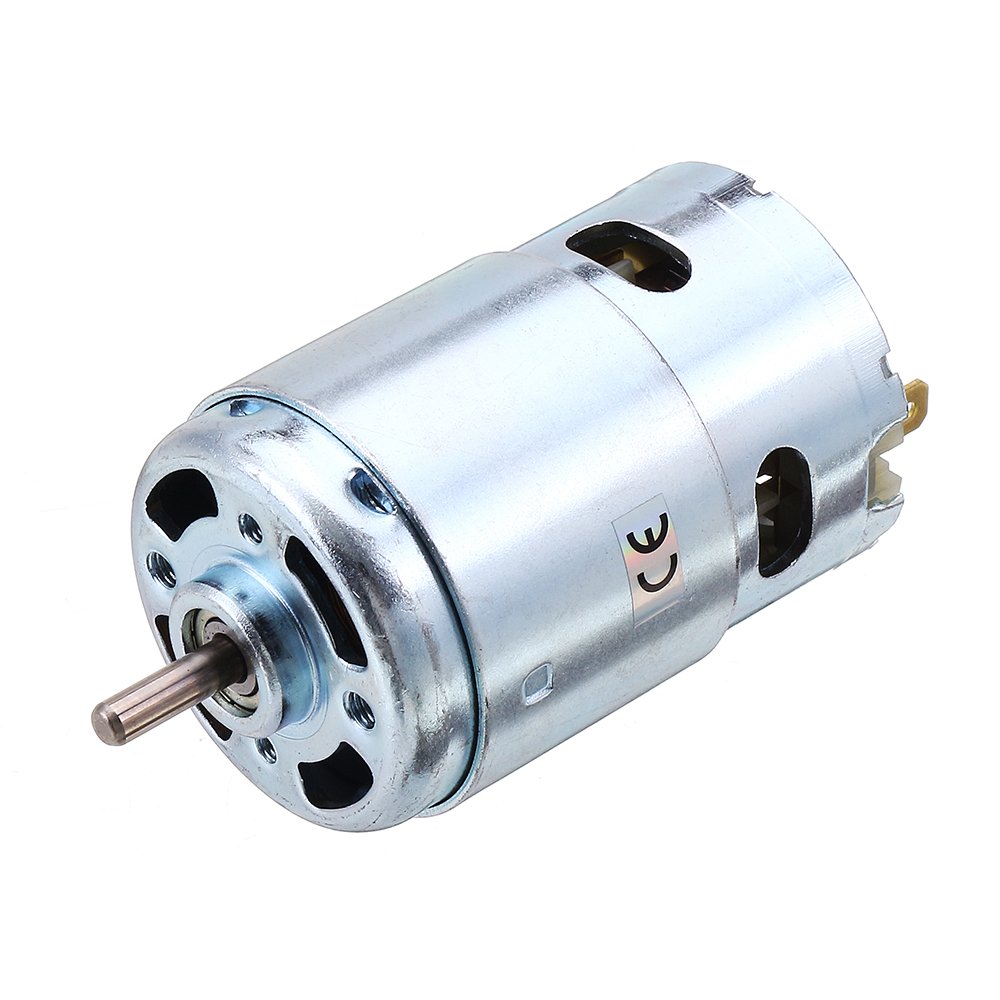

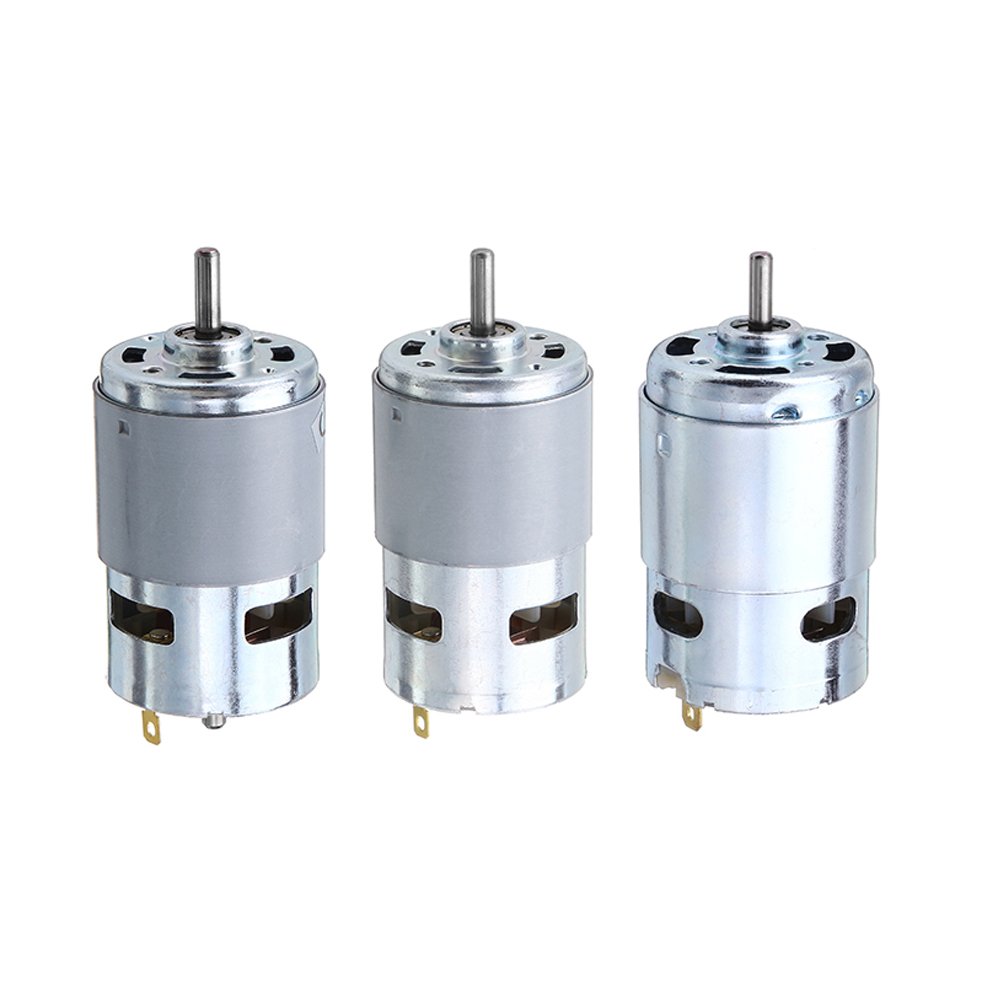

Machifit 775 795 895 Motor/Motor Bracket DC 12V-24V 3000-12000RPM Motor Large Torque Gear Motor
Specification:
| Type | Model |

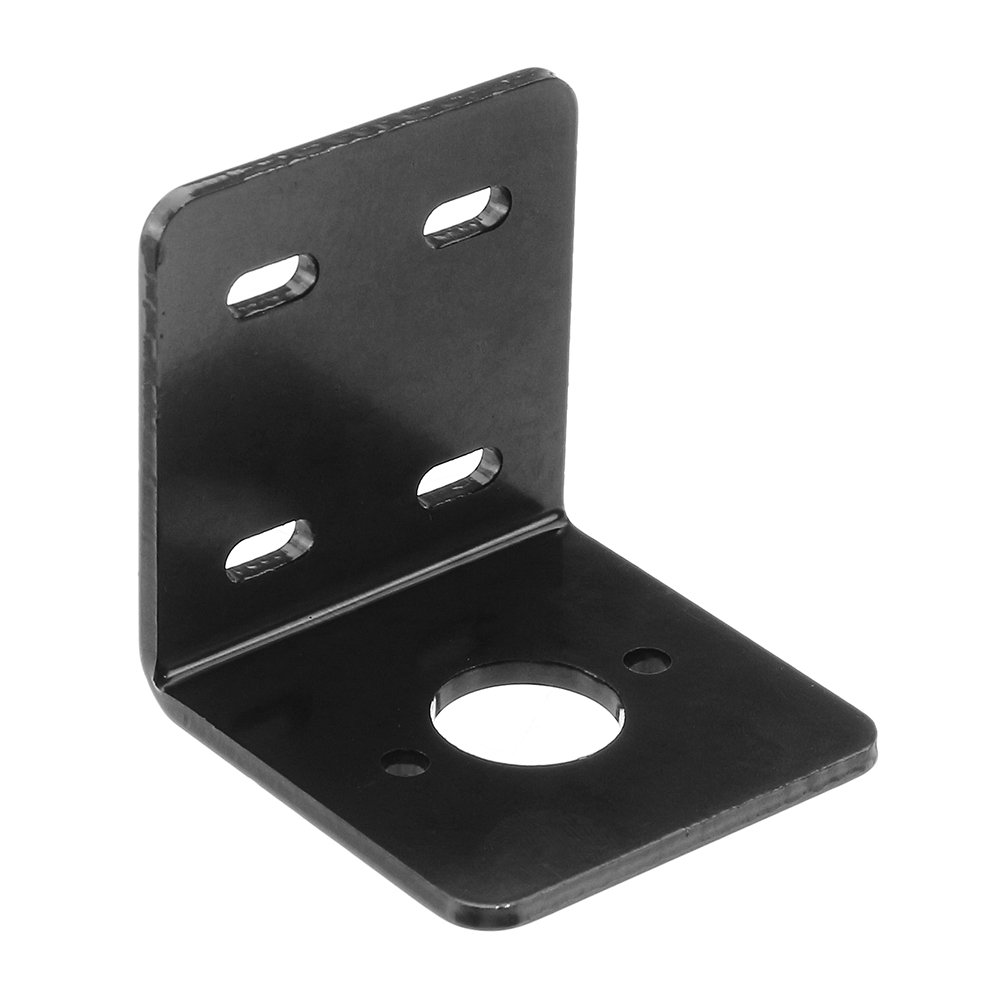

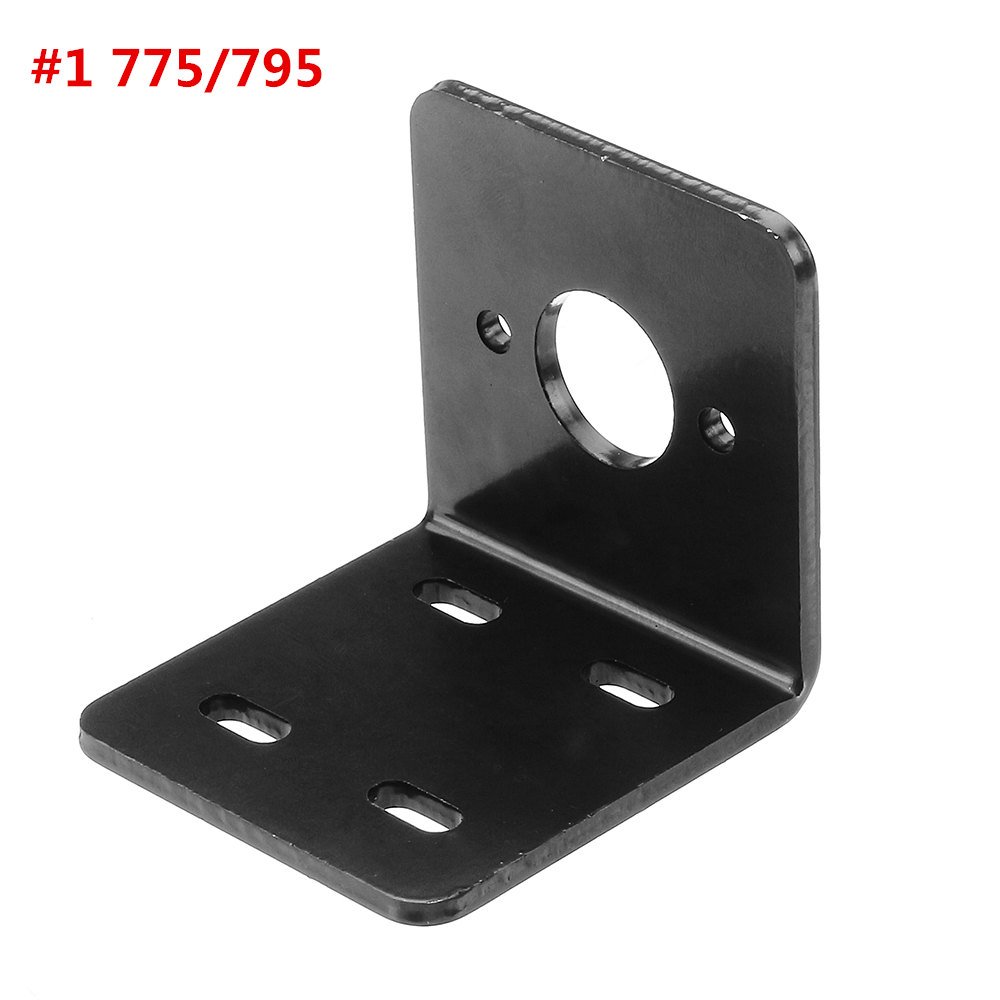

| #1 | 775/795 bracket |

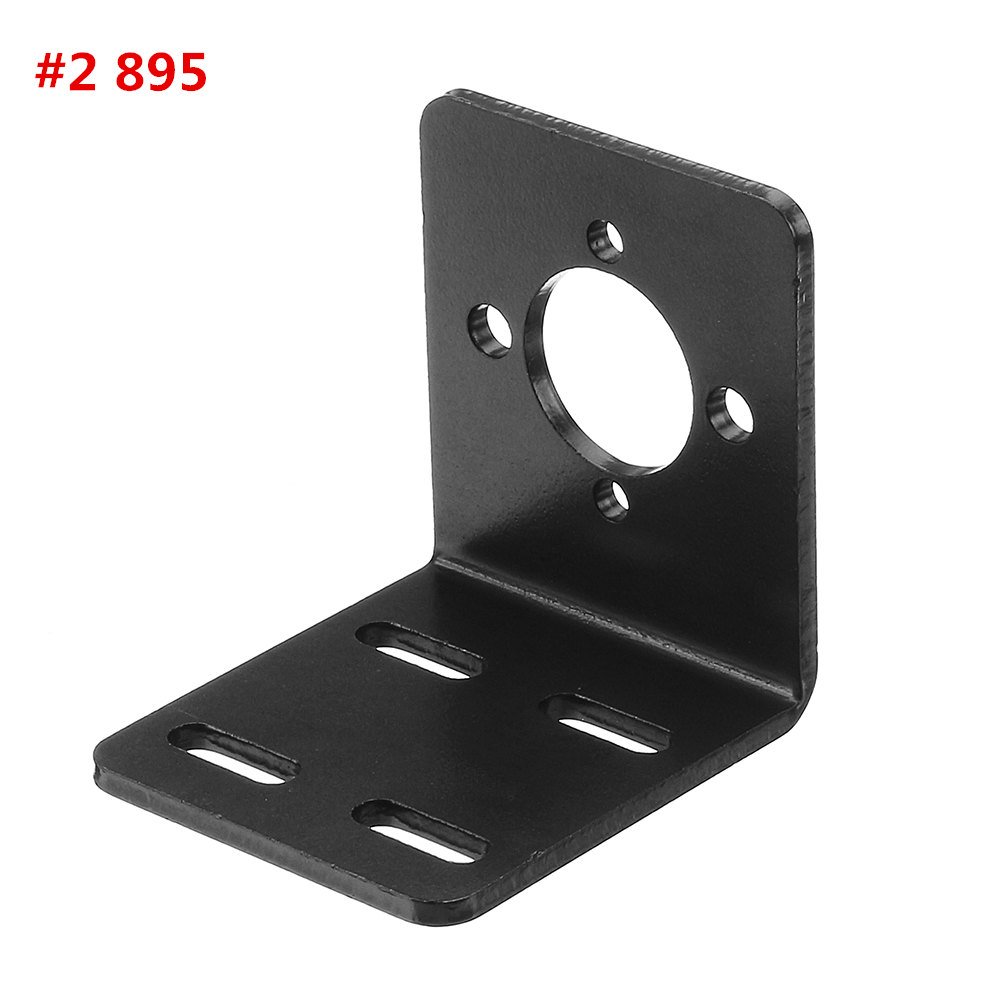

| #2 | 895 bracket |

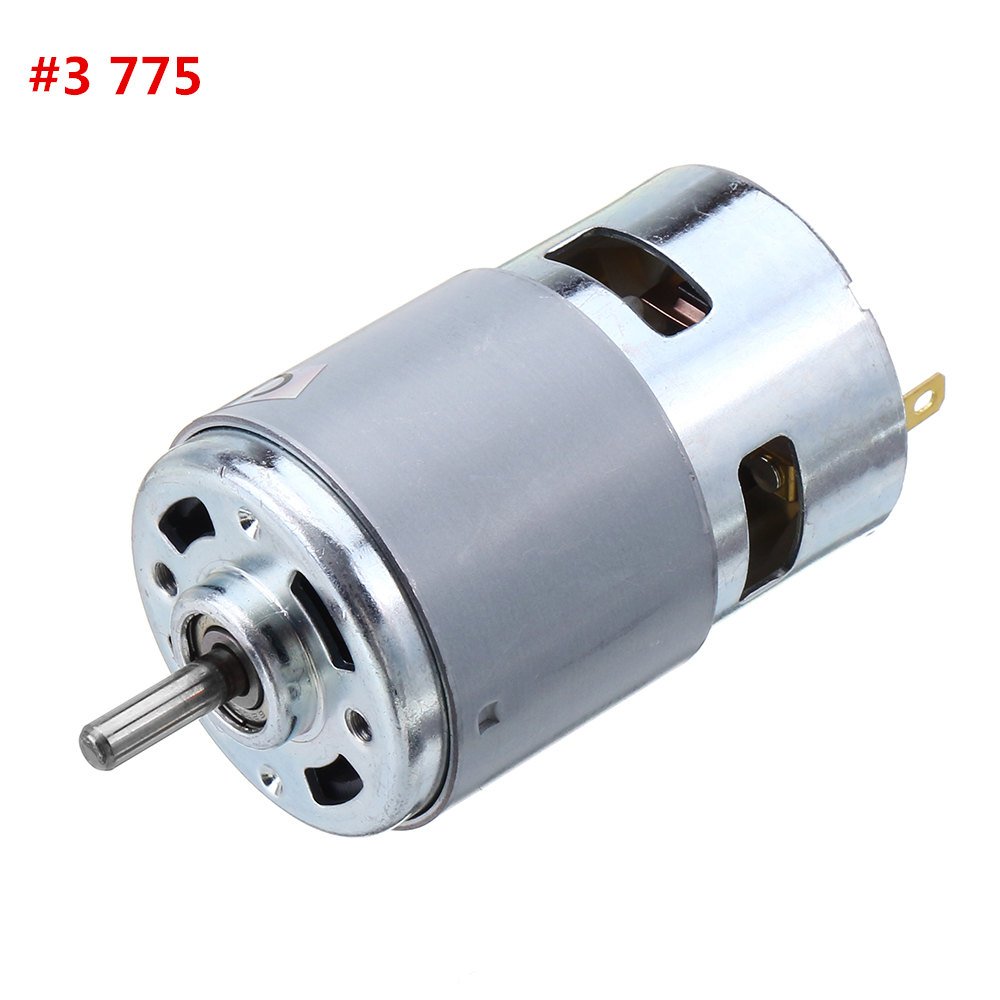

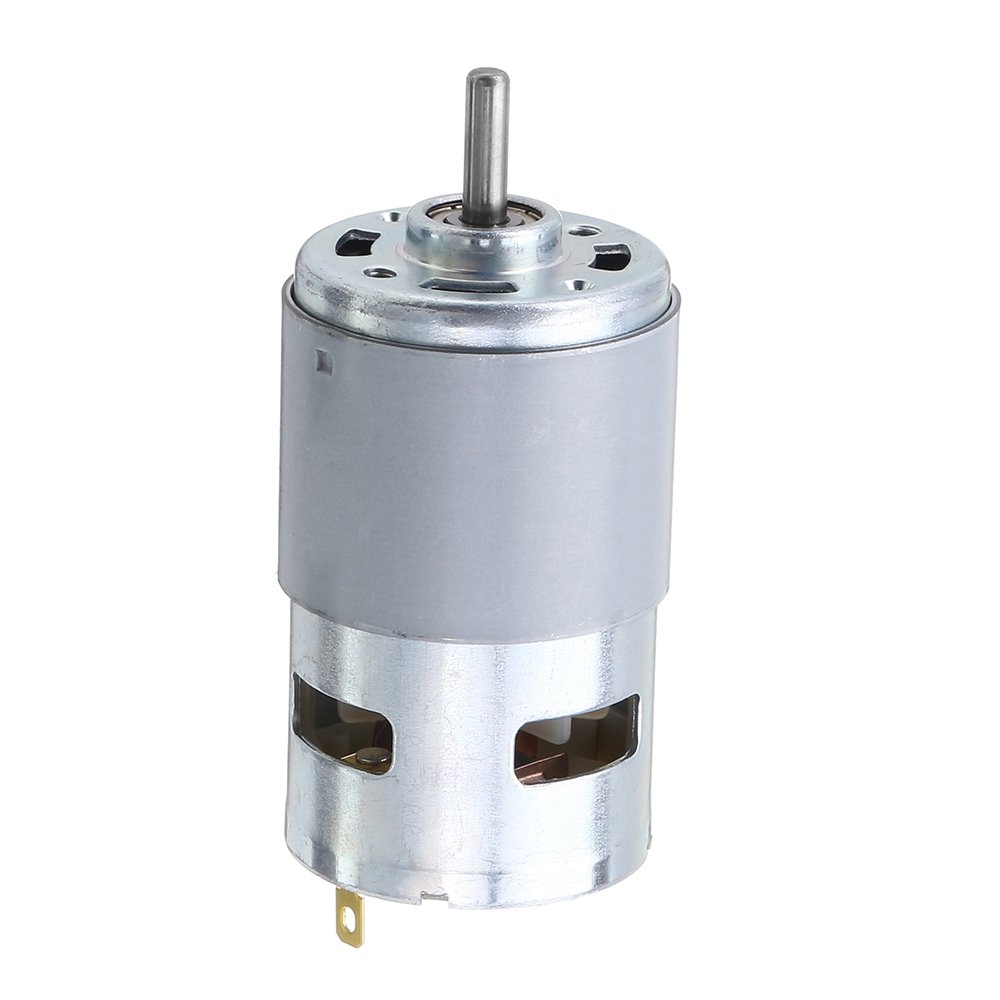

| #3 | 775 motor |
| #4 | 795 motor |

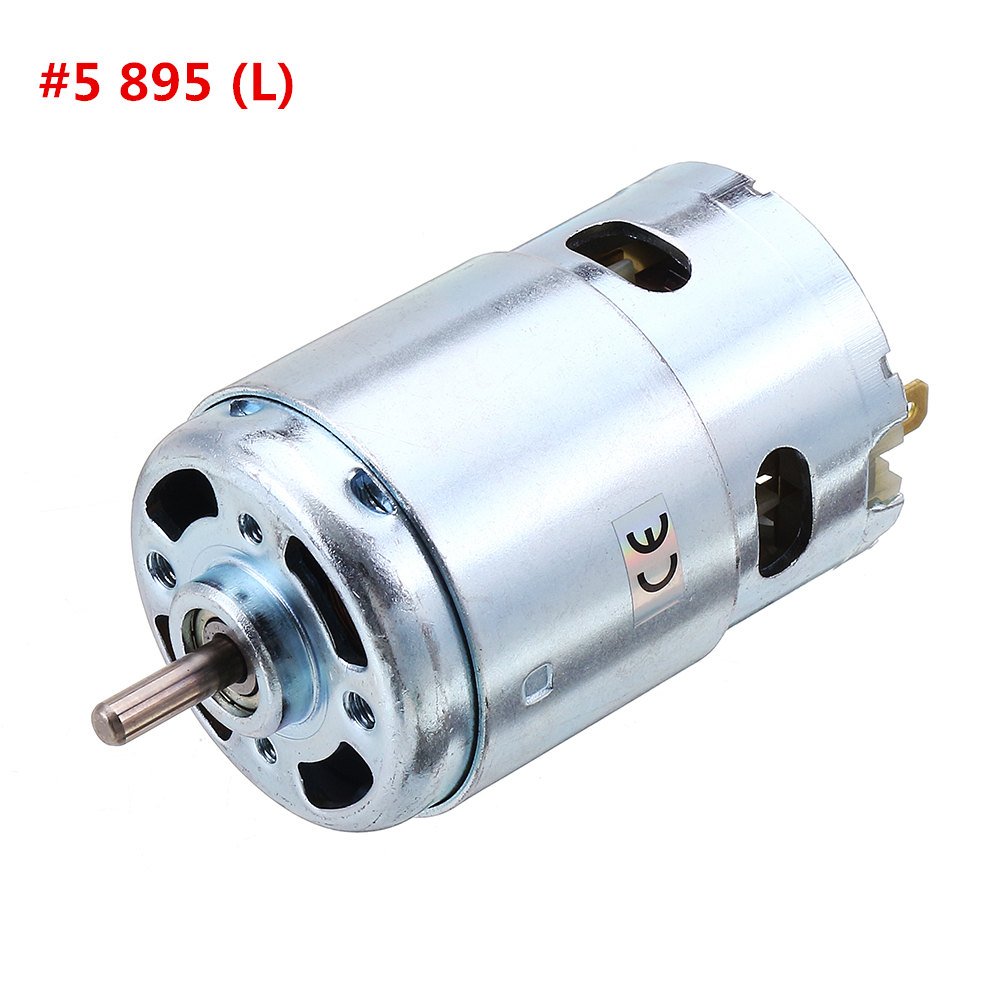

| #5 | 895 (low speed) |

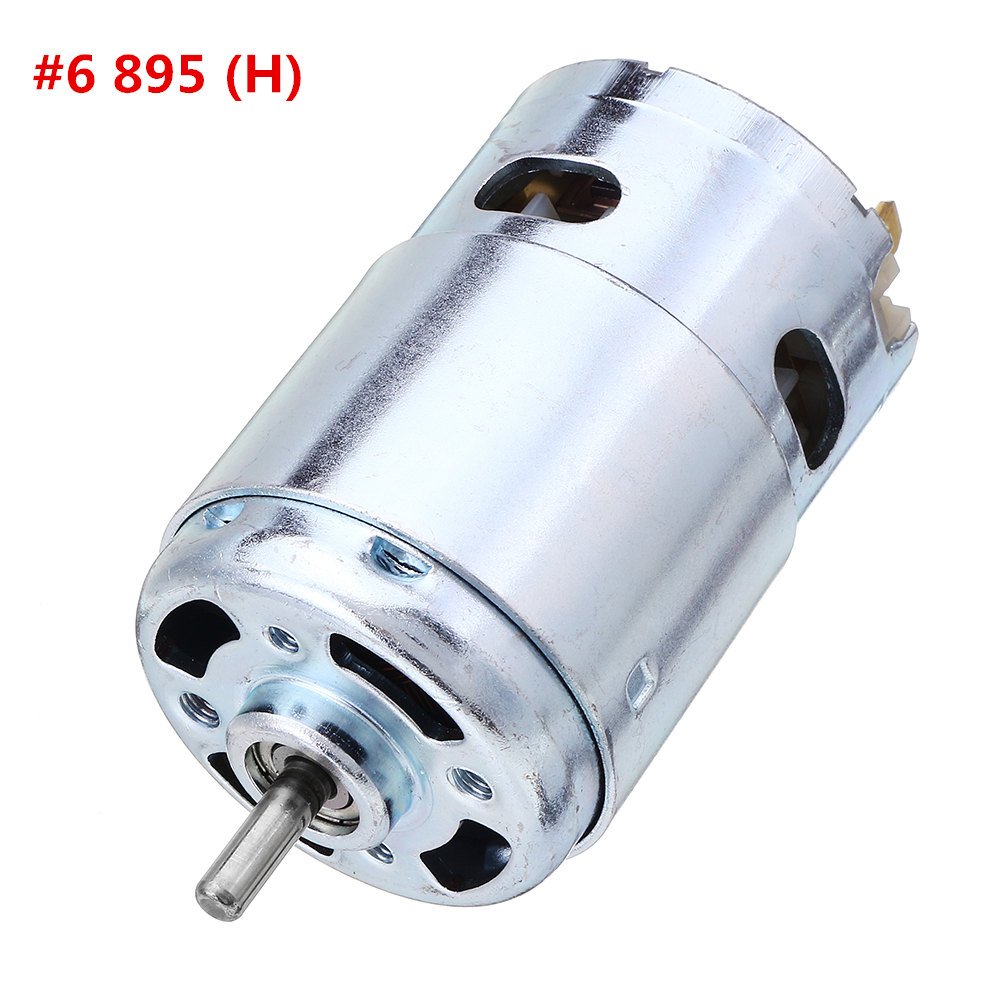

| #6 | 895 (high speed) |
| Model | 775 | 795 | 895 (low speed) | 895 (high speed) |
| Rated voltage | 12V | 12V | 12-24V | 12-24V |
| Speed |
12V 10000rpm
|
12V 11000rpm
|
12V 3000rpm 24V 6000rpm |
12V 6000rpm 24V 12000rpm |
| Torque | 3kg.cm | 4kg.cm | 12V: 5.2kg.cm 24V: 10kg.cm |
12V: 4.2kg.cm 24V: 8kg.cm |
| Former high level | 4.5mm | 4.5mm | 4.5mm | 4.5mm |
|
Front steps diameter
|
17.5mm | 17.5mm | 18mm | 18mm |
| Body diameter | 42mm | 42mm | 48mm | 48mm |
|
Shaft diameter
|
5mm | 5mm | 5mm | 5mm |
|
Body length
|
67mm | 70.5mm | 72mm | 72mm |
| Length of output shaft at tail | 6mm | 3mm | 6mm | 6mm |
|
Diagonal installation pitch
|
29mm | 29mm | 29mm | 29mm |
| Mounting hole size | M4 | M4 | M4 M5 | M4 M5 |
| Power | 150W | 180W | 200W | 200W |
| Model | 775/795 bracket | 895 bracket |
| Vertical surface | ||
| Thickness | 3mm | 3mm |
| Height | 52mm | 54mm |
| Width | 50mm | 50mm |
| Bottom plate | ||
| Length | 52mm | 54mm |
| Thickness | 3mm | 3mm |
|
Motor fixing hole
|
M4 | vertical hole:M4 29mm Cross bore: M5 32mm |
Features:
Starting current needs to above 10A.
Double ball bearings, high speed, large torque, low noise.
Built-in cooling fan.
Durable and long service life.
Suitable for mini cutting machine, sanding machine, lathe tool, milling machine, bench drill, electric hand drill, polishing machine, electric grinder, engraving machine, etc.
Note:
Please note that the package includes one item only.
Package Included:
1 x Motor
