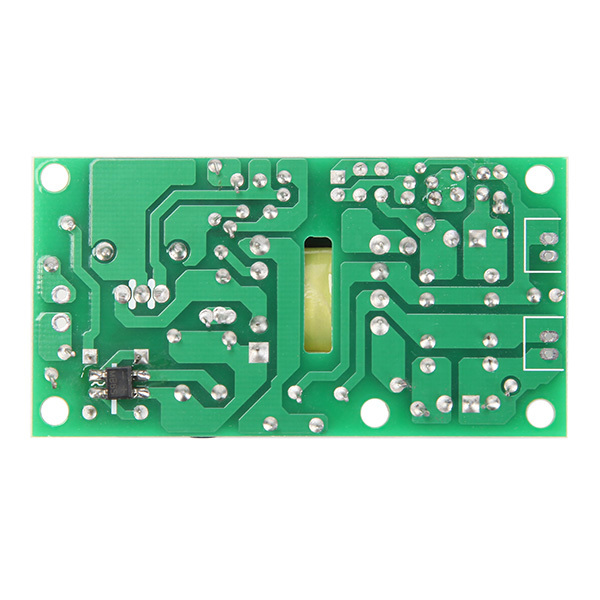

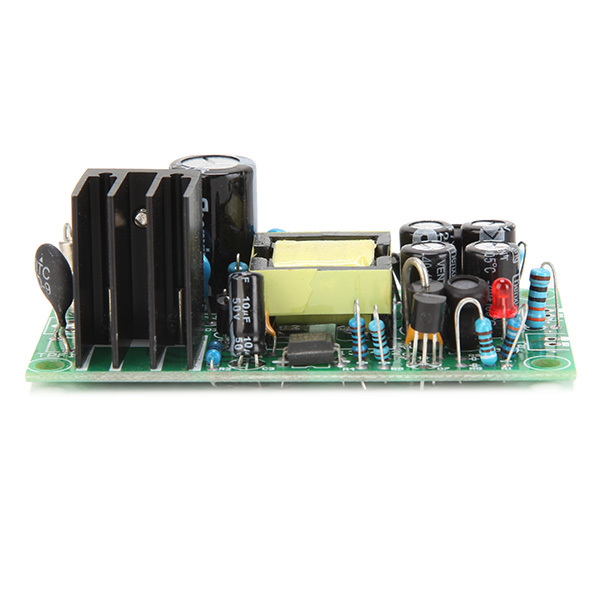

12V 5V Fully Isolated Switching Power Supply AC-DC Module 220V to 12V

or 6 weekly interest-free payments from $3.32 with Laybuy what's this?

$19.97 AUD

In stock

Estimated delivery between 2022/08/16 - 2022/08/23
Add to Wishlist
Add to Wishlist
SKU: C122-1000431 Category:

Description

12V 5V Fully Isolated Switching Power Supply AC-DC Module 220V to 12VFeature:The power supply is fully isolated industrial grade built-in power module with temperature protection, overcurrent protection and short circuit full protection, AC85 ~ 265V wide voltage input, high and low voltage isolation, DC12V1A 5V1A dual isolated output voltage, 431 regulated, output with EMI filter circuit, with light, with mounting holes, cost-effective.Working temperature: -20 ℃ to 60 ℃Relative humidity: 40% RH – 90% RHInput voltage range: 85V – 265V (typical: 110/220) (under full load conditions)Input Current: 0.027 (AC110V) 0.0136 (AC220V) (under full load conditions)Input surge current: 20A (under full load conditions)Size: 7.5 x 4.0 x 4.0 (cm)Output regulation characteristic:

Output voltage Minimum current Maximum current Peak current Output voltage range Ripple
+12V 0A 1A 1.2A 11.80~12.5V 150mV
+5V 0A 1A 1.2A 4.90~5.1V 80mV

Other output characteristics:

Item Unit Min Typical values Max Test Conditions
Output Power W 0 17 18.5 DC output power
Output efficiency %   84   Rated load
Boot shutdown overshoot %     10
The output rise time mS     100

Protection:

Item Unit Yes/No Min Typical values Max Recovery characteristics
Output voltage V   13   13.5 Lock, restart after recovery
    5   5.4 Lock, restart after recovery
Output Power Protection   Yes 17   19 Lock, restart after recovery
Short circuit protection   Yes       Lock, restart after recovery
Temperature Protection   Yes 90°C   105°C Lock, restart after recovery
Overcurrent protection   Yes       Lock, restart after recovery

Package included:1 x Fully Isolated Switching Power Supply

,

Additional information

Weight 0.05 kg
MPN

1000431
