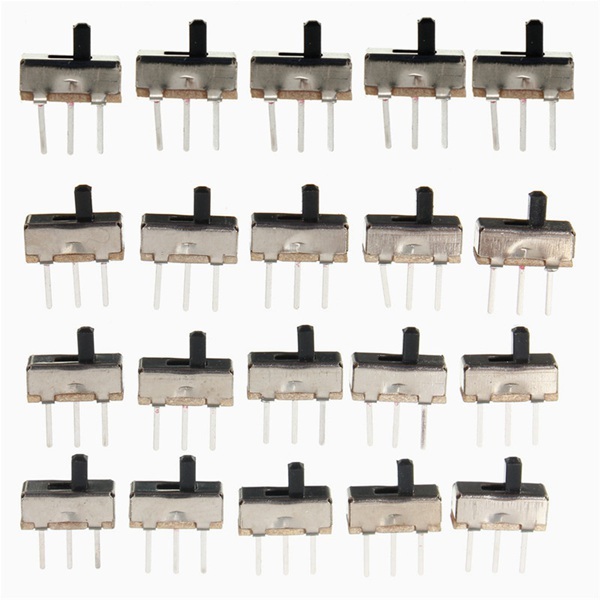

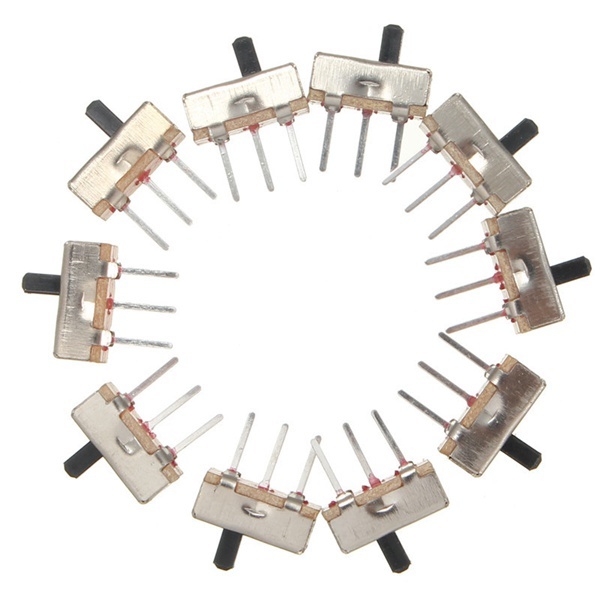

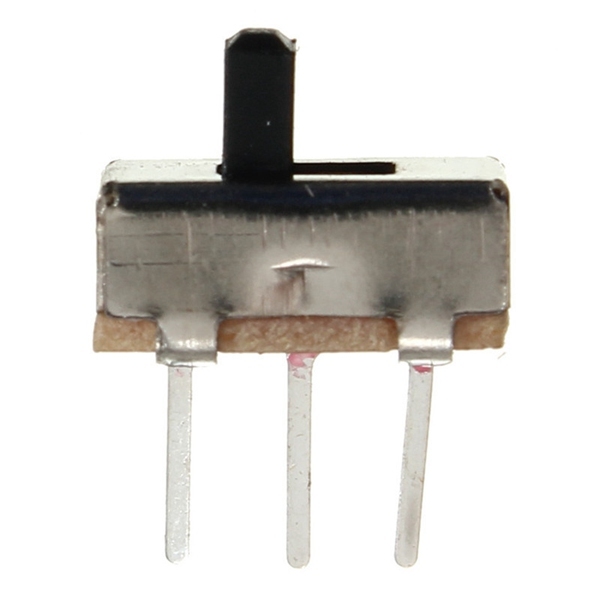

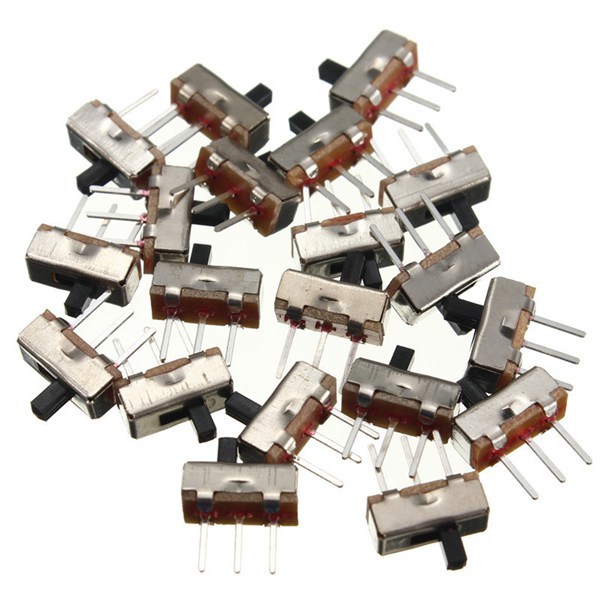

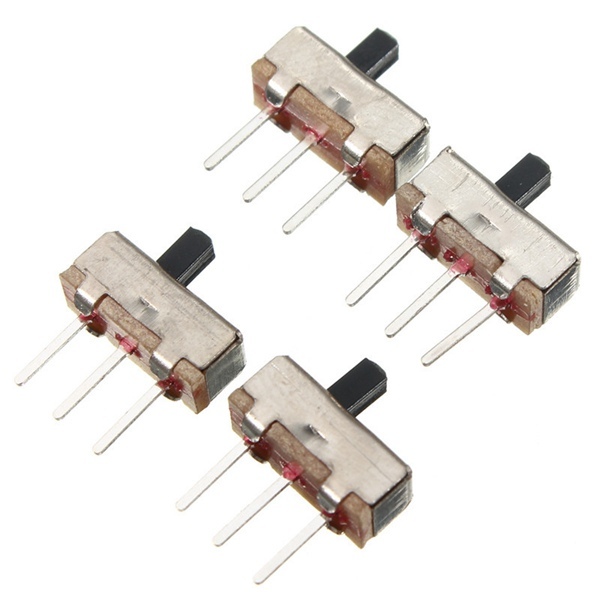

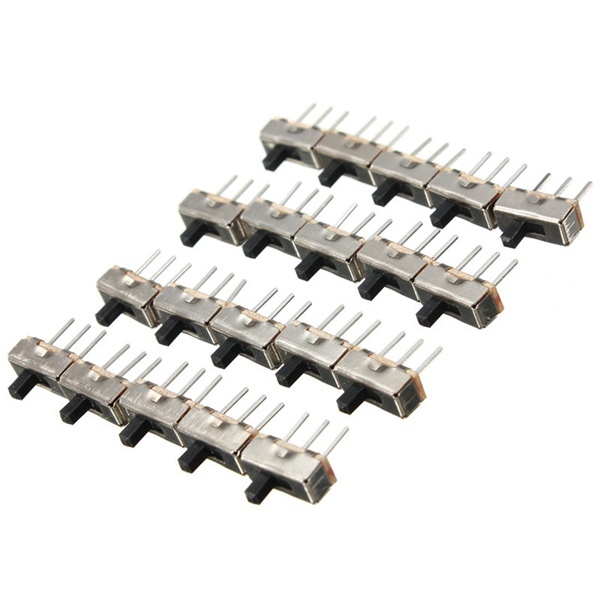

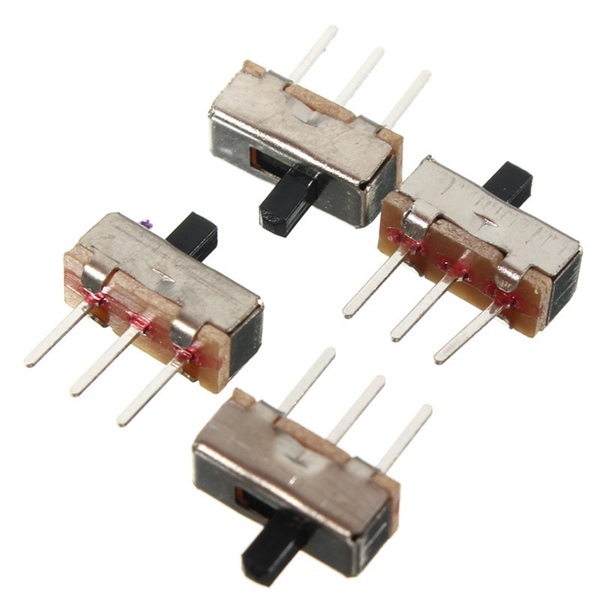

20pcs SS12D00G3 2 Position SPDT 1P2T 3 Pin PCB Panel Mini Vertical Slide Switch

or 6 weekly interest-free payments from $18.15 with Laybuy

$99.05 AUD

In stock

Estimated delivery between 2024/04/18 - 2024/04/25
Add to Wishlist
Add to Wishlist
SKU: C122-1000847 Category:

Description

Specification:
Model: SS-12D00G3
Type: 1 Pole 2 Throw
Terminal Quantity: 3pcs
Working Power : 0.5A 50V DC
Contact Resistance: 30mΩ Max
Insulation Resistance: 100mΩ Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Terminal Length: 3mm/ 0.12″
Pin Pitch: 2.54mm / 1″
Main Body Size(not include Pins & Knob): 8 x 4 x 3.8mm/ 0.31″ x 0.16″ x 0.15″(L*W*H)
Switch Total Size: 8 x 4 x 10mm/ 0.31″ x 0.16″ x 0.39″(L*W*H)
Knob Size: 1.5 x 1.5 x 3mm/ 0.06″ x 0.06″ x 0.12″(L*W*H)
Package included:
20 x Slide switch
,,,
