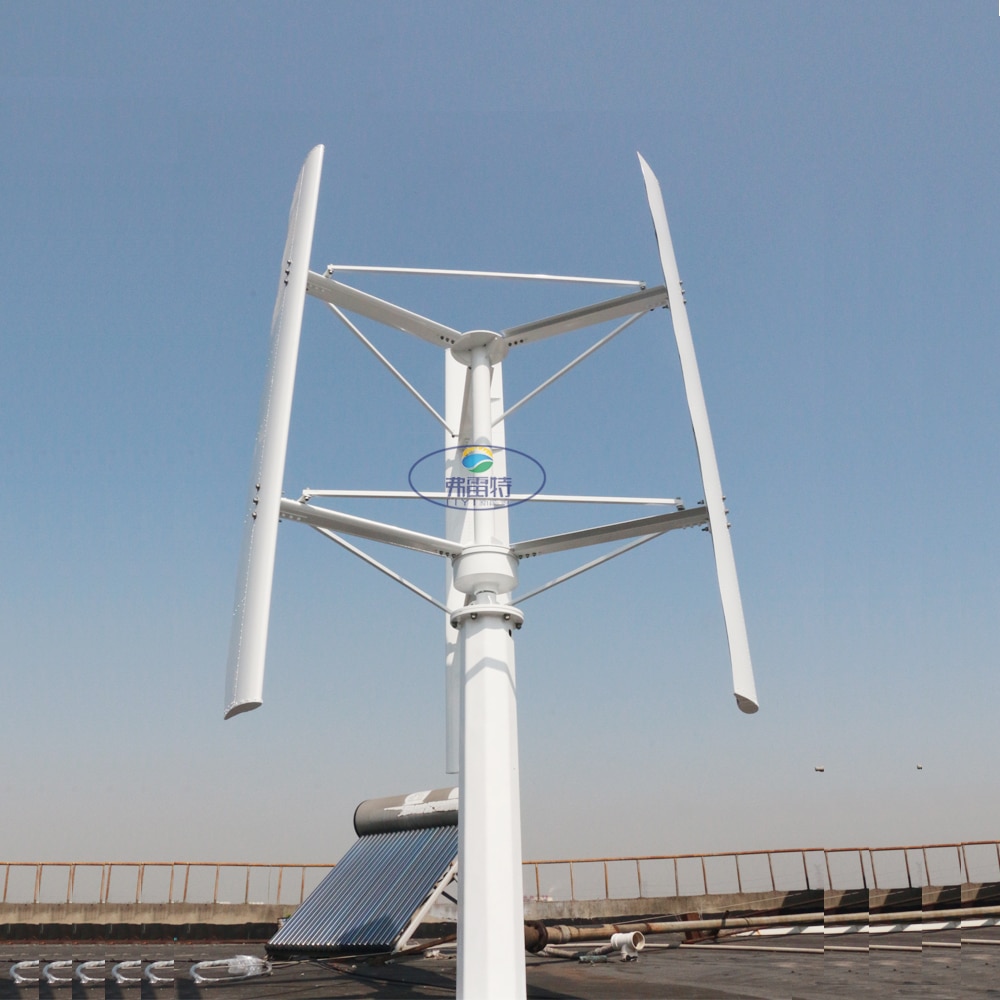

2KW Vertical Wind Turbine 250 RPM wind generator 24v 48v 96v 3 phase 50HZ 3 blades no noise home use wind turbine for home use

or from $23,030.21 today & 5 weekly interest-free payments of $240.00 with Laybuy

Brand Name: FLTXNY
Model Number: FH-2000
is_customized: Yes
Type: Wind Power Generator
Place of Origin: Jiangsu, China (Mainland)
color: white
generator: 3 phase rare earth permanent magnet generator
voltage: 24v/48v

$24,230.21$26,041.15 AUD

Estimated delivery between 2024/05/03 - 2024/05/10
Add to Wishlist
Add to Wishlist
SKU: 22776 Category:

Description

Features

1. Security. Using the vertical blade and triangular double-fulcrum design, the main force points concentrated in the hub, so blade lose, broken and leaf flying-out and other issues have been a better solved.



2. Noise. The use of horizontal rotation and blade application aircraft wing design, making the noise reduced to an unperceivable level in natural environment.



3. Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure, so that it can withstand 45 m/s super typhoon.



4. Rotation radius. Because of its design structure and special operating principle, it has a smaller radius of rotation than other types of wind turbines, it saves space, while improving efficiency



5. Power generation curve characteristics. Start wind speed is lower than other types of wind turbines, the power generation increasing rate is relatively gentle, so between 5 to 8 meters wind speed range, it could produce 10% to 30% power than other types of wind turbines.



6. Effective wind speed range. special control principle makes its effective wind speed range expened to 2.5 ~ 25m / s, in the maximum use of wind resources, obtain a higher power generation, improve wind power investment economics.



7. Brake device. The blade itself has speed protection, and can configure manual mechanical and electronic brake meantime, in the absence of typhoon and super gust area, manual brake is enough.



8. Operation and maintenance. Direct drive type permanent magnet generator, without gear box and steering mechanism, regularly(usually every six months)  check the connection of the running parts.



9. Appliacation. The turbine could be installed near facilities, such as residences, parks, schools, building rooftops, roads and walking street, etc





Specifications



item FH-1000 FH-1500 FH-2000 FH-3000 FH-4000 FH-5000 FH-10000
Started wind speed (m/s) 2.5 m/s 2.5 m/s 2.5 m/s 2.5 m/s 2.5 m/s 2.5 m/s 2.5 m/s
Rated Wind speed (m/s) 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 14m/s
Rated voltage(DC) 24/48/96V 24/48/96V 24/48/96V 48/96v 96/110/120V 220V 380V
Rated power(W) 1000W 1500W 2000W 3000w 4000W 5000w 10000W
Max power(W) 1200W 1700W 2500W 3500w 4500W 6500w 12000W
Wheel diameter(m) 1.8m 2m 2m 2.0m 2.2m 2.2m 5m
Blades Height(m) 2.2m 2.4m 2.6m 2.8m 3m 3.6m 6m
Gross Weight(Kg) 130kg 160kg 217kg 290kg 320kg 400kg 750kg
Safe wind speed (m/s)   40m/s  40m/s 40m/s 40m/s 40m/s 40m/s 40m/s
Blades quantity 4 3 3 3 3 3 3
Packing size 2370*320*530mm 2570*320*530mm 2870*380*530mm 2870*380*530mm 3170*380*530mm 3670*650*750mm 6200*650*750mm
1270*460*530mm 1270*460*530mm 1270*460*540mm 1450*480*590mm 1650*480*590mm 2450*580*690mm 2650*580*690mm
Control System Electromagnetic/automatic adjust the Angle as per the wind
Mount Height(m) 2-9m (9m)
Generator protection grade IP54
Work environment temperature  -40~+80℃
Work environment humidity  ≤90%
Altitude: ≤4500m
lubrication mode Self-lubrication
Yaw method

Speed self-protection, manual hydraulic brake, electronic brake





51

Additional information

Weight 160.0 kg
Dimensions 260.0 × 120.0 × 80.0 cm
Voltage

120V, 24V, 48V, 96V

Brand Name

FLTXNY

Wattage

1000W, 1500W, 2000W

Type

Wind Power Generator

Place of Origin

Jiangsu- China (Mainland)

color

white

generator

3 phase rare earth permanent magnet generator

is_customized

Yes

Model Number

FH-2000
