Description
Specification:
| General Specification | |

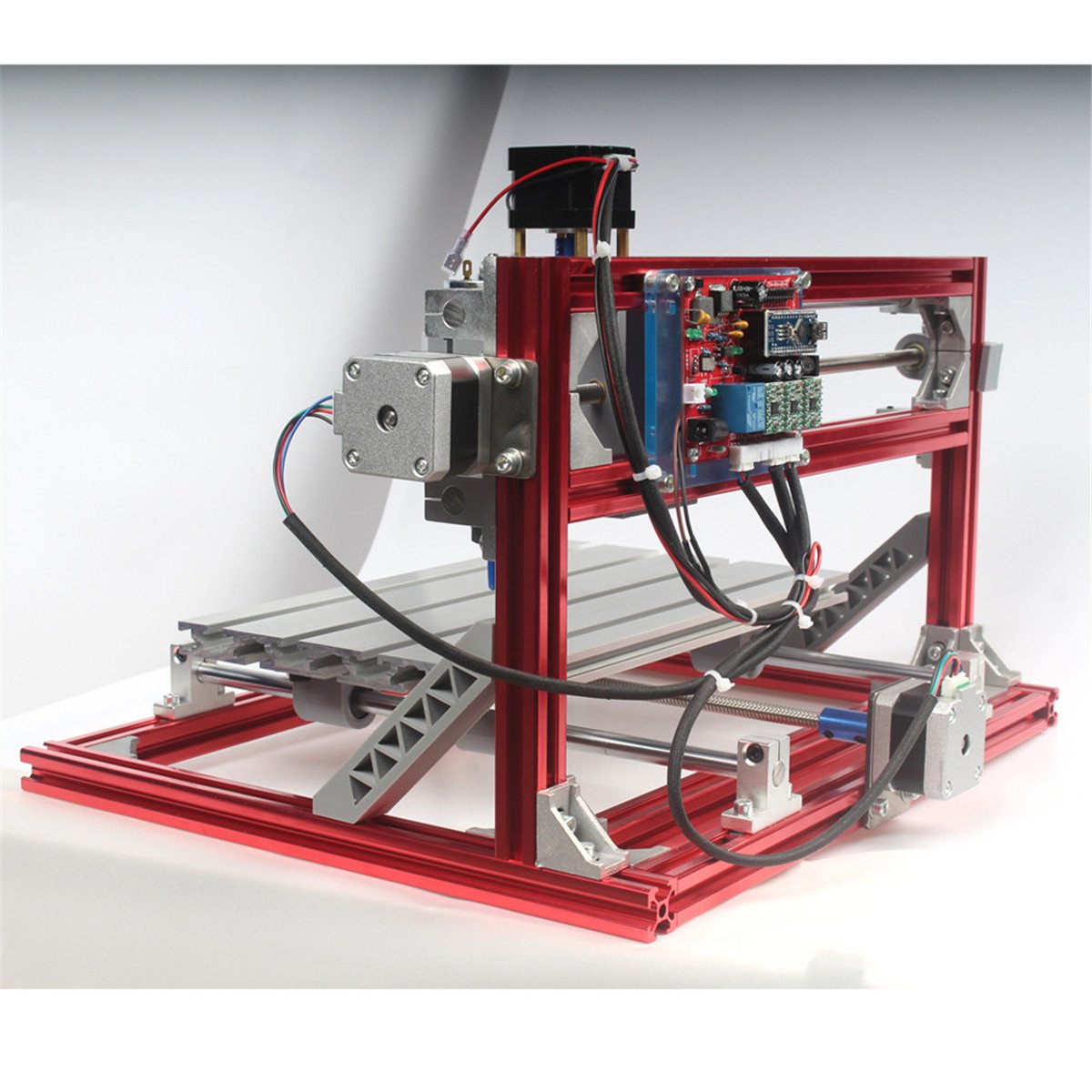

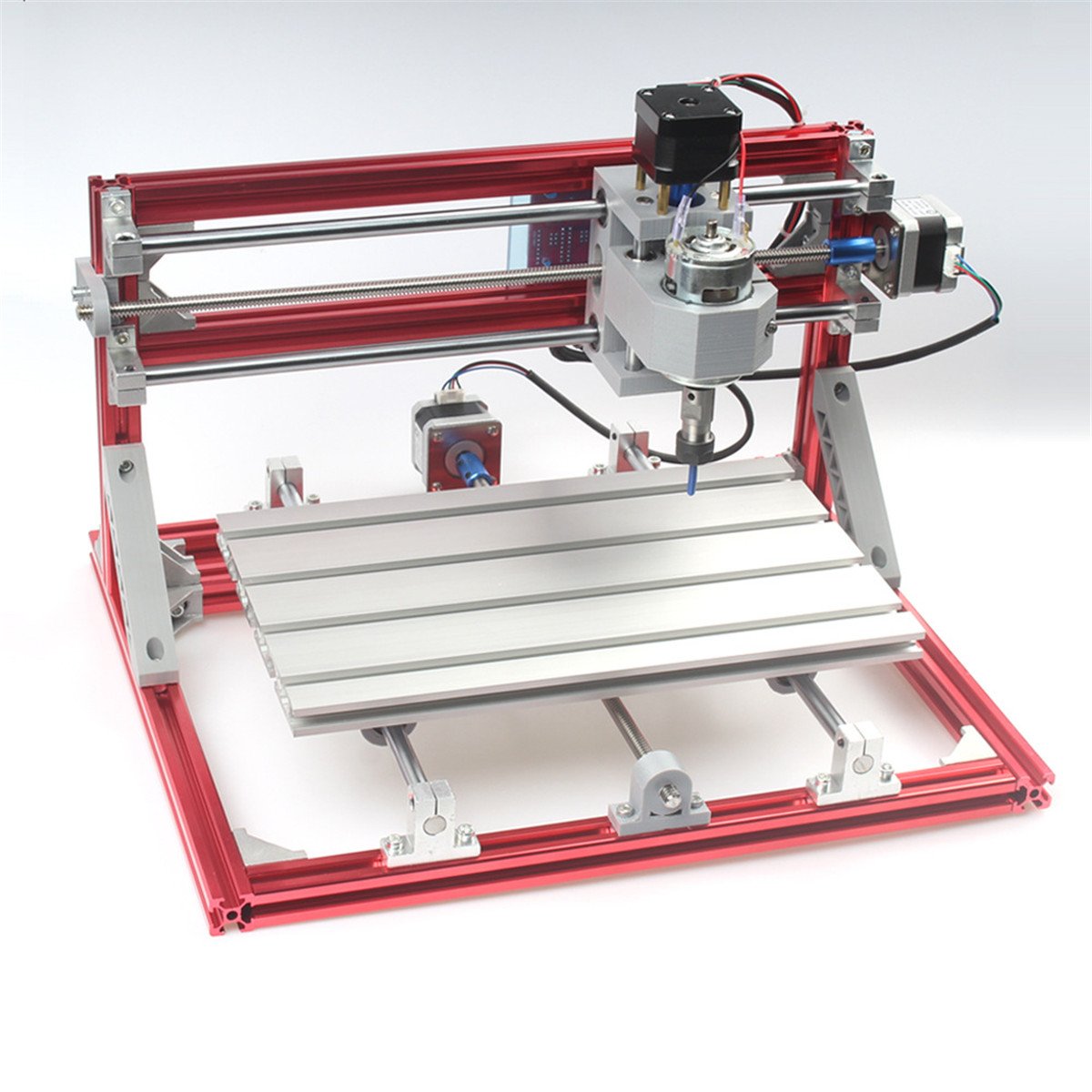

| Model | Mini CNC3018 (Without Laser Module) |
| Frame Material | Aluminum Alloy |
| Color | Red |
| Table Area | Approx. 340x160mm |
| Working Area | Approx. 340x160x40mm |
| Product Weight | 9kg |
| Control Software for Spindle | GrblControl |
| Control Software for Laser | Litefire |
| System Requirements | Windows XP SP3, Win7, Win8, Win10. |
| Adapter Plug | 3-Pin AU Plug |
| Adapter Input Voltage | AC 110-240V 50/60Hz |
| Adapter Output Voltage | DC 24V 4A |
| Features | 1. Aluminum Profile Stable Construction 2. 3 Axis Movable, Powerful Spindle Motor 3. Contains Quickstart Guide of GRBL Software 4. 340x160x40mm Working Area, Meet Most Amateur DIY Needs 5. Engrave Wood, Plastic, Acrylic, PCB, or Similar Material Can Not Engrave Metal, Steel, Aluminum. |
| Technical Parameters | |
| Working Voltage | DC 24V |
| Interface | USB |

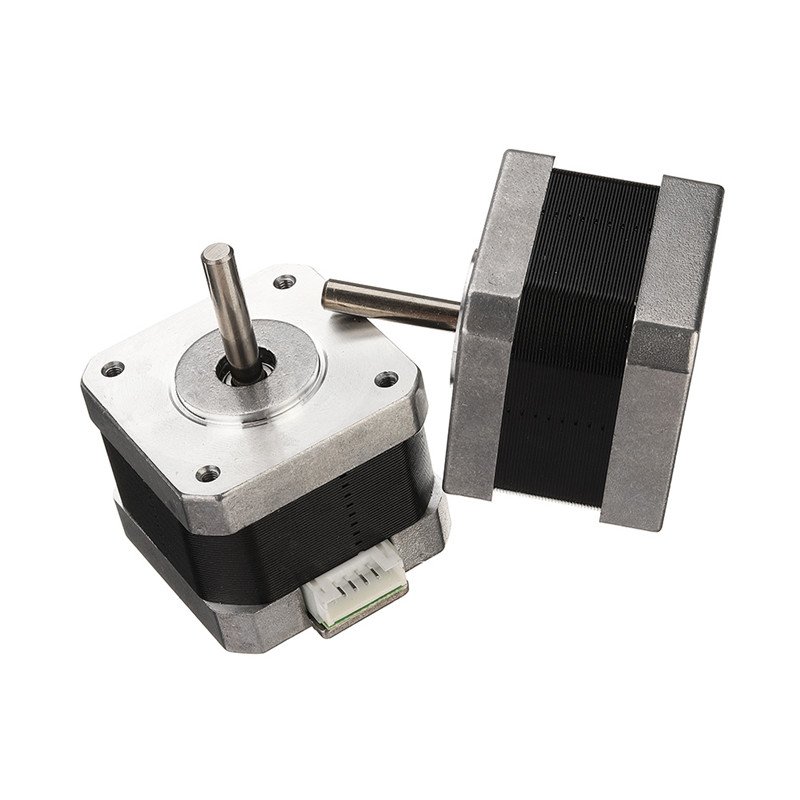

| Stepper Motor | 42 Stepper Motor, Voltage: 12V, Phase Current 1.3A, Torque 0.25N.m |

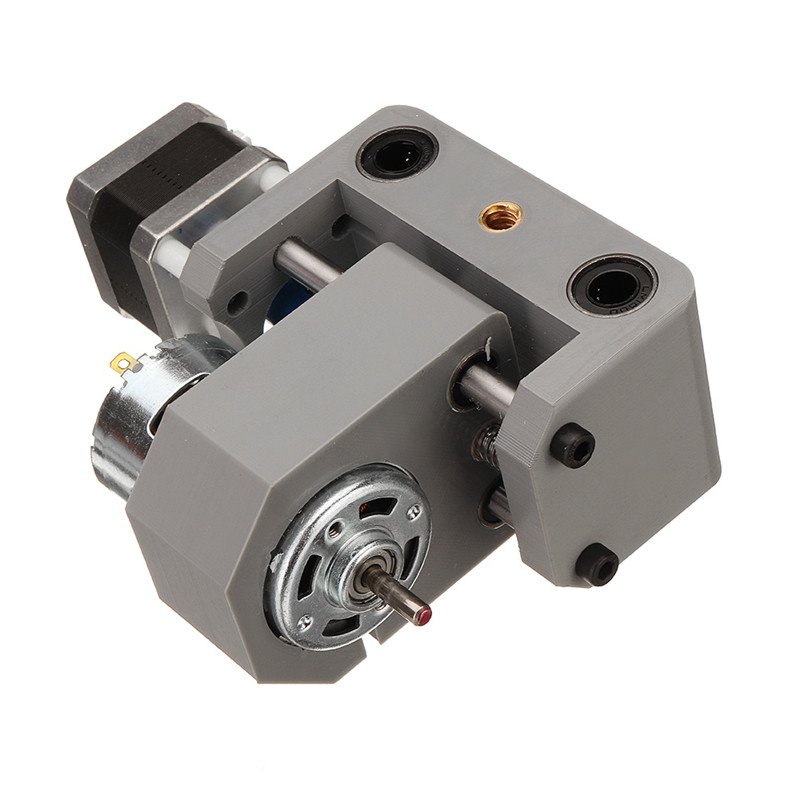

| Spindle Motor | 775 Spindle Motor (12-36V) 24V: 7000r/min, 36V: 9000r/min |
Features:
– Assembly requires a certain mechanical skill. All assembly components are included.
– Engraving Materials: The machine can carve wood, plastic, acrylic, PCB, or the like materials.
– Can Not Engrave: Hard metal (such as brass, steel, iron, etc), jade and other very hard texture items.
Note:
1. Instructions & Software: Assembly instructions, control software and further information please CLICK HERE

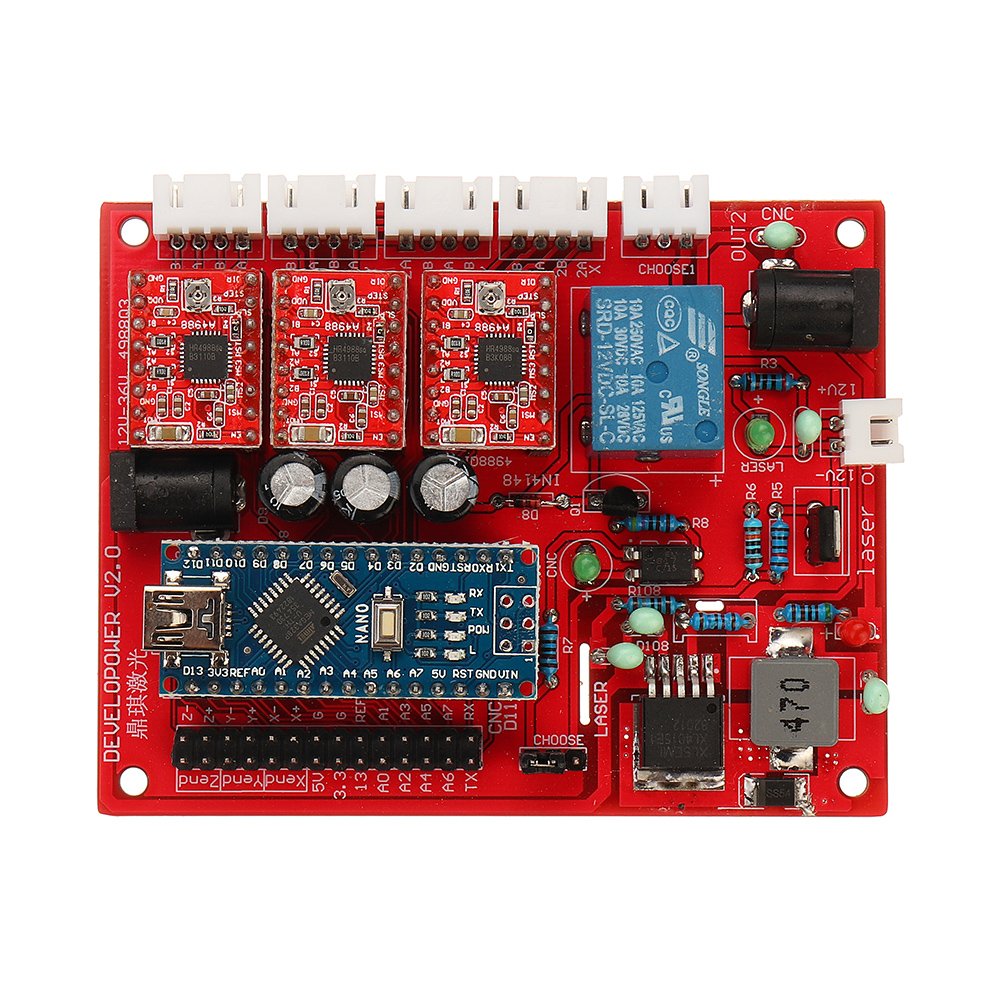

2. This item contains the spindle motor, but no laser module. If you want to use laser for engraving, you can buy it additionally. Thanks for your understanding, and please note that the input interface (Should be XH2.54-3P or XH2.54-2P) and input voltage (Should be DC 12V) of the laser module should be compatible with the control board on 3018. Besides, the original motor holder is round, please make sure the shape of your laser module is suitable for installation.
Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer: ID: 1386316
Now we recommend the laser module (2500mW Blue Laser Module) produced by the original manufacturer: ID: 1386316
Package Included:

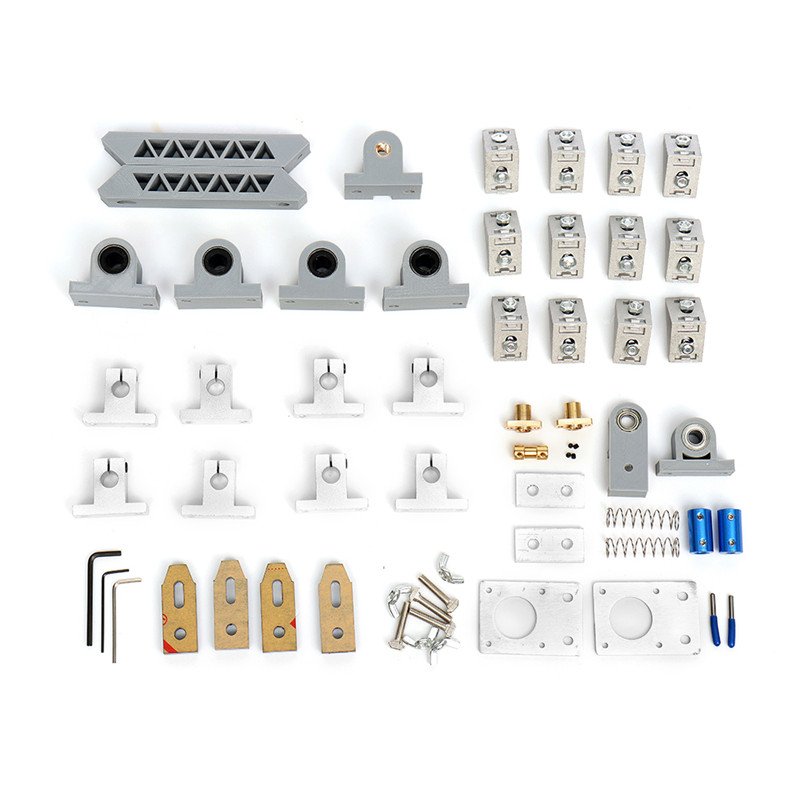

1 x Wood Engraving Machine Full Set (Unassembled Delivery)
