Description

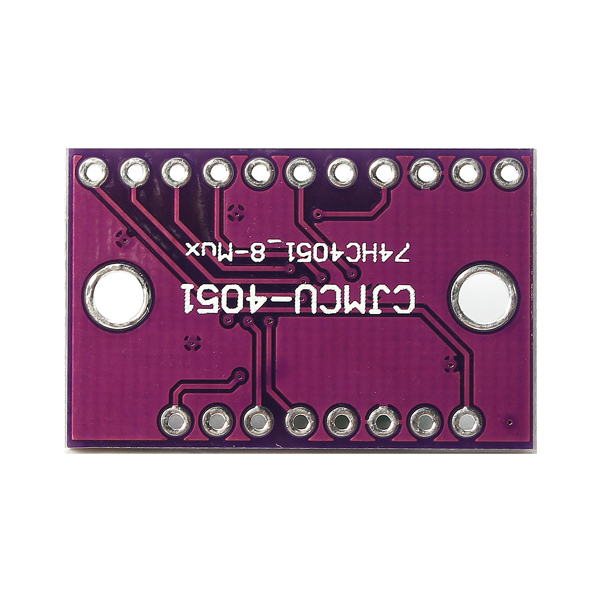

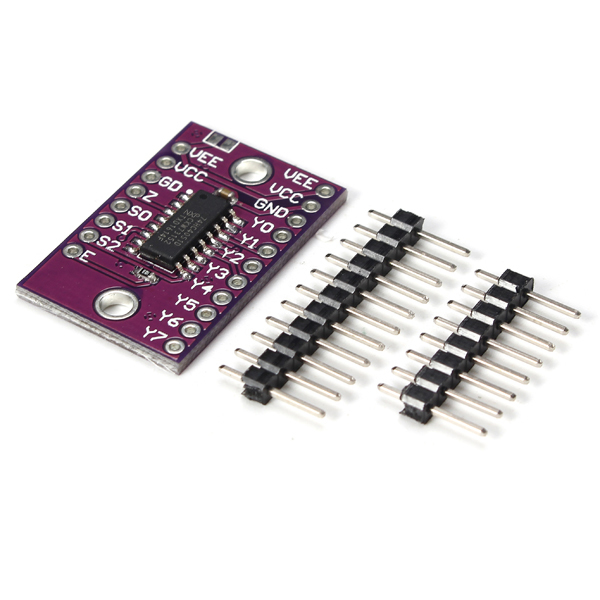

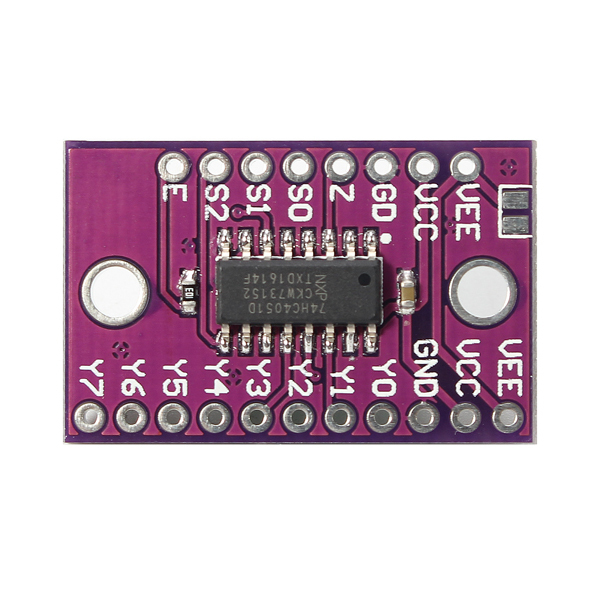

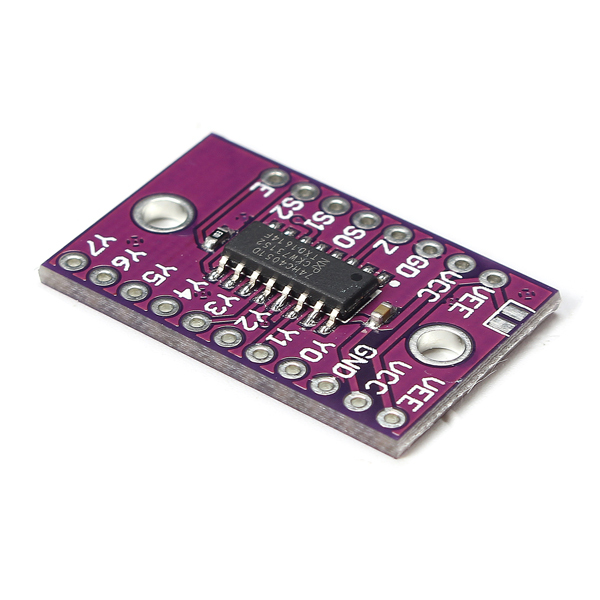

Description: 74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable foruse in analog or digital 8:1 multiplexer/demultiplexer applications. The switch featuresthree digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), acommon input/output (Z) and a digital enable input (E). When E is HIGH, the switches areturned off. Inputs include clamp diodes. This enables the use of current limiting resistorsto interface inputs to voltages in excess of VCC.Features: Wide analog input voltage range from -5 V to +5 VComplies with JEDEC standard no. 7ALow ON resistance:  80 ohm (typical) at VCC – VEE = 4.5 V  70 ohm(typical) at VCC – VEE = 6.0 V  60 ohm(typical) at VCC – VEE = 9.0 VLogic level translation: to enable 5 V logic to communicate with±5 V analog signalsTypical ‘break before make’ built-inESD protection:  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V  CDM JESD22-C101E exceeds 1000 VMultiple package optionsSpecified from -40℃ to +85℃ and -40℃ to +125℃ Package included:3 x CJMCU-4051 74HC4051 8 Channel Analog Multiplexer Module
