Description

Description:

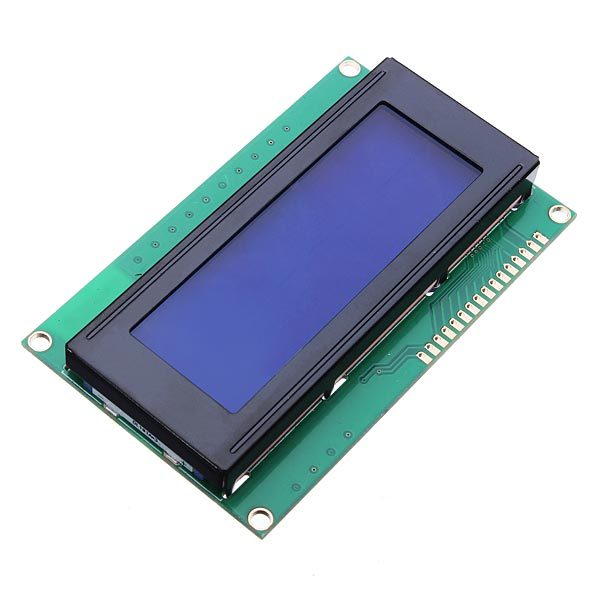

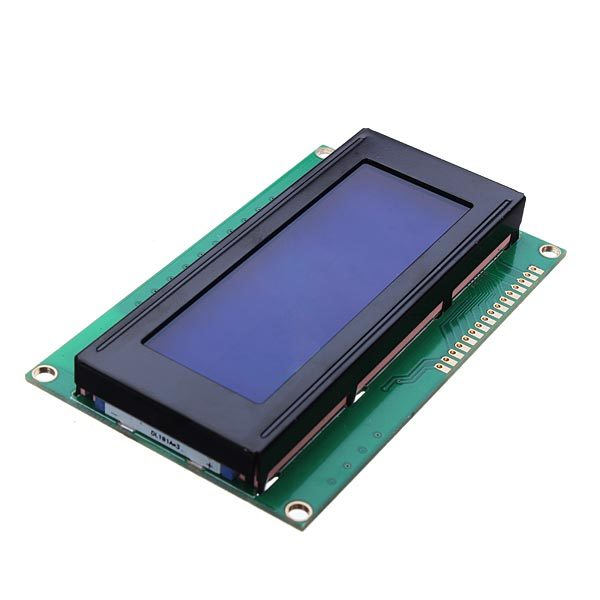

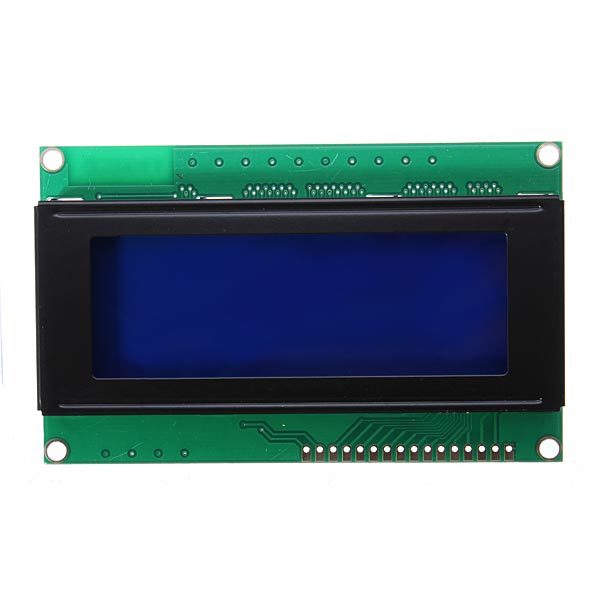

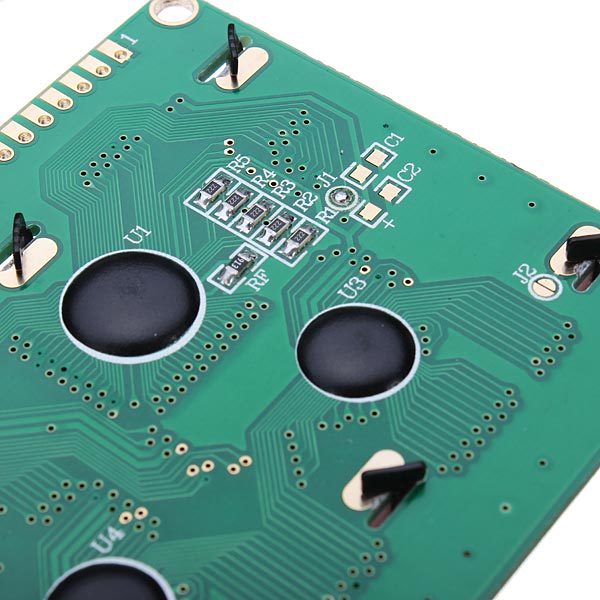

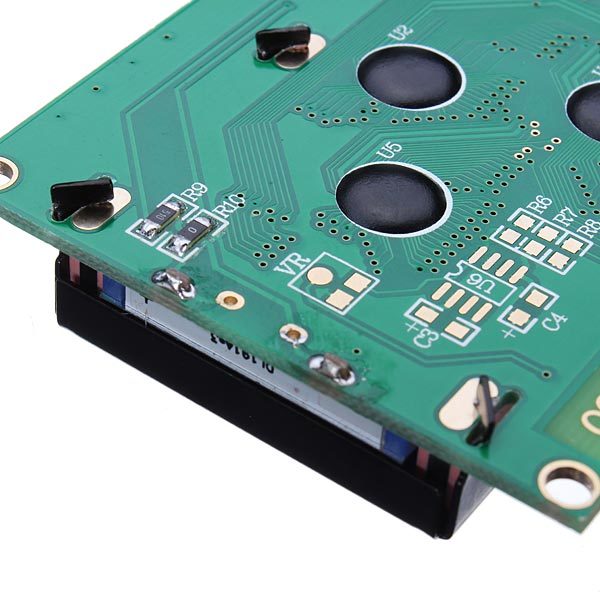

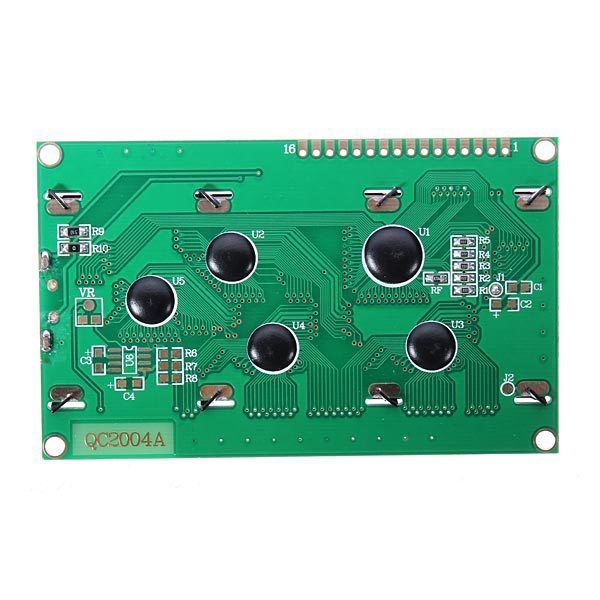

The 2004A character LCD module is designed to display letters, numbers, symbols, dot matrix. It can display 4 lines of 20 characters. Support 4-bit and 8-bit data transfer mode. Offers 5×7 matrix + cursor display mode. Providing display data buffer DDRAM, character generator CGROM and CGRAM. CGRAM can be used to store up to eight 5×8 dot matrix character font data graphic own definition. Provides a rich instruction set: clear display, cursor back to origin, display on / off, cursor on / off, display character blink, cursor shift, display shift and so on.

Specification:

Module size(W x H x T): 98.0 x 60.0 x 14.0mm
Viewing area(W x H): 76.0 x 26.0mm
Character size(W x H): 2.94 x 4.74mm
Dot size:(W x H): 0.54 x 0.54mm
LCD type & color: STN(Blue), FSTN
View angle: 6 O’clock
Display type: positive / negative type
Control IC & package: KS0073 or EQV, COB
Operating temperature: -20°C – +70°C
Storage temperature: -30°C – 80°C

Package included:

3 x 5V 2004A LCD display module
