3Pcs TEC1-12706 40x40mm Thermoelectric Cooler Peltier Plate 12V 60W

or 6 weekly interest-free payments from $3.83 with Laybuy

or 4 payments of $5.24 with Wizit learn more

$20.94 AUD

In stock

Estimated delivery between Monday 14. October - Monday 21. October
Add to Wishlist
Add to Wishlist
SKU: C122-1090949 Category:

Description

Description:

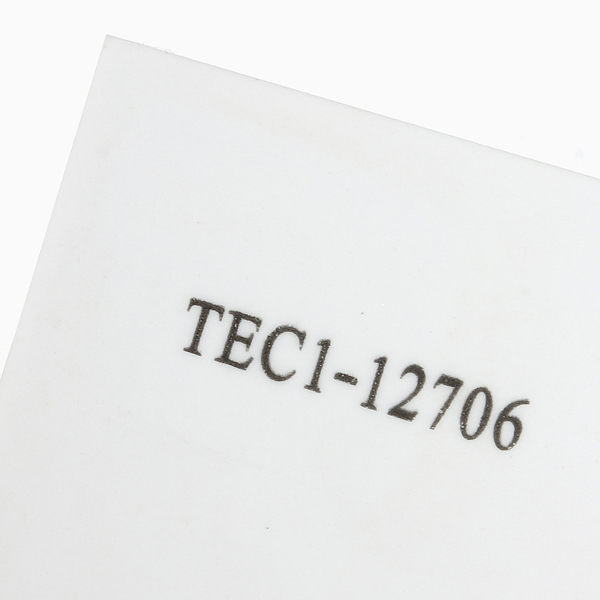

This is TEC1-12706 40x40mm thermoelectric cooler Peltier plate module 12V 60WGet ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.Since they consist primarily of semiconductor material sandwiched between ceramic plates and have no moving partsFeature:Its work is characterized by side refrigeration and side fever.Hot and cold on both sides of the temperature difference of 68 degreesConnected to the 12-volt power supply cooling piece on both sides there will be difference in temperature, side cold side of the heat, do not long power cooler radiator, otherwise it will cause cooler internal overheating and burning.Specification:Model: TEC1-12706Size: 40mm x 40mmOperates from 0~15.2V and 0~6AOperates Temperature: -30C to 70CMax power consumption: 60WThese devices must be used in conjunction with a heat sink to avoid burnedEach device is full inspected and testedFitted with 6-inch insulated leadsInstallation:Cooling piece is very simple to install and use. Before installation, to find a dry cell, connected to the two leads of the cooler, obviously cold you can feel at one end and the other end of fever, remember that the polarity of the lead and determine a good cooler cold and hot end. If you want to get a bigger system Ling, it is recommended that two cooling mode, with two stack up with the above, a grim absorption following a fever, the experiments prove two refrigeration effect is much better than the single-stage, the condition can choose three, of course, have a large power supply support.Package included:3 x cooler plate module

,,,

Additional information

Weight 0.1 kg
MPN

1090949
