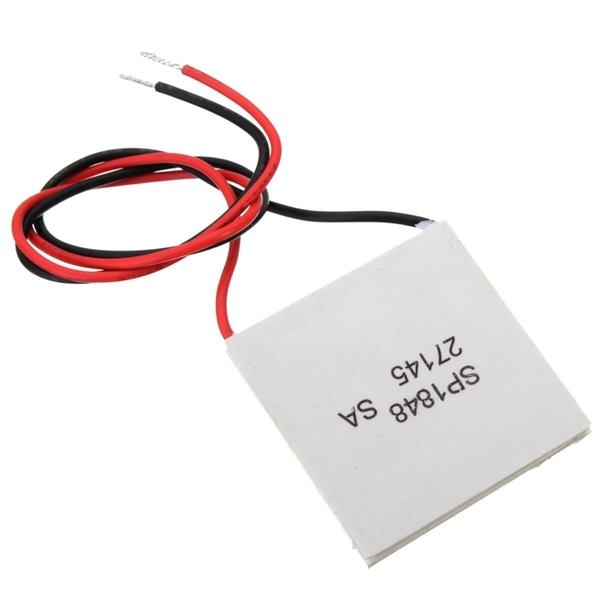

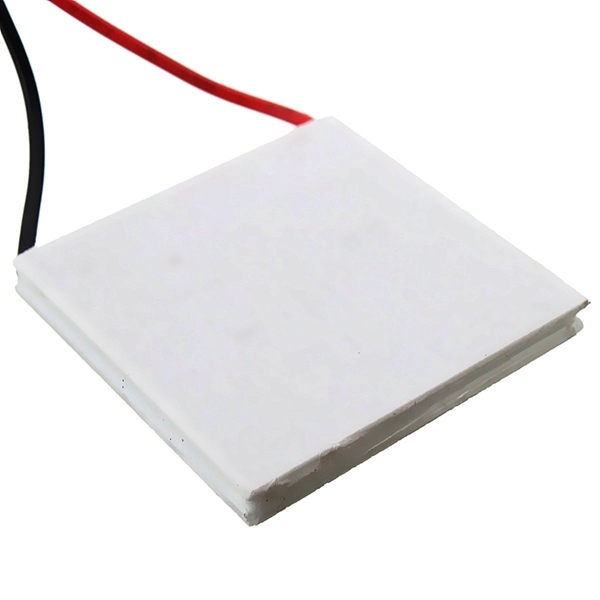

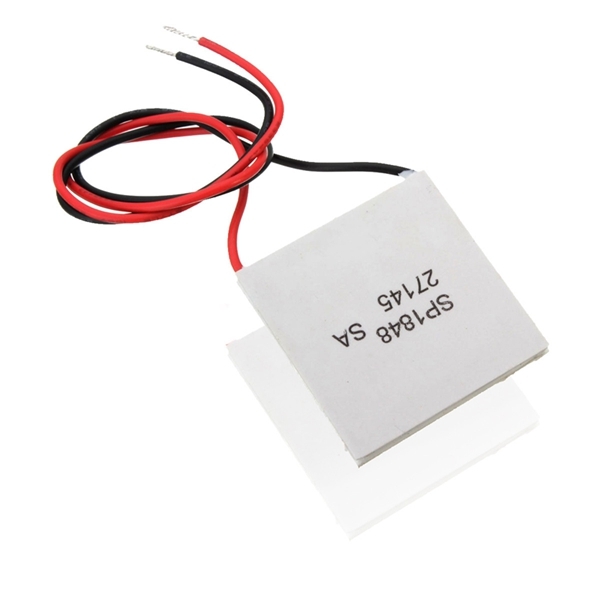

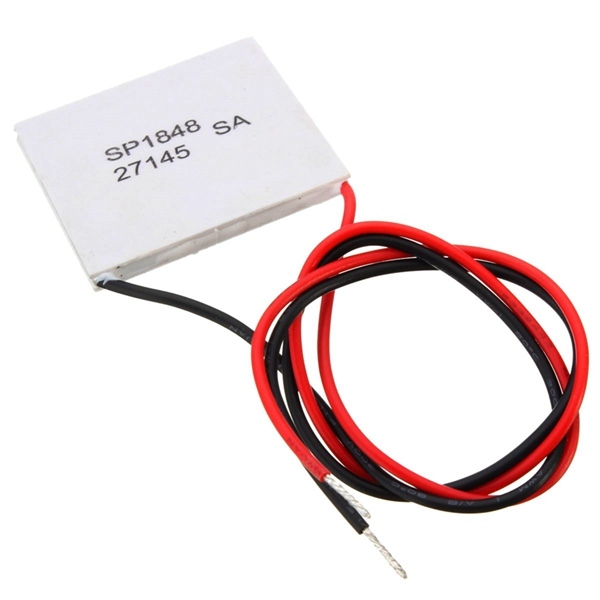

40x40mm Thermoelectric Power Generator Peltier Module TEG High Temperature 150 Degree

or 6 weekly interest-free payments from $1.78 with Laybuy

$9.74 AUD

In stock

Refund and Returns Policy
Estimated delivery between 2024/07/30 - 2024/08/06
Add to Wishlist
Add to Wishlist
SKU: C122-1005052 Category:

Description

Feature:


Colding side posts with the words
Heating side is empty
Red wire to positive, black wire to the negative, it generate electricity when the temperature difference happened

Specification:
Model: SP1848-27145
Color : white

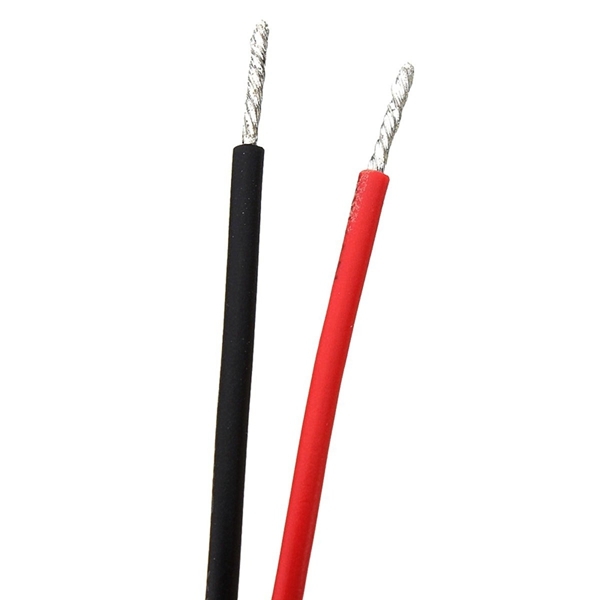

Lead Length: about 30CM
Size: 40MM x 40MM x 3.4MM
20 degree temperature difference: open-circuit voltage 0.97V, generated current: 225MA

40 degree temperature difference: open circuit voltage 1.8V, generated current: 368MA

60 degree temperature difference: open circuit voltage 2.4V, generated current: 469MA

80 degree temperature difference: the open circuit voltage 3.6V, generated current: 558MA

100 degree temperature difference: open circuit voltage 4.8V, generated current: 669MA

The above values are for reference only, the wiring in actual use, and the step-up board, there will be loss of current

Package included:
1 x 40x40mm thermoelectric power generator peltier module


,,,,

Additional information

Weight 0.03 kg
MPN

1005052
