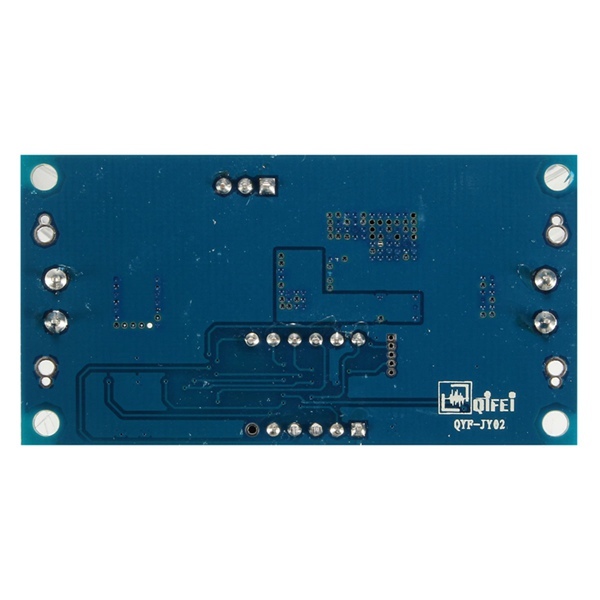

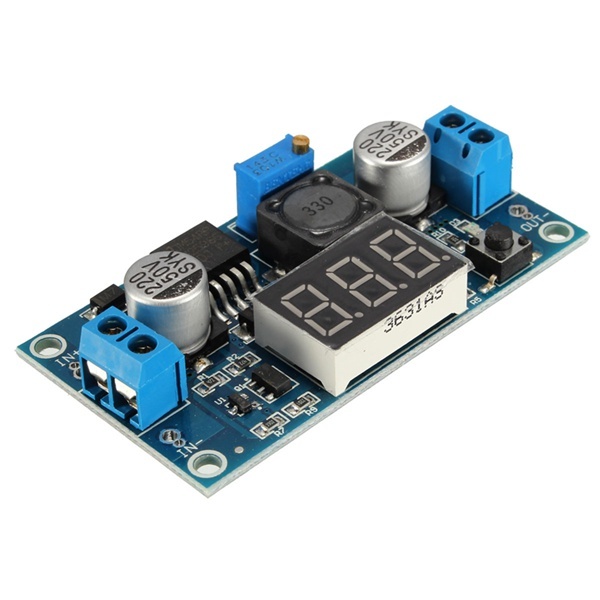

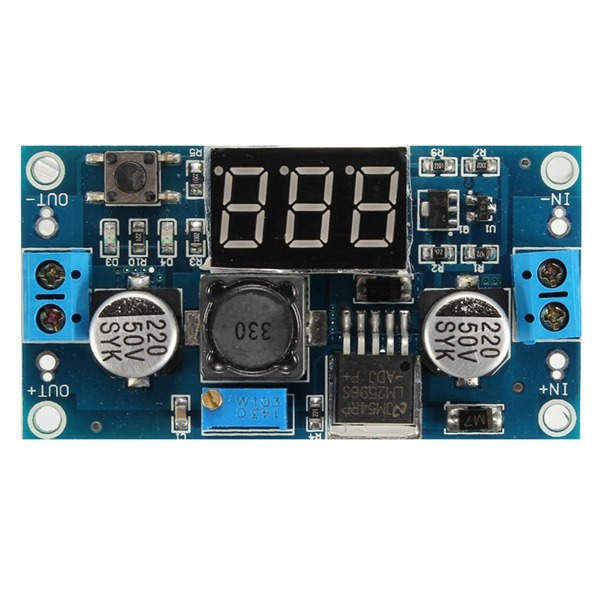

5Pcs LM2596 DC-DC Voltage Regulator Adjustable Step Down Power Supply Module With Display

or 6 weekly interest-free payments from $4.35 with Laybuy

$26.11 AUD

In stock

Estimated delivery between 2024/02/13 - 2024/02/20
Add to Wishlist
Add to Wishlist
SKU: C122-1180685 Category:

Description

Specification:

1. With the voltmeter shows voltage meter error ± 0.1V, the range 0-40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage of 4V and above)2. Touch the key to switch measuring input or output voltage, and has a light show which is being measured voltages3. Power off memory function, show that road after power voltage values measured for the last time4. Press the touch button for 3 seconds to turn off LED display, touch the button again to turn on the LED display5. The band terminals, no iron can also be easy to use, and retention wire connection point6. Input voltage 4.0-40V (input voltage to the output voltage must be higher than 1.5v.)7. The adjustable output voltage range of 1.25V-37V continuously adjustable (input voltage must be higher than the output voltage to a high of about 1.5V)8. The maximum output current up to 3A, normal and stable operating current of 2A9. the internal oscillation frequency 150KHz, belonging to the second generation of switching voltage regulator, low power consumption, high efficiency10. The current switching LEDs are red

Package Included:
5 x DC-DC step down voltage converter

,,,

Additional information

Weight 0.11 kg
MPN

1180685
