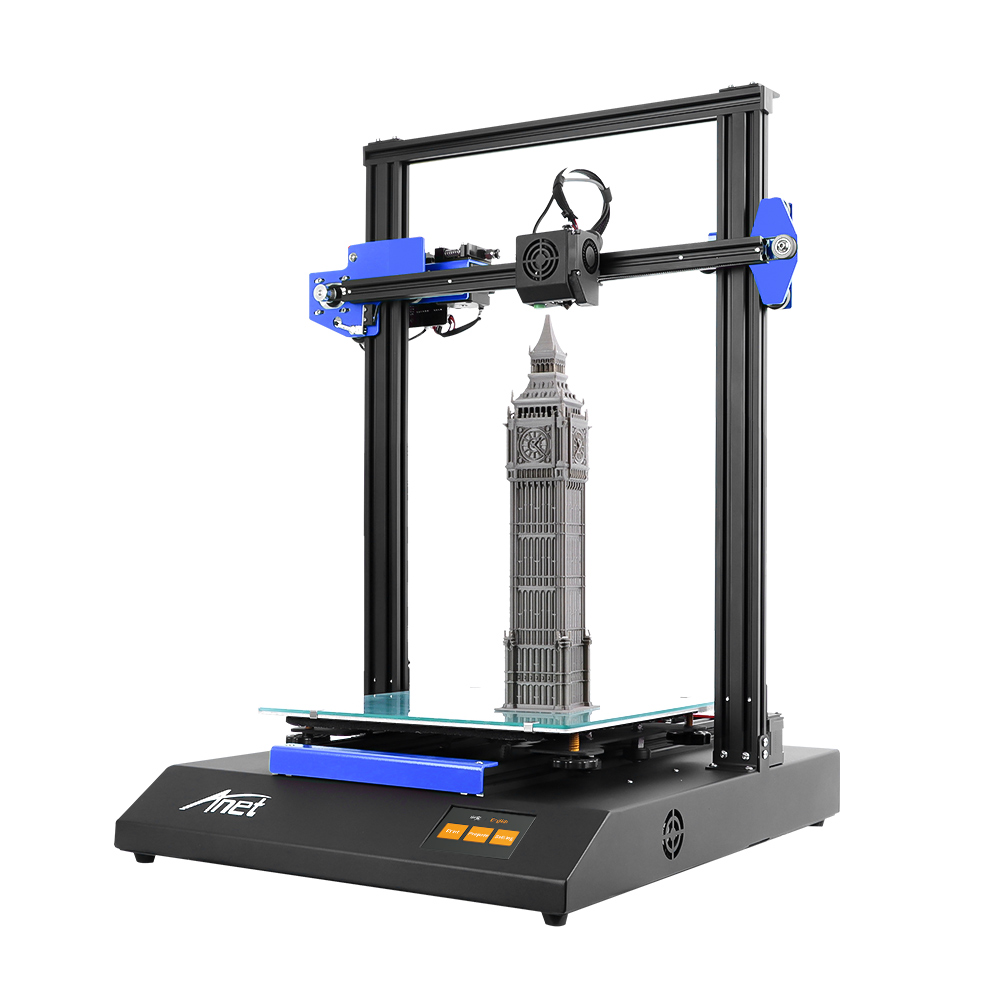

Anet® ET5X 3D Printer Kit 300x300x400mm Print Volume Support Auto Leveling/Resume Printing with 3.5 Inch LCD Color Touch Screen/Upgraded Over-Current Protection Mainboard

Anet® ET5X 3D Printer Kit 300x300x400mm Print Volume Support Auto Leveling/Resume Printing with 3.5 Inch LCD Color Touch Screen/Upgraded Over-Current Protection Mainboard

This product is currently out of stock and unavailable.

Add to Wishlist
Add to Wishlist

Description




Features:



  • Ultra Large Print: 300x300x400mm ultra large print volume.
  • Automatic Levelling: Auto measures 25 points across the print platform for heat bed leveling. An induction sensor can probe the bed in a grid and apply mesh-based compensation that ensures you print on a level bed every time, all without the time-consuming and labor-intensive leveling tasks.
  • Filament Sensor&Power OutageRecovery: The filament sensor detects the filament end and sends reminders to the screen to avoid air-printing. Resume printing and recover from exactly where it left off. No worries about unexpected power outages.
  • Auto Filament Assignment&Assembled In No Time: Automatic load and unload the filament with just a click.Pre-assembly and modular design with quick assemble in 10min. Solid Wire Connection,Distributor connector for solid wire connections.
  • Dual Z-axis, More Accurate Print&Stable Y-axis Movement: ET5 applies dual Z-axis rods and motors to make sure the smooth and accuracy of every slight movement. Dual Y axis guideway for a more stable and level moving stage of the build platform. Intuitive Touchscreen.Colorful LCD touch screen, allowing you to control the movement of X/Y/Z axis, leveling and printing with ease.
  • Safe Designed Control Board: You can connect your ET5 online or offline to any configuration for your convenience. You could print via SD card or USB flash drive. Self-developed industrial-grade 32bit control board with MCU STMF407. Stable operation with high precision. The mother board has thermal runaway protection. If the printer fails to detect the temperature for a certain time, it would automatically power off.





Specifications:

Printing Technology: FDM
Structure: Aluminum frame
Connections: Online/Offline
Printing LCD Display: 3.5 inch Full Color Touch Screen
Movement speed: ≤150mm/s (recommended speed 30-60mm/s)
Printing speed: ≤150mm/s (recommended speed 30-60mm/s)
Standard Nozzle Diameter: 0.4mm
Extruder Working Temp (Max): 250℃
Hotbed Temp(Max): 100℃
Hotbed Material: Aluminum hotbed and Tempered Glass
Control Software Language: English/Chinese
Data Input Format: STL, OBJ
Operation System: Windows
Printing Software: Cura, Repetier, Simplify3D

Package Included:

1 x ET5X 3D Printer




Anet® ET5X 3D Printer Kit 300x300x400mm Print Volume Support Auto Leveling/Resume Printing with 3.5 Inch LCD Color Touch Screen/Upgraded Over-Current Protection Mainboard 1

Anet® ET5X 3D Printer Kit 300x300x400mm Print Volume Support Auto Leveling/Resume Printing with 3.5 Inch LCD Color Touch Screen/Upgraded Over-Current Protection Mainboard 2

Additional information

Weight13.5 kg
