Description
Blue Laser Module | PWM Modulation | DIY Engraving Machine
Specification:
| Brand | EleksMaker |
| Model | EL01-2500 |
| Heatsink Material | Aircraft Aluminum |
| Aircraft Aluminum | 2500mW |
| Wavelength | 445nm (Blue Laser) |
| Supply Voltage | DC 12V |
| Beam Shape | Dot (Focusable) |
| Input Interface | XH2.54-3P |
| Section Size | 33mm x 33mm |
| Life Time | >10,000 hours |
Features:

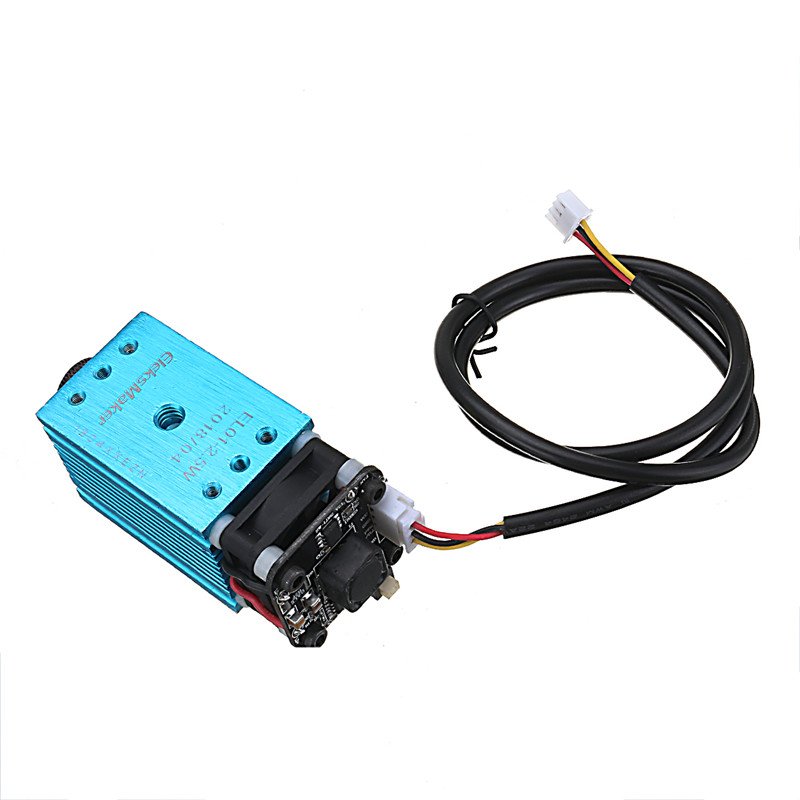

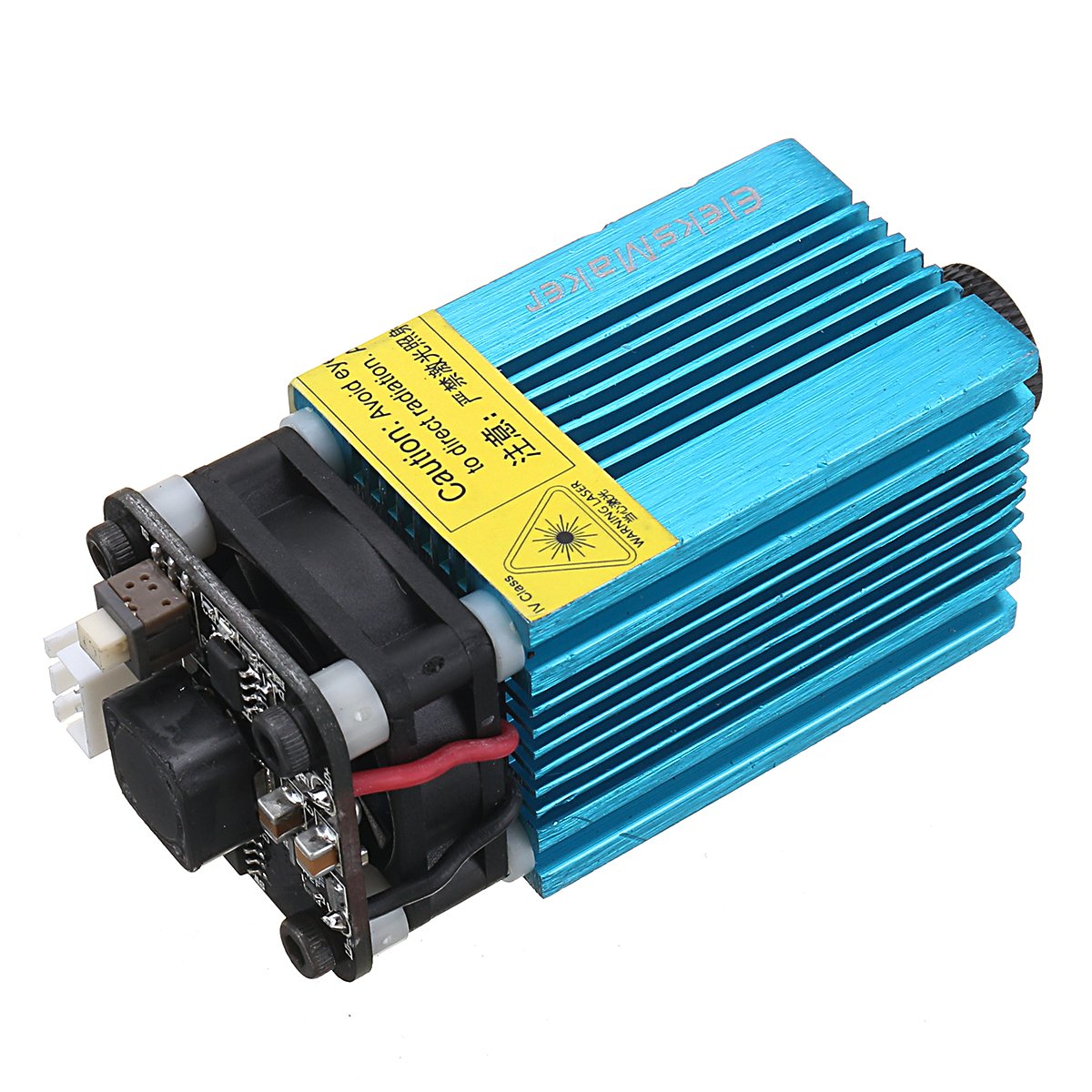

– EleksMaker® EL01-2500 blue laser module, exquisite workmanship and delicate blue appearance.
– 445nm 2500mW focusable blue laser module, with PWM function, can control the laser power.
– Blue plating aircraft aluminum heatsink with cooling fan ensure long working time continuously.
– Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
– XH2.54-3P 3 pins plug, PWM modulation, suitable for laser engraving machine equipment usage.
* There is a button on the driver board which controls ON/OFF of weak light mode.
– Press it, the module turns to weaklight mode, then the laser light emitting becomes weak and won’t work on material. At this time, it can be used for positioning as preparation before engraving.
– Press it again, it turns back to normal engraving mode, the laser light is powerful to work on material.
Applications:
Notice:
4. The warranty period of the laser module is one month. If you have any quality problem (Except individual situation like using the laser module more than 30 minute one time and cause the damage), please feel free to ask our customer service for help. Thanks for your underDIY Engraving Machinestanding.

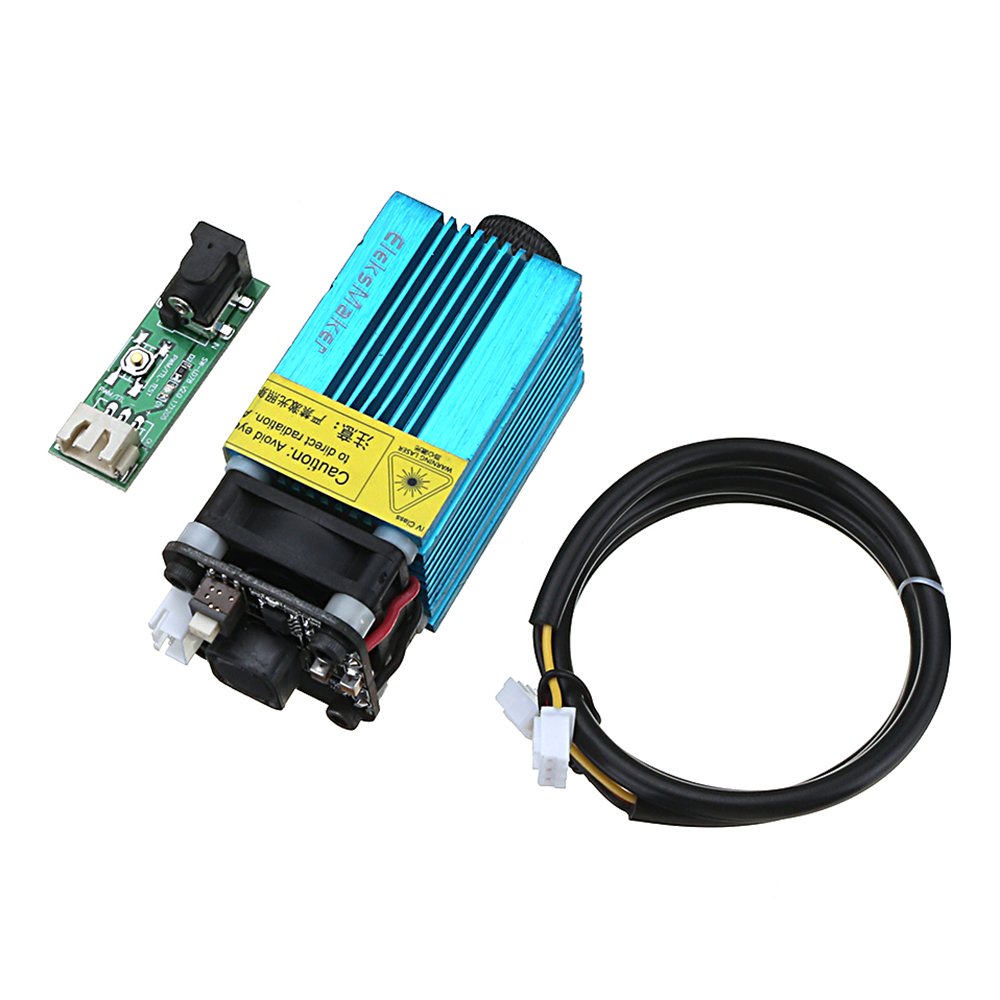

Package Included:
1 x 2500mW Blue Laser Module

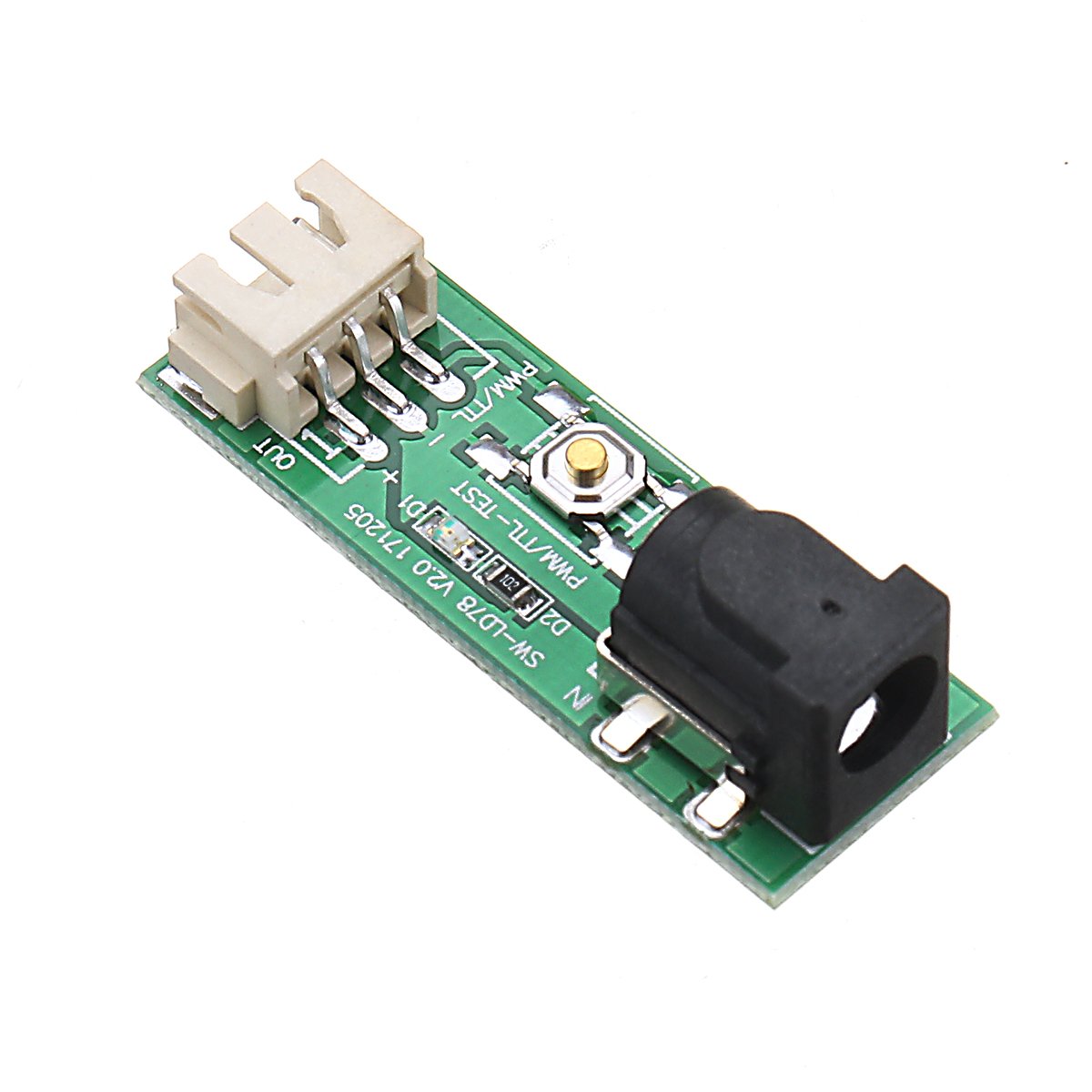

1 x DC 5.5mm to XH2.54-3P Adapter

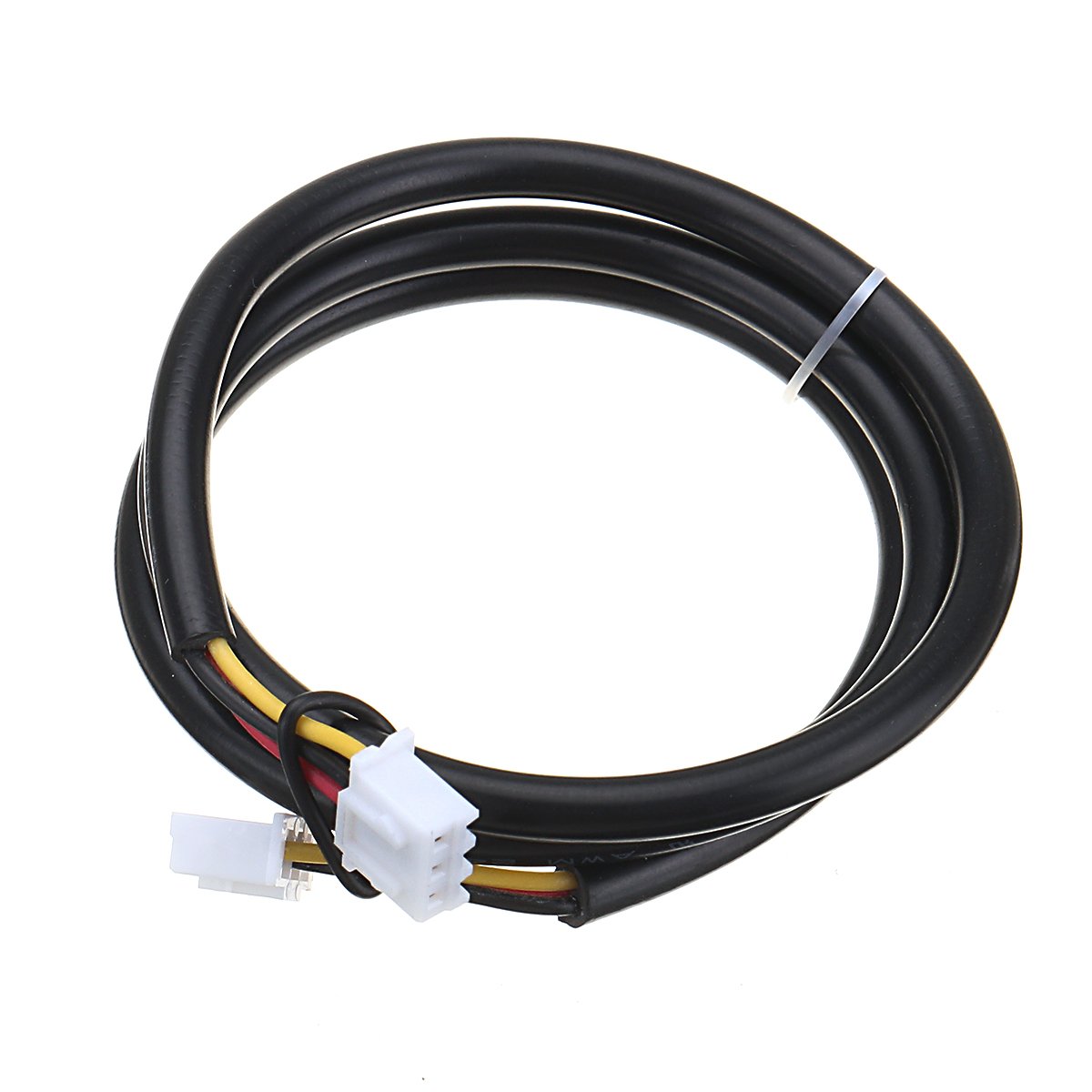

1 x 3-Pin XH2.54-3P Connector Wire
How to test EleksMaker® EL01-2500 laser module qualified or not?
