Description
Specification:

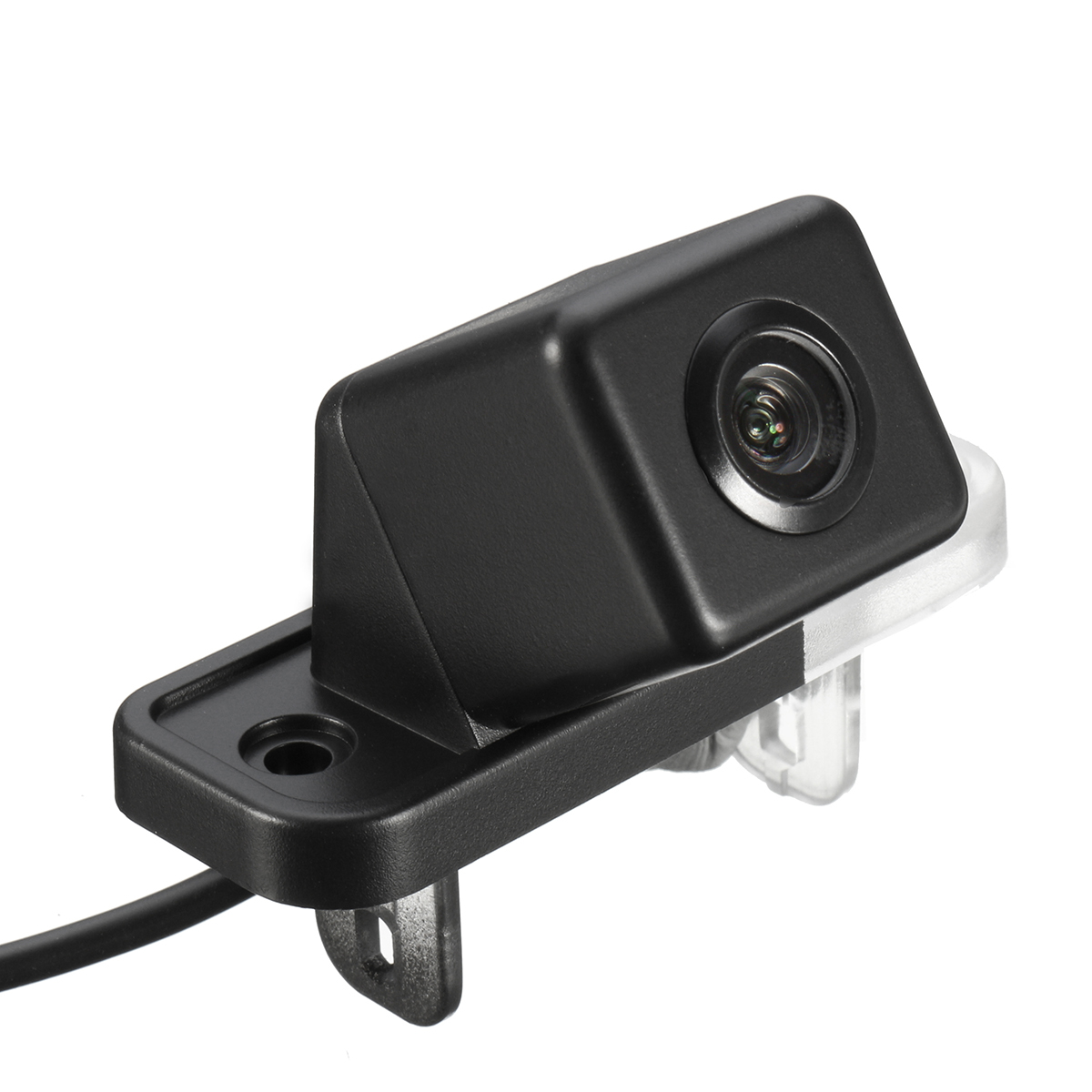

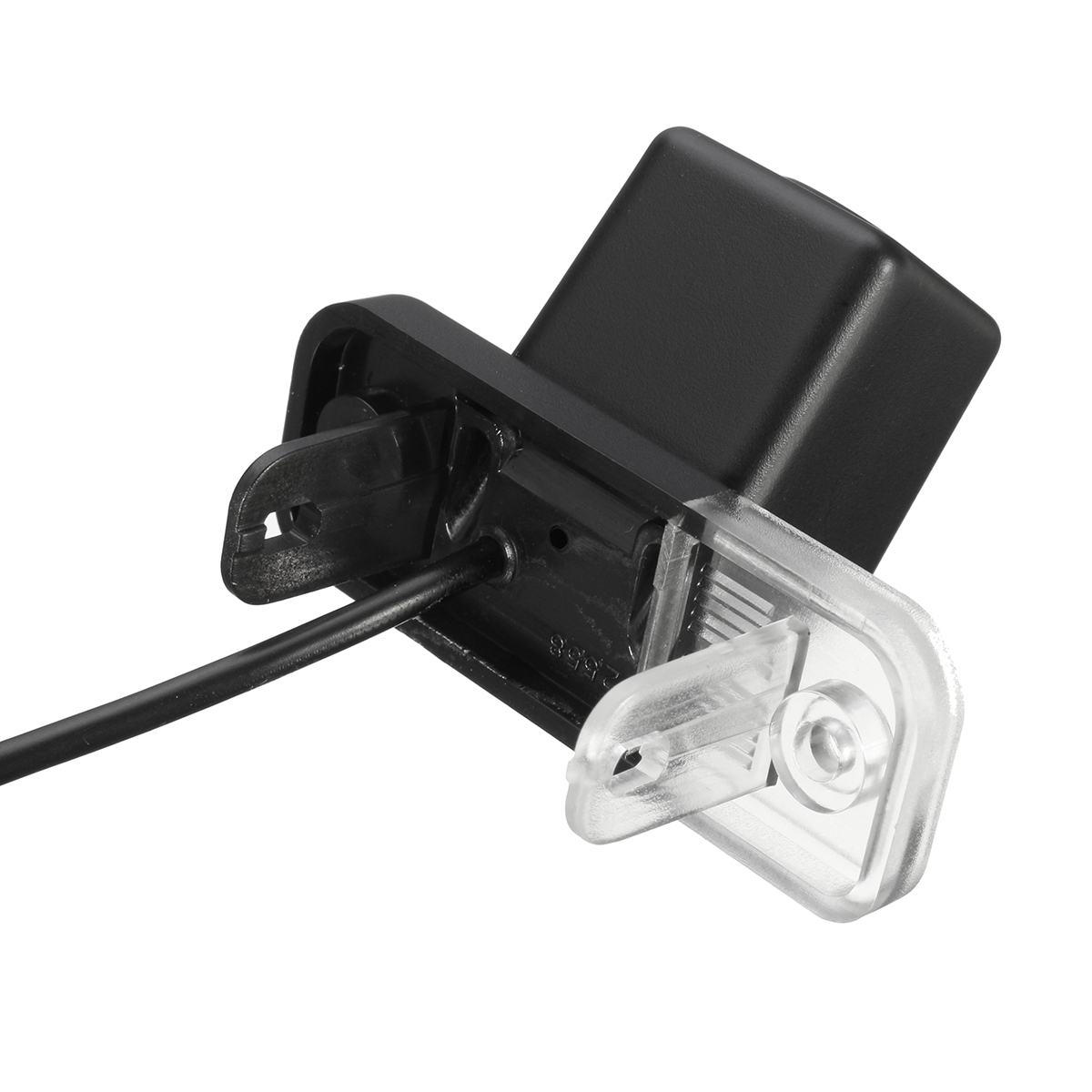

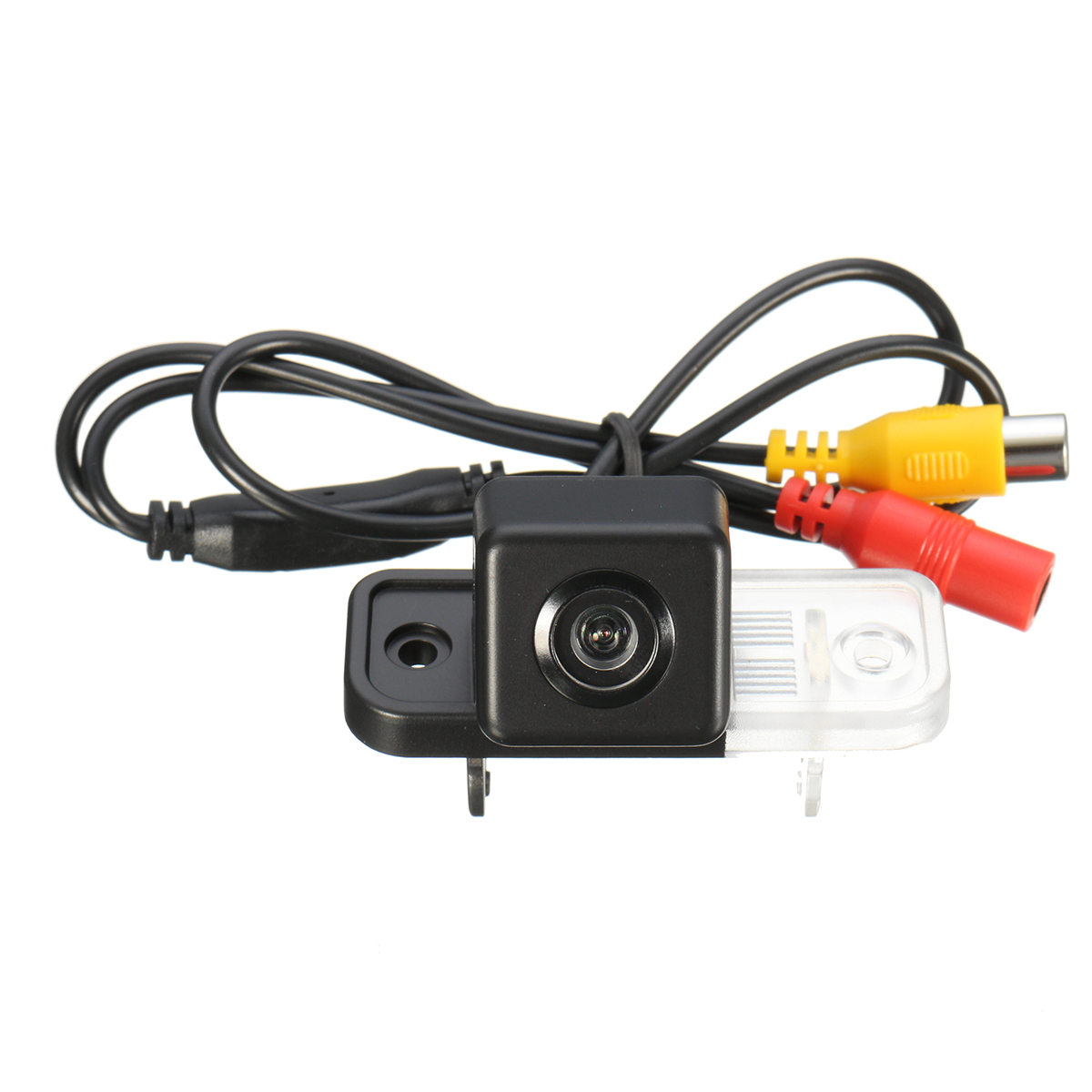

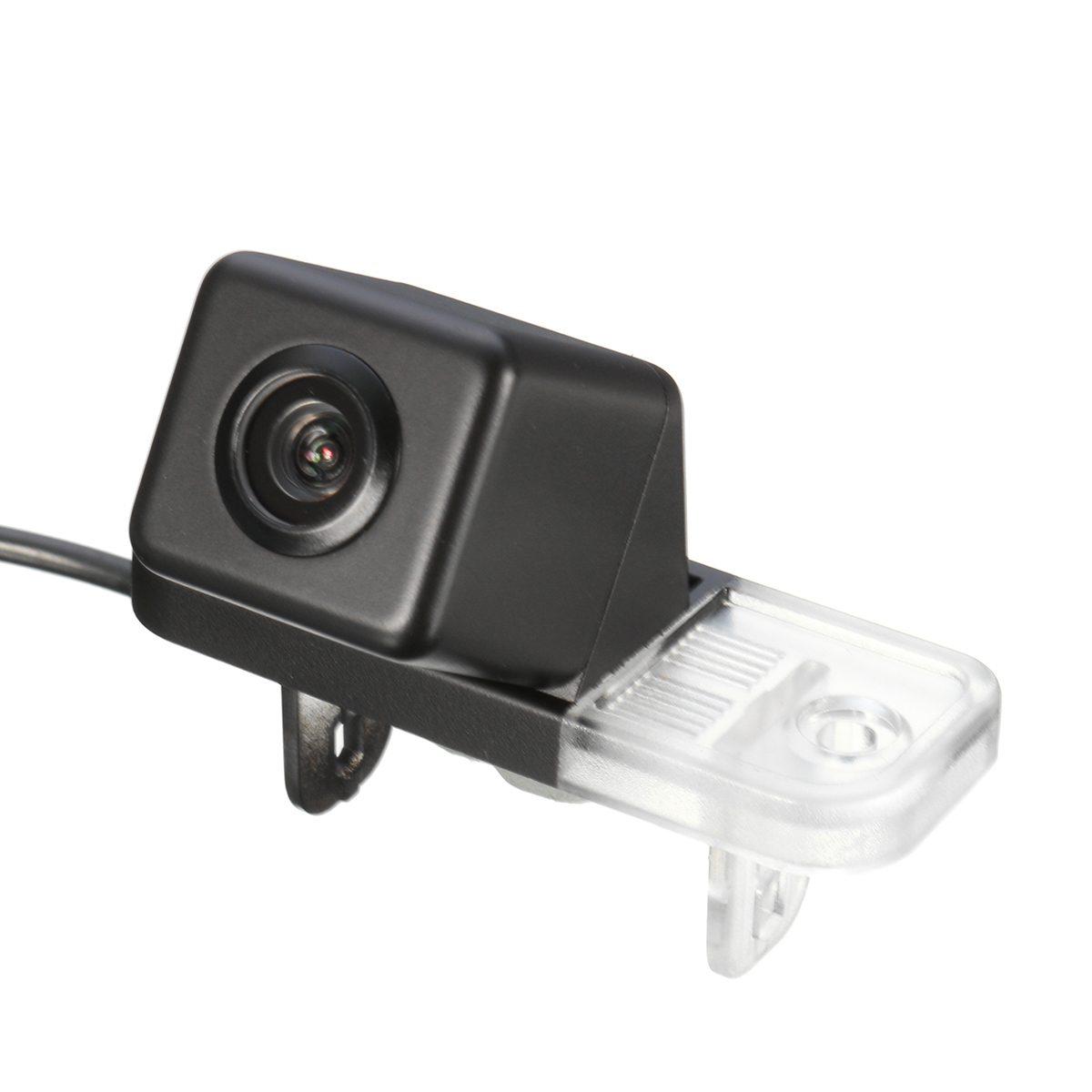

| Product Name | CCD Sensor Reverse Camera |
| Image Sensors | 1/3″ color sharp CCD |
| TV System | NTSC default & PAL request |
| Minimum illumination. | <0.5 |
| Voltage | DC 12V |
| BLC | Auto |
| White Balance | Auto |
| Video Color | Colorful |
| Waterproof Class | IP67IP68 |
| Effective Pixels | 648×488 |
| Resolution | 420TV lines |
| Video Output | 1.0Vp-p,75Ω |
| Electronic Shutter | 1/60(NTSC)-1/10000S |
| S/N Ratio | Better Than 48db |
| Lens Angle | 170° |
| Operation Temperature | -20°C~70°C RH95% |
| Storage Temperature | -30°C~85°C |
| Transmitter/Receiver Cable Length | 1.5m |
| Work Range | Up to about 50m(Hollowness) |
| Current consumption | 90mA Max |
| Application | Fit all RCA composite video connections |
Features:
–100% brand new,High quality
–Easy installation
–12-Volt for vehicle installation
–Connects to rear-view camera and front video screen
Specification:
|
Model |
577721 |
|
Product Name |
CCD Sensor Reverse Camera |
|
Image sensors |
1/3″ color sharp CCD |
|
TV System |
NTSC default & PAL request |
|
Minimum illumination. <0.5 |
|
|
Voltage |
DC 12V |
|
BLC |
Auto |
|
White Balance |
Auto |
|
Video Color |
Colorful |
|
Waterproof Class |
IP67IP68 |
|
Effective Pixels |
648×488 |
|
Resolution |
420TV lines |
|
Video Output |
1.0Vp-p,75Ω |
|
Electronic Shutter |
1/60(NTSC)-1/10000S |
|
S/N ratio |
Better Than 48db |
|
Lens Angle |
170° |
|
Operation Temperature |
-20°C~70°C RH95% |
|
Storage Temperature |
-30°C~85°C |
|
Video Cable Length |
5.5m |
|
Work Range |
Up to about 50m(Hollowness) |
|
Current consumption |
90mA Max |
|
Application |
Fit all RCA composite video connections |
|
The Camera have Approved for the FCC, CE, RoHS Certifications. |
|
Fitments (For the reference):
For Mercedes Benz C-Class W203 , E-Class W211 / CLS Class W219
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
3.There are no instructions included in this kit.Professional Installation Is Highly Recommended！
4.Please Compare The CCD Car Rear View Camera With Your Original One Before Purchasing！
Package Include:
1 X CCD Sensor Reverse Camera

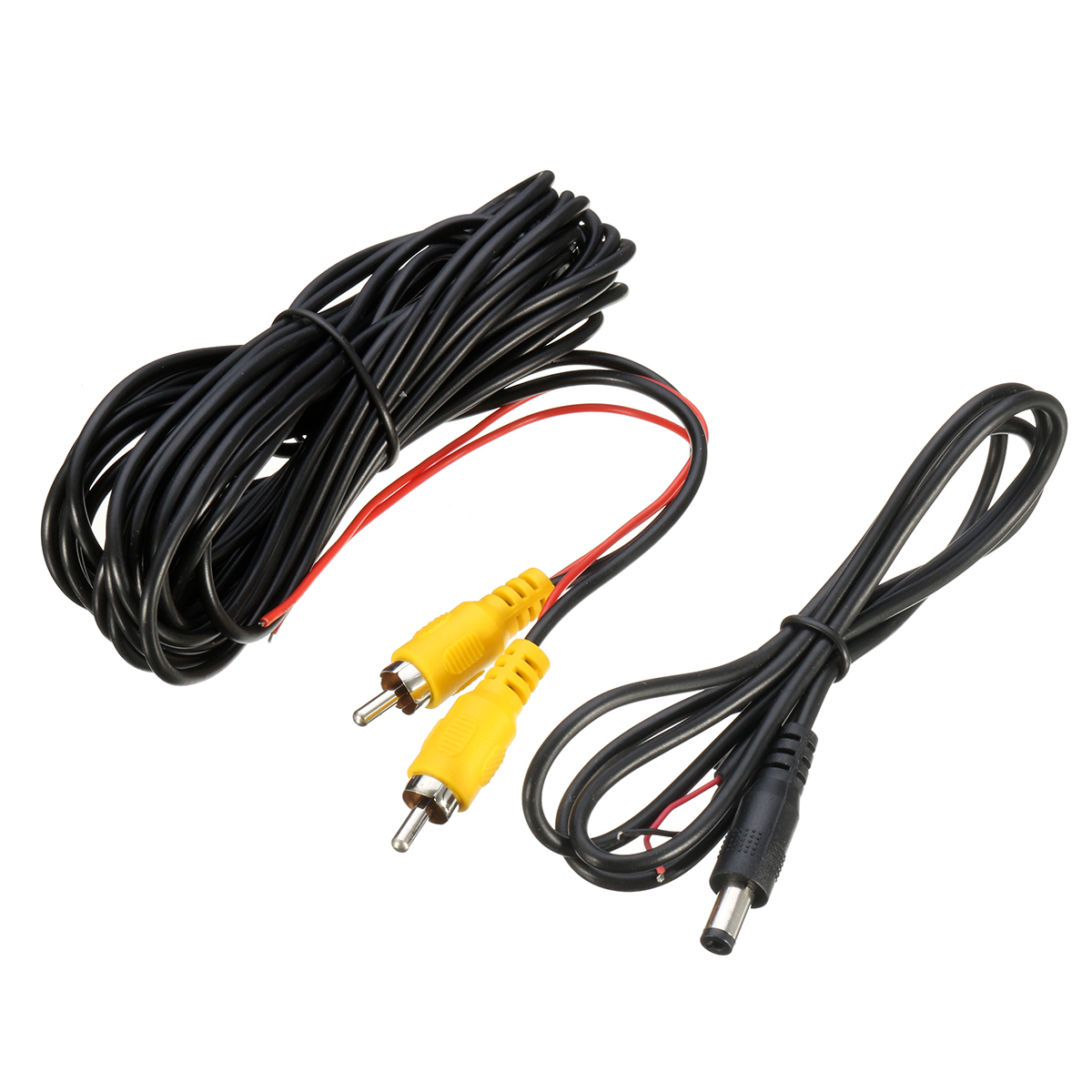

1 X Power Cable
1 X User Manual
