Description
Descriptions:
ES9023 is a 24bit stereo sound frequency mode conversion chip (DAC), the use of advanced SABRE digital-analog conversion technology.
The chip set the best sound quality, so that it’s a good choice for a number of mode conversion.
Features:
ES9023 is a 24bit 192 KHz stereo sound frequency mode conversion chip (DAC).
Uses advanced SABRE digital-analog conversion technology.

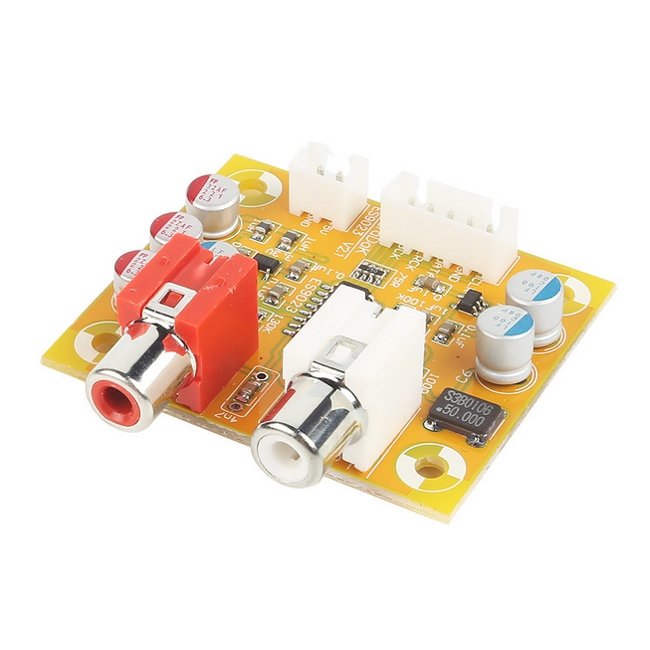

Offering direct analog outputs, this module is great for all DIY projects.
Its high versatility enables it to be used directly.
Specifications:
Input: I2S
Output: RCA
Sampling Rates Supported: 16 / 24 bit 192KHz

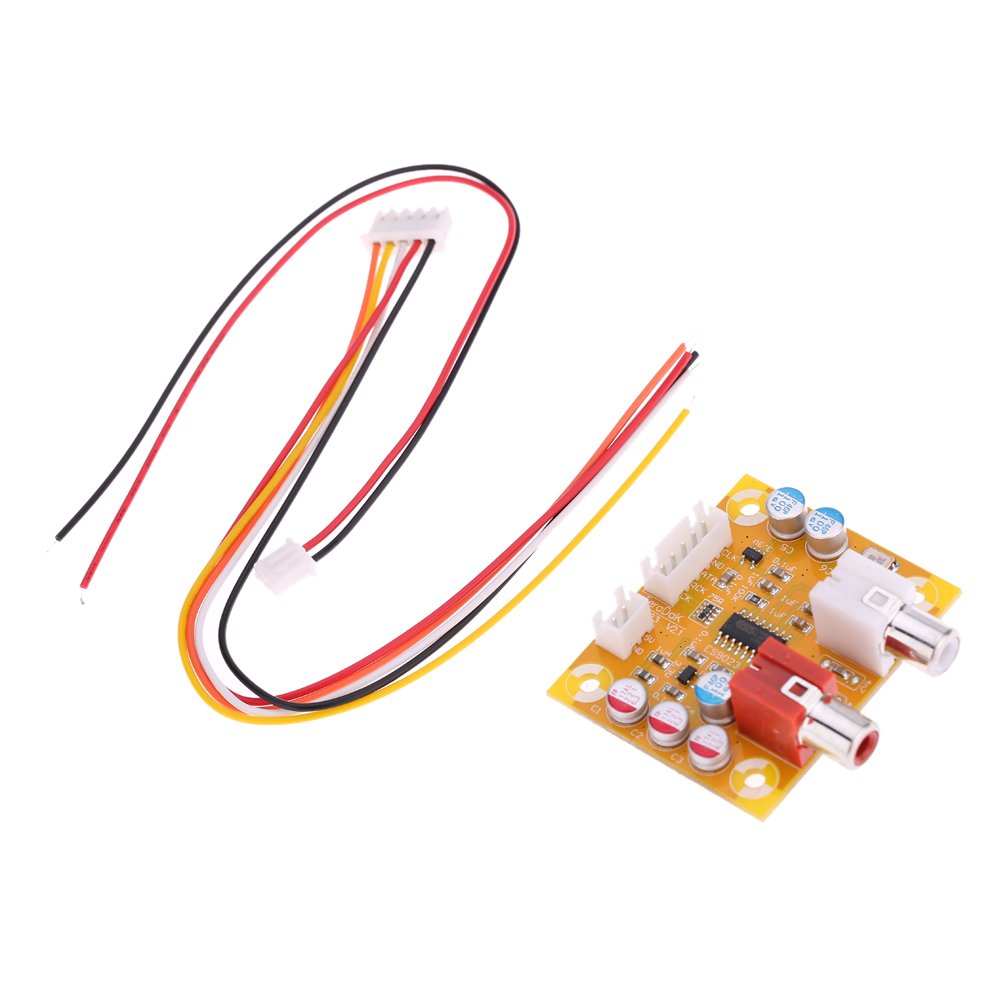

Connectors Delivered
Remote Connections: 29cm
RCA Distance: 20mm
Spacing: 40 * 32mm
PCB Size: 50 * 42mm

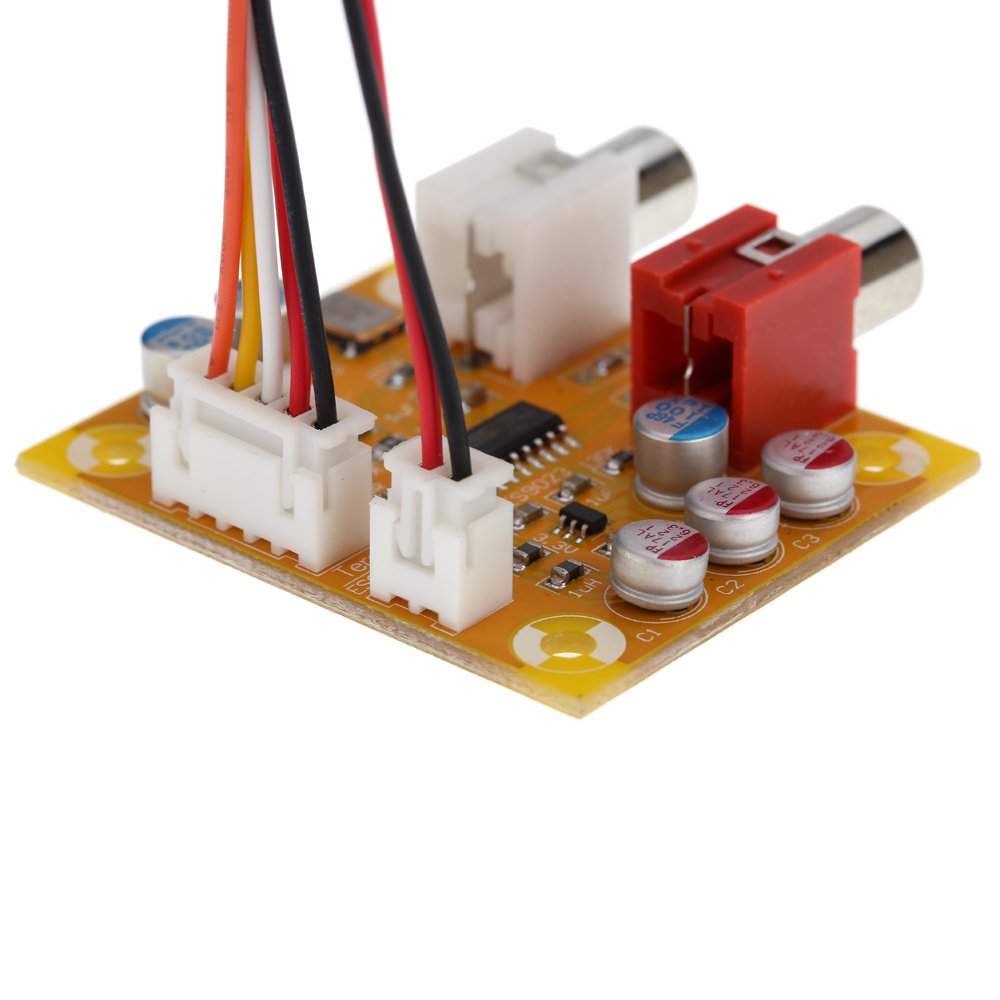

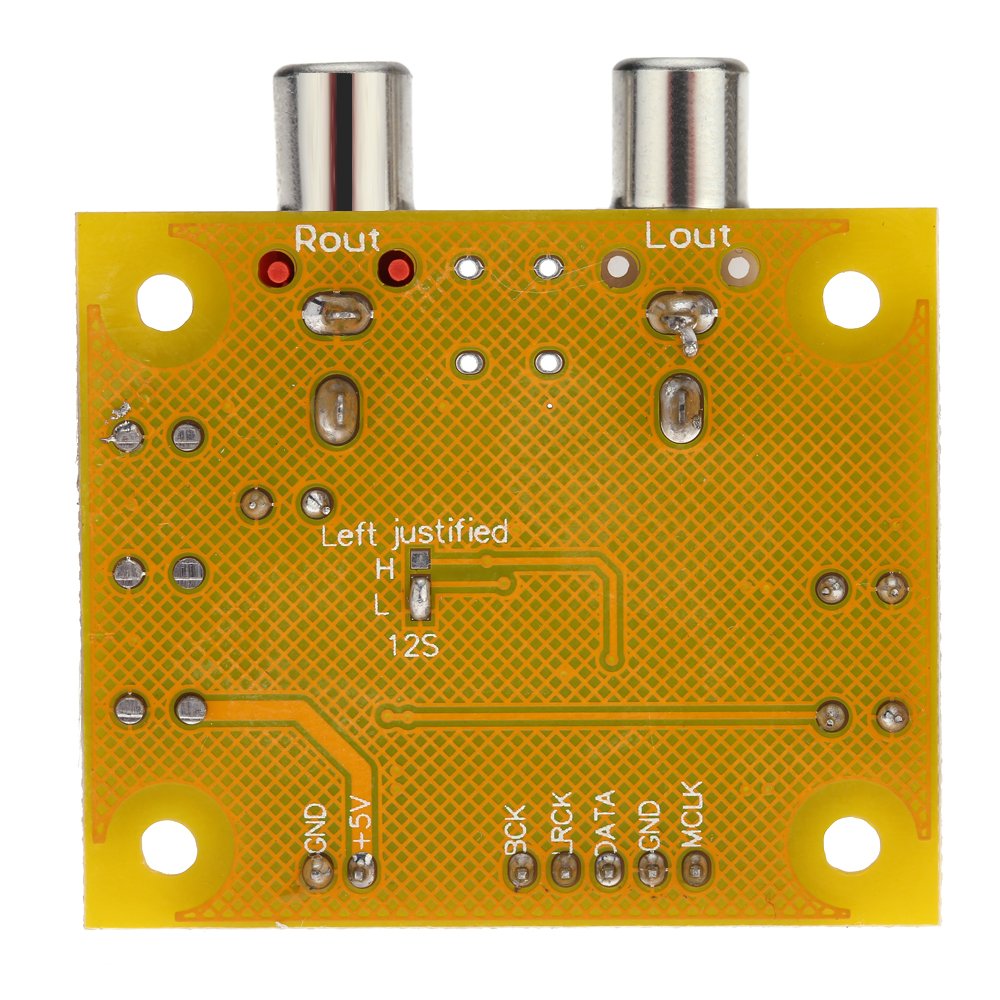

I2S Link Line:
Orange Line: MCLK
Yellow line: GND
White Line: DATA
Red Line: LRCK
Black Line: BCK
5V Power Input:
Black Line: GND
Red Line: +5V
Package Included:
1 x ES9023 Decoder Board
![DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 1 DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 8](http://img.banggood.com/images/oaupload/banggood/images/48/DD/50857bca-5932-407e-ae4b-f36d242d131a.jpg)
![DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 2 DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 9](http://img.banggood.com/images/oaupload/banggood/images/F7/81/7fec29a9-9d48-4558-8c58-48b05ec7705b.jpg)
![DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 3 DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 10](http://img.banggood.com/images/oaupload/banggood/images/DE/29/3fa8e030-3b8c-44ad-93ec-2e42dfd03ea2.jpg)
![DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 4 DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 11](http://img.banggood.com/images/oaupload/banggood/images/B9/59/8ac91ebb-1ef1-4840-8232-c27f4e673b33.jpg)
![DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 5 DAC Sabre ES9023 Analog I2S 24 Bit 192 KHz Decoder Board For Raspberry Pi 12](http://img.banggood.com/images/oaupload/banggood/images/A9/11/cb626e29-ef21-40ec-8e58-20bcab29e626.jpg)
