DANIU 40112302 Dial Test Indicator Precision Metric with Dovetail rails

or 6 weekly interest-free payments from $3.83 with Laybuy

$20.94 AUD

In stock

Estimated delivery between 2024/05/02 - 2024/05/09
Add to Wishlist
Add to Wishlist
SKU: C122-1157267 Category:

Description

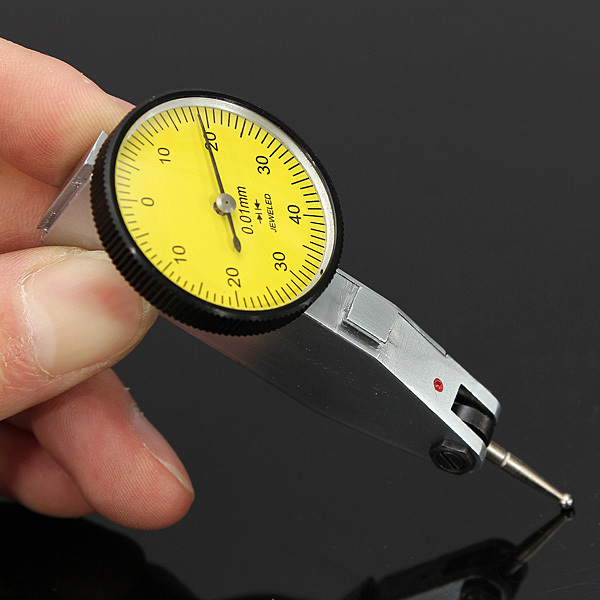

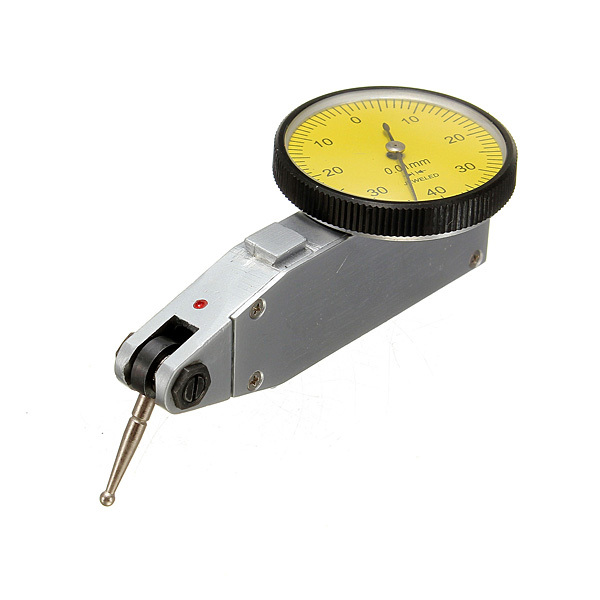

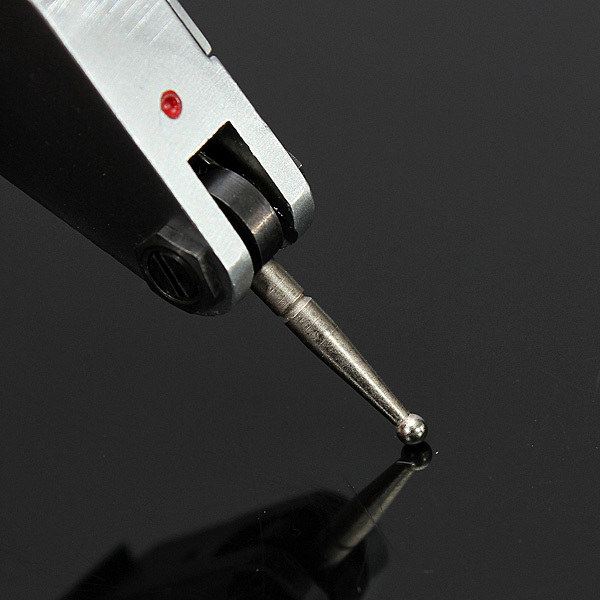

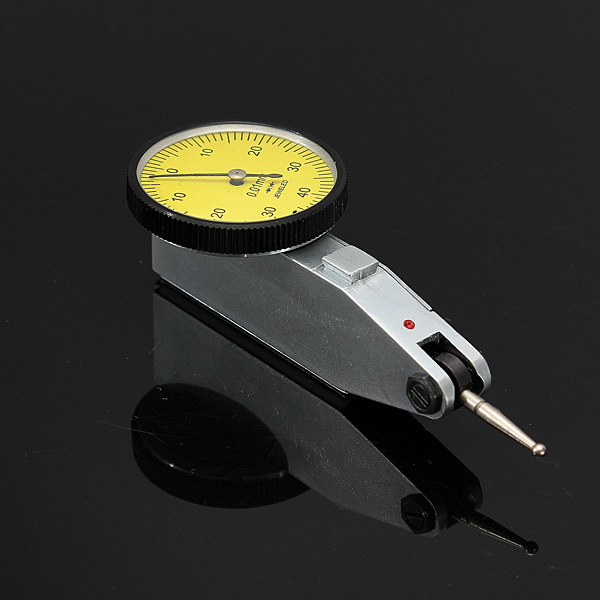

40112302 Dial Test Indicator Precision Metric with Dovetail rails, 0-0.8mm 32mm is available now from our  UK warehouseDescription :40112302 Dial Test Indicator Precision Metric with Dovetail rails 0-0.8mm 32mmFeatures :Fowler inch/metric dial test indicator with yellow face is designed to measure surface variations in narrow or recessed areas0-0.8mm measuring range, 0.0005″/0.01mm graduations, 0-40-0 balanced inch readings, and 0.001mm balanced metric readings.Auto-reversing contact point and adjustable bezel.Three dovetail mounts for mounting indicator from the top, back, or front.One-piece housing with satin chrome finish provides durability.The 40112302 dial test indicator is designed for taking measurements in machining, layout, and inspection work.Has microfine black graduations for 0-40-0 balanced inch readings and red graduations for 0.001mm balanced metric readings.A movement and an auto-reversing contact point provide smooth action.A knurled bezel rotates 360 degrees to zero the reading at any location.Three dovetail mounts on the top, back, and front of the indicator provide a range of mounting options.The one-piece housing and satin chrome finish provides durability.The 40112302 inch/metric dial test indicator includes one 3/8″ and one 5/32″ dovetail clamp and a molded case.Dial readings with three digits, 0-40-0 for example, signify that the indicator has a balanced dial.Dial readings with two digits, 0-100 for example, indicate the dial has a continuous dial.Balanced dials are used for reading the difference from a specific surface reference point.Continuous dials are used for direct readings and usually have a larger measurement range than balanced dials.Specifications :

Face 1-1/4″ diameter yellow face
Dial type and reading 0-40-0 balanced inch and 0-.25-0 balanced metric readings
Range 0-0.8mm
Graduations 0.0005″/0.01mm
Contact point length 1/2″
Dovetail clamps 3/8″ and 5/32″
Mounting type Dovetail

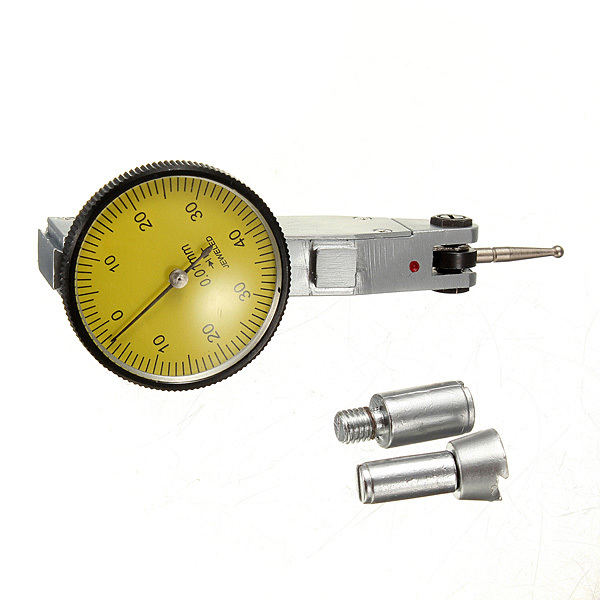

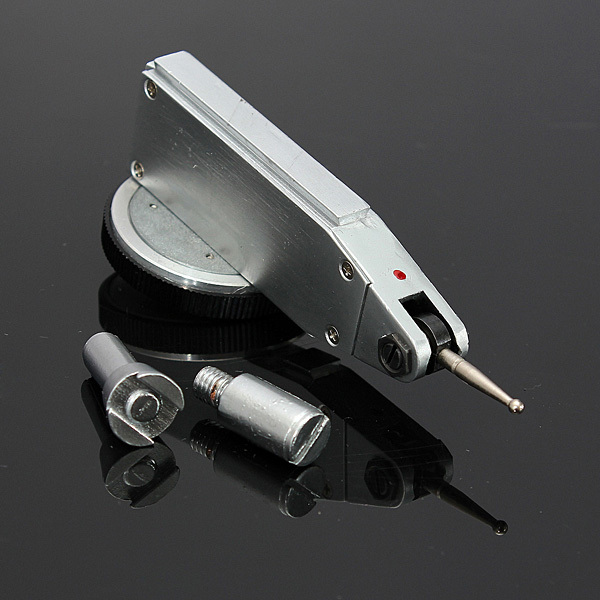

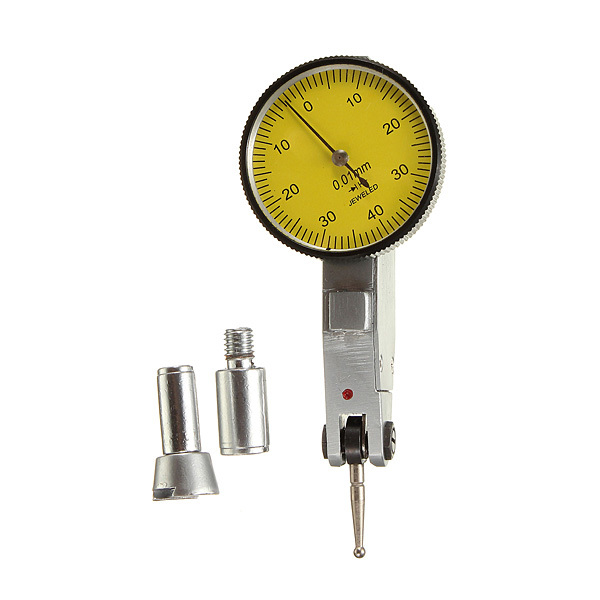

Package included :1 x 40112302 dial test indicator1 x 3/8″ dovetail clamp1 x 5/32″ dovetail clamp1 x Molded caseDetails pictures :


,,,,,,,

Additional information

Weight 0.12 kg
MPN

1157267
