ENJOMOR 6cc Antique Red Hit and Miss Gas Engine Working Model

or 6 weekly interest-free payments from $114.93 with Laybuy

$689.61 AUD

From $94.14 a fortnight withInfo

Estimated delivery between 2024/07/29 - 2024/08/05
Add to Wishlist
Add to Wishlist
SKU: N/A Category:

Description

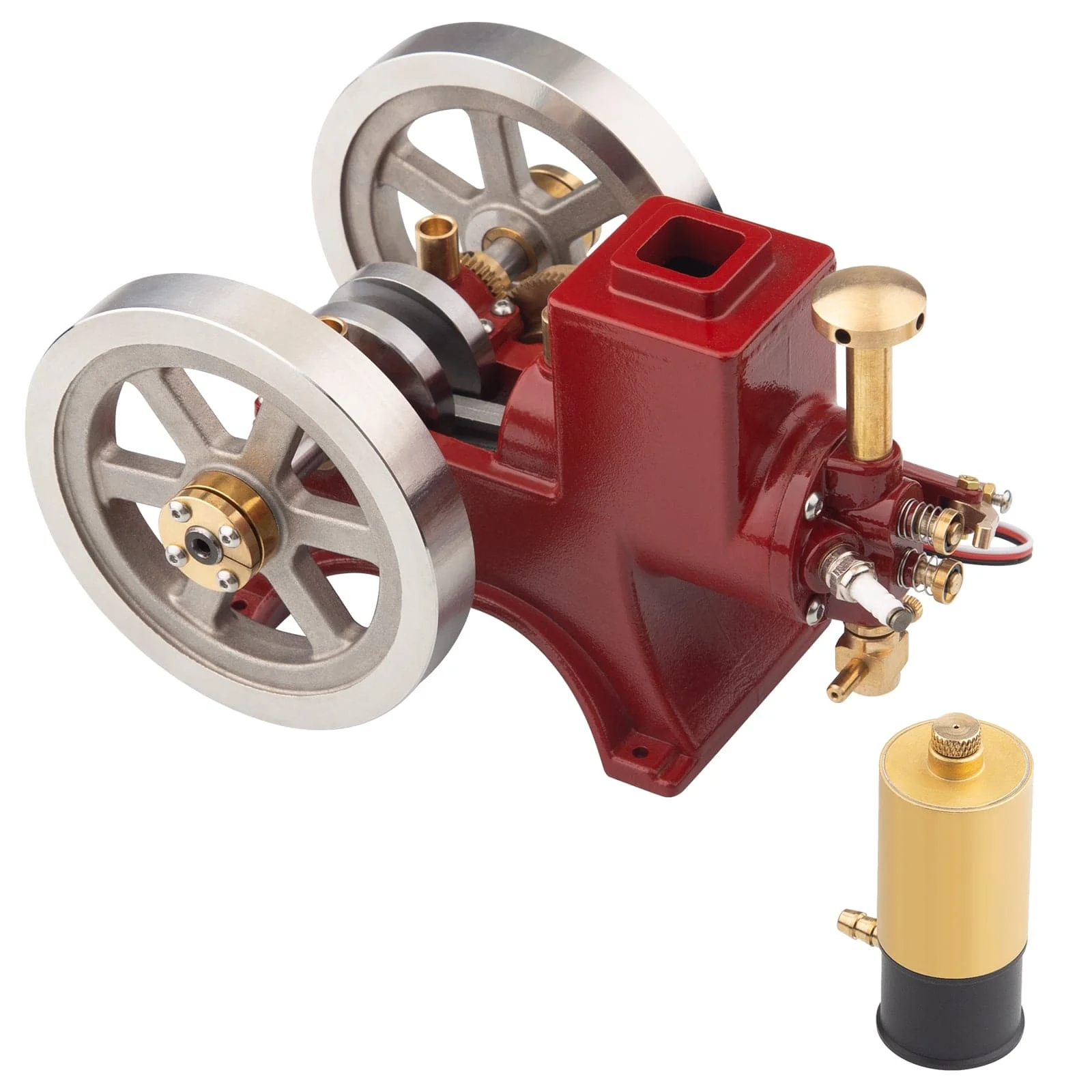

ENJOMOR 6cc Antique Red Hit and Miss Gas Engine Working Model

Description:

A hit-and-miss engine is a type of four-stroke IC engine since the late 1800s and began popular from the 1890s to 1930s. The name comes from the method of speed control that is implemented on these engines (as opposed to the “throttle governed” method of speed control). The sound made when the engine is running is a distinctive “POP whoosh whoosh whoosh whoosh POP” as the engine fires and then coasts until the speed decreases and needs to fire again to maintain its average speed.

  • Product name: All-metal internal combustion engine
  • Weight: about 2kg
  • Material: aluminum alloy
  • Voltage: 4.2~6V
  • Fuel: ZIPPOOIL or gasoline
  • The best tappet clearance: 0.5mm
  • Engine parameters
  • Size: 170*125*112mm
  • Displacement: 6CC.
  • Cylinder diameter: 120MM
  • Itinerary: 20MM.
  • Weight: 1410G
  • piston ring: rubber
  • Age: children over 10 years old

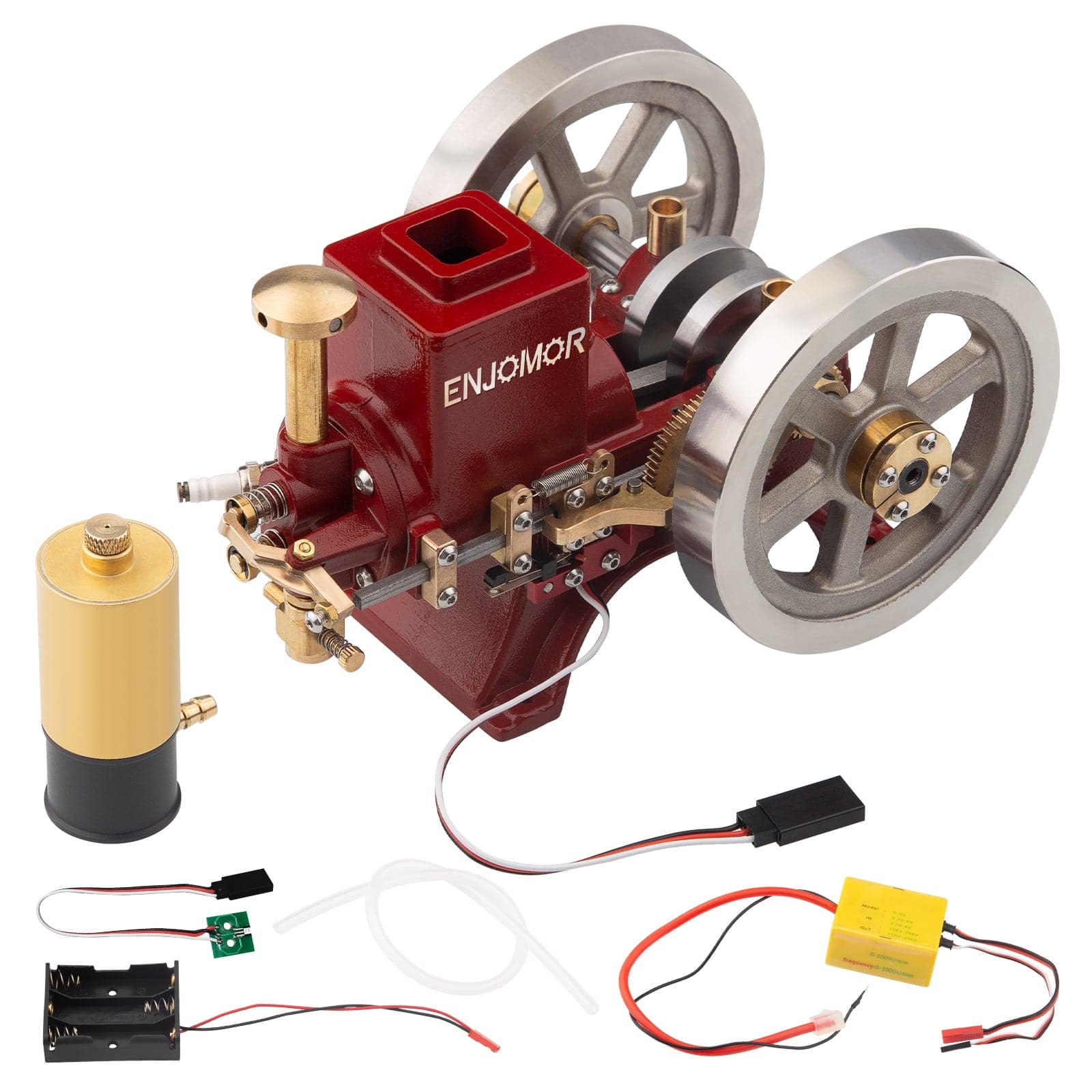

Included packaging:

  • 1 x Engine(Spark Plug Included)
  • 1 x CDI Igniter
  • 1 x Battery Box
  • 1 x Mini Fuel Tank
  • 1 x Fuel Tube
  • 1 x User Manual



Note: Throttle regulator and ignition timing switch,

The engine has been adjusted before shipment, beginners should not move



Engine start steps:

  • Prepare 3 AA 1.5v batteries, check the engine wiring, connect the fuel tank tube, connect the battery box,
  • Fill the fuel tank with gasoline (95#). When the filling is completed, make sure that there is no air in the tubing,
  • Rotate clockwise by hand to make the mixed gasoline completely enter.
  • Rotate the flywheel, check if there is spark, the cylinder is in normal compression state, you can start,



How to adjust the ignition timing,

  1. Check that the piston connecting rod is at the leftmost horizontal position (as shown in Figure 1)
  2. Check the closing condition of the ignition switch and brass (Figure 2)
  3. When both conditions are met, turn the wheel, check that the connecting rod moves to the leftmost 0.2 seconds, and there is spark, you can start the machine

Additional information

Color

Red, Black
