Description
Features :
Specification :
| Model : ESCAM G10 | ||
| System | OS | Embedded Linux OS |
| System security | Account, password authority management | |
| Len | CMOS | 1/4″ CMOS, support AWB, AGC, BLC |
| Lens/viewing angle | 3.6mm angel: 62° | |
| Minimum illumination | Color: 0. 1Lux, B/W: 0.01Lux | |
| IR | IR distance | 6pcs IR Led, IR distance 10m |
| IR Control | Auto | |
| Video | Video Compression | H.264/H.264+ |
| Resolution | 720P(1280*720), D1(704*576), CIF(352*288) | |
| Frame rate | NTSC: 30fps/PAL: 25fps | |
| Audio | Compression | G.711A |
| Input | Built in microphone | |
| Output | Built in speaker | |
| P/T | P/T function | Pan: 355°, Tilt: 90° |
| Network | Network Protocol | TCP/IP, HTTP, SMTP, FTP, DDNS, DHCP, NTP, P2P, RTSP |
| WIFI | WIFI 802.11 b/g/n (2.4G WIFI) | |
| IP address | Dynamic IP | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| Mobile View | software for Iphone, Android(IOS4.3/Android OS 2.3 above) | |
| PC View | PC Client or Web browser | |
| Alarm | Alarm detection | Support motion detection |
| Alarm action | Support email alarm and APP push | |
| Storage | Local Storage | Support up to 64GB MicroSD card |
| Other | Rated Voltage | DC5±0.3V |
| Consumption | Rated power: 3.5W (IR opening )/maximum power: 7W(P/T working ) | |
| Work environment | -10 to 50 °C 10%~90% | |
| Product Weight | 175g | |
| Gross Weight | 350g | |
| Product size | 130*115*95mm | |
| Package size | 150*140*100mm | |

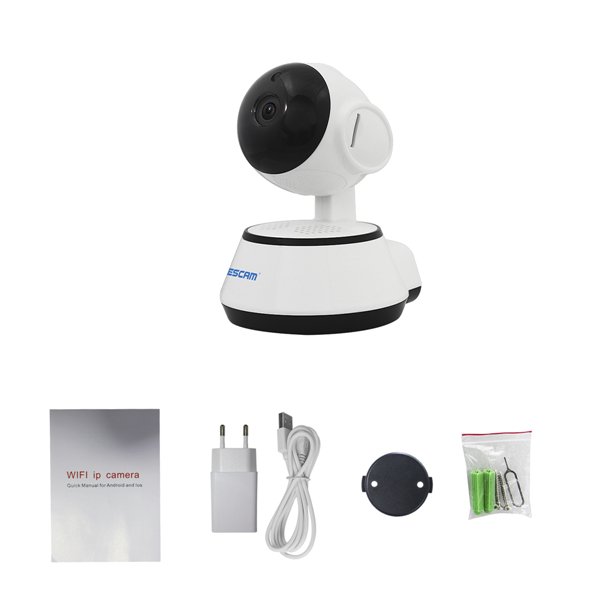

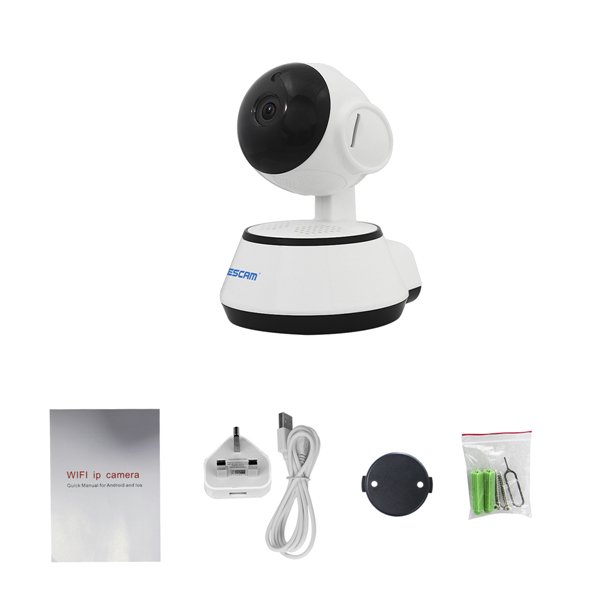

Package includeds :
1 x ESCAM G10 IP Camera
1 x Power Charger
1 x USB Cable
1 x User Manual
1 x Screw Package
1 x Mounting Bracket

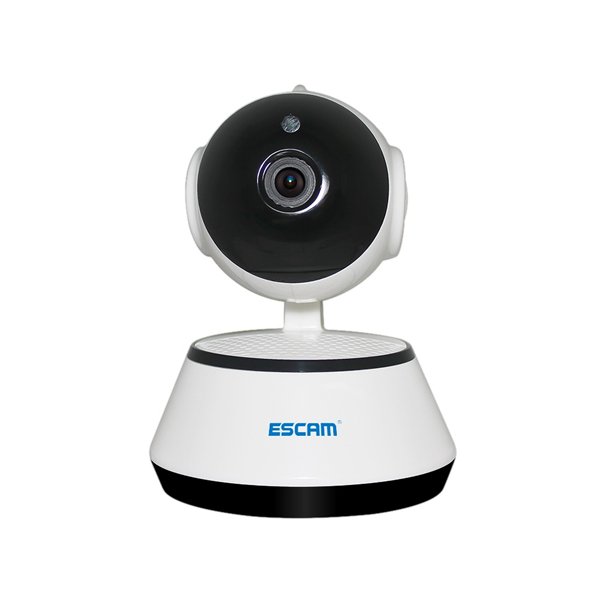

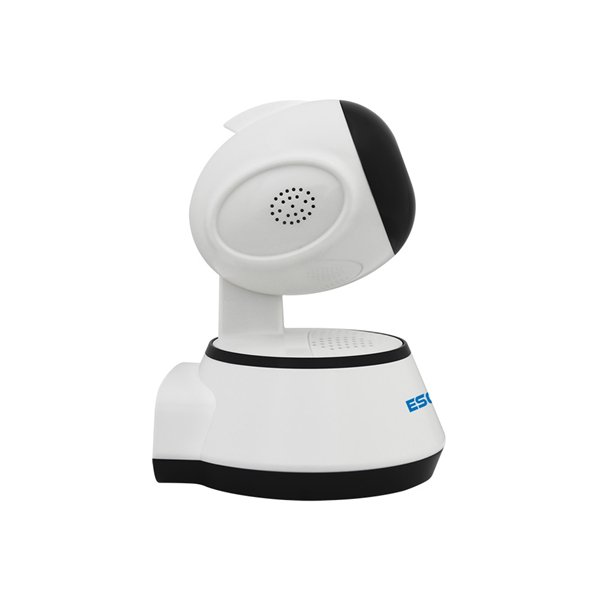

Details pictures :
