Description
Features :
High definition image quality, resolution up to 1 Megapixel, 1280*720.
Power on, images out, plug in and play.
WiFi range up to 50 meters.
WiFi connection, without wiring.
Dual antenna WiFi NVR.
Specification :
| ESCAM WNK804 Wireless NVR | ||
| video input | Network Video | 8CH |
| Network video input broadbank | 20Mbps | |
| video output | HDMI input | 1ch, resolution: 1024×768, 1366×768, |
| 1440×900,1920x1080p | ||
| VGA output | 1ch, resolution: 1024×768, 1366×768, | |
| 1440×900,1920x1080p | ||
| AV CODEC Specification | Video Resolution | 720P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual / Time / Motion / Alarm |
| Playback mode | Real time / Routine / Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | one adaptable RJ45 10M/100M, one 2.4Ghz WIFI interface |
| USB Interface | USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address) | ||
| Others | Power Supply | DC12V2A |
| Power Consumption (W) | ≤5W (Without HDD) | |
| Operate Temperature (°C) | -10℃~+55℃ | |
| Working Humidity (%) RH | 10%~90% | |
| Weight (excluding HDD) | 0.73Kg | |
| Dimensions | 257*210*42mm | |
| IP Camera | ||
| Sensor | 1/4” Progressive CMSO Sensor | |
| Signal System | PAL/NTSC | |
| Resolution | 1280 x 720 | |
| Minimum illumination | Color: 0.1 Lux; B/W: 0.01 Lux | |
| Shutter | 1/25s to 1/25,000s | |
| Lens | 3.6mm | |
| OSD | Date Time & Title | |
| White Balance | Auto | |
| Day&Night | Auto / Color / BW | |
| 3D-DNR | Auto | |
| Mirror/Flip | On / Off | |
| Frame Specification | Three Streaming at the Same Time: | |
| H.264 1280×720@15fps or below | ||
| H.264 640×480@30fps or below | ||
| S/N | > 39.1 Db | |
| Interface | RJ45 / WIFI 802.11b/g/n | |
| General | Anti-thunder Level | Standard IEC61000-4-5 |
| Working Temperature/Humidity | -10℃ to +50℃ / 30% to 80% RH | |
| Working Temperature/Humidity | -20℃ to +60℃ / 20% to 90% RH | |
| Power Input | DC12V1A | |
| Power consumption | ≤6W | |
| Level of Protection | IP66 | |
| Weight | 0.3kg | |
| Dimensions | 107 x 68 x 60mm | |
| Package | Package Dimension | 320 x 280 x 280mm |
| Package Weight | 5kg | |

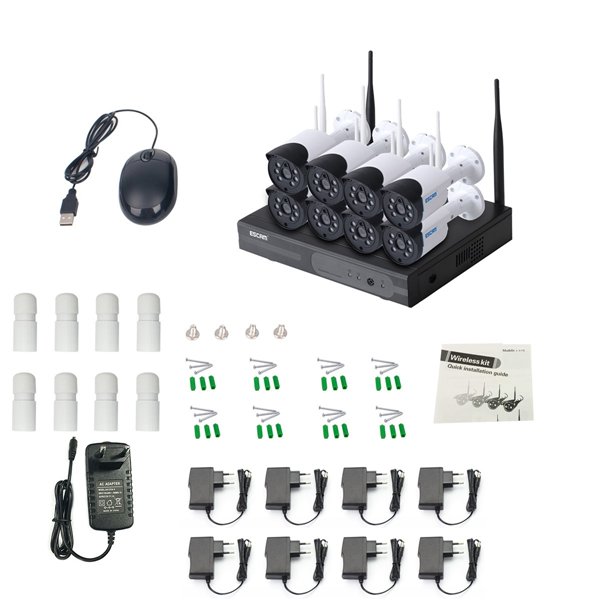

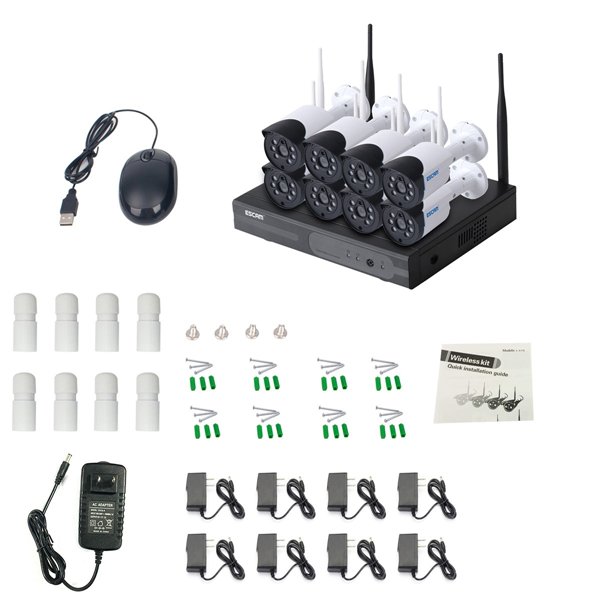

Package includeds :
1 x ESCAM WNK804 WiFi NVR
8 x WIFI Camera
9 x Screw Bag
1 x Mouse
9 x Power Adapter (EU/US/AU/UK Plug for Optional~)
1 x User Manual
8 x Waterproof Hat
1 x Network Cable

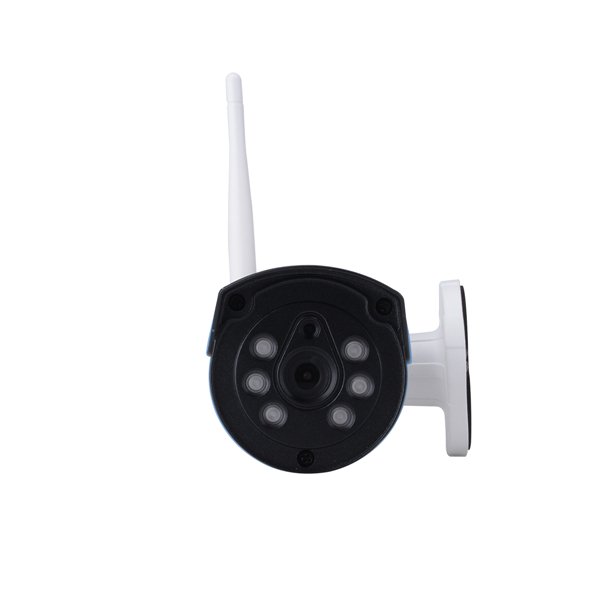

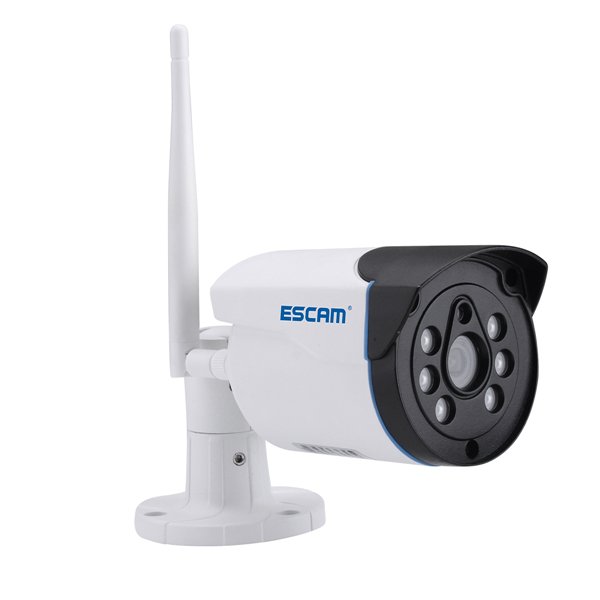

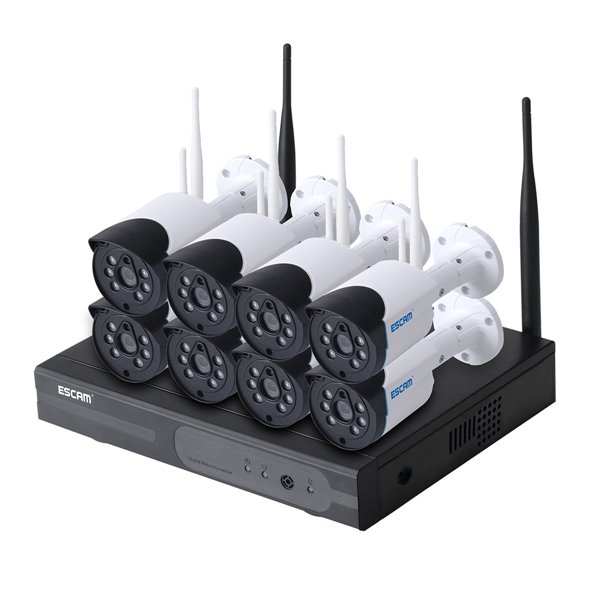

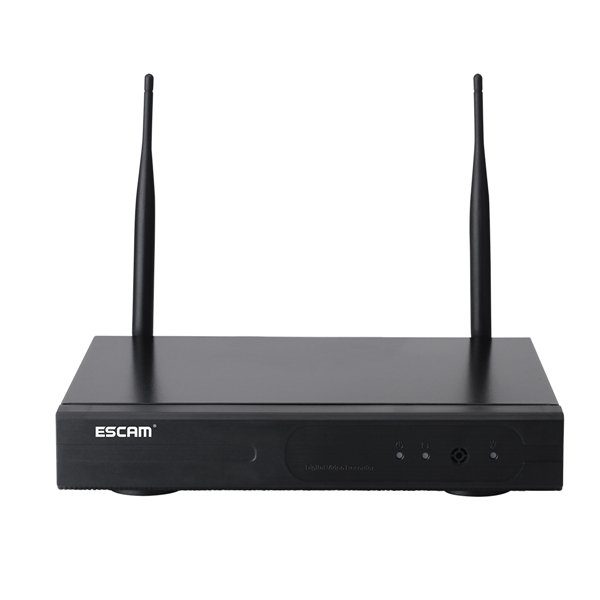

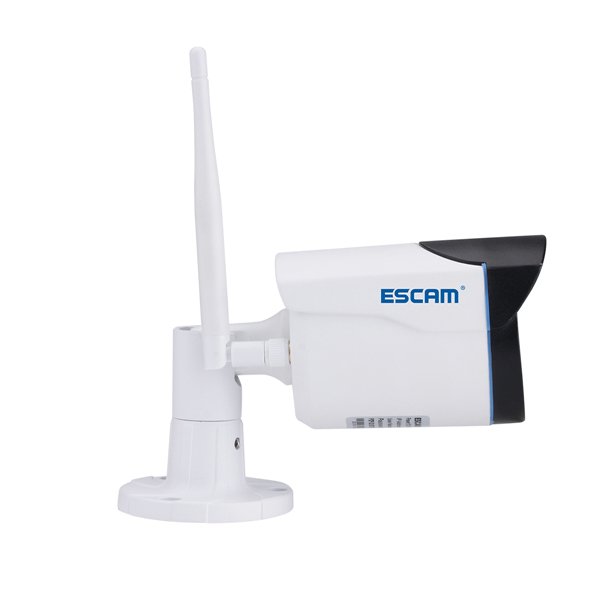

Details pictures :
