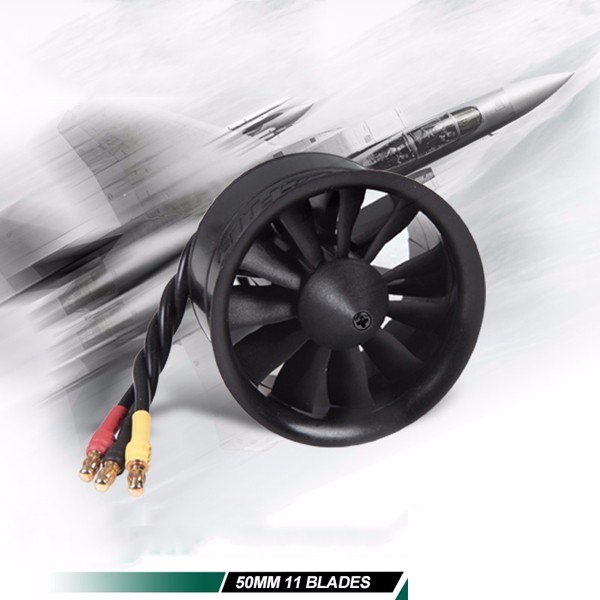

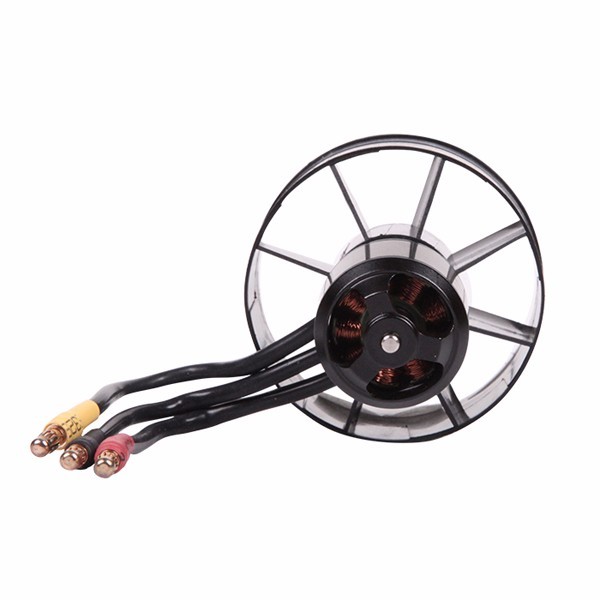

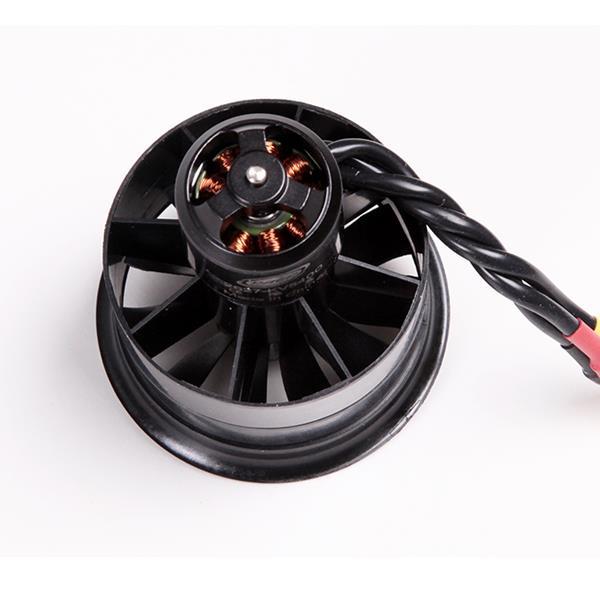

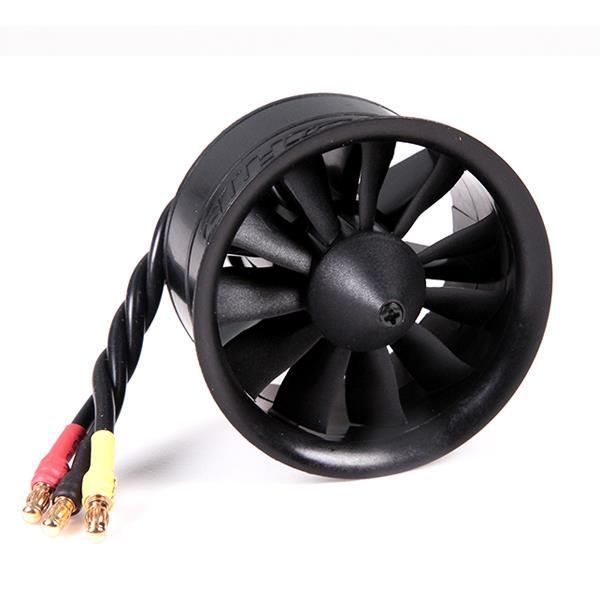

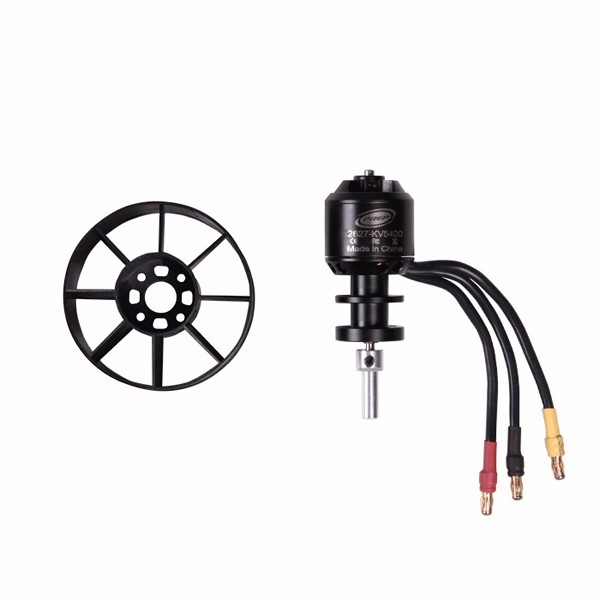

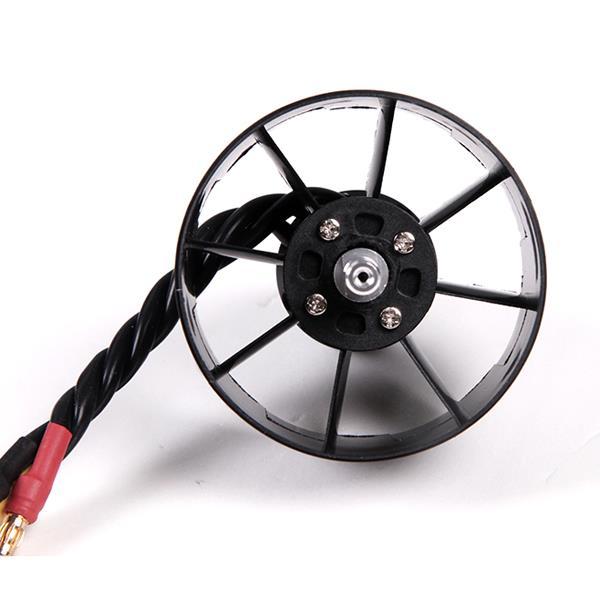

FMS 50mm 11 Blades Ducted Fan EDF With 2627 KV4500 KV5400 3S 4S Brushless Motor

or 6 weekly interest-free payments from $16.97 with Laybuy

$101.83 AUD

Estimated delivery between 2024/05/29 - 2024/06/05
Add to Wishlist
Add to Wishlist
SKU: C122-1115809 Category:

Description

FMS 50mm 11 Blades Ducted Fan EDF With 2627 KV4500 KV5400 3S 4S Brushless MotorDescription:Brand Name: FMSItem Name: 50mm 11 blades Ducted Fan Motor: 2627 KV4500(4S)/ KV5400(3S) (Optional)Weight: 75gUsage: Suitable for RC AirplaneFeatures:–  All composite materials processing and injection molding processing, light weight, power system 327 g, has ultra high rigidity and toughness.- First-class mold design,ensure the blades perfect dynamic balance,the balde cooperates the duct in place,sound effect and efficiency value are comparable to all metal duct on the market.- FMS pioneering thermal design,in does not affect the efficiency of the case,ensure the motor’s normal working,no need to worry that the motor heating will affect the life and performance.- Reasonable structure design,you can arbitrarily choose different manufacturers motor,this item can e assembled to all the 90 ducted airplane,no need to make too much manual changes to the aircraft.

Performance parameters:

Voltage Current Thrust
3S EDF unit 12.5V 40A 650g
4S EDF unit 16.5V 40A 850g
Recommended Parts For KV5400 Motor:
Battery: 3S 2200mAh 35C lipo
ESC: 40A brushless
Recommended Parts For KV4500 Motor:
Battery: 4S 2600mAh 35C lipo
ESC: 40A brushless

Note:Some ducted inner tube wall may have test scratches,it will not affect the overall performance,and the ducted mounted inside the aircraft, it had no effect on the appearance. We don’t accept the returns or negative review due to the scratches.Package Included:1X FMS 50mm 11 Blades Ducted Fan EDF With 2627 KV4500/KV5400 3S 4S Brushless Motor

,,,,,,,,

Additional information

Weight 0.13 kg
MPN

1115809

KV

17762 5400KV, 18005 4500KV
